Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete input number | 64 current sink isolated conforming to EN/IEC 61131-2 type 1 |
| Discrete input current | 3.5 mA |
| Sensor power supply | 19-30 V |

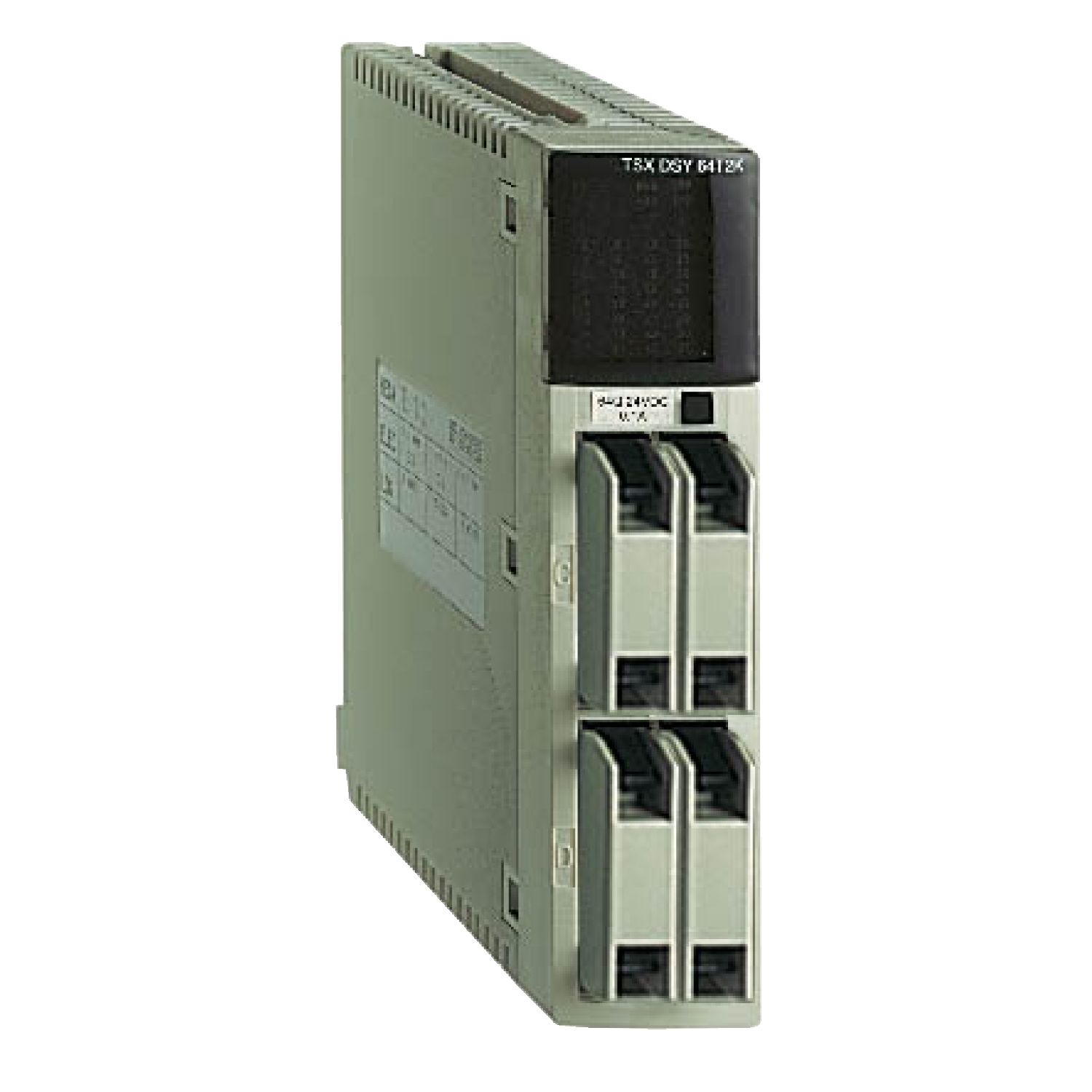

| Product or component type | discrete input module |
| Discrete input voltage | 24 V DC positive |
| Range of product | Modicon Premium Automation platform |
| Complementary | |
| Module format | standard |
| Electrical connection | HE-10 connector |
| Response time | <= 7 ms, 4 ms |
| Current state 0 guaranteed | <= 1.5 mA |
| Voltage state 1 guaranteed | >= 11 V |
| Voltage state 0 guaranteed | <= 5 V |
| Net weight | 0.37 kg |
| Current state 1 guaranteed | >= 3 mA |
| Marking | CE |
| Insulation resistance | < 10 MOhm 500 V DC |
| Current consumption | 315 mA at 24 V DC, 155 mA at 5 V DC |
| Power dissipation | (1.5 W + 0.1 W x No of channels used) |
| Input impedance | 6300 Ohm at state 1 |
| Environment | |
| Operating altitude | 0...2000 m |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Relative humidity | 5-95 % without condensation for storage, 10-95 % without condensation for operation |
| Ambient air temperature for storage | -25-70 °C |
| Dielectric strength | 1500 V AC at 50/60 Hz |
| Pollution degree | 2 |
| Standards | EN/IEC 61131-2, 92/31/EEC, 93/68/EEC, 89/336/EEC, CSA C22.2 No 213 Class I Division 2 Group D, IEC 60664, UL 508, CSA C22.2 No 213 Class I Division 2 Group C, CSA C22.2 No 213 Class I Division 2 Group A, CSA C22.2 No 213 Class I Division 2 Group B, 73/23/EEC, CSA C22.2 No 142 |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | DNV, GL, ABS, RINA, RMRS, BV, LR |
