Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete output number | 8 |
| Discrete output voltage | 24 V DC positive conforming to EN/IEC 61131-2 19...30 V |
| Discrete output current | 2 A |

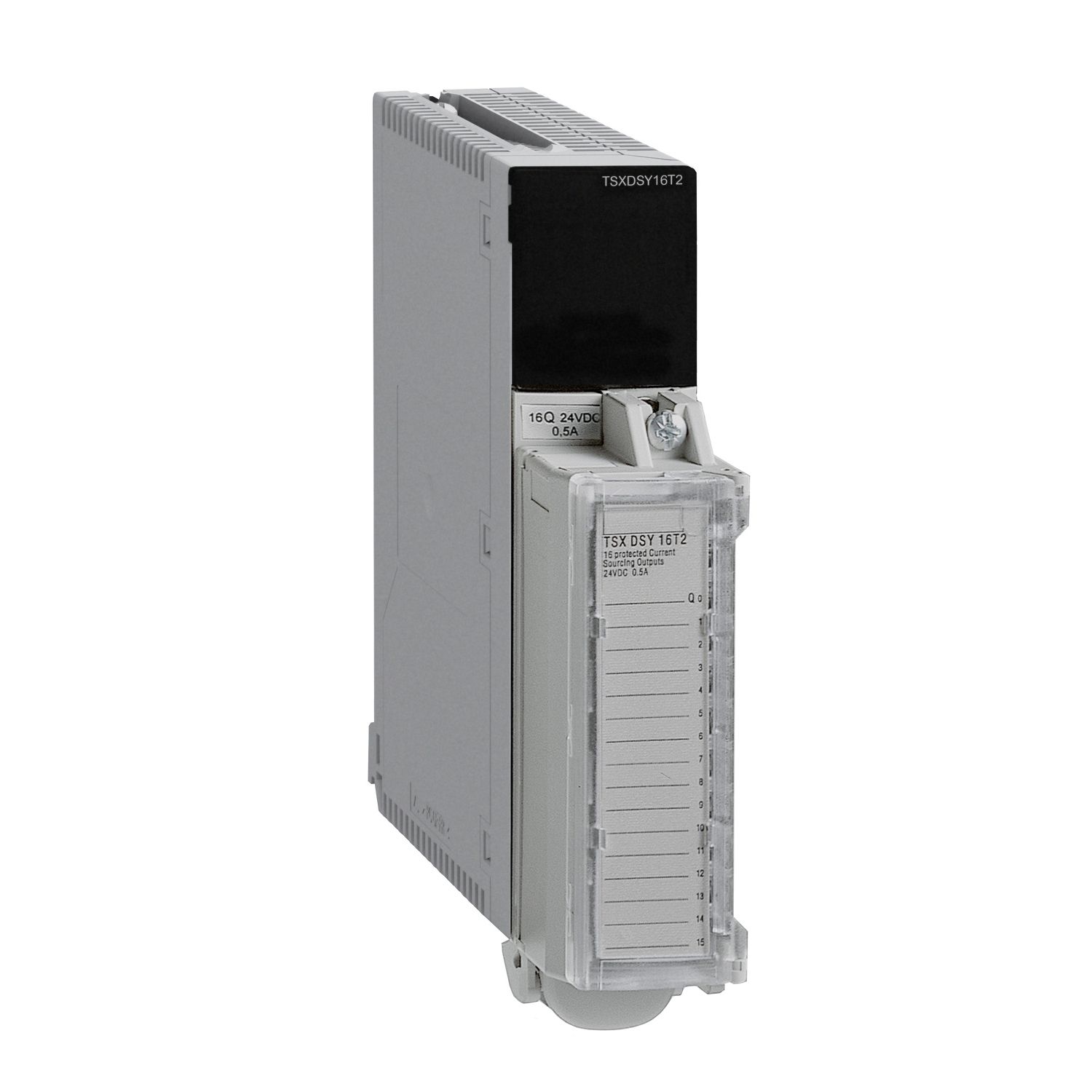

| Product or component type | discrete output module |
| Range of product | Modicon Premium Automation platform |
| Discrete output type | solid state protected |
| Complementary | |
| Reverse polarity protection | reverse mounted diode |
| Module format | standard |
| Minimum load impedance | 12 W |
| Preactuator voltage detection threshold | 16 V |
| Short-circuit protection | electronic tripping on reactivation |
| [Ures] residual voltage | 0.5 V |
| Maximum leakage current | 1 mA at state 0 |
| Net weight | 0.41 kg |
| Response time | 0.2 ms |
| Output overvoltage protection | by transil diode |
| Marking | CE |
| Output overload protection | electronic tripping on reactivation |
| Current consumption | 55 mA at 5 V DC |
| Insulation resistance | > 10 MOhm 500 V |
| Electrical connection | screw terminal block |
| Current per channel | 2.5 A |
| Switching frequency | 0.5/LI² Hz |
| Maximum current per module | 14 A |
| Power dissipation | (1.3 W + 0.2 W x No of outputs x current per module) |
| Environment | |
| Operating altitude | 0...2000 m |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Relative humidity | 5-95 % without condensation for storage, 10-95 % without condensation for operation |
| Ambient air temperature for storage | -25-70 °C |
| Dielectric strength | 1500 V 50/60 Hz 60 s |
| Pollution degree | 2 |
| Standards | 89/336/EEC, CSA C22.2 No 213 Class I Division 2 Group C, IEC 61131-2, UL 508, 92/31/EEC, 73/23/EEC, 93/68/EEC, CSA C22.2 No 213 Class I Division 2 Group A, CSA C22.2 No 142, CSA C22.2 No 213 Class I Division 2 Group B, CSA C22.2 No 213 Class I Division 2 Group D |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | DNV, LR, ABS, BV, RMRS, GL, RINA |
