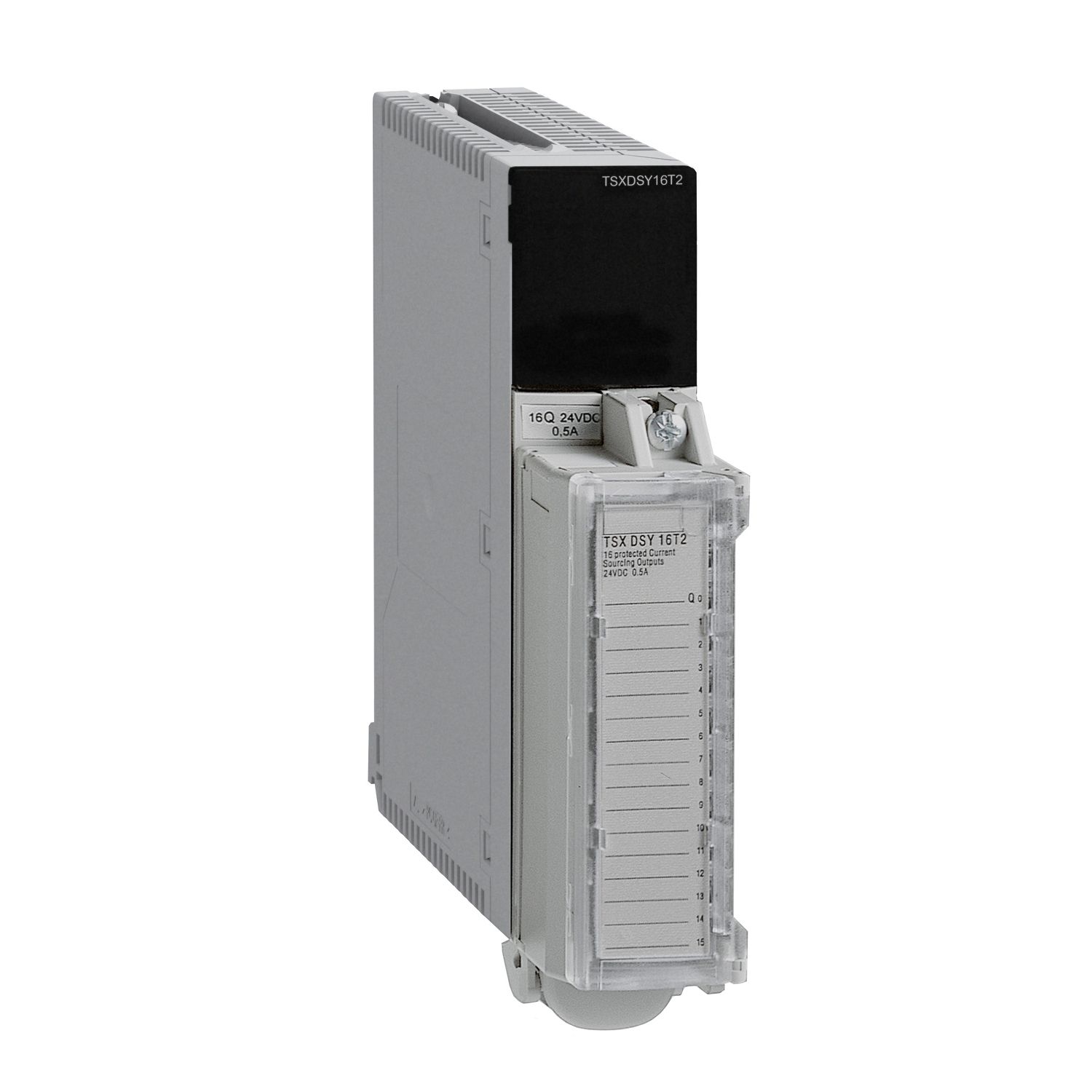

Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Discrete output number | 16 |
| Discrete output voltage | 24...240 V AC conforming to EN/IEC 61131-2 20...264 V, 12...24 V DC conforming to EN/IEC 61131-2 10...34 V |
| Product or component type | discrete output module |
| Range of product | Modicon Premium Automation platform |
| Discrete output type | relay not protected |
| Complementary | |
| Module format | standard |
| Short-circuit protection | 1 external fuse per channel or group of channel fast blow |
| Contacts type and composition | 1 NO |
| Electrical durability | 1000000 cycles AC-12 50 VA 48 V resistive, 1000000 cycles AC-12 220 VA 220 V resistive, 1000000 cycles AC-12 110 VA 110 V resistive, 100000 cycles AC-15 220 VA 220 V inductive, 100000 cycles AC-14 220 VA 220 V inductive, 300000 cycles DC-12 40 W 24 V resistive, 700000 cycles AC-12 50 VA 24 V resistive, 2000000 cycles DC-3 10 W 24 V inductive, 5000000 cycles AC-15 10 VA 48 V inductive, 5000000 cycles AC-15 10 VA 220 V inductive, 5000000 cycles AC-15 10 VA 110 V inductive, 5000000 cycles AC-14 10 VA 48 V inductive, 5000000 cycles AC-14 10 VA 220 V inductive, 5000000 cycles AC-14 10 VA 110 V inductive, 500000 cycles AC-15 24 VA 24 V inductive, 500000 cycles AC-14 24 VA 24 V inductive, 500000 cycles AC-12 220 VA 110 V resistive, 500000 cycles AC-12 110 VA 48 V resistive, 1000000 cycles DC-3 24 W 24 V inductive, 3000000 cycles AC-15 50 VA 220 V inductive, 3000000 cycles AC-14 50 VA 220 V inductive, 2000000 cycles AC-15 24 VA 48 V inductive, 2000000 cycles AC-14 24 VA 48 V inductive, 1500000 cycles AC-15 50 VA 110 V inductive, 1500000 cycles AC-14 50 VA 110 V inductive, 150000 cycles AC-15 110 VA 110 V inductive, 150000 cycles AC-14 110 VA 110 V inductive, 1000000 cycles AC-15 110 VA 220 V inductive, 1000000 cycles AC-14 110 VA 220 V inductive, 1000000 cycles DC-12 24 W 24 V resistive |
| Net weight | 0.38 kg |
| [Ith] conventional free air thermal current | 3 A |
| Response time | < 8 ms (activation), < 10 ms (deactivation) |
| Output overvoltage protection | AC inductive, by RC circuit MOV (ZNO) on each preactuator, DC inductive, by discharge diode on each preactuator |
| Marking | CE |
| Output overload protection | 1 external fuse per channel or group of channel fast blow |
| Current consumption | 80 mA at 5 V DC, 135 mA at 24 V DC rack |
| Insulation resistance | > 10 MOhm 500 V |
| Electrical connection | screw terminal block |
| Power dissipation | (0.25 W + 0.2 W x No of outputs at state 1) |
| Environment | |
| Operating altitude | 0...2000 m |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Relative humidity | 5-95 % without condensation for storage, 10-95 % without condensation for operation |
| Ambient air temperature for storage | -25-70 °C |
| Dielectric strength | 2000 V 50/60 Hz 60 s |
| Pollution degree | 2 |
| Standards | 93/68/EEC, CSA C22.2 No 213 Class I Division 2 Group D, CSA C22.2 No 142, CSA C22.2 No 213 Class I Division 2 Group A, CSA C22.2 No 213 Class I Division 2 Group C, 89/336/EEC, 92/31/EEC, CSA C22.2 No 213 Class I Division 2 Group B, UL 508, IEC 61131-2, 73/23/EEC |
| Ambient air temperature for operation | 0-60 °C |
| Product certifications | DNV, GL, RMRS, ABS, LR, RINA, BV |
