Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Modicon Premium Automation platform |
| Software designation | PL7 Junior/Pro |

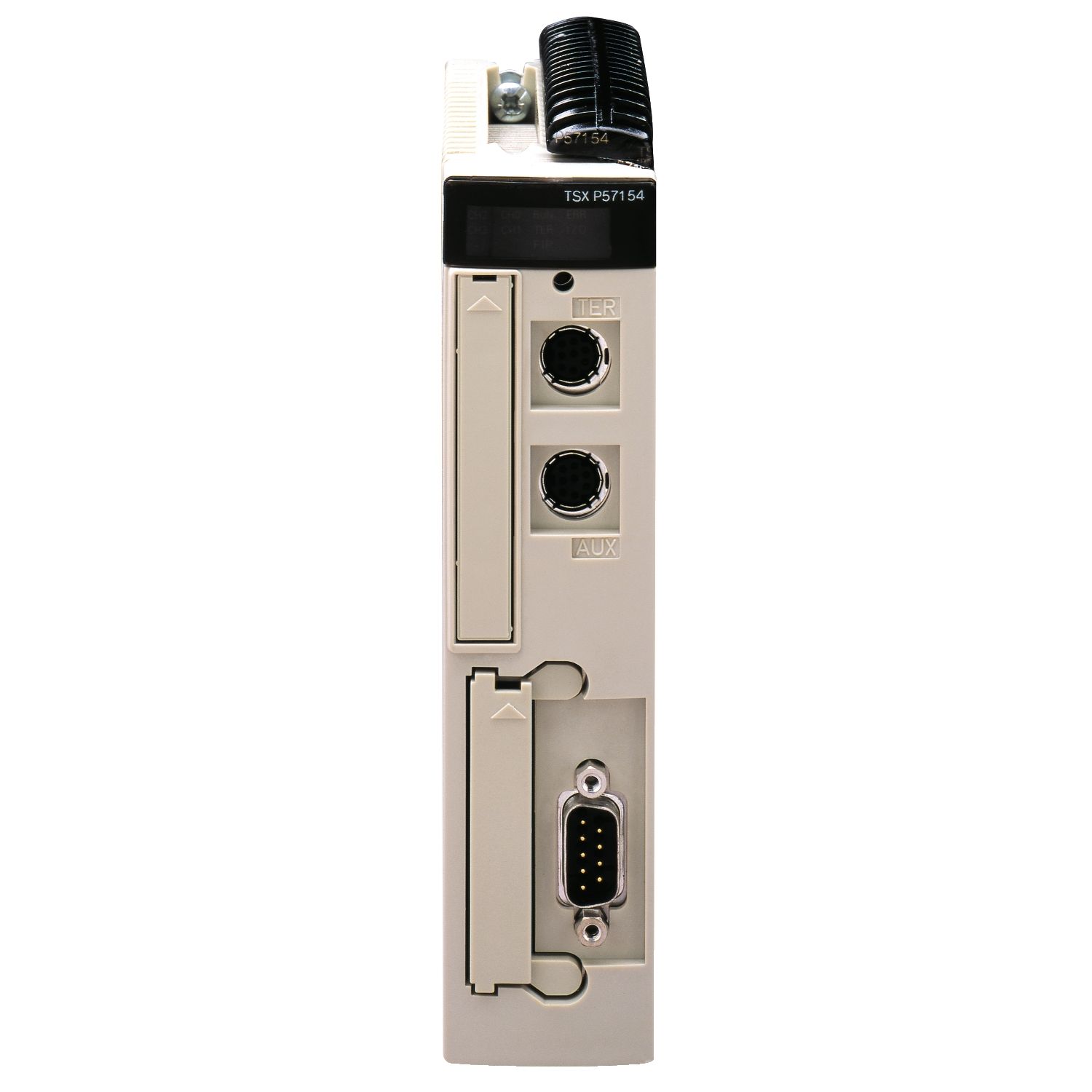

| Product or component type | single-format PL7 processor |
| Complementary | |
| Number of application specific channel | 32 |
| Memory description | PCMCIA card 384 Kwords program, PCMCIA card 2688 Kwords additional data storage, internal RAM (without PCMCIA card) 80 Kwords program and data, internal RAM (with PCMCIA card) 96 Kwords data |
| Analogue I/O processor capacity | 128 I/O |
| Module format | standard |
| Number of instructions per ms | 4.76 Kinst/ms 100 % Boolean without PCMCIA card, 3.7 Kinst/ms 100 % Boolean with PCMCIA card, 3.57 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card, 2.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card |
| Number of slots | 64, 96, 128 |
| Application structure | 1 master task, 64 event tasks, 1 fast task |
| Marking | CE |
| Discrete I/O processor capacity | 1024 I/O |
| Local signalling | 1 LED (yellow) for activity on the terminal port (TER), 1 LED (red) for processor or system fault (ERR), 1 LED (red) for I/O module or configuration fault (I/O), 1 LED (red) for activity on Fipio bus (FIP), 1 LED (green) for processor running (RUN) |
| Execution time per instruction | 2.6 µs floating points without PCMCIA card, 2.6 µs floating points with PCMCIA card, 0.42 µs word or fixed-point arithmetic with PCMCIA card, 0.25 µs word or fixed-point arithmetic without PCMCIA card, 0.21 µs Boolean with PCMCIA card, 0.19 µs Boolean without PCMCIA card |
| Maximum size of object areas | 32 %KWi constant words located internal data, 30.5 %MWi internal words located internal data, 16384 %Mi located internal bits |
| Integrated connection type | non isolated serial link 2 female mini DIN connector (19.2/115 kbit/s), Fipio manager (127 agents) SUB-D 9 connector |
| System overhead | 1 ms for master task, 0.35 ms for fast task |
| Net weight | 0.42 kg |
| Current consumption | 1650 mA at 5 V DC |
| Communication module processor capacity | 3 network module, 1 CANopen, 8 AS-Interface bus modules, 2 fieldbus modules (1 if CANopen used) |
| Number of process control channel | 15 up to 45 simple loops |
| Number of racks | 8 12 slots, 16 4/6/8 slots |
| Environment | |
| IP degree of protection | IP20 |
| Protective treatment | TC |
| Relative humidity | 5-95 % without condensation for storage, 10-95 % without condensation for operation |
| Ambient air temperature for storage | -25-70 °C |
| Pollution degree | 2 |
| Ambient air temperature for operation | 0-60 °C |
| Operating altitude | 0...2000 m |
| Standards | CSA C22.2 No 213 Class I Division 2 Group D, 93/68/EEC, UL 508, 73/23/EEC, CSA C22.2 No 213 Class I Division 2 Group A, 92/31/EEC, CSA C22.2 No 213 Class I Division 2 Group C, CSA C22.2 No 213 Class I Division 2 Group B, 89/336/EEC, CSA C22.2 No 142, IEC 61131-2 |
| Product certifications | RINA, RMRS, GL, ABS, LR, BV, DNV |
