Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |

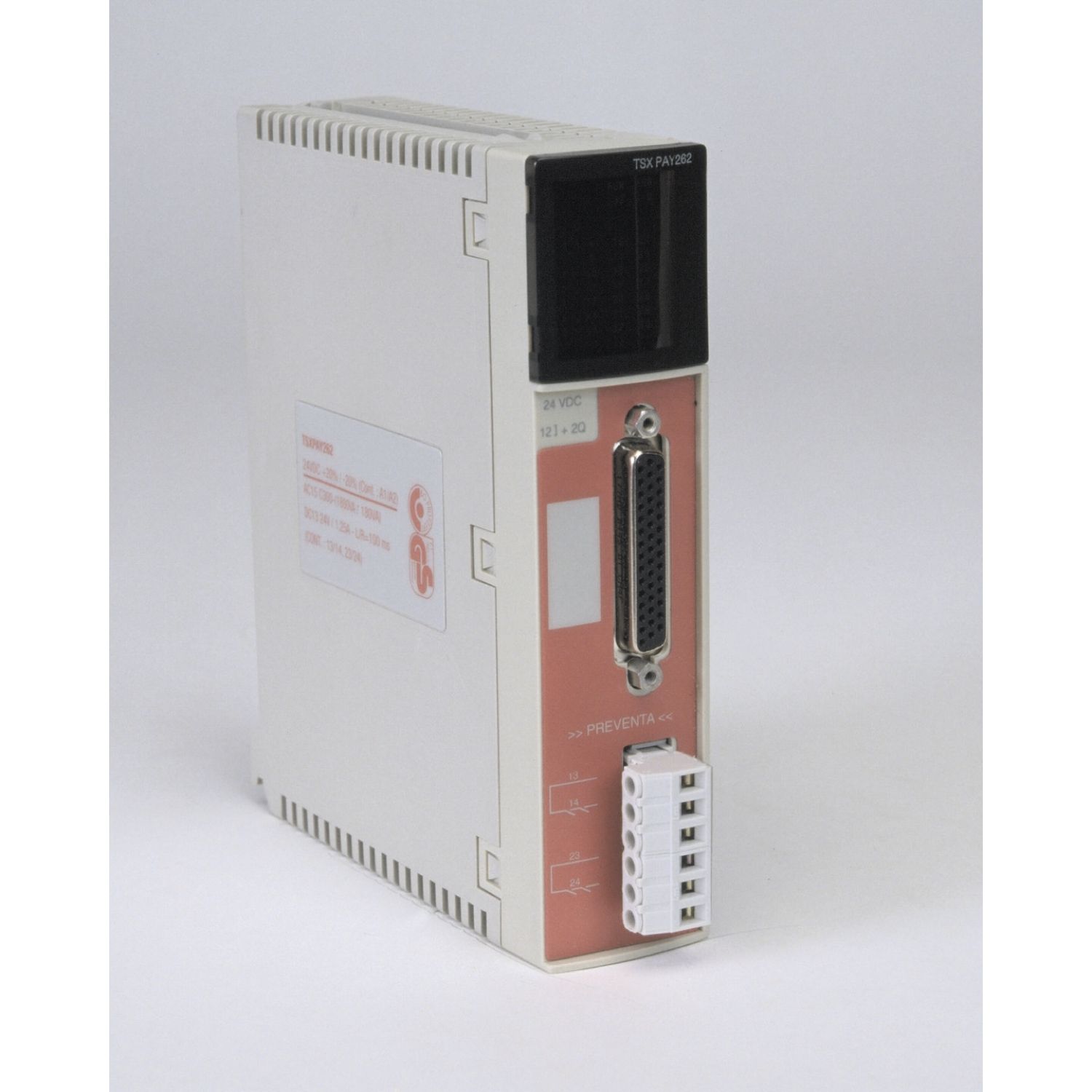

| Product or component type | Preventa safety module |
| Range of product | Modicon Premium Automation platform |
| Complementary | |
| Discrete input number | 12 for emergency stop or limit switch discrete inputs conforming to IEC 1131 Type 1, 1 for reset PB monitoring input conforming to IEC 1131 Type 1, 1 for reset PB input conforming to IEC 1131 Type 1, 1 for feedback loop input conforming to IEC 1131 Type 1, 1 for double or single contact selection input conforming to IEC 1131 Type 1 |
| [Us] rated supply voltage | 24 V DC |
| Safety outputs | 2 NO safety relay AGCDO gold plated volt free output |
| Activation threshold | < 20 V |
| Module format | standard |
| Isolation between input and earth | 500 Vrms 50/60 Hz for 60 s |
| Local signalling | 28 LEDs for diagnostic of safety system |
| Cable cross section | 1.5-1.5 mm² with cable end safety output circuit, 0.2-2.5 mm² without cable end safety output circuit |
| Isolation between output and earth | 1500 Vrms 50/60 Hz for 60 s, 300 V conforming to DIN VDE 0110 part 2 |
| Discrete input logic | positive |
| Supply voltage limits | 19.2-30 V |
| Maximum power dissipation in W | 5 W |
| Isolation voltage | 4000 V III 2 |
| Net weight | 0.43 kg |
| Rated power in VA | 60 VA 24 V AC-15 inductive, 550 VA 220 V AC-15 inductive, 280 VA 110 V AC-15 inductive, 120 VA 48 V AC-15 inductive |
| Current consumption | <= 200 mA at 24 V DC, < 150 mA at 5 V DC |
| [Ithe] conventional enclosed thermal current | 2.5 A |
| Inrush current | 0.5 A |
| [Ue] rated operational voltage | 19...250 V AC relay output, 17...127 V DC relay output |
| Response time on output | < 12 ms |
| Short-circuit protection | 4 A gG external conforming to IEC 947-5-1 on safety relay outputs, 1 A gG external conforming to IEC 947-5-1 on power supply |
| Minimum output current | 30 mA |
| Safety acquisition | read status of the 24 inputs, read the safety outputs control, read enable inputs, monitor external power supply of the module, read feedback loop |
| Electrical connection | 1 connector SUB-D with 44 pins for connecting the safety system input, 1 connector removable screw terminal block with 6 pins for connecting the safety output |
| Rated power in W | 60 W 24 V DC-13 inductive 100 ms |
| Environment | |
| Ambient air temperature for storage | -25-70 °C |
| Standards | CSA C22.2 specific requirements (PLC), IEC 61508 SIL 3 machine safety parts of control systems, ISO 13849-1 category 4 machine safety parts of control systems, UL 508 specific requirements (PLC), ISO 13850 emergency stop equipment, EN/ISO 12100 machine electrical equipment, EN/IEC 61131-2 specific requirements (PLC), EN/IEC 60204-1 machine electrical equipment, EN 954 machine safety parts of control systems |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | 0-60 °C with fan module, 0-40 °C without fan |
| Product certifications | UL, CSA, BG |
