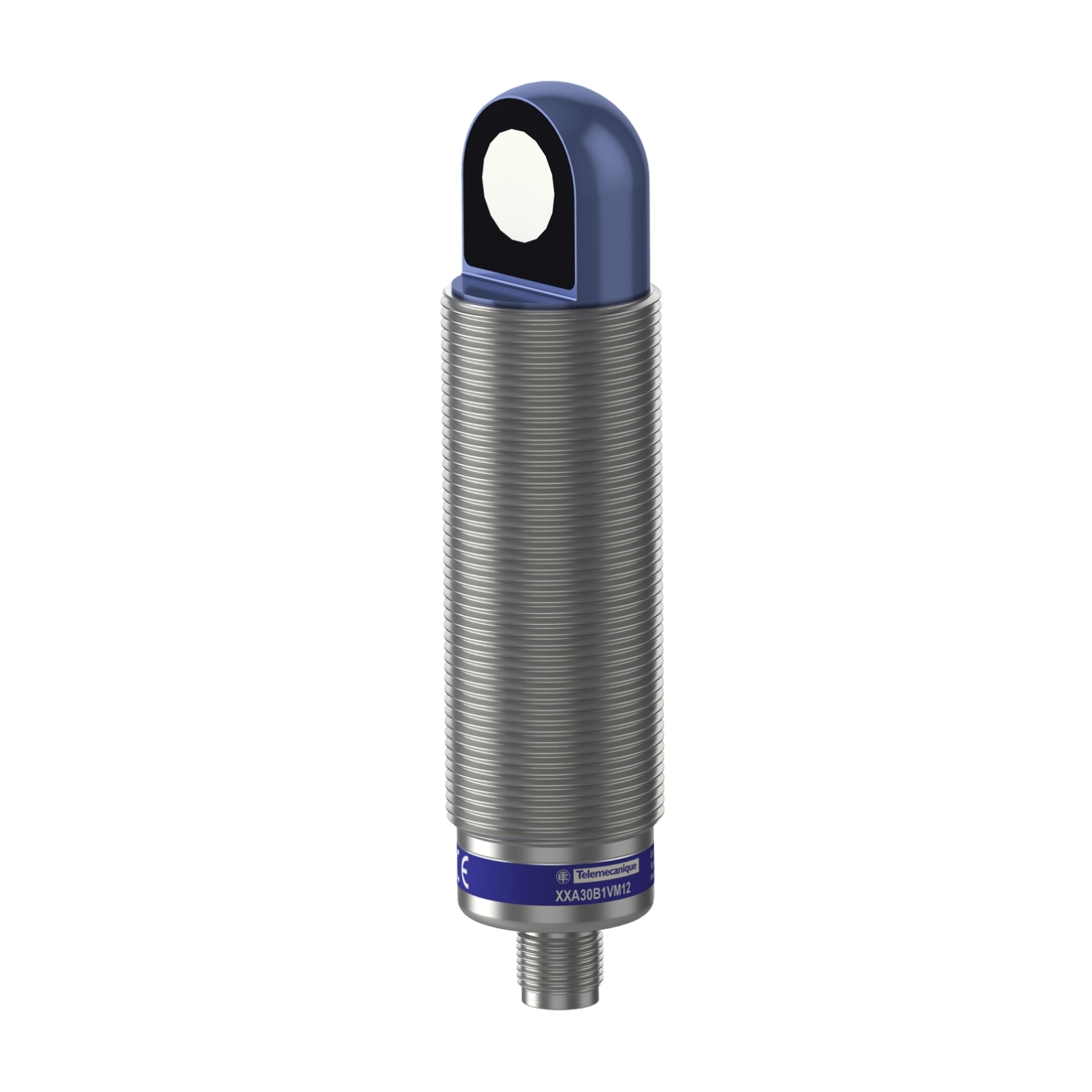

The XX range is an offer of sensors using the ultrasonic technology for the detection of any material, without contact. This ultrasonic sensor in a cylindrical M30 design (90° angled sensing axis) with diffuse detection system. It supports 1m nominal sensing distance and analogue output (0V to 10V). This sensor is configurable by software. It is an ultrasonic sensor with a rated supply voltage of 24V DC with reverse polarity protection, 14V to 30V DC and current consumption of 65mA. It is furnished with 5-pin M12 male connector for electrical connection. It is an IP65/IP67 rated product. The enclosure is made of nickel-plated brass with epoxy, rubber and resin front. Its dimensions are 129.6mm (Length) x 30mm (Diameter). It weighs 0.175kg. This general purpose ultrasonic sensor is suitable for assembly, conveying and packaging applications. This product is certified by CE, CULus, EAC, E2, Ecolab and RCM. It meets CSA C22.2 No 14, EN/IEC 60947 5 2 and UL 508 standards. A teach pushbutton XXZPB100 can be purchased separately. It allows the adjustment of the detection window. It can easily be mounted with the fixing clamp XXZB130, to be ordered separately. XX ultrasonic sensors operate in diffuse, reflex and thru beam modes. This range of sensors even includes long distance detection models. The XX ultrasonic sensors perform contactless, reliable and high performance detection regardless of the target's shape, texture, color or transparency.
