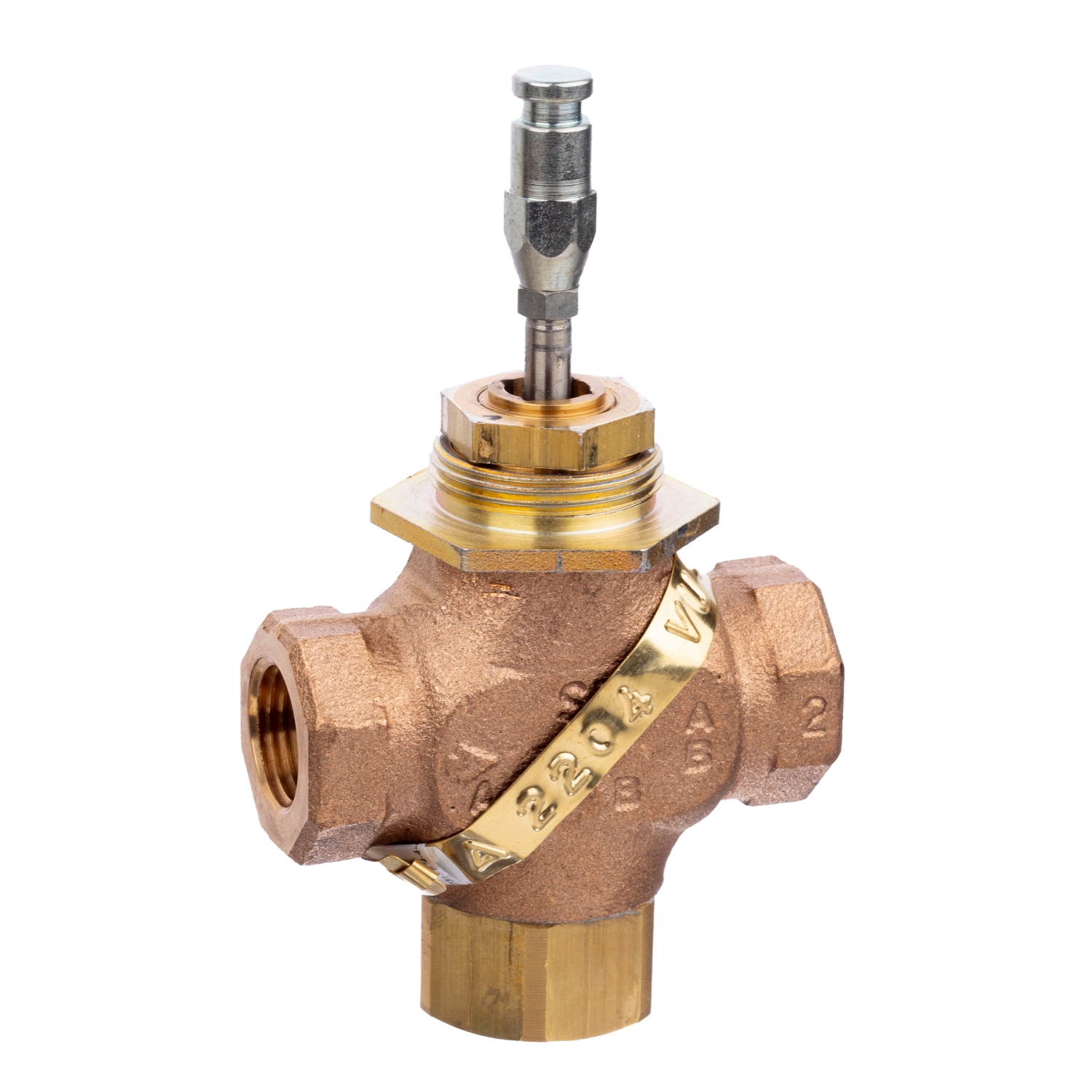

Venta, Globe Valve, 1/2 in, 3-way mixing, straight threaded NPT, stem up closes port A, brass trim, 4.4 Cv
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Operating fluid temperature | -7-138 °C |
| Body material | bronze |
| Seating seal material | Port B:metal to metal, PTFE (polytetrafluoroethylene) |
| Seat leakage | Port B: Class III (0.1 %), Port A: Class V, Port A: Class IV (0.01 %) |
| Product or component type | valve |
| Targeted region | North America. |
| Seat material | Port B: bronze, Port A: bronze |
| Valve product range | Venta |
| Pressure allowable static | 400 psig up to 150 °F decreasing to 321 psig at 281 °F |
| Medium compatibility | Water, Glycol 60 %, Glycol 50 %, Glycol 30 %, Glycol 25 % |
| Control valve rangeability | 100:1 port A |
| Plug material | brass |
| Valve product series | VB-7300 |
| Flow coefficient | 3.81 kvs, 4.41 cv |
| Stem flow action | Stem down flow A to AB |
| Valve configuration | 3-Way Mixing |
| Stem movement | linear |
| Pressure fluid max delta P normal life | 87 psi |
| Valve type | globe |
| Packing material | spring-loaded PTFE/EPDM |
| Valve connection type | NPT |
| Flow characteristic | linear |
| Trim material | brass |
| Stroke length | 7/16 in |
| Stem material | stainless steel 316 |
| Pipe size | 1/2 in |
| Pressure class | ANSI class 250 |
| Body size | 15 mm (1/2 in) |
