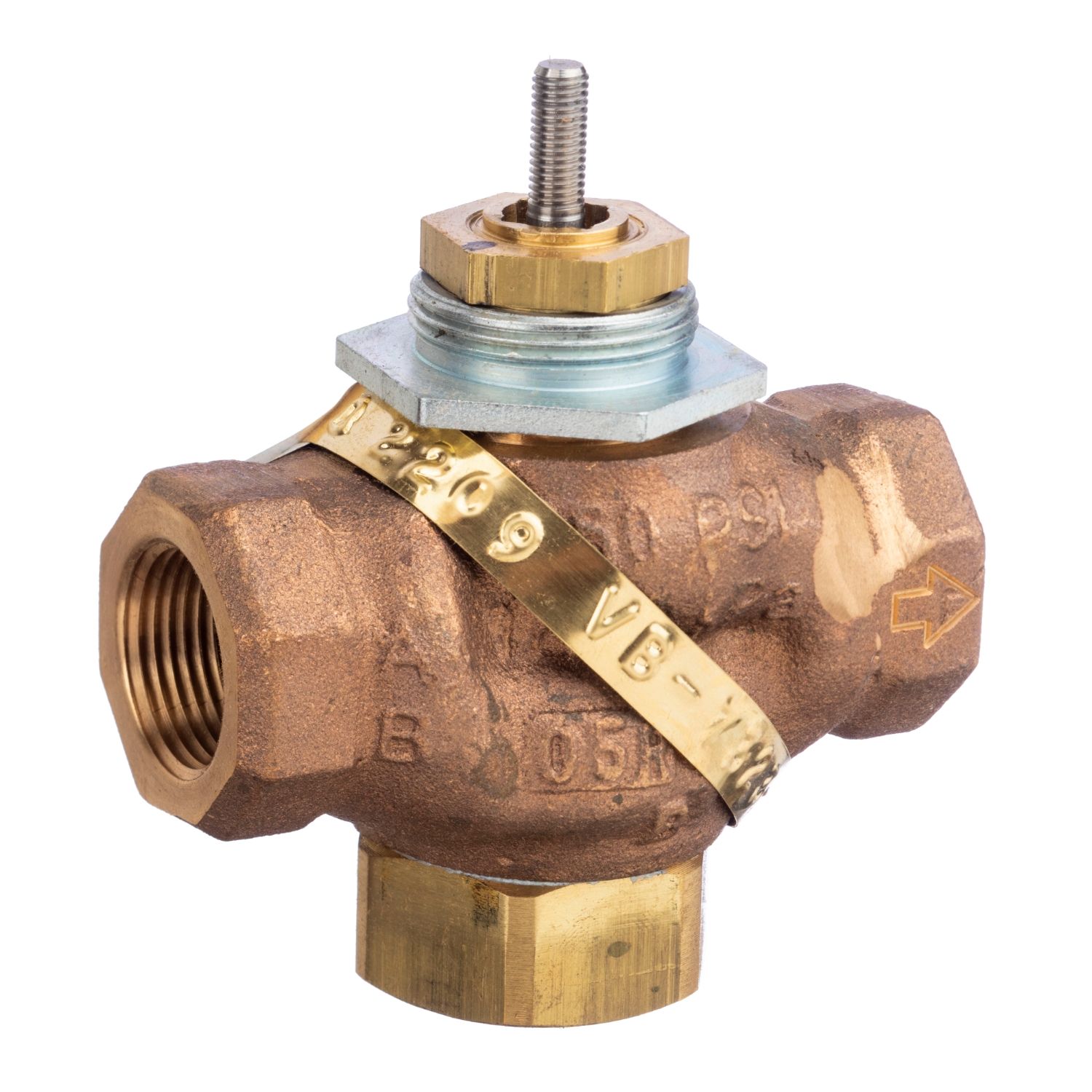

VB: 3/4 in, 3W Div, Globe, NPT, UO, BR, 7.5 cv, Venta, No Steam
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Seating seal material | Port B:metal to metal, Port A:metal to metal |
| Seat leakage | Port A: Class III (0.1 %) |
| Operating fluid temperature | -7-138 °C |
| Product or component type | valve |
| Targeted region | North America. |
| Body material | bronze |
| Seat material | Port B: bronze, Port A: bronze |
| Valve product range | Venta |
| Pressure allowable static | 400 psig up to 150 °F decreasing to 321 psig at 281 °F |
| Valve type | globe |
| Packing material | spring-loaded PTFE/EPDM |
| Valve connection type | NPT |
| Flow characteristic | linear |
| Medium compatibility | Water, Glycol 60 %, Glycol 50 %, Glycol 30 %, Glycol 25 % |
| Trim material | brass |
| Stroke length | 7/16 in |
| Stem material | stainless steel 316 |
| Control valve rangeability | 100:1 |
| Plug material | brass |
| Valve product series | VB-7300 |
| Pipe size | 20 mm |
| Flow coefficient | 6.49 kvs, 7.5 cv |
| Stem flow action | Stem up flow B to AB |
| Valve configuration | 3-Way Diverting |
| Stem movement | linear |
| Pressure fluid max delta P normal life | 35 psi |
| Pressure class | ANSI class 250 |
| Body size | 20 mm (3/4 in) |
