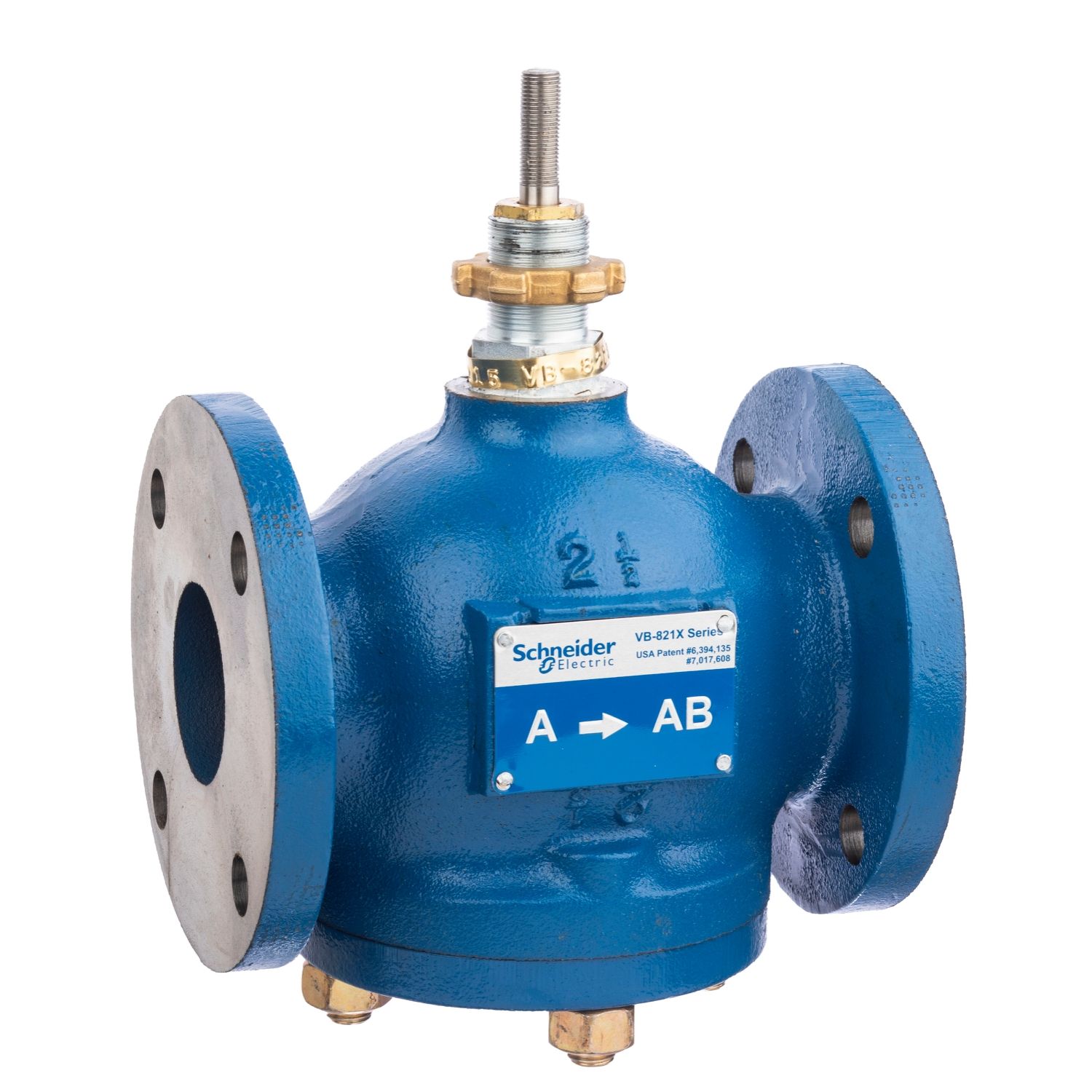

Schneider Electric, Globe Valve, 2-1/2 in, 2-way, flanged cast iron body, stem up open, brass trim, 56 Cv, balanced plug technology
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Saturated steam temperature | -7-138 °C |
| Seat leakage | Port A: Class IV (0.01 %) |
| Operating fluid temperature | -7-138 °C |
| Product or component type | valve |
| Targeted region | North America. |
| Body material | cast iron |
| Satured steam inlet pressure | 35 psi |
| Seat material | Port A: brass |
| Valve product range | Balanced Plug Technology |
| Pressure allowable static | 200 psig up to 150 °F decreasing to 169 psig at 281 °F |
| Valve type | globe |
| Packing material | spring-loaded PTFE/EPDM |
| Valve connection type | flanged |
| Flow characteristic | equal percentage |
| Medium compatibility | Water, Steam, Glycol 50 %, Glycol 30 %, Glycol 25 % |
| Trim material | brass |
| Stroke length | 1 in |
| Stem material | stainless steel 316 |
| Control valve rangeability | greater than 100:1 |
| Plug material | forged brass |
| Valve product series | VB-8200 |
| Pipe size | 2-1/2 in |
| Flow coefficient | 48.43 kvs, 56 cv |
| Stem flow action | Stem up A opened |
| Valve configuration | 2-Way |
| Stem movement | linear |
| Pressure class | ANSI class 125 |
| Body size | 65 mm (2-1/2 in) |
