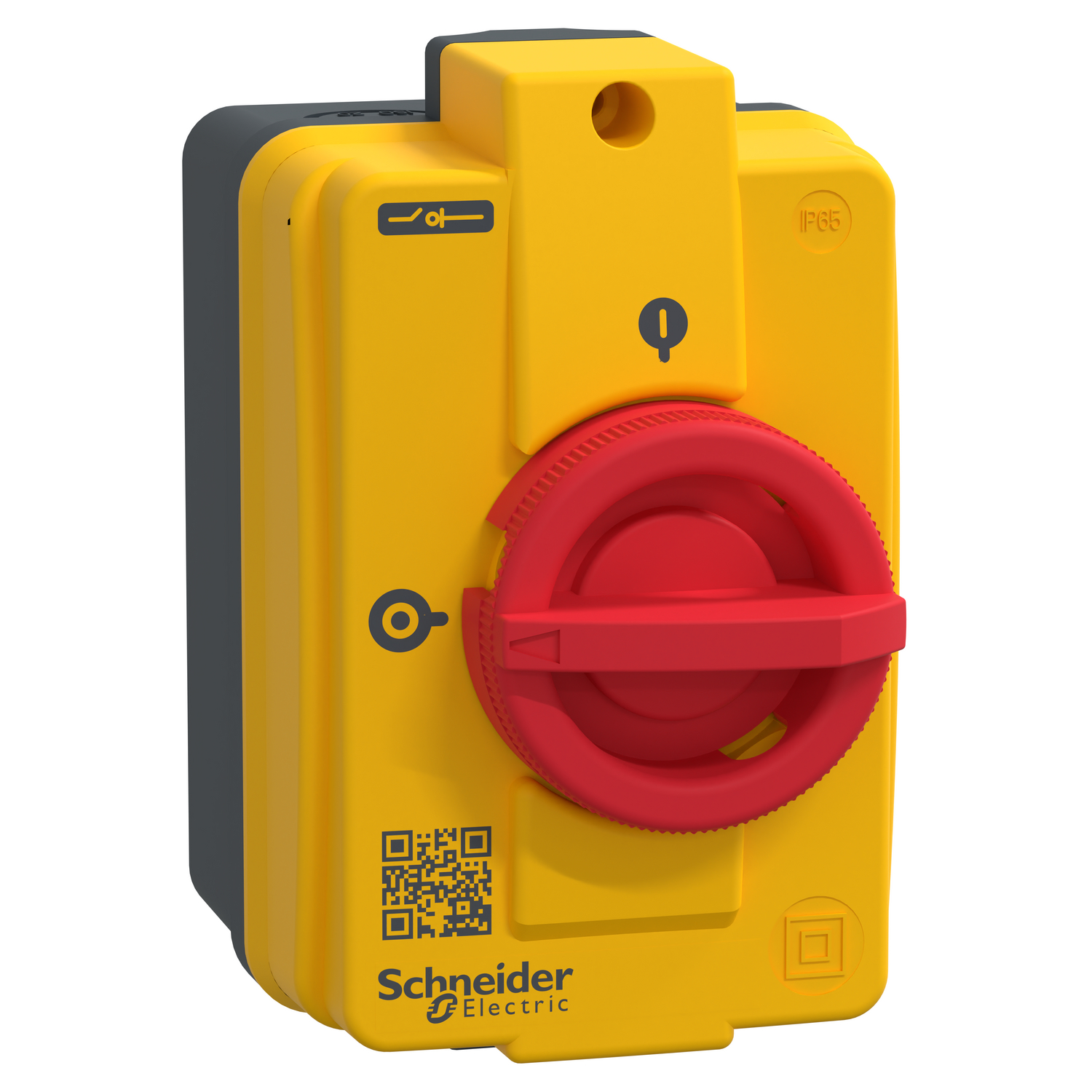

TeSys enclosed starter with switch disconnector, 3 poles, Ithe 10A 690V, for main and emergency stop switching in motor applications up to 4kW@400V AC-23. Enclosure providing IP65 protection, yellow cover fitted with a red rotary handle and I/O marking, padlockable (padlocks not included). It includes a 3-pole mini-Vario switch body VN12 with 2 possible add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60947-4-1, Enviromental compliant (RoHS/REACh).
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | VCFN |
| Control type | rotary handle |
| Range | TeSys |
| Poles description | 3P |
| Performance level | standard |
| Product name | TeSys Mini-VARIO |
| Product or component type | emergency stop switch disconnector |
| Handle colour | red |
| Handle front plate colour | yellow |
| Rotary handle padlocking | 1 to 3 padlocks 4-8 mm |
| Complementary | |
| [Icw] rated short-time withstand current | 140 A at 400 V duration: 1 s |
| Tightening torque | control circuit: 0.7-0.7 N.m - on connector |
| Fire resistance | 960 °C conforming to IEC 60595-2-1 |
| Compatibility code | enclosed switch disconnector |
| Mechanical durability | 50000 cycles |
| [Ie] rated operational current | 8.1 A (AC-23A) at 400 V |
| Electrical durability | 50000 cycles AC-21, 30000 cycles DC-1...5 |
| Connections - terminals | control circuit: connector cable(s) 4-4 mm² solid, control circuit: connector cable(s) 4-4 mm² flexible with cable end |
| Base dimension | 60 x 60 mm |
| Marking | 0 - 1 |
| Intermittent duty class | 30 |
| Height | 131 mm |
| Rated conditional short-circuit current | 6 kA at 400 V - associated fuse 12 A gG, 6 kA at 400 V - associated fuse 12 A aM |
| Rated operational power in W | 3 kW at 400 V (AC-3), 4 kW at 400 V (AC-23) |
| Breaking capacity | 120 A (AC-21A), 120 A at 400 V (AC-23A), 120 A at 400 V (AC-22A) |
| Depth | 106 mm |
| Width | 82.5 mm |
| Suitability for isolation | yes |
| [Icm] rated short-circuit making capacity | 0.5 kA at 400 V at Ipeak |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Making capacity | 120 A at 400 V AC-23A, 120 A at 400 V AC-22A, 120 A at 400 V AC-21A |
| Net weight | 0.422 kg |
| [Ithe] conventional enclosed thermal current | 10 A |
| [Ue] rated operational voltage | 690 V AC |
| Environment | |
| Mechanical robustness | shocks 11 ms (30 Gn) conforming to IEC 60068-2-27, vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6 |
| Protective treatment | TC |
| Ambient air temperature for operation | -20-50 °C |
| Standards | IEC 60947-4-1 |
