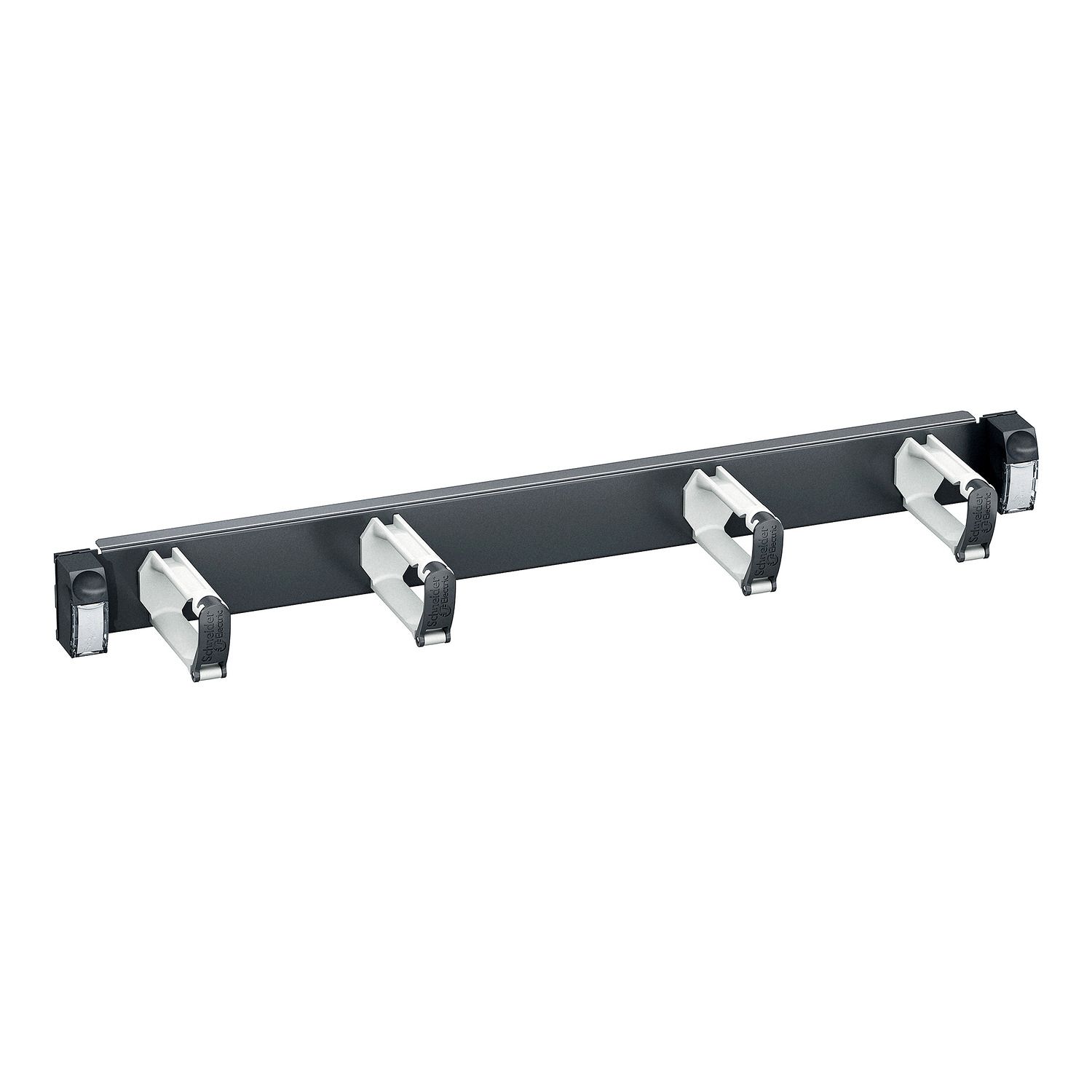

This patch cord guiding panel is in metal, 1U height with 4 openable vertical rings. It is equipped with 1 Quick Fix function on both sides to allow a simple, quick fixing position. The patch cord holder integrated inside the ring for opened position, manages up to 24 cords, easily opened but still safe, since a clever device prevents cords from falling out. Also possible to pull out only one cord if needed.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Additional information | 4 openable rings |
| Provided equipment | 2 quick fix 19" mountings |
| Range | LexCom |
| Product or component type | 19” patchcord guiding panel |
| Colour tint | dark grey (RAL 7016), light grey (RAL 7035) |
| Range of product | LexCom |
| Complementary | |
| Depth | 0.328 ft, 100 mm |
| Width | 1.6 ft, 490 mm |
| Number of rack unit | 1U |
| Material | plastic part: PC, plastic part: PA66 GF20, metal sheet: DC01 |
| Height | 0.147 ft, 45 mm |
| Environment | |
| Standards | NF C 20-150, IEC 60297 |
| Ambient air temperature for operation | 14-131 °F, -10-55 °C |
