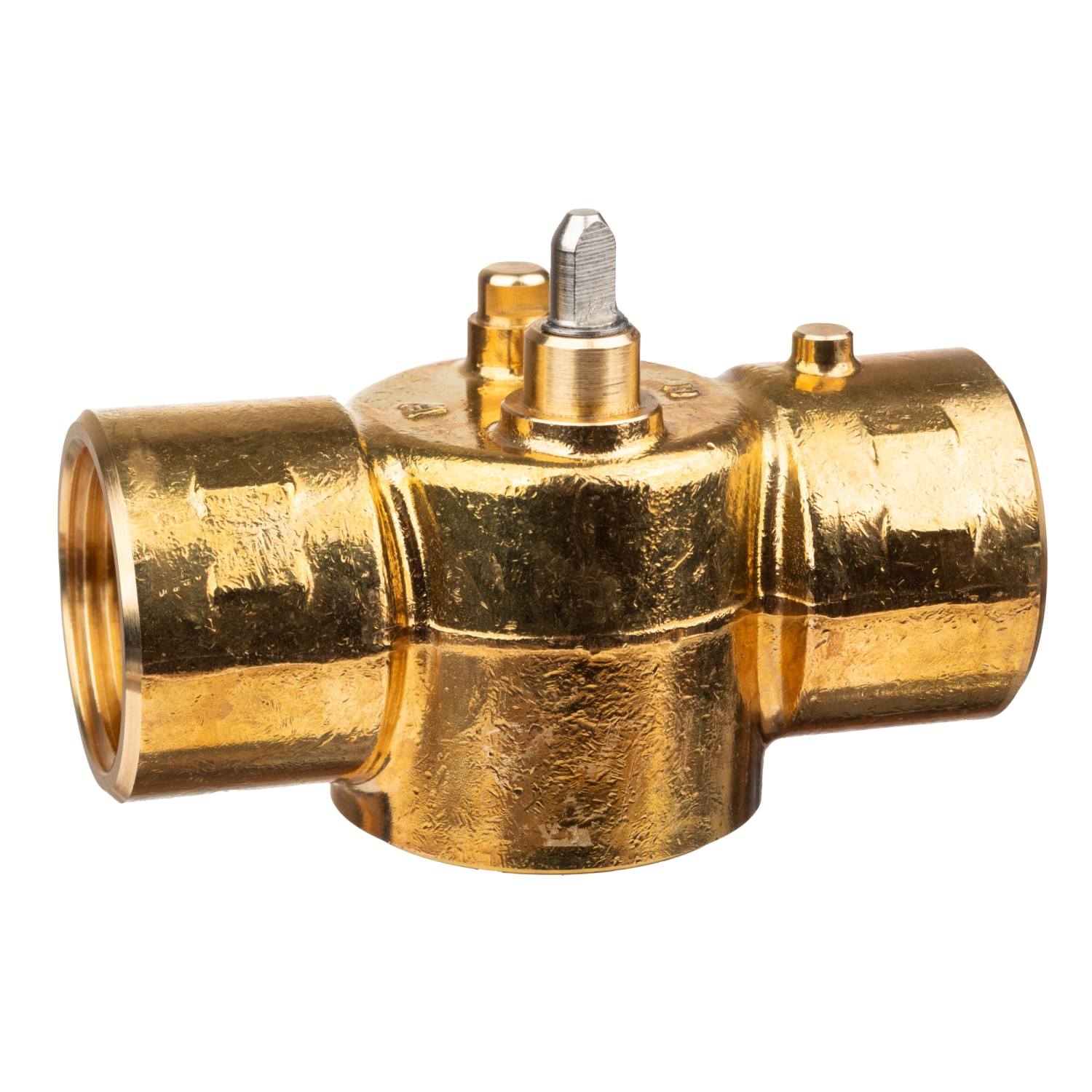

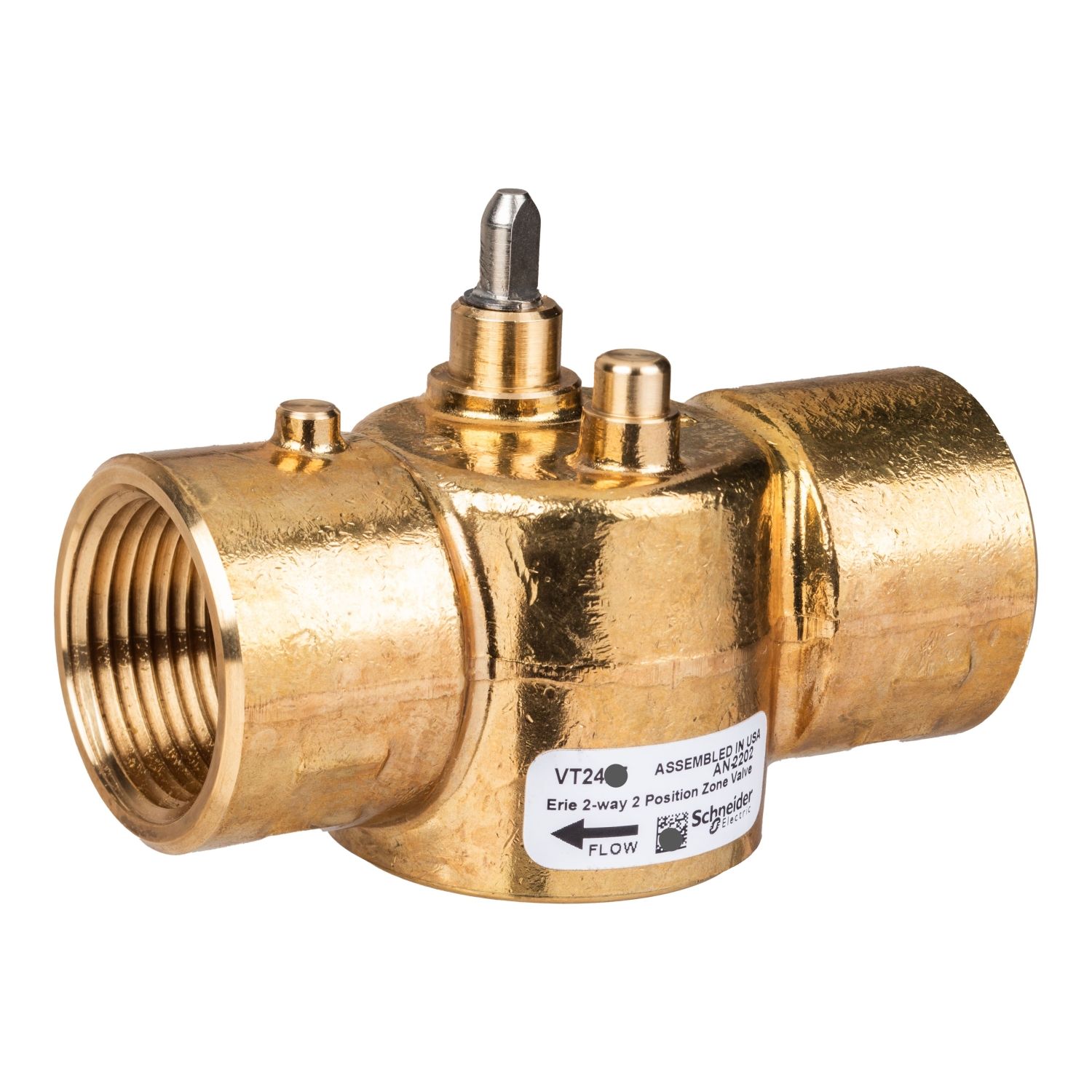

The industry leading Erie Zone valve is suitable for on/off control of hot and chilled water in terminal unit applications. High flow capacity paddle design and the unique ‘pop-top’ actuator connection allows for a quick and simple installation. Valve size: DN25, Rp 1 thread, Flow capacity, Kvs: 6.9 m³/h. Pressure class PN20. The valve provide a working temperature range of 0 °C to 93 °C.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Operating fluid temperature | 0-93 °C |
| Body material | brass |
| Seat leakage | Port A: Class IV (0.01 %) |
| Product or component type | valve |
| Targeted region | Australia., Asia Pacific., Europe |
| Seat material | Port A: brass |
| Valve product range | Erie PopTop |
| Pressure allowable static | 300 psi |
| Medium compatibility | Water, Glycol 50 %, Glycol 30 %, Glycol 25 % |
| Valve product series | VT2 |
| Paddle material | Buna N |
| Flow coefficient | 6.92 kvs, 8 cv |
| Valve configuration | 2-Way |
| Stem movement | rotary |
| Pressure fluid max delta P normal life | 20 psi |
| Valve type | zone |
| Valve connection type | Rp Internal |
| Stem seal material | FKM |
| Flow characteristic | uncharacterized |
| Trim material | brass |
| Stem material | nickel plated brass |
| Pipe size | DN25 |
| Pressure class | PN20, PN16 |
| Body size | 25 mm (1 in) |
