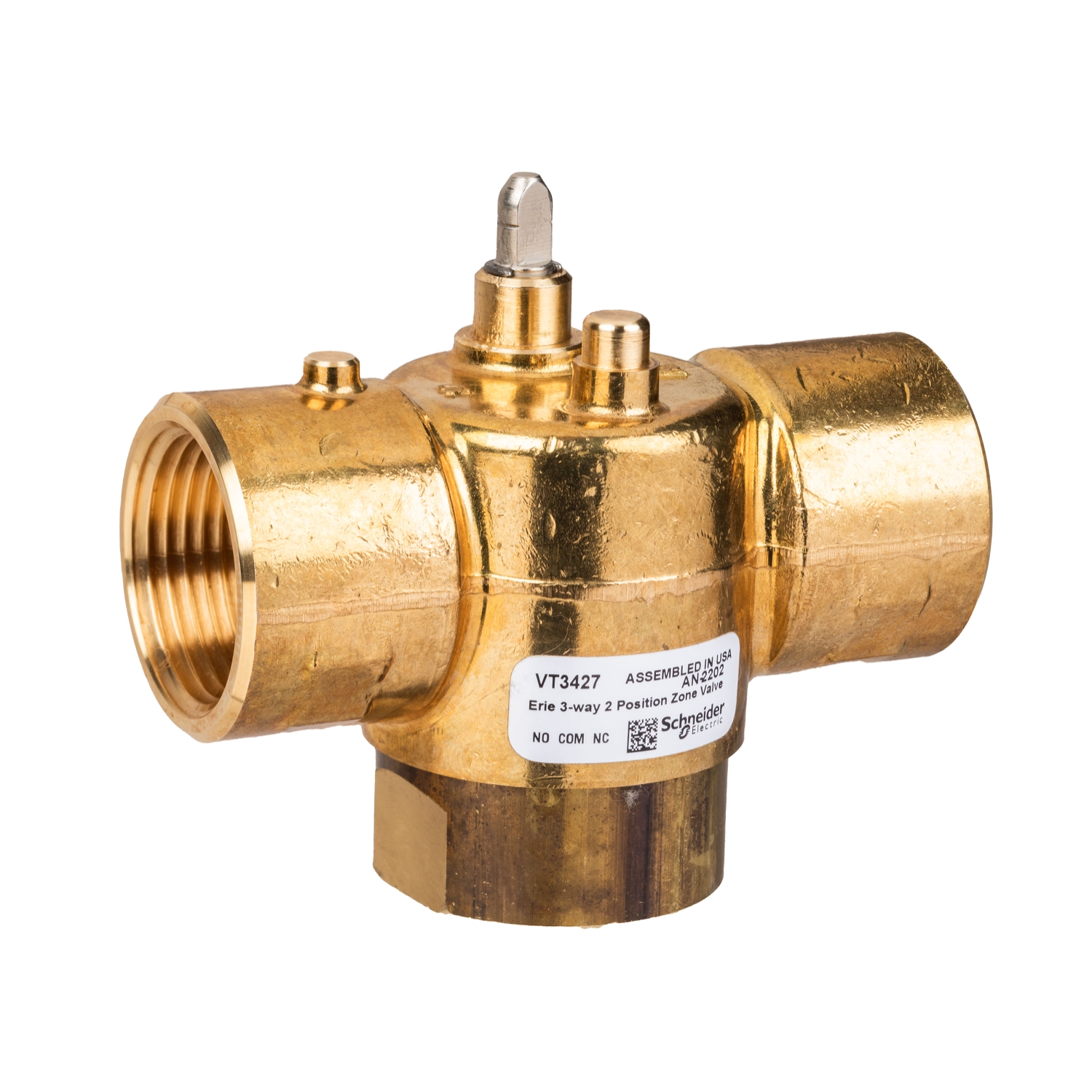

VB: 1 in, 3W Mix/Div, Zone, NPT, BR, 8 cv, Erie PopTop, No Steam
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Operating fluid temperature | 0-93 °C |
| Body material | forged brass |
| Seat leakage | Port A: Class IV (0.01 %) |
| Product or component type | valve |
| Targeted region | North America. |
| Seat material | Port A: brass |
| Valve product range | Erie PopTop |
| Pressure allowable static | 400 psi |
| Medium compatibility | Water, Glycol 50 %, Glycol 30 %, Glycol 25 % |
| Valve product series | VT3 |
| Paddle material | Buna N |
| Flow coefficient | 6.92 kvs, 8 cv |
| Valve configuration | 3-Way Mixing/Diverting |
| Stem movement | rotary |
| Valve type | zone |
| Valve connection type | NPT |
| Flow characteristic | quick open |
| Trim material | brass |
| Stem material | nickel plated brass |
| Pipe size | 1 in |
| Pressure class | ANSI class 400 |
| Body size | 25 mm (1 in) |
