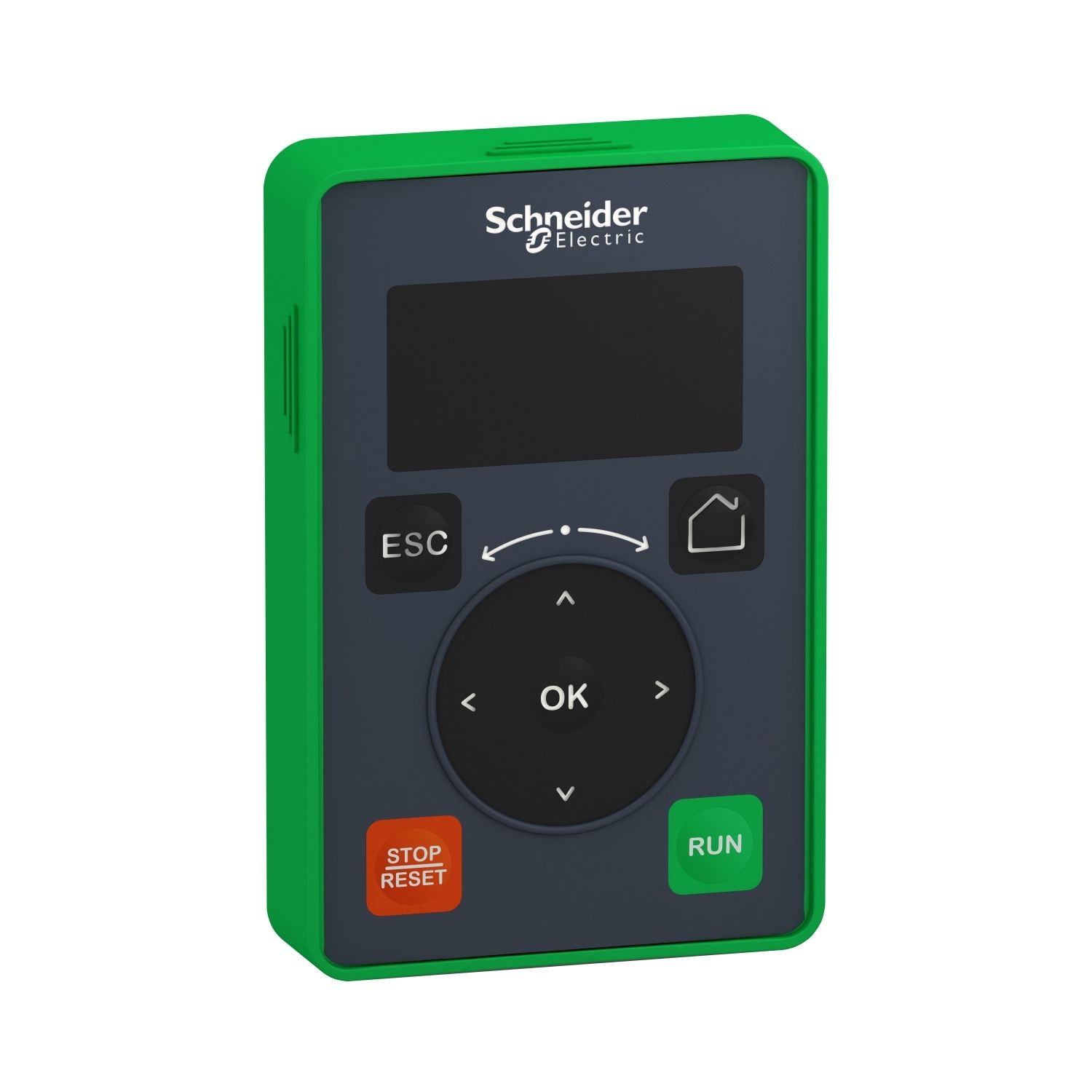

plain text display terminal, Altivar, 128 x 64pixels, IP21
Manufacturer: Schneider Electric
SKU: VW3A1113
GTIN: 3606480702228
Old price: $242.21 inc GST
$348.78 inc GST
Supported cards
Supported cards
This plain text terminal is an option for variable speed drives of Altivar range. It is a dialogue option for the variable speed drive. Its protection index is IP21. The plain text display terminal can be connected and mounted on the front of the drive. Its maximum operating temperature is 50 °C. It provides a pixel resolution of 128 x 64 pixels. It weighs 200g. It is used to control, adjust, and configure the drive, display current values (motor, I/O, and machine data), store and download configurations (several configurations can be stored) and duplicate the configuration of one to another drive. A remote mounting kit for mounting on enclosure door with IP43 degree of protection is available as accessory, to be ordered separately.

Products specifications

Attribute name Attribute value
Main
Accessory / separate part destination variable speed drive
IP degree of protection IP21
Accessory / separate part category display and signalling accessories
Range of product Altivar
Accessory / separate part type display terminal
Range compatibility Altivar Machine ATV340, Easy Altivar 610
Product specific application to save and download configurations, to display the current values, to control, adjust and configure the drive
Complementary
Display type backlit LCD screen white
Realtime clock without
User language Chinese, Italian, Spanish, English, German, French
Messages display capacity 2 lines
Net weight 0.05 kg
Pixel resolution 128 x 64
Environment
Ambient air temperature for operation -15-50 °C
