Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Thermal losses | 7.5 W for ATV31CU22M2 |
| Range compatibility | Altivar Machine ATV320, Altivar 31C, Altivar 312 Solar, Lexium 05, Altivar 312 |
| [In] rated current | 22 A |
| Product specific application | radio interference input filter |
| Network number of phases | single phase |

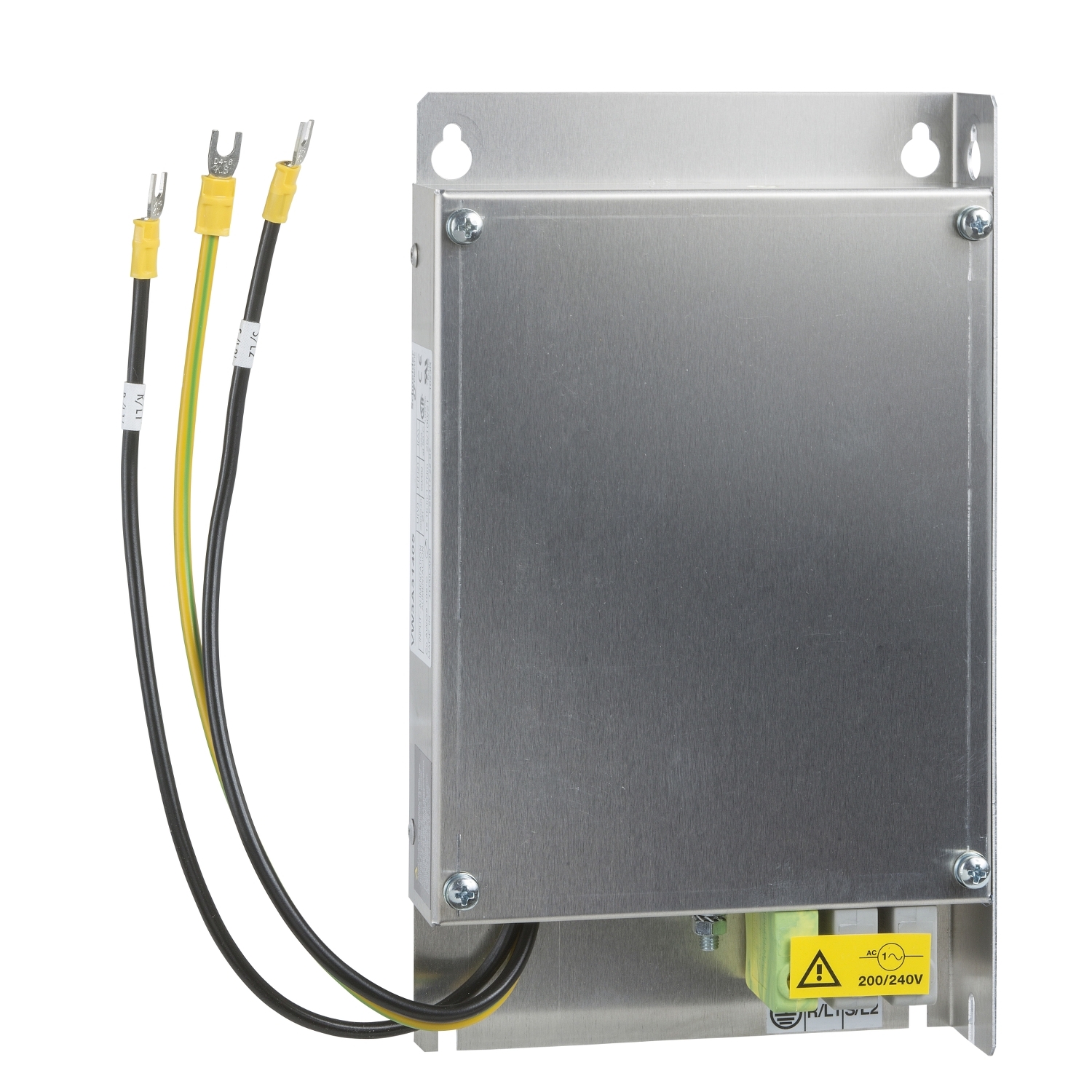

| Product or component type | EMC input filter |
| Product compatibility | variable speed drive ATV320...W/ATV320...WS motor: 2.2 kW, 200...240 V single phase, variable speed drive ATV320...C motor: 2.2 kW, 200...240 V single phase, LXM05CD28M2, LXM05BD28M2, LXM05BD28F1, LXM05AD28M2, LXM05AD28F1, ATV31CU22M2, ATV312HU22M2 |
| Range of product | Altivar |
| Complementary | |
| Network rated voltage | 200-240 V |
| Earth leakage current | 80 mA 50 Hz |
| Net weight | 1.13 kg |
| Tolerance | 10 % |
| Environment | |
| Operating altitude | 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without current derating |
| IP degree of protection | IP41 (upper part), IP20 |
| Relative humidity | 0-93 % conforming to IEC 68-2-3 |
| Ambient air temperature for storage | -25-70 °C |
| Vibration resistance | 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| Ambient air temperature for operation | -10-50 °C |
| Standards | EN 133200 |
