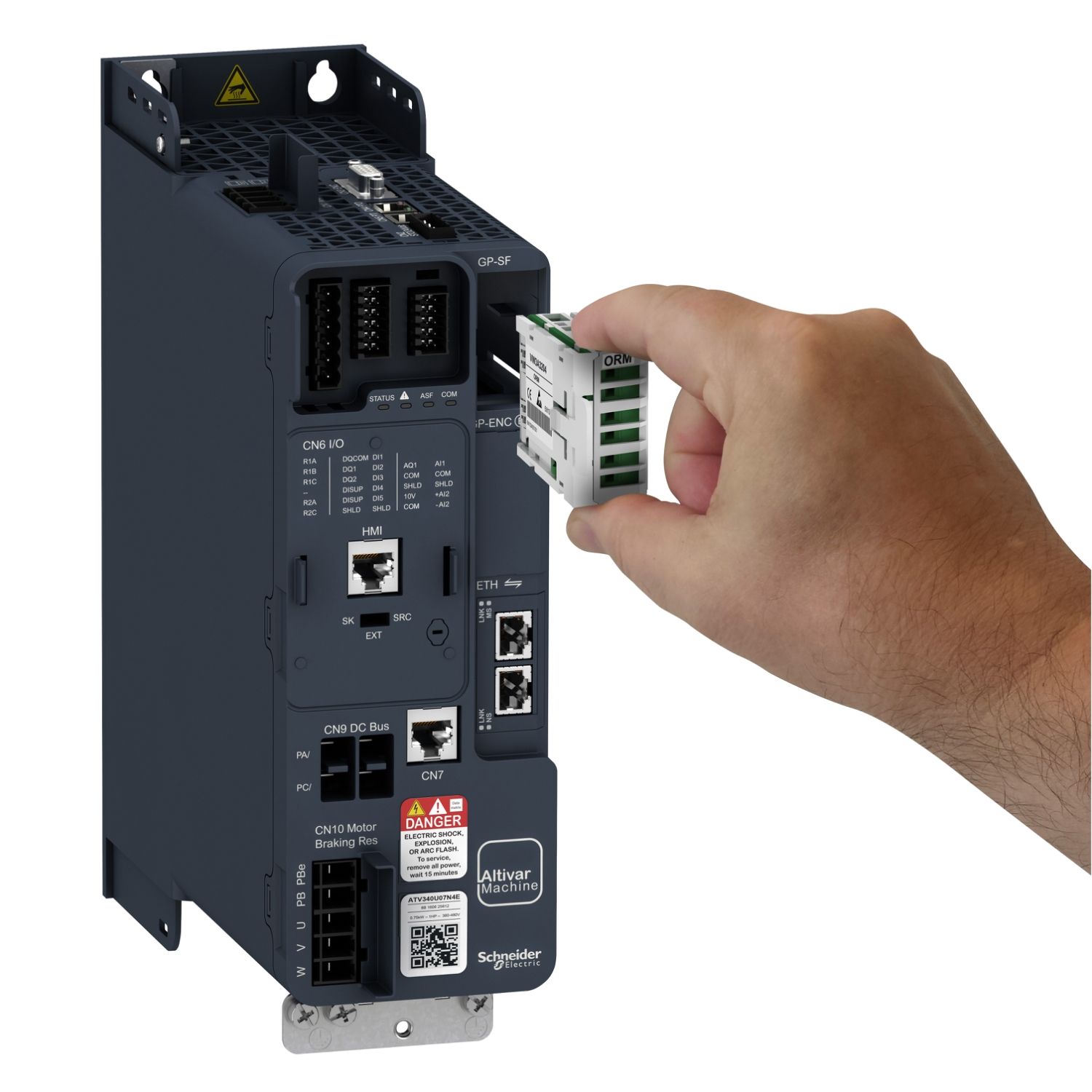

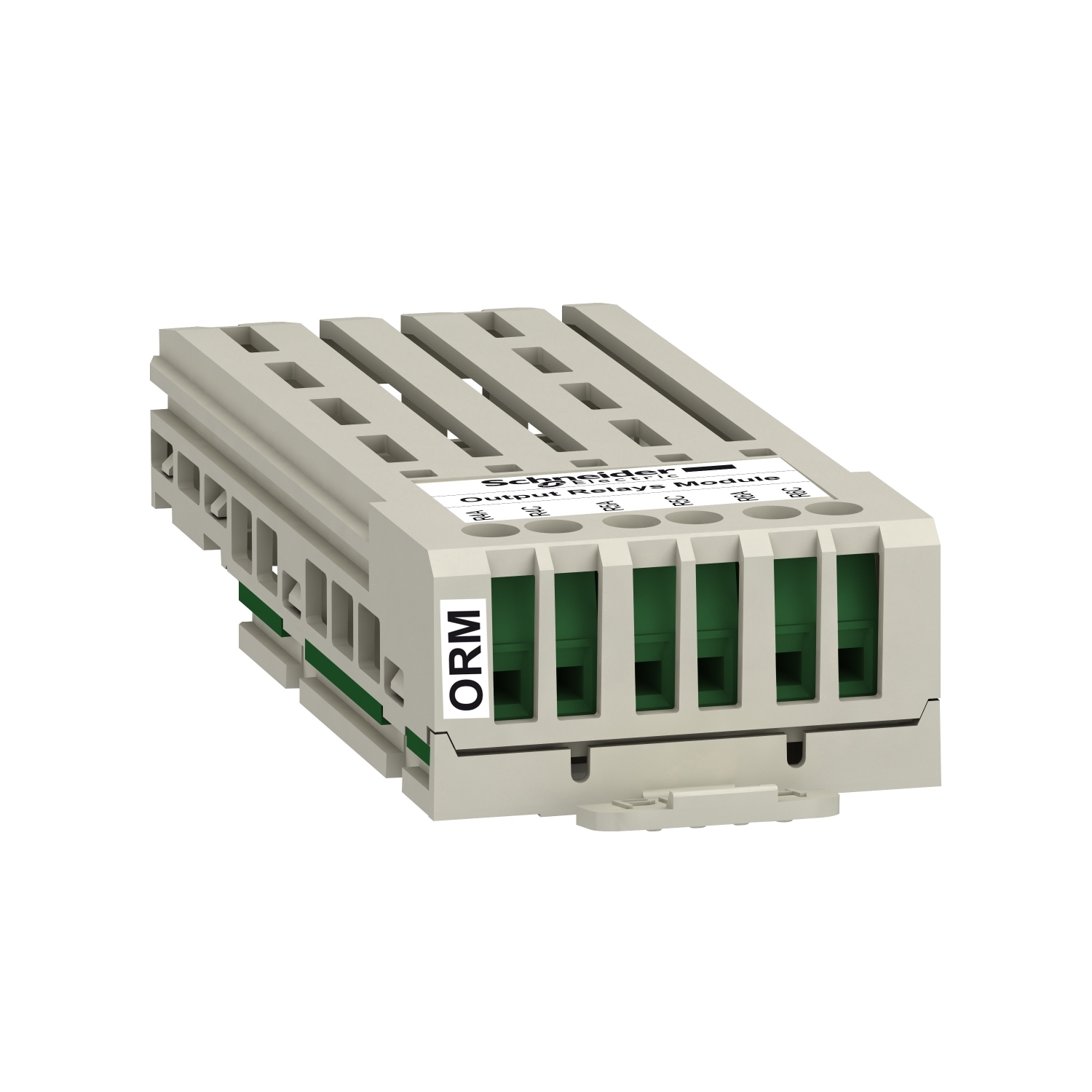

This extended module enables your drive to meet the needs of application that manage additional or specific sensors. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV600, Altivar Process ATV900 and Altivar Machine ATV340. It is also compatible with Altivar Easy 610. It has one screw terminal block 1.5 mm² / AWG 16.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range compatibility | Altivar Process ATV600, Altivar Process ATV900, Easy Altivar 610, Altivar Machine ATV340 |
| Discrete output number | 3 |
| Input/output type | 3 relay output |
| Product or component type | additional output module |
| Discrete output type | (R4, R5, R6) relay normally open, sampling time: 1-1 ms |
| Complementary | |
| Electrical connection | screw terminal block, 1.5 mm² / AWG 16, 0.5 N.m |
| Minimum switching current | 5 mA at 24 V DC |
| Net weight | 0.4 kg |
| Maximum switching current | 5 A at 30 V DC on resistive load, cos phi = 1 and L/R = 5 ms, 5 A at 250 V AC on resistive load, cos phi = 1 and L/R = 5 ms, 2 A at 30 V DC on inductive load, cos phi = 0.4 and L/R = 5 ms, 2 A at 250 V AC on inductive load, cos phi = 0.4 and L/R = 5 ms |
| Electrical durability | 100000 cycles |
