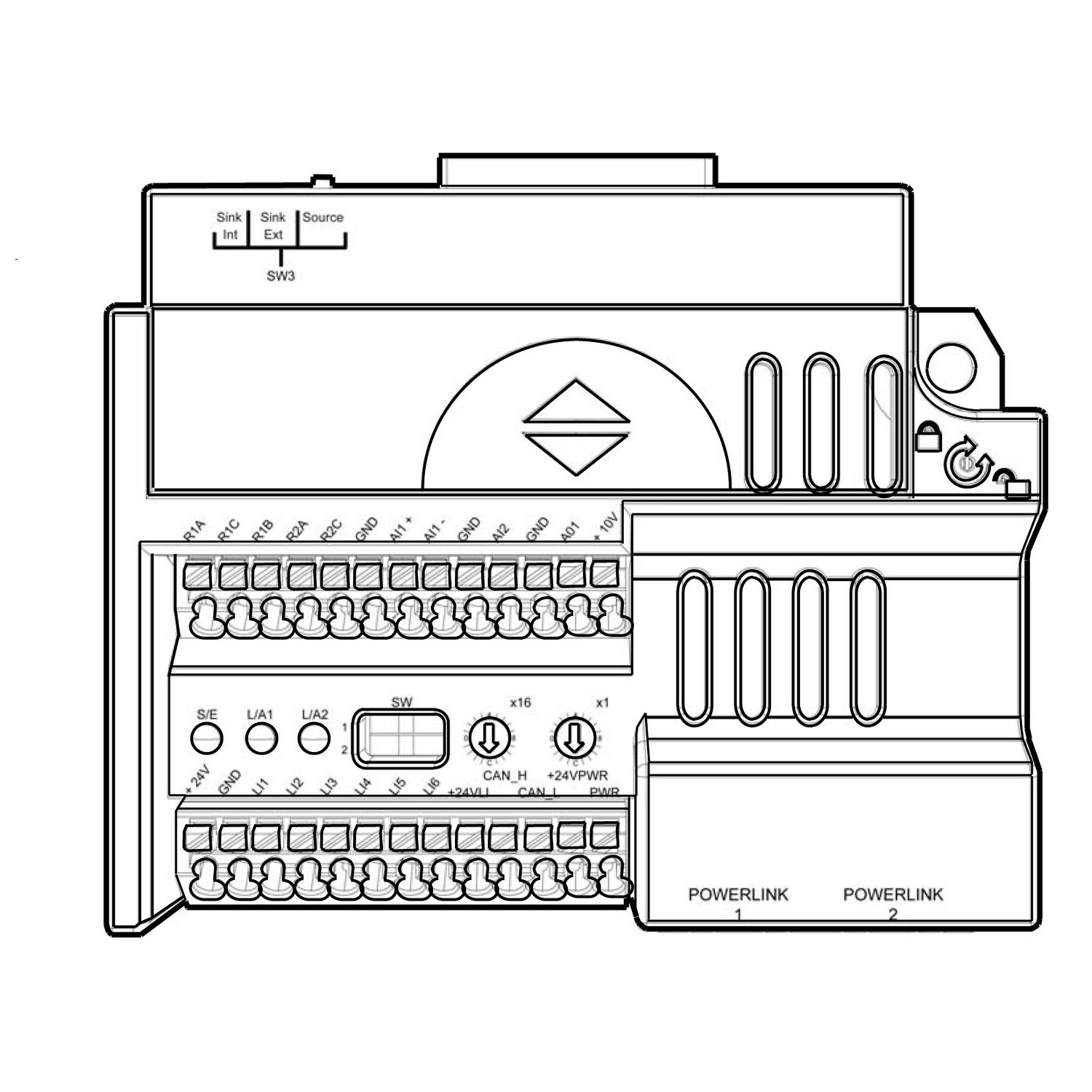

This POWERLINK communication card is an option for variable speed drives of Altivar range. It is equipped with 2 RJ45 connectors. It is compatible with Altivar 61 and Altivar 71. It enables integration of your variable speed drive in your process control network. It weighs 350g.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Transmission rate | 10/100 Mbps |
| Range compatibility | Altivar 61, Altivar 71 |
| Communication port protocol | Ethernet Powerlink |
| Connector type | 2 RJ45 connectors |
| Product or component type | communication card |
| Physical interface | IEEE 802.3 for Ethernet Powerlink |
| Complementary | |
| Display type | 1 LED for TX/RX (Transmit/Receive port 2), 1 LED for TX/RX (Transmit/Receive port 1), 1 LED for MS (Module Status) |
| Number of addresses | 239-239 |
| Net weight | 0.35 kg |
| Exchange mode | half duplex |
