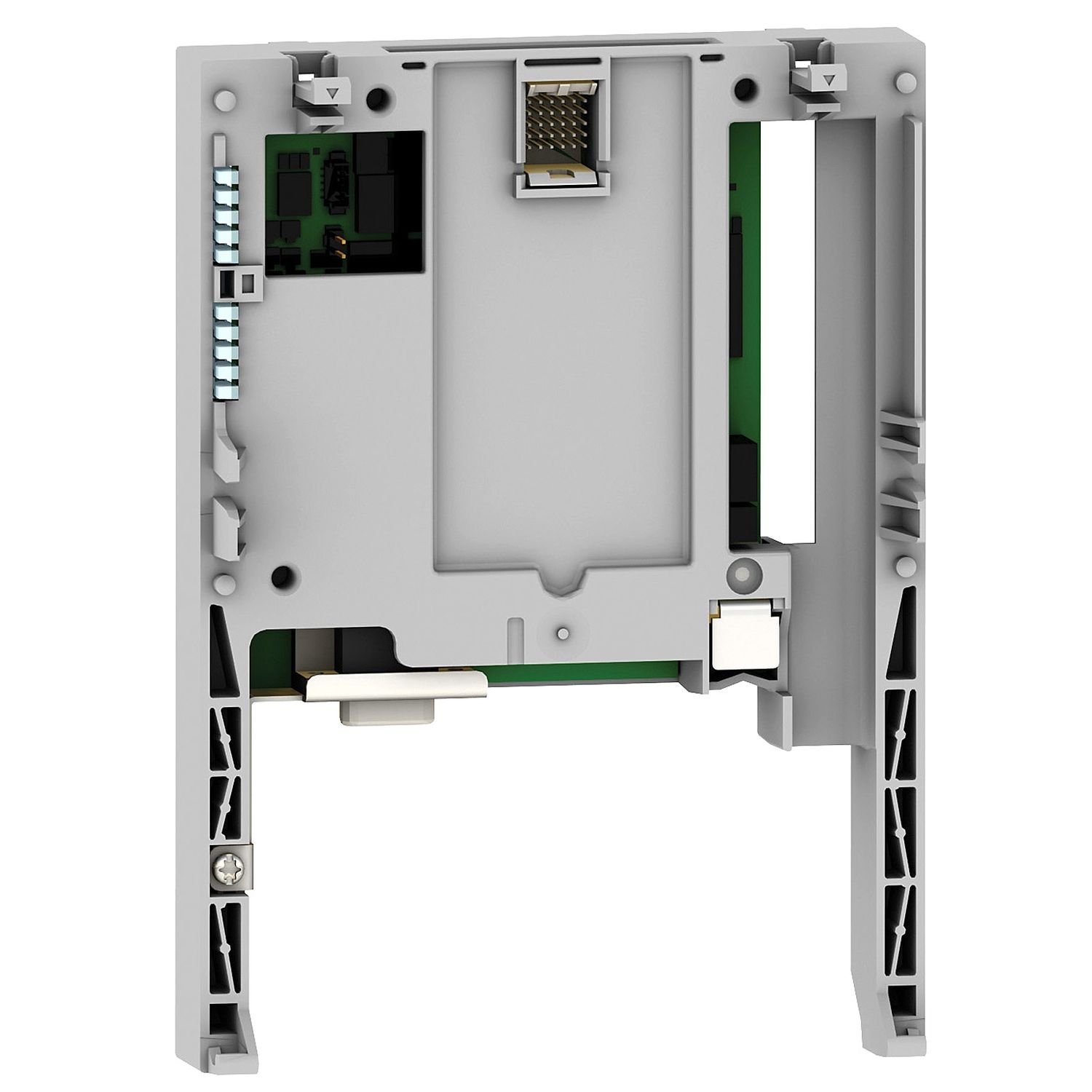

This Profinet communication card is an option for variable speed drives of Altivar range. It is equipped with 2 RJ45 connectors. It is compatible with Altivar 61 and Altivar 71. It enables integration of your variable speed drive in your process control network. It weighs 300g.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Web services | Ethernet statistics, drive monitor, save/restore drive configuration, FDR Agent, iPar client settings, drive parameters, multi-language services, data editor, Ethernet/IP setup, security, drive recorder |
| Connector type | 2 RJ45 connectors |
| Transmission rate | 100 Mbits |
| Range compatibility | Altivar 61, Altivar 71 |
| Communication port protocol | PROFINET, MRP (Media Redundancy Protocol) |
| Product or component type | communication card |
| Physical interface | RJ45 for PROFINET |
| Complementary | |
| Web server | embedded |
| Display type | 1 LED for TX/RX (Transmit/Receive port 2), 1 LED for TX/RX (Transmit/Receive port 1), 1 LED for NS (Network Status), 1 LED for MS (Module Status), 1 LED for Link (Link Status) |
| Communication network type | Ethernet PROFIdrive, Ethernet CiA 402 conforming to IEC 61800-7-201 |
| Exchange mode | full duplex |
| Addressing | IP addressing manual, DHCP or DCP |
| Communication transport type | RT (real-time), UDP PROFIdrive, TCP CiA 402 conforming to IEC 61800-7-201 |
| Communication data link | LLC : IEEE 802.2, MAC : IEEE 802.3 |
| Communication service | iPar-server, FTP |
| Net weight | 0.287 kg |
