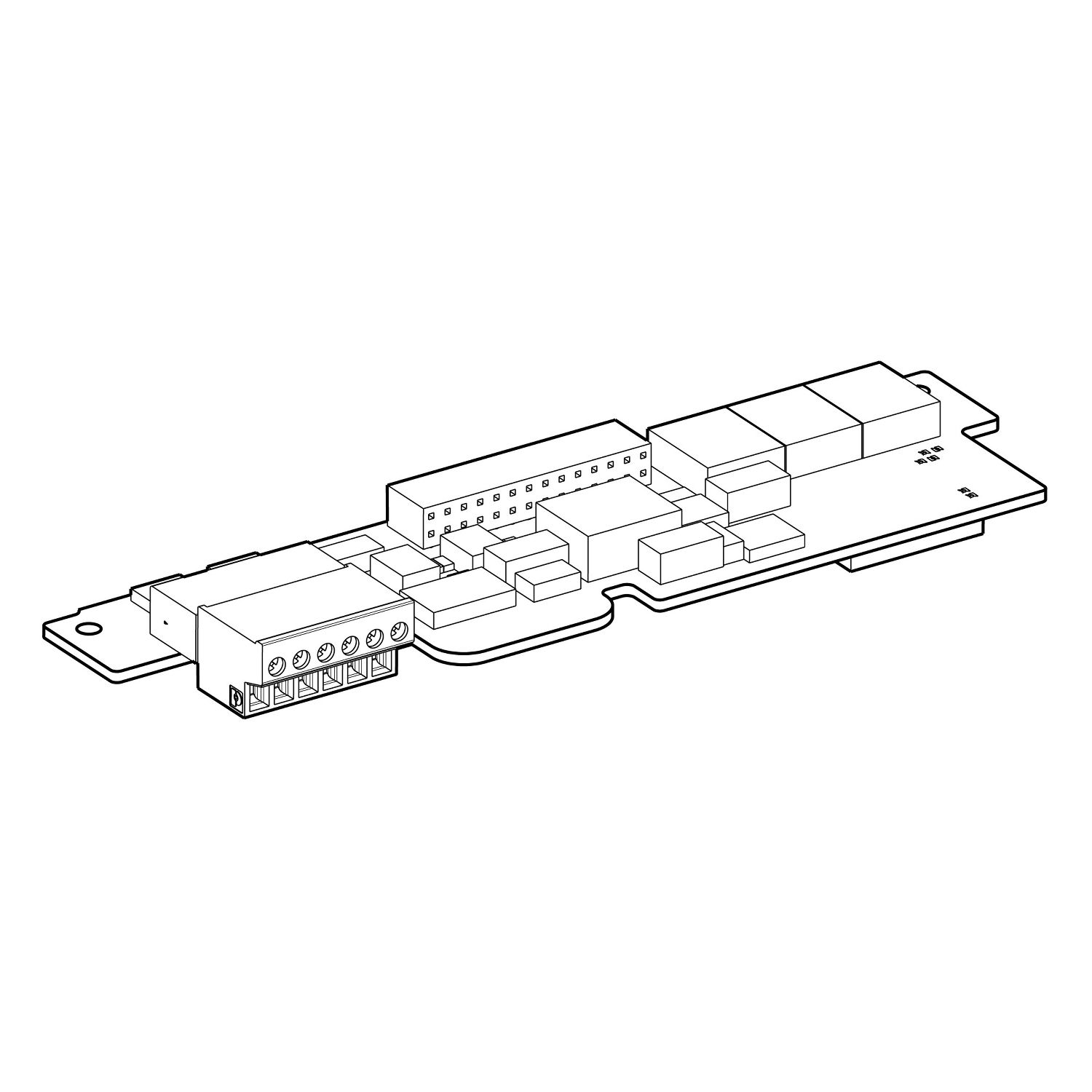

This encoder interface card can be used for Flux Vector Control operation with sensor for asynchronous motors. It can also be used for Vector Control operation with speed feedback for synchronous motors. It improves drive performance irrespective of the motor load state. It is compatible with push-pull outputs encoder technology. This card is simple to install and remove, it is inserted in a dedicated slot of the variable speed drive. It is protected against encoder supply short circuits and overloads. It is compatible with Altivar 61 and Altivar 71.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Us] rated supply voltage | 24 V DC (voltage limits: 20-30 V) |
| Number of pulses per revolution | 5000 for ATV71H...N4, 5000 for ATV71H...M3X, 5000 for ATV71H...M3, 5000 for all ATV61 drives, 10000 for ATV71H......383 |
| Range of product | Altivar |
| Discrete output type | push-pull |
| Range compatibility | Altivar Lift, Altivar 61, Altivar 71, Altivar 71Q, Altivar 61Q |
| Product or component type | encoder interface card |
| Complementary | |
| Voltage state 1 guaranteed | > 11.5...< 25 V |
| Protection type | short-circuit protection, overload protection |
| Electrical connection | terminal, connection capacity: 0.2 mm² (AWG 24) <500 m cable length, encoder, 100 mA at 14 V |
| Maximum cable distance between devices | 500 m |
| Maximum operating frequency | 300 kHz |
| Input signal | compliment of B/AB/A, compliment of A, B, A |
| Input impedance | 1000 Ohm |
| Maximum supply current | 0.175 A |
| Voltage state 0 guaranteed | <= 1.5 V |
