Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| [Us] rated supply voltage | 15 V (voltage limits: 15-16 V), 5 V (voltage limits: 5-5.5 V) |
| Number of pulses per revolution | 10000 |
| Range of product | Altivar |
| Discrete output type | differential |
| Range compatibility | Altivar 71Q, Altivar 71, Altivar Lift |
| Communication port protocol | RS422 |

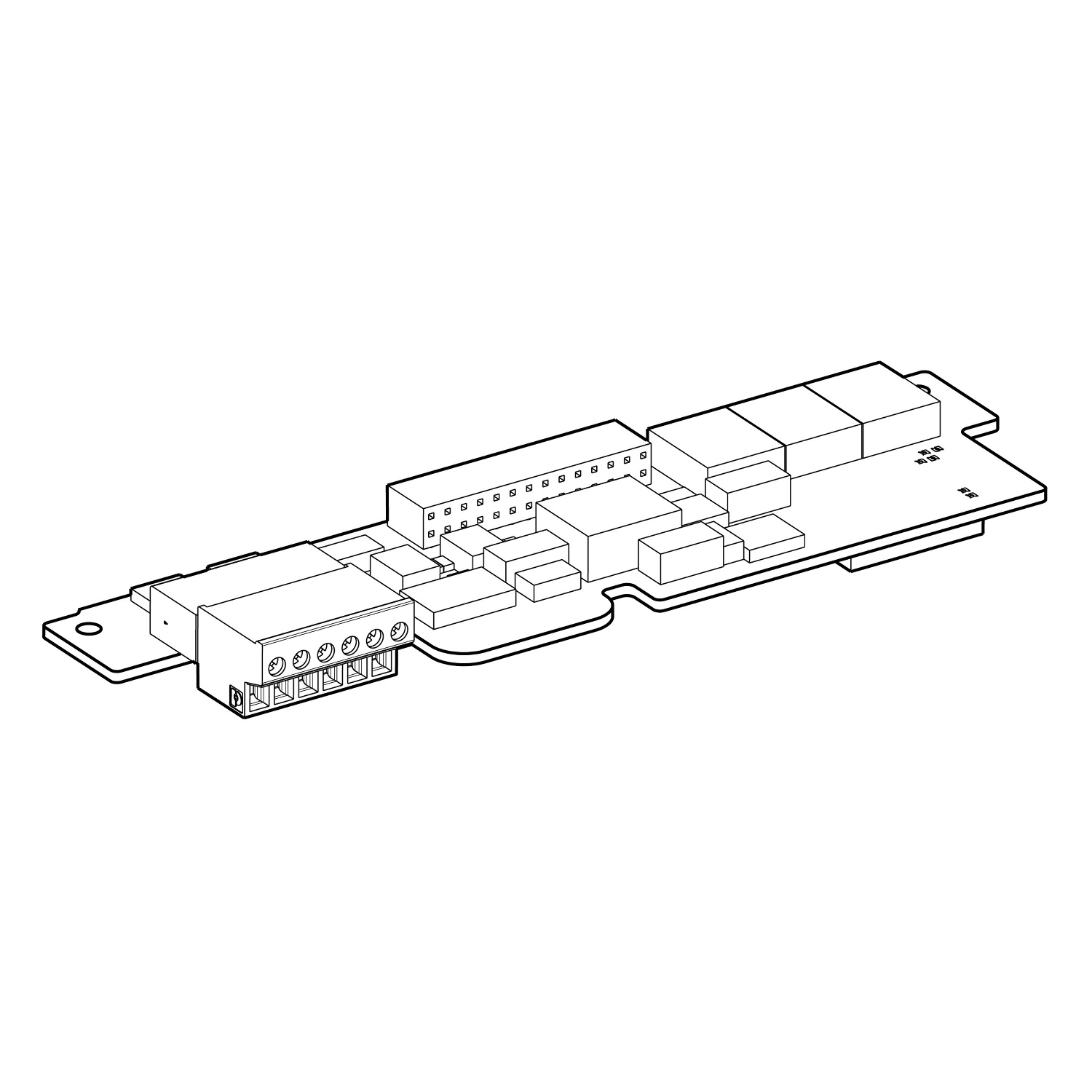

| Product or component type | encoder interface card |
| Complementary | |
| Output signal | A compliment of A B compliment of B Z compliment of Z, A compliment of A B compliment of B, A compliment of A |
| Protection type | short-circuit protection, overload protection |
| Product compatibility | ATV71H...N4383, ATV71H...M3X383, ATV71H...M3383 |
| Electrical connection | terminal, connection capacity: 1.5 mm² (AWG 15) <300 m cable length, encoder, 50 mA at 14.75 V, terminal, connection capacity: 1.5 mm² (AWG 15) <200 m cable length, encoder, 50 mA at 4.75 V, terminal, connection capacity: 1.5 mm² (AWG 15) <200 m cable length, encoder, 100 mA at 14.75 V, terminal, connection capacity: 1.5 mm² (AWG 15) <100 m cable length, encoder, 200 mA at 14.75 V, terminal, connection capacity: 1.5 mm² (AWG 15) <100 m cable length, encoder, 100 mA at 4.75 V, terminal, connection capacity: 1 mm² (AWG 17) <200 m cable length, encoder, 50 mA at 14.75 V, terminal, connection capacity: 0.75 mm² (AWG 18) <50 m cable length, encoder, 200 mA at 14.75 V, terminal, connection capacity: 0.75 mm² (AWG 18) <100 m cable length, encoder, 50 mA at 4.75 V, terminal, connection capacity: 0.75 mm² (AWG 18) <100 m cable length, encoder, 100 mA at 14.75 V, terminal, connection capacity: 0.5 mm² (AWG 20) <50 m cable length, encoder, 50 mA at 4.75 V, terminal, connection capacity: 0.5 mm² (AWG 20) <50 m cable length, encoder, 100 mA at 14.75 V, terminal, connection capacity: 0.5 mm² (AWG 20) <25 m cable length, encoder, 200 mA at 14.75 V, terminal, connection capacity: 0.5 mm² (AWG 20) <100 m cable length, encoder, 50 mA at 14.75 V, terminal, connection capacity: 0.2 mm² (AWG 24) <50 m cable length, encoder, 50 mA at 14.75 V, terminal, connection capacity: 0.2 mm² (AWG 24) <25 m cable length, encoder, 50 mA at 4.75 V, terminal, connection capacity: 0.2 mm² (AWG 24) <25 m cable length, encoder, 50 mA at 14.75 V, terminal, connection capacity: 0.2 mm² (AWG 24) <25 m cable length, encoder, 100 mA at 14.75 V, terminal, connection capacity: 1.5 mm² (AWG 15) <50 m cable length, encoder, 200 mA at 4.75 V, terminal, connection capacity: 1 mm² (AWG 17) <25 m cable length, encoder, 200 mA at 4.75 V, terminal, connection capacity: 0.75 mm² (AWG 18) <50 m cable length, encoder, 100 mA at 4.75 V, terminal, connection capacity: 0.5 mm² (AWG 20) <25 m cable length, encoder, 100 mA at 4.75 V |
| Maximum cable distance between devices | 50 m |
| Maximum operating frequency | 300 kHz |
| Ratio | 1, 1/2, 1/4, 1/8, 1/16, 1/32 or 1/64 |
| Input signal | Z, compliment of Z, compliment of B, compliment of A, B, A |
| Input impedance | 440 Ohm |
| Maximum supply current | 0.2 A |
| Net weight | 0.2 kg |
