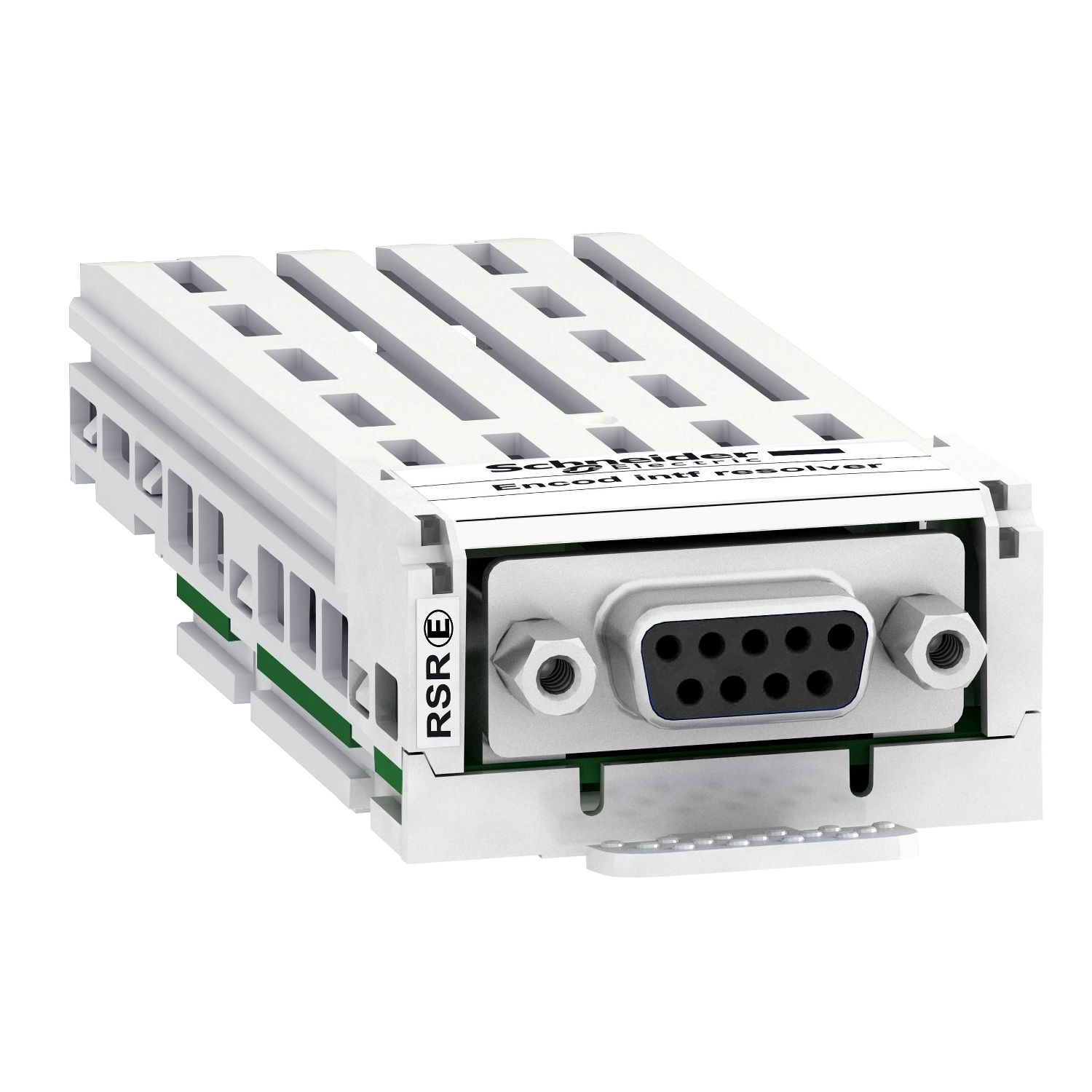

This resolver encoder interface module can be used for Flux Vector Control operation with sensor for asynchronous motors. It can also be used for Vector Control operation with speed feedback for synchronous motors. It improves drive performance irrespective of the motor load state. This module is inserted in a dedicated slot of the variable speed drive. It is protected against encoder supply short circuits and overloads. It is compatible with Altivar Process ATV900 and Modular, and Altivar Machine ATV340. It has 1 female SUB-D 9 connector.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Encoder type | resolver |
| Range of product | Altivar |
| Range compatibility | Altivar Machine ATV340, Altivar Process Modular, Altivar Process ATV900 |
| Product or component type | encoder interface module |
| Complementary | |
| Output signal | Ref+, Ref- |
| Protection type | short-circuit protection, overload protection |
| Maximum cable distance between devices | 100 m |
| Maximum operating frequency | 12 kHz |
| Ratio | 3/10, 1/2, 3/4, 1 |
| Input signal | Sin+, Sin-, Cos+, Cos-, Temp+, Temp- |
| Maximum supply current | 0.05 A |
| Net weight | 0.15 kg |
| Connector type | 1 female SUB-D 9 |
