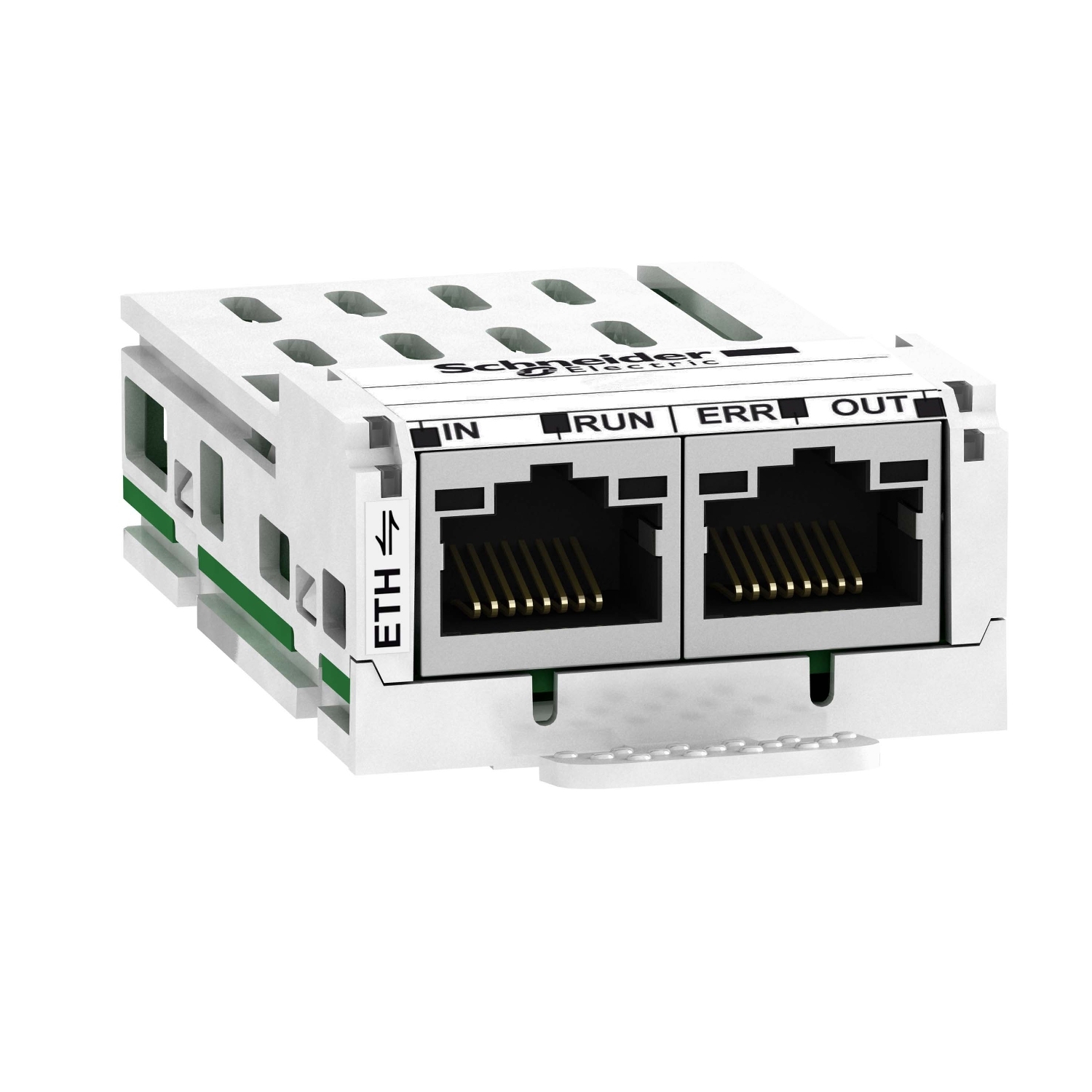

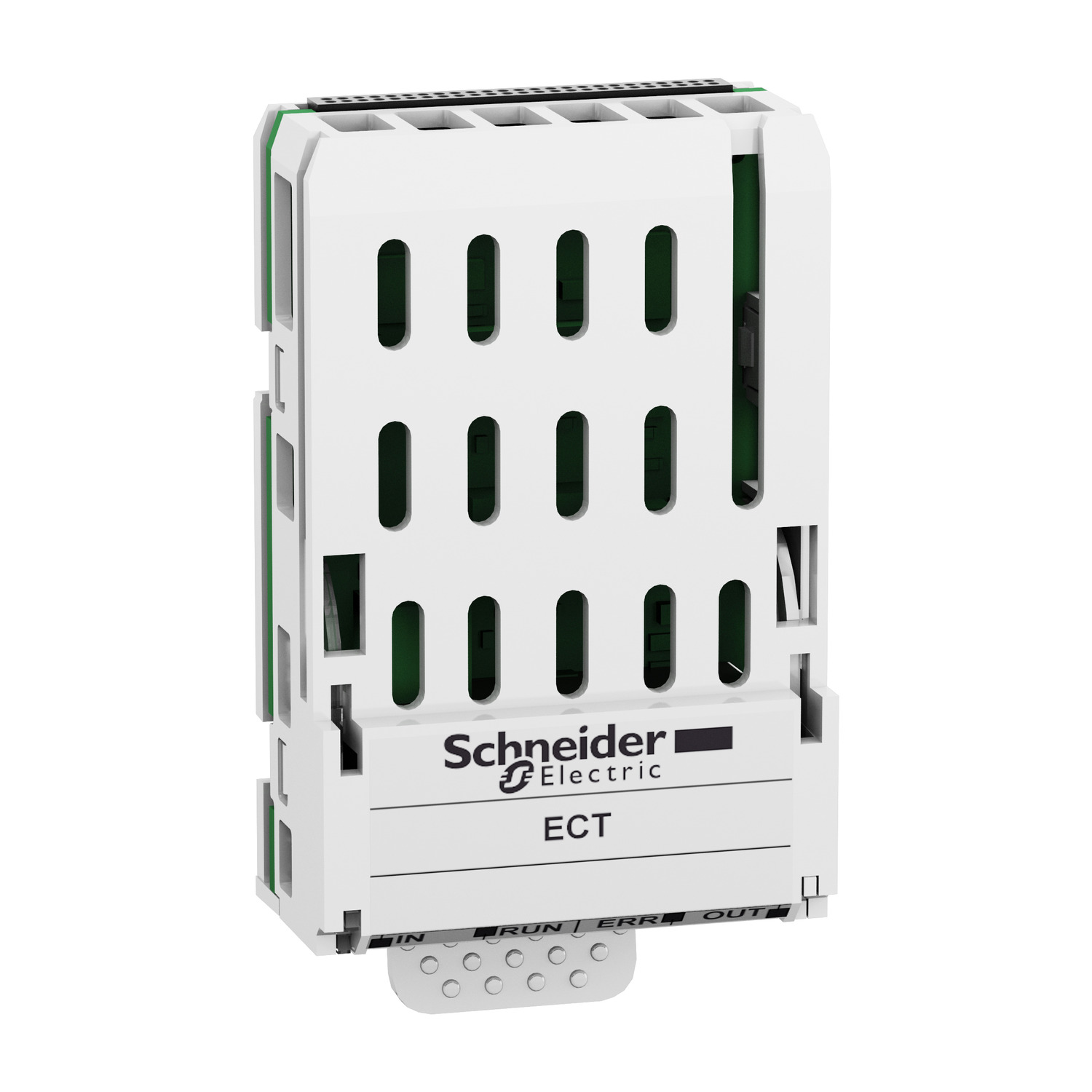

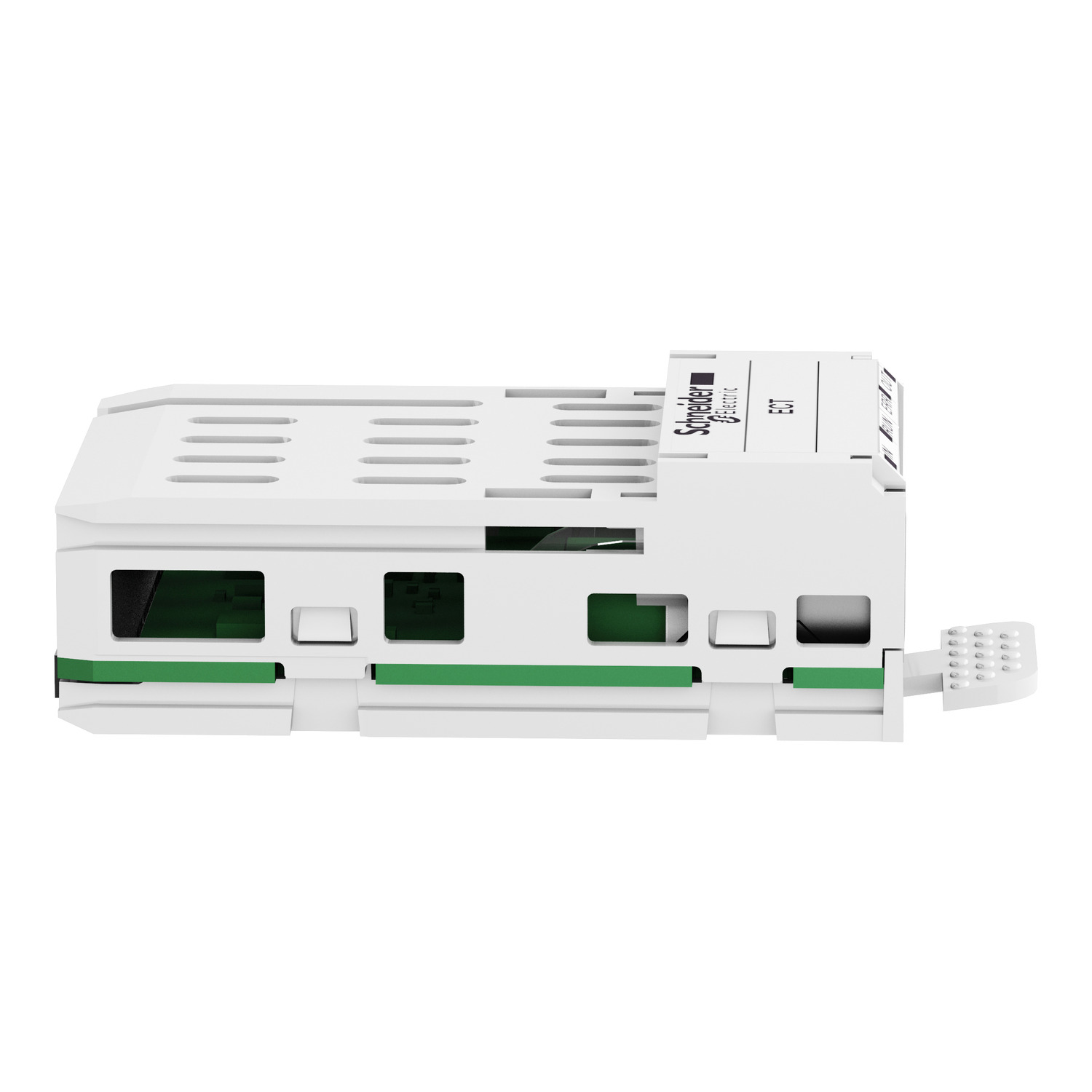

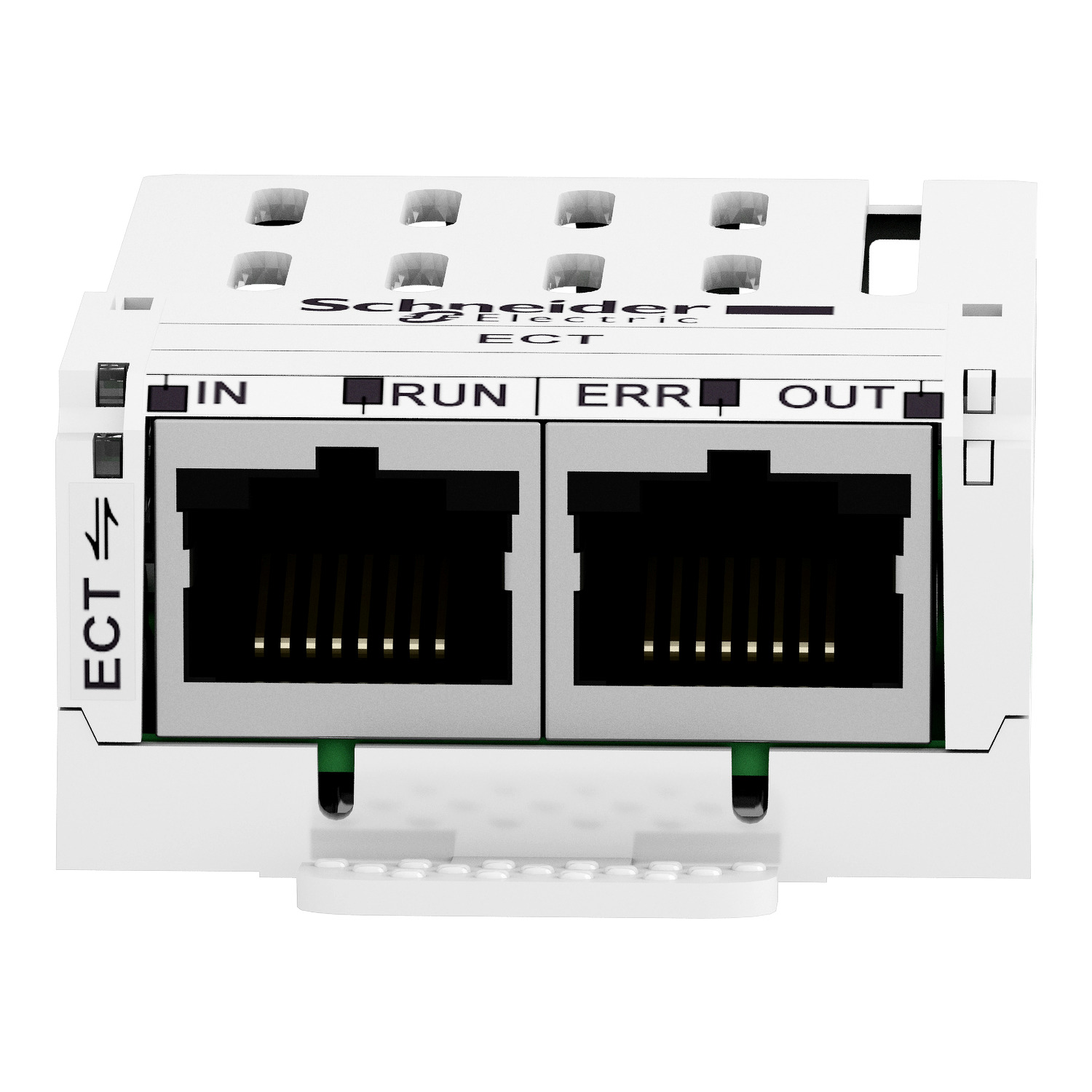

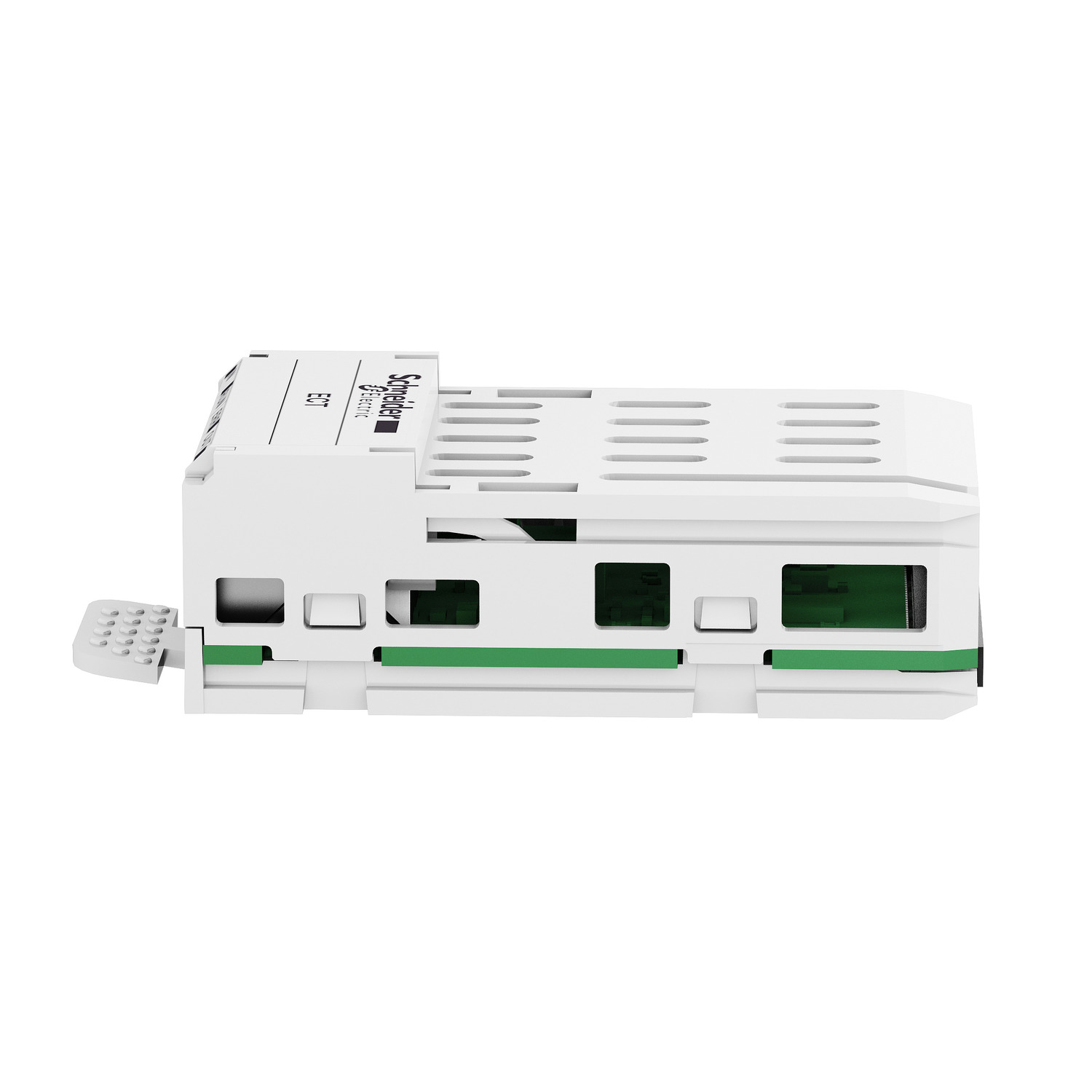

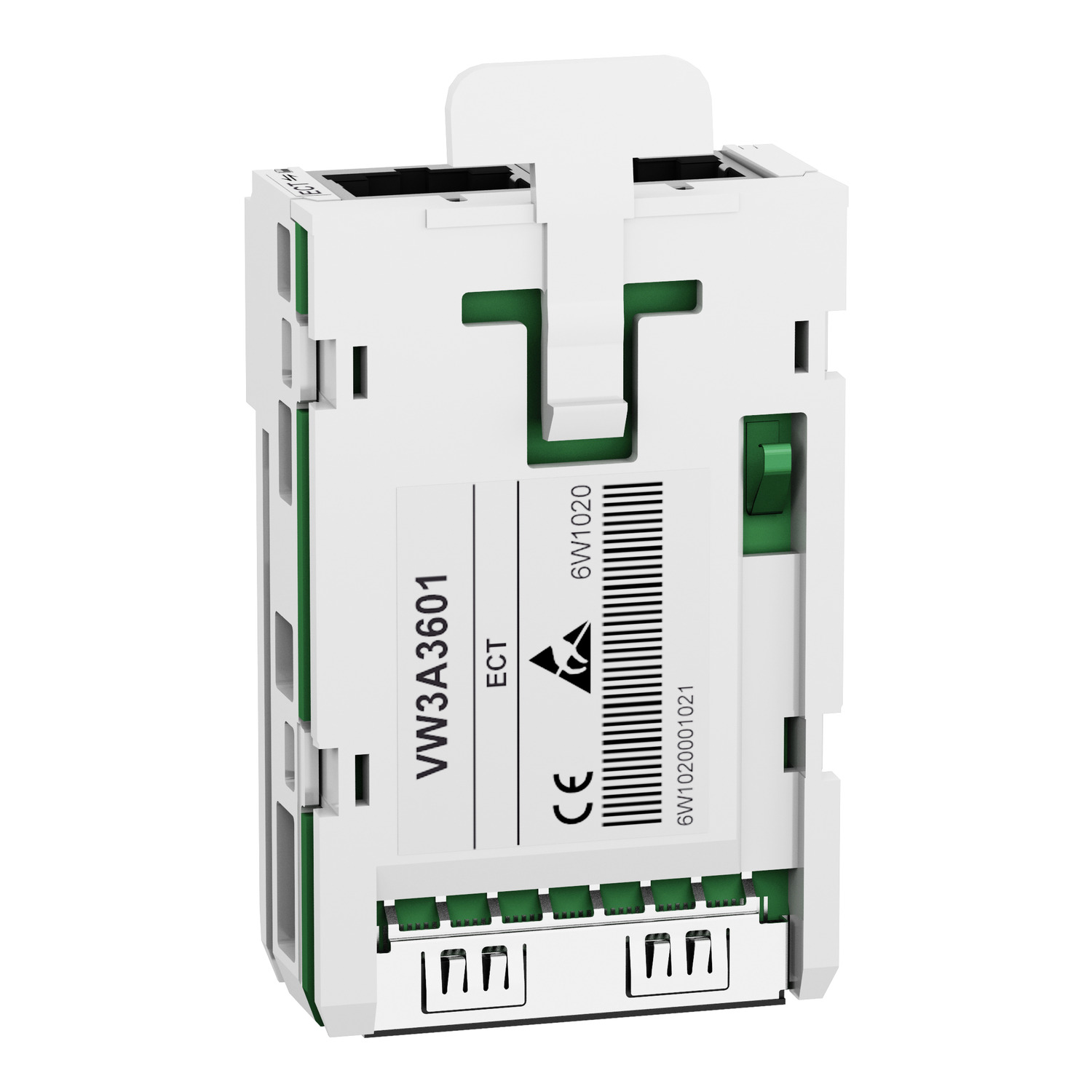

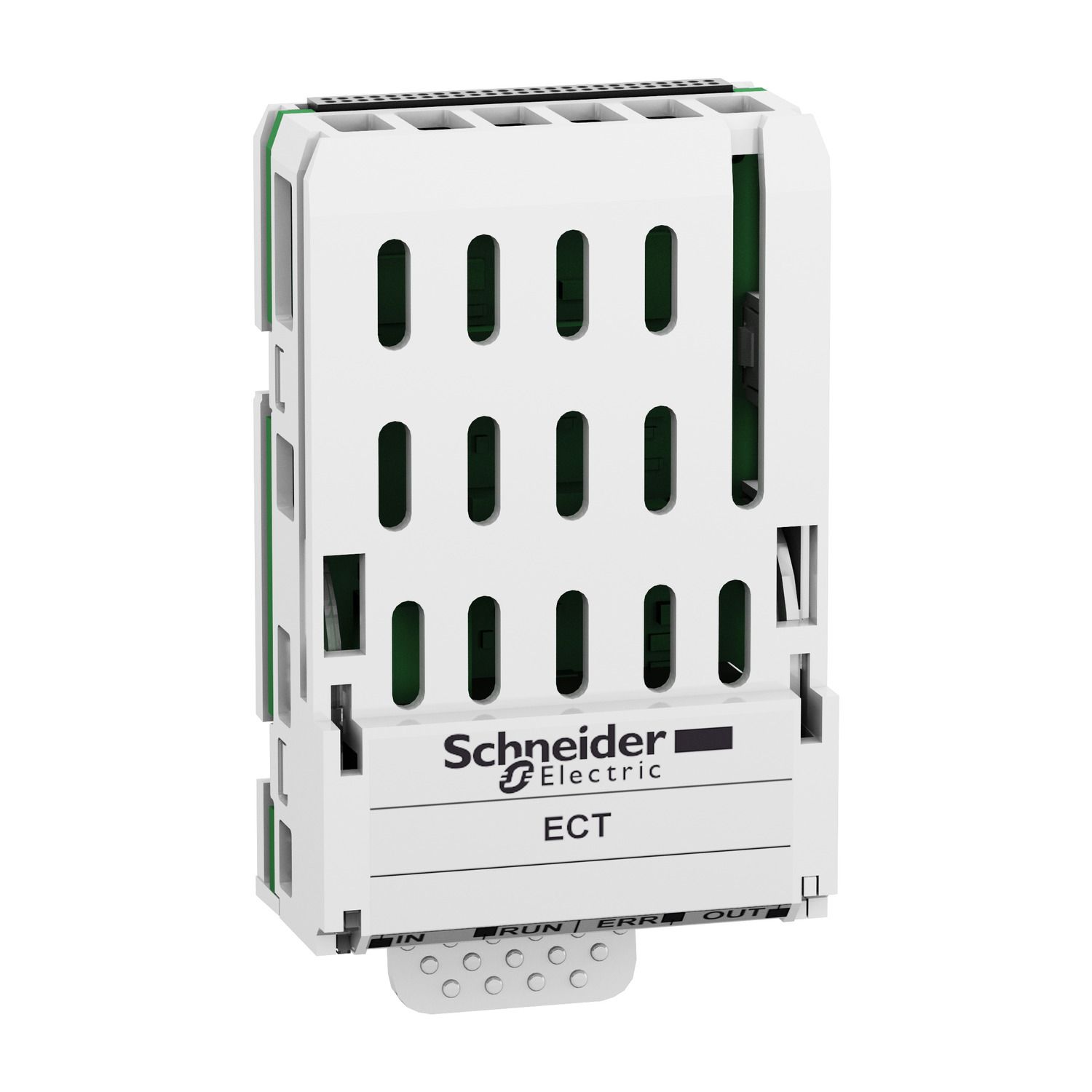

Communication Module, Lexium 32, Ethercat 2 x RJ45

Manufacturer: Schneider Electric

SKU: VW3A3601

GTIN: 3606480326714

Catalog

User guide

Instruction sheet

Environmental Disclosure

Declaration of conformity

Old price: $623.70 inc GST

Price: $482.99 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This EtherCAT communication module is an option for variable speed drives of Altivar range. It is equipped with 2 RJ45 connectors. It is compatible with Altivar Machine and Altivar Process drives. It enables integration of your variable speed drive in your process control network. It weighs 0.29kg.

Products specifications

Attribute name	Attribute value
Main
Accessory / separate part category	communication accessories
Range of product	Altivar
Product or component type	communication module
Complementary
Product compatibility	Lexium 32M
Range compatibility	Lexium 32, Altivar 32, Altivar Process ATV900, Altivar Machine ATV320, Altivar Machine ATV340 except Sercos drives, Altivar Process Modular
Display type	1 LED for output status, 1 LED for error, 1 LED for RUN, 1 LED for input status
Maximum cable distance between devices	100 m for 100 Mbps
Addressing	position addressing, node addressing, logical addressing
Transmission rate	100 Mbps
Communication port protocol	EtherCAT
Communication service	CANopen over EtherCAT (CoE), drive profile CiA 402 velocity mode conforming to IEC 61800-7-201 (CiA 402), PDO and SDO support
Electrical connection	2 connectors RJ45
Environment
Standards	IEC 61800-7-201 (CiA 402)
