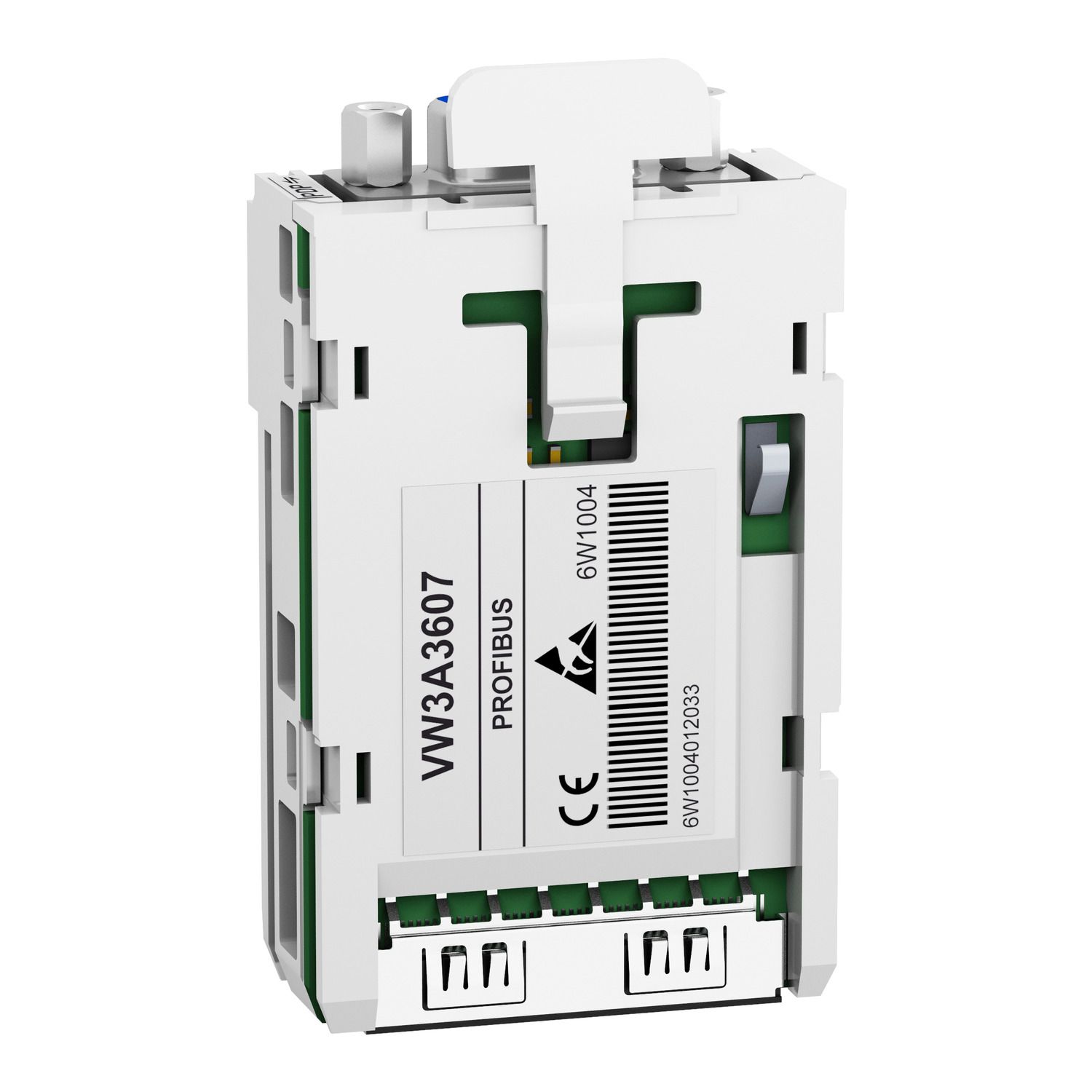

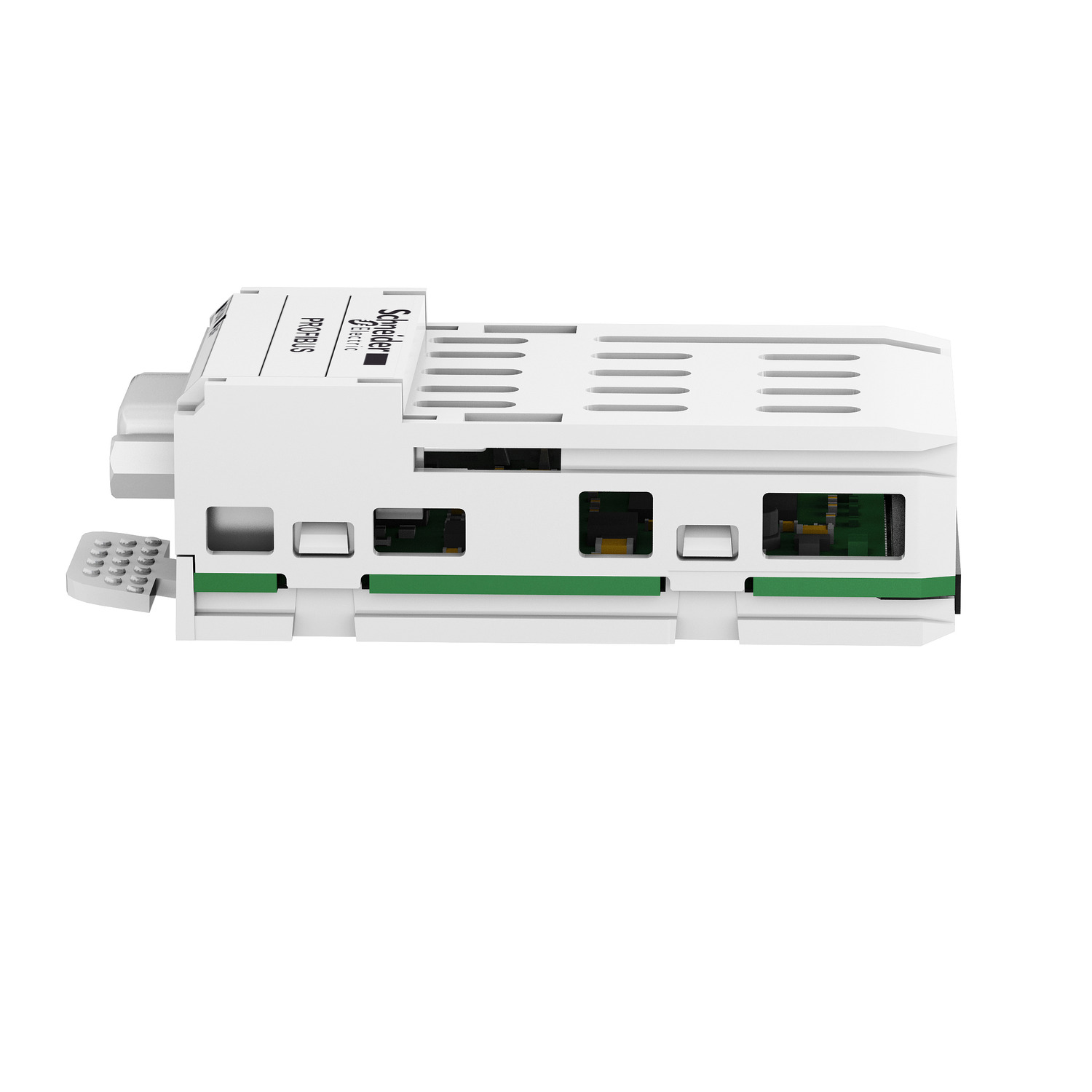

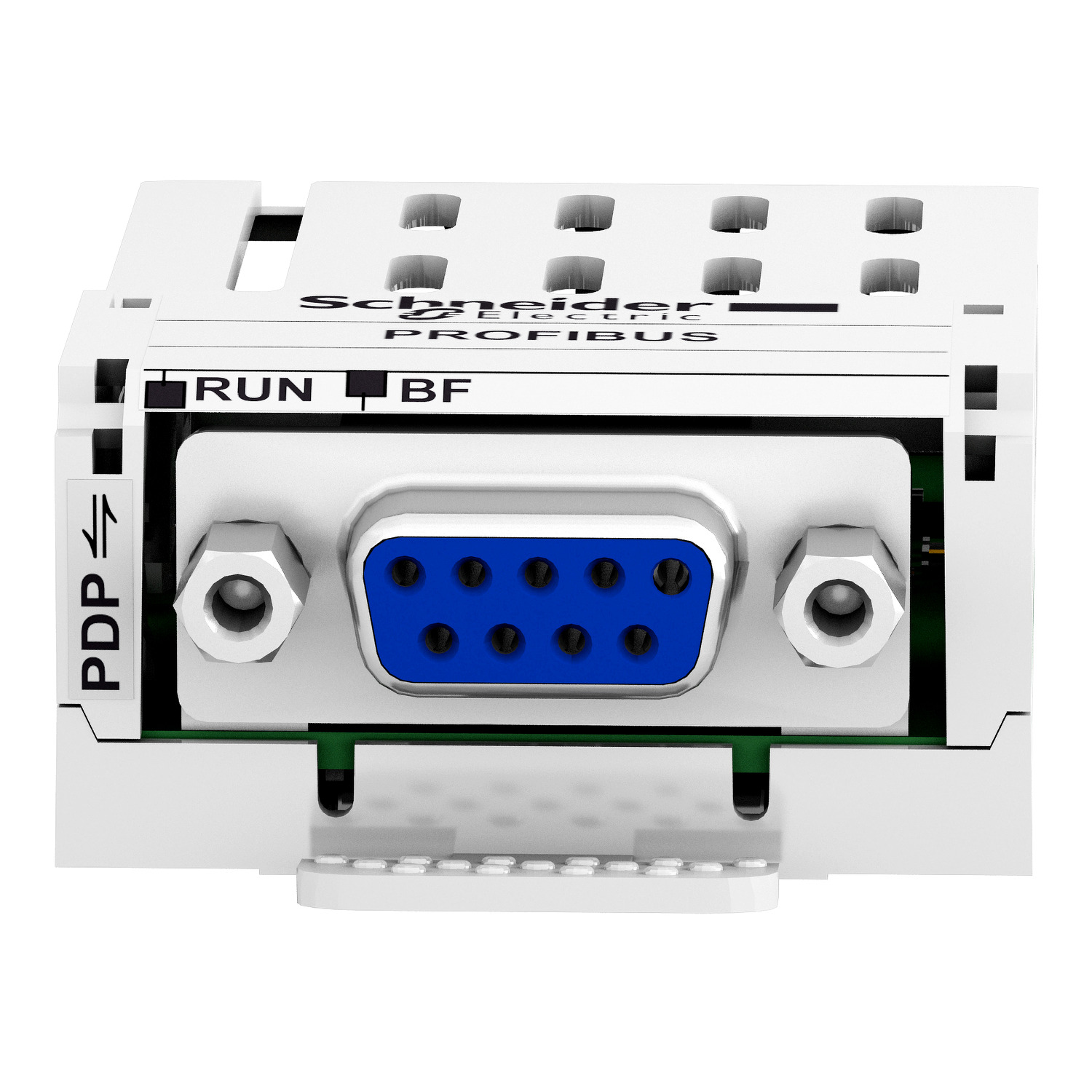

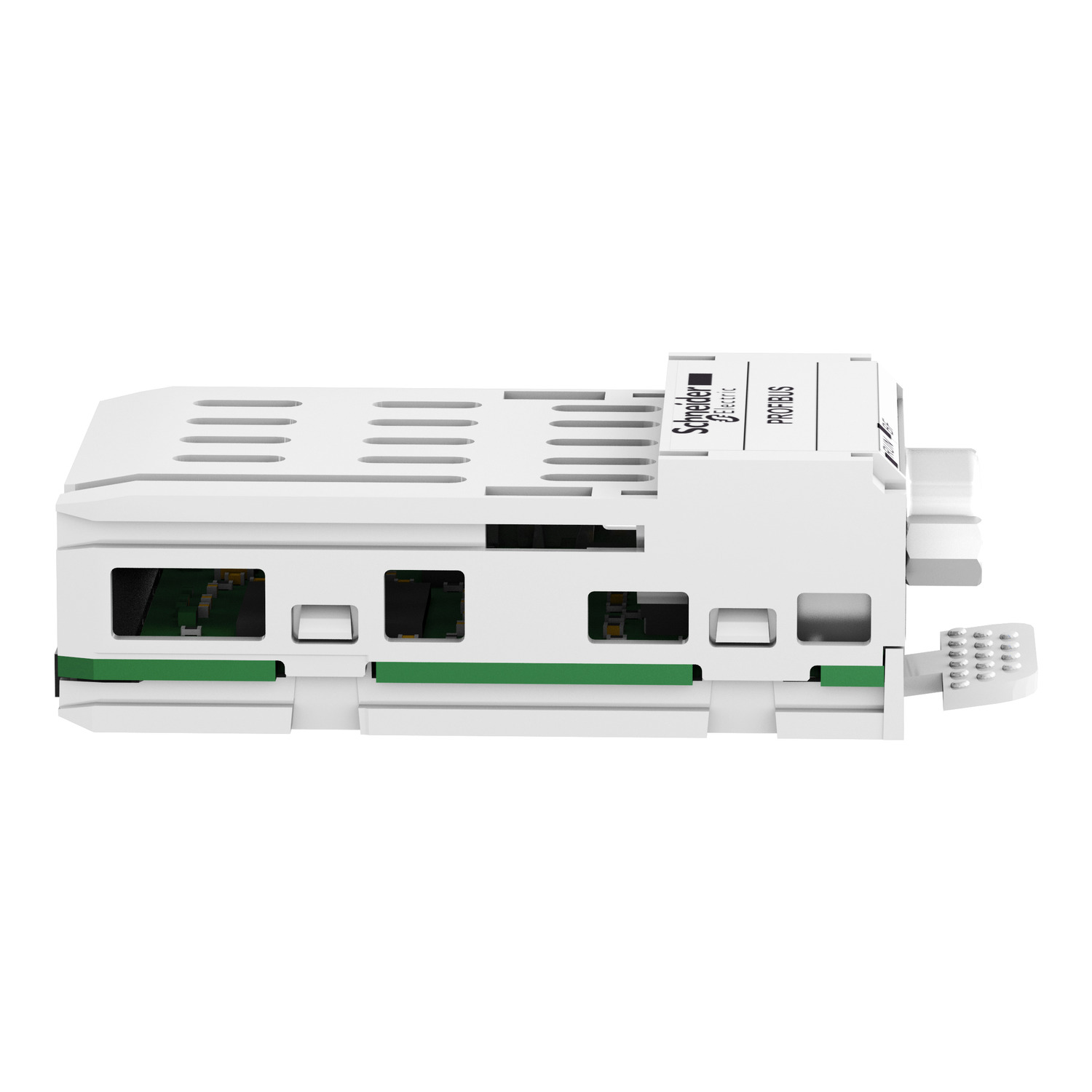

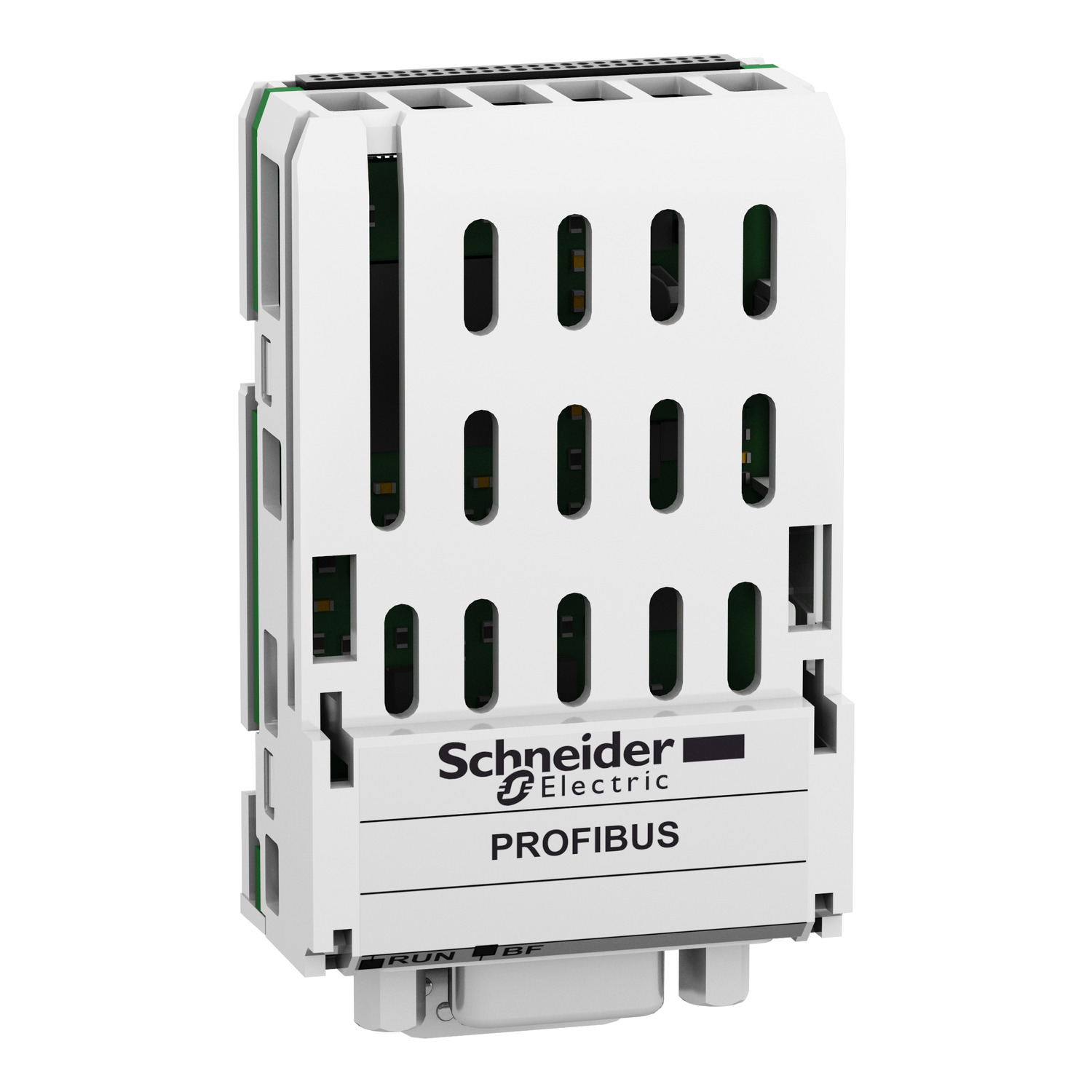

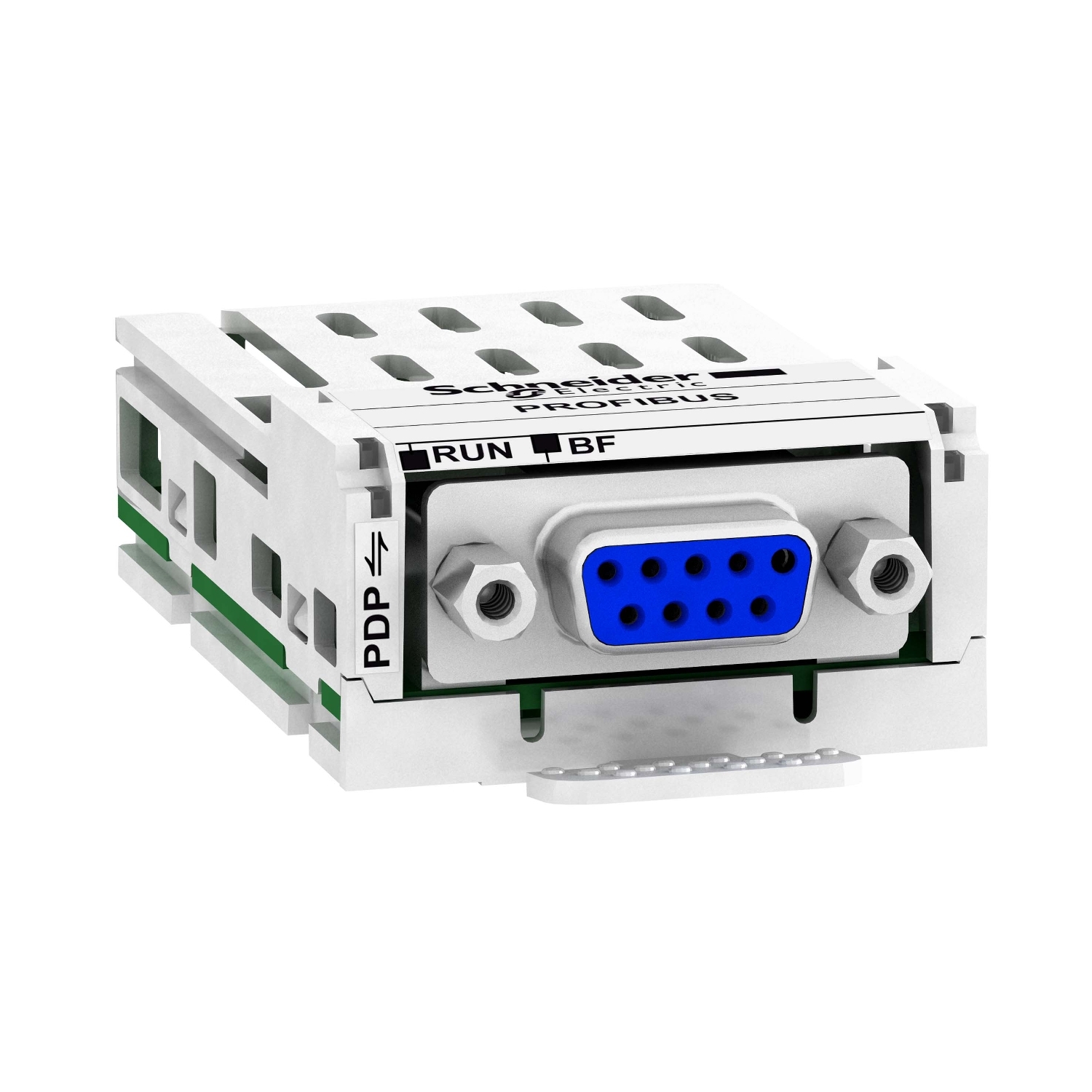

This PROFIBUS DP V1 communication module is an option for variable speed drives of Altivar range. It is equipped with 1 x 9-way female SUB-D connector. It is compatible with Altivar Machine and Altivar Process drives. It enables integration of your variable speed drive in your process control network. It weighs 140g.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Accessory / separate part category | communication accessories |
| Range of product | Altivar |
| Product or component type | communication module |
| Complementary | |
| Product compatibility | Lexium 32M |
| Range compatibility | Altivar Process Modular, Altivar Machine ATV320, Altivar Process ATV600, Altivar Process ATV900, Lexium 32, Altivar Easy 610, Altivar Machine ATV340 except Sercos drives, Altivar 32 |
| Display type | 1 LED for bus fault (BF), 1 LED for RUN |
| Addressing | configuration settings, 1...126 configurable by graphic terminal/SoMove software |
| Transmission rate | 9.6 kbps...12 Mbps |
| Communication port protocol | Profibus DP V1 |
| Communication service | drive profile native ATV32 conforming to IEC 61800-7-201 (CiA 402), several DP V1 messaging modes, parameters management compliant with PROFIdrive V4.1, mapping of the process data from the master, 4 configurable telegrams |
| Electrical connection | 1 female connector SUB-D 9 |
| Alarm function | standard identification and maintenance requests, host drive handled from two masters (MS0 and MS1), diagnostic data with VSD status |
| Bus profile | CiA 402, PROFIdrive |
| Environment | |
| Standards | IEC 61800-7-201 (CiA 402) |
