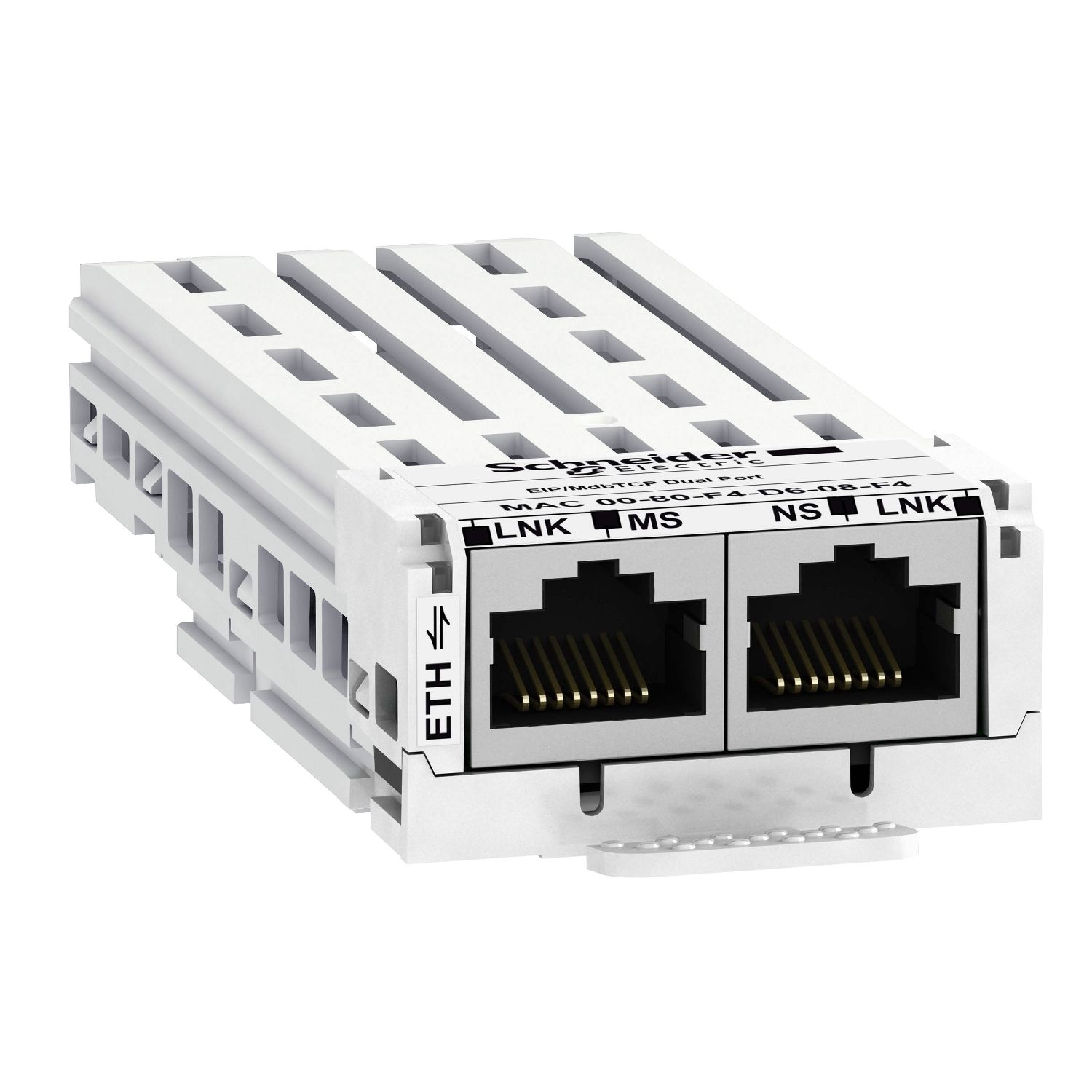

This EtherNet/IP, Modbus TCP, and MD-Link dual port module communication module is an option for variable speed drives of Altivar range. It is equipped with 2 RJ45 connectors. It is compatible with Altivar Machine and Altivar Process drives. It enables integration of your variable speed drive in your process control network. It weighs 20g.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range of product | Altivar |
| Product or component type | communication module |
| Complementary | |
| Web server | embedded HTTP server |
| Range compatibility | Altivar Process Modular, Altivar Process ATV600 |
| Web services | drive setting and diagnostic, drive monitor, upgrade drive firmware, pump function setting and monitoring, Ethernet setting and diagnostic, save/restore drive configuration, customizable home page, energy monitoring, widgets (ID, control, data table, diagnostic, charts) |
| Display type | 1 LED for TX/RX (Transmit/Receive port 2), 1 LED for TX/RX (Transmit/Receive port 1), 1 LED for NS (Network Status), 1 LED for MS (Module Status) |
| Topology | daisy chain |
| Exchange mode | half duplex and full duplex |
| Transmission rate | 10/100 Mbps |
| Time synchronisation protocol | SNTP |
| Communication port protocol | Modbus TCP, EtherNet/IP, MD-Link |
| Communication service | FDR for Ethernet IP/Modbus TCP, 32 parameters IN - 32 parameters OUT implicit messaging for Ethernet IP/Modbus TCP, auto-MDIX for Ethernet IP/Modbus TCP, ODVA AC drive and CiA 402 profile for Ethernet IP/Modbus TCP, FTP for Ethernet IP, RSTP support for Ethernet IP, Ethernet/IP adapter for Ethernet IP, Modbus TCP server for Ethernet IP/Modbus TCP, SNMP agent for Ethernet IP |
| Net weight | 0.2 kg |
| Electrical connection | 2 connectors RJ45, Ethernet IP/Modbus TCP/MD-Link |
| Bus profile | CiA 402, CIP AC Drive |
| Communication network type | IPv6 (internet protocol) |
| Environment | |
| Product certifications | Achilles: level 2, ODVA |
