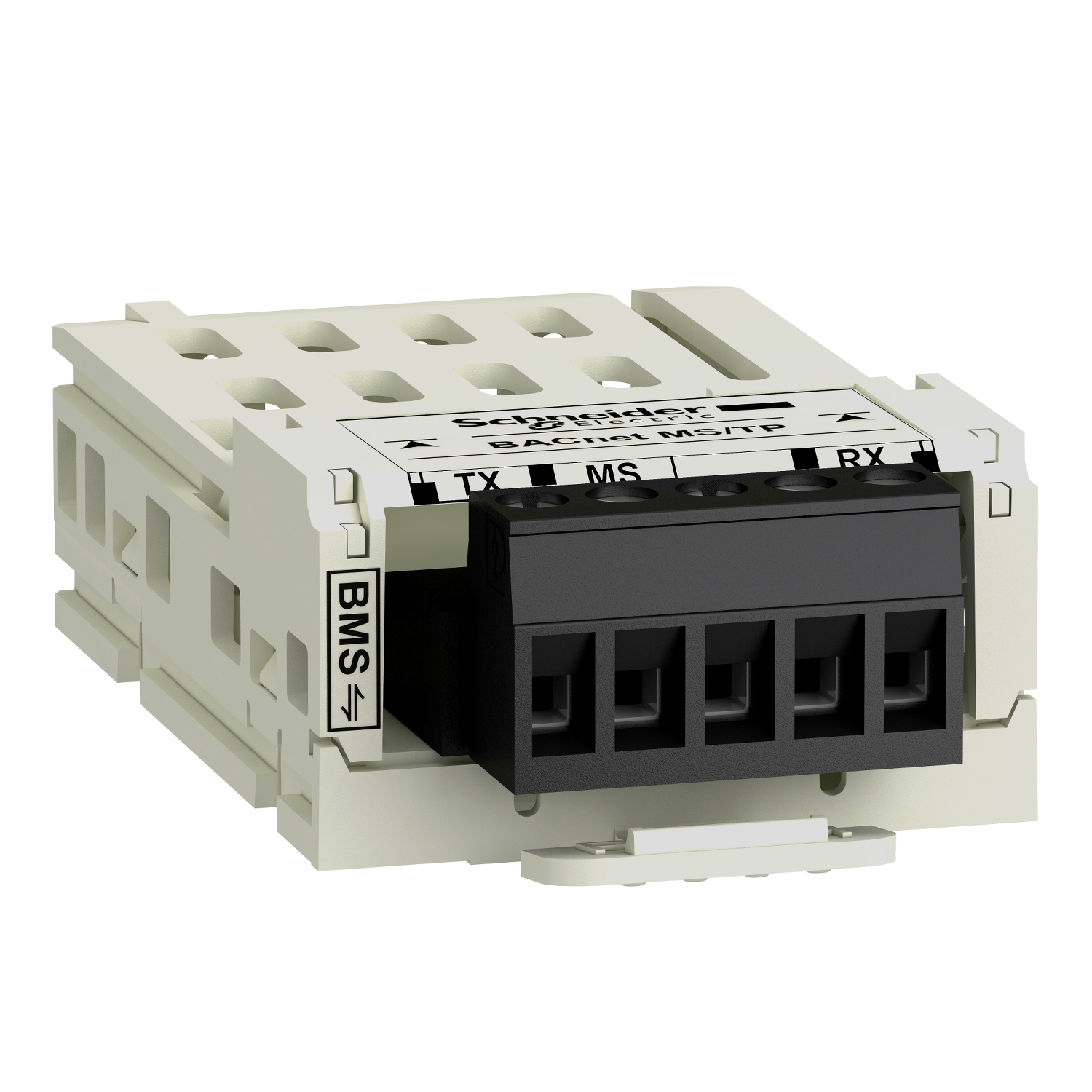

This BACnet MS/TP communication module is an option for variable speed drives of the Altivar range. It is equipped with an RS485 5-pin removable terminal block. It is compatible with Altivar Process drives. This module allows AV, BV, MSV BACnet MS/TP, and COV notification communication services. The transmission rate is up to 76.8kbit/s. It has 4 LEDs: one showing error, one transmission activity, one reception activity (RX), and one module status. It weighs 0.035kg. It enables integration of your variable speed drive in your process control network. Its protection index is IP20, and it conforms to BTL, CSA, IEC 61000 (4-2, 4-3, 4-4, 4-5, 4-6, 6-1, and 6-3), IEC 60730-1, UL508, and UL 873 standards.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product or component type | communication module |
| Range of product | Altivar |
| Complementary | |
| Product compatibility | ATV600 |
| Transmission rate | 9.6, 19.2, 38.4, 76.8 kbit/s |
| Range compatibility | Altivar Process ATV600, Altivar Process Modular |
| Display type | 1 LED for module status, 1 LED for reception activity (RX), 1 LED for transmission activity, 1 LED for error |
| Communication port protocol | BACnet MS/TP |
| Communication service | COV notification, AV, BV, MSV for BACnet MS/TP |
| Net weight | 0.035 kg |
| Transmission support medium | 2 twisted pairs |
| Electrical connection | screw terminal block 5-pin removable terminal block, BACnet MS/TP |
| Communication network type | RS485 |
| Environment | |
| Operating altitude | 0...2000 m |
| IP degree of protection | IP20 |
| Relative humidity | 5-95 % without condensation |
| Ambient air temperature for storage | -25-70 °C |
| Shock resistance | 15 gn for 11 ms |
| Vibration resistance | 2 gn (f = 13-150 Hz), 1 mm (f = 13-23 Hz), 1.5 mm (f = 3-13 Hz) |
| Electromagnetic compatibility | conducted EMC conforming to IEC 61000-6-3, conducted EMC level 2 conforming to IEC 60730-1, conducted RF disturbances level 3A conforming to IEC 61000-4-6, surge immunity test level 3 conforming to IEC 61000-4-5, electrical fast transient/burst immunity test level 4B conforming to IEC 61000-4-4, radiated RF fields level 3A conforming to IEC 61000-4-3, electrostatic discharge level 3B conforming to IEC 61000-4-2, EMC immunity level 2 conforming to IEC 60730-1, EMC immunity conforming to IEC 61000-6-1 |
| Storage altitude | 0-3048 m |
| Product certifications | UL 873, UL 508, CSA, BTL |
| Ambient air temperature for operation | -20-65 °C |
