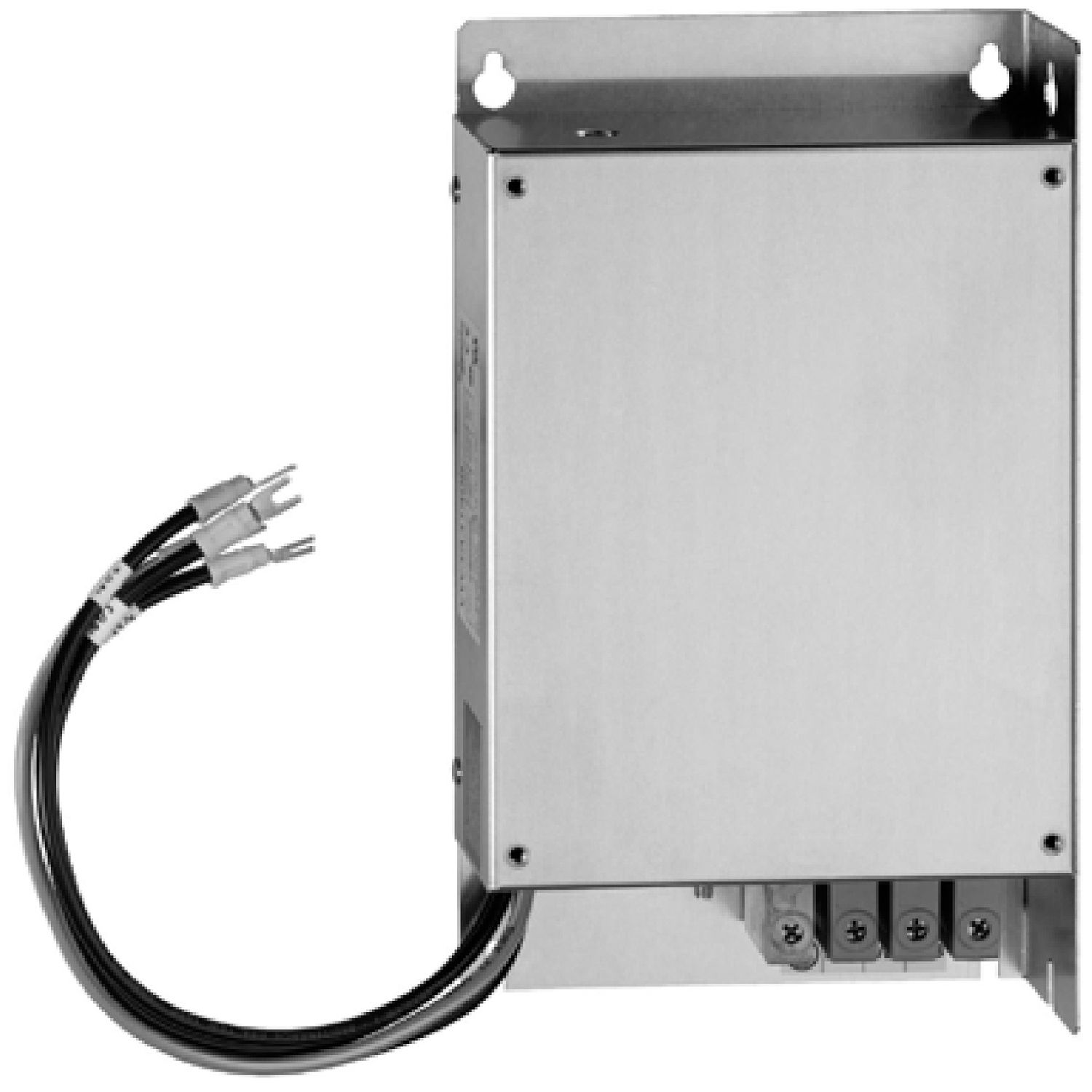

This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 180A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C1, C2. Its protection index is IP20. It weighs 40kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Thermal losses | 58 W for ATV61/ATV71 variable speed drives, 23.1 W for ATV21HD30M3X, 34 W for ATV21HD75N4, 18 W for ATV21HD55N4 |
| Range compatibility | Altivar 212, Altivar 71, Altivar 61 |
| [In] rated current | 180 A |
| Product specific application | radio interference input filter |
| Network number of phases | three phase |
| Product or component type | EMC input filter |
| Product compatibility | ATV71WD75N4, ATV71WD55N4, ATV71WD45N4, ATV71HD75N4, ATV71HD55N4, ATV71HD45N4, ATV71HD45M3X, ATV71HD37M3X, ATV71HD30M3X, ATV61HD75N4, ATV61HD55N4, ATV61HD45N4, ATV61HD45M3X, ATV61HD37M3X, ATV61HD30M3X, ATV212HD75N4, ATV212HD55N4, ATV212HD30M3X |
| Range of product | Altivar |
| Complementary | |
| Electrical connection | terminal 150 mm² 300 kcmil |
| Tightening torque | 25 N.m |
| Network rated voltage | 200-240 V, 380-500 V |
| Earth leakage current | 86.3 mA at 480 V 60 Hz, 80 mA at 400 V 50 Hz, 193 mA at 480 V 60 Hz, 140 mA at 400 V 50 Hz |
| Net weight | 40 kg |
| Tolerance | 10 % |
| Environment | |
| Operating altitude | 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without derating, <= 1000 m without current derating |
| IP degree of protection | IP41 (upper part), IP20 |
| Relative humidity | 0-93 % conforming to IEC 68-2-3 |
| Ambient air temperature for storage | -40-65 °C |
| Vibration resistance | 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| Ambient air temperature for operation | -10-50 °C |
| Standards | EN 133200 |
