Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Thermal losses | 125 W |
| Range compatibility | Altivar 61, Altivar 61Q, Altivar 71Q, Altivar Process ATV600, Altivar 71, Altivar Process ATV900 |
| [In] rated current | 336 A, 546 A |
| Product specific application | radio interference input filter |
| Network number of phases | three phase |

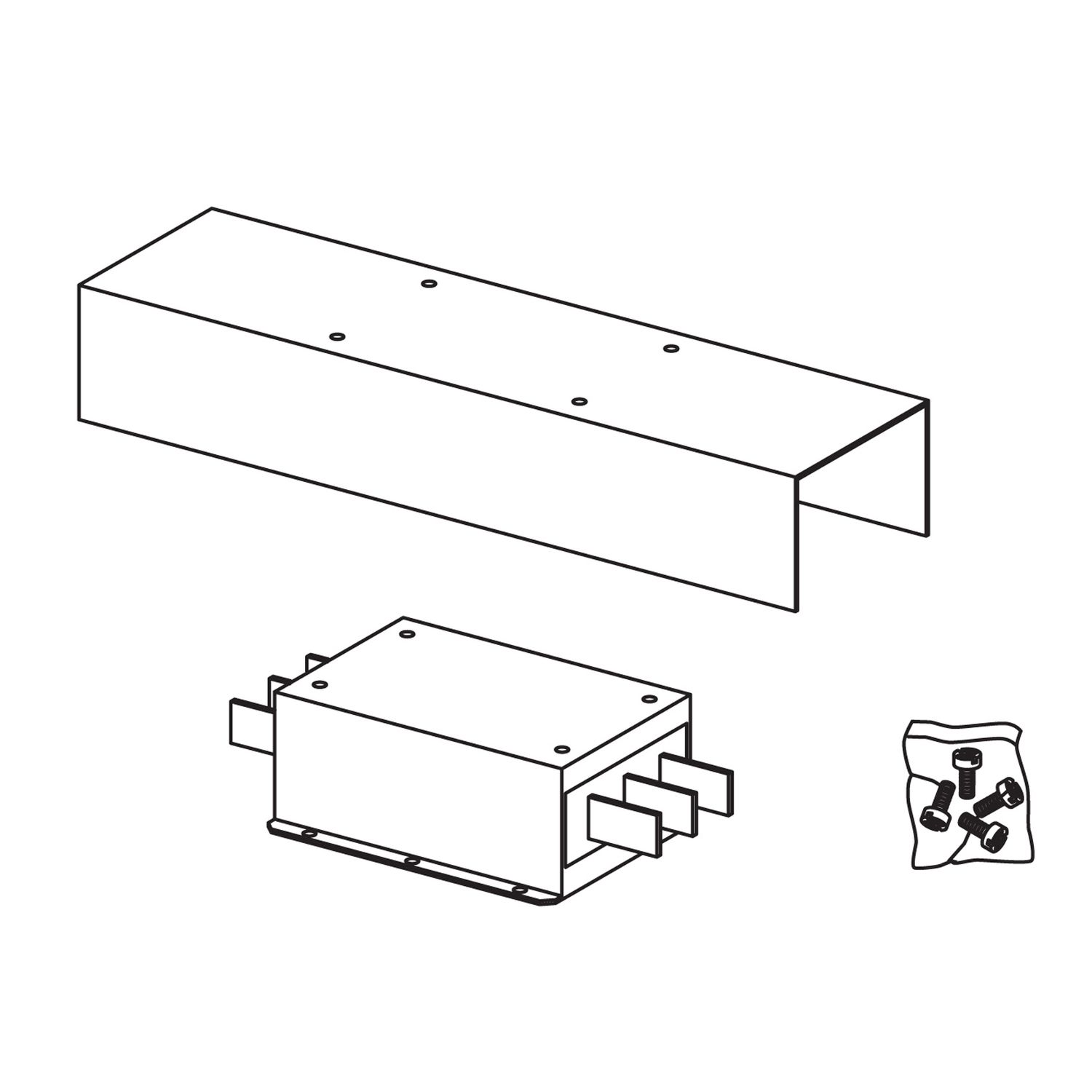

| Product or component type | EMC input filter |
| Product compatibility | variable speed drive ATV930 wall mount, motor: 315 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 250 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 220 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 315 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 250 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 220 kW, 380...480 V, ATV71QC25N4, ATV71QC20N4, ATV71QC16N4, ATV71HC28N4, ATV71HC25N4, ATV71HC20N4, ATV71HC16N4, ATV61QC31N4, ATV61QC25N4, ATV61QC20N4, ATV61HD90M3X, ATV61HC31N4, ATV61HC25N4, ATV61HC22N4 |
| Range of product | Altivar |
| Complementary | |
| Electrical connection | M10 bars |
| Network rated voltage | 380-500 V, 200-240 V |
| Earth leakage current | 500 mA at 400 V 50 Hz |
| Net weight | 22 kg, 25 kg |
| Maximum motor cable length | 50 m shielded motor cable conforming to IEC 61800-3 category C1, 300 m shielded motor cable conforming to IEC 61800-3 category C2 |
| Tolerance | 10 % |
| Environment | |
| Operating altitude | 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without current derating |
| IP degree of protection | IP30with kits VW3A9601, 602, IP00 |
| Relative humidity | 0-93 % conforming to IEC 68-2-3 |
| Ambient air temperature for storage | -25-85 °C |
| Vibration resistance | 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2-6, 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -25-45 °C |
| Standards | IEC 61800-3 |
