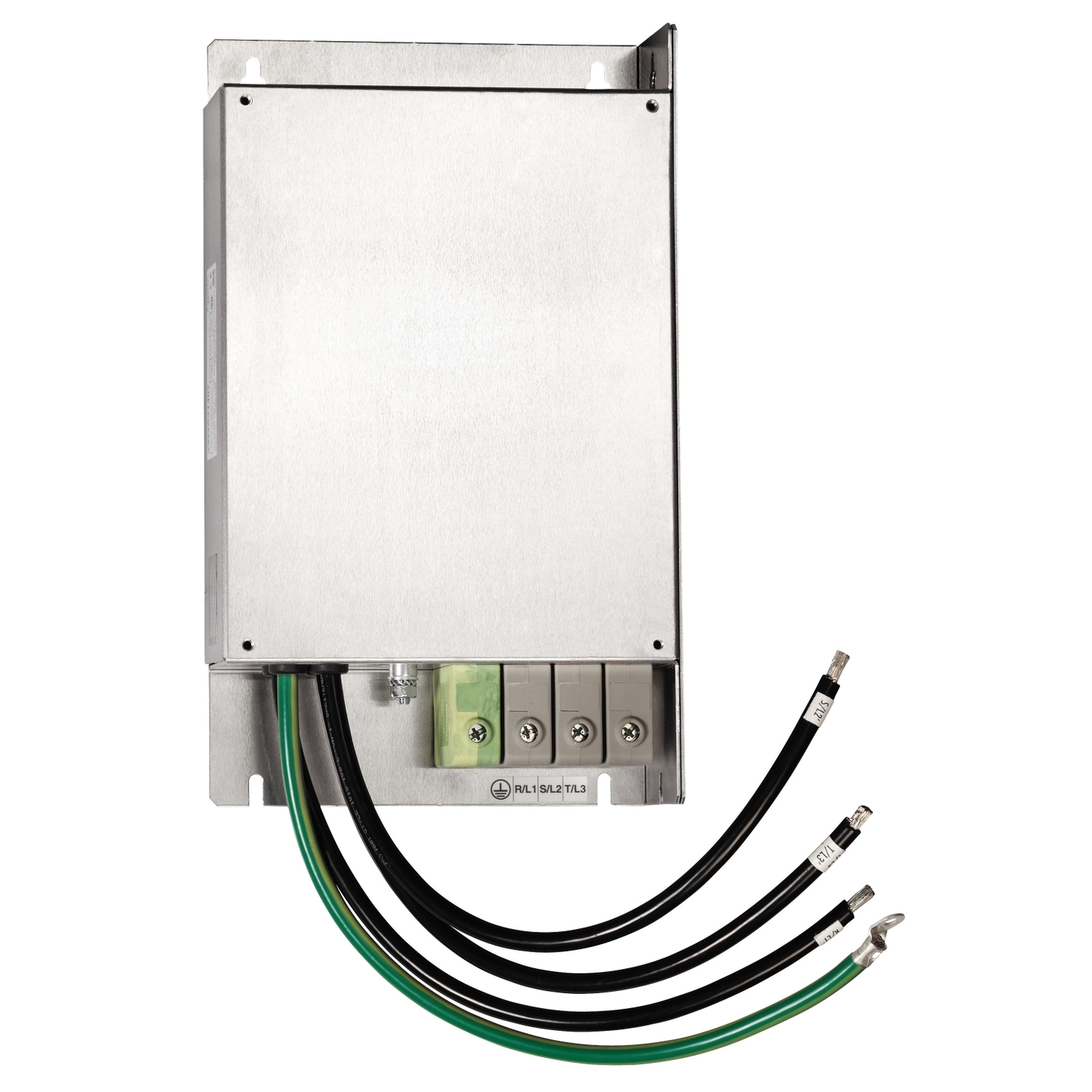

This EMC input filter enables your drive to be in compliance with electromagnetic compatibility requirements. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). It is compatible with Altivar 32 and Altivar machine ATV320. It is mounted underneath the variable speed drive. It acts as a support for the drives and is attached to them via tapped holes.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range compatibility | Altivar Machine ATV320, Altivar 32 |
| Product specific application | radio interference input filter |
| Mounting location | below variable speed drive |
| Network number of phases | three phase |
| Product or component type | EMC input filter |
| Product compatibility | variable speed drive ATV320 at 15 kW, 380...500 V, three phase, variable speed drive ATV320 at 11 kW, 380...500 V, three phase, ATV32, 380...500 V, 11...15 kW |
| Range of product | Altivar, Lexium |
| Complementary | |
| Thermal losses | 27.4 W |
| [In] rated current | 49 A |
| Emc filter compatibility | type 025 |
| Network rated voltage | 380-500 V |
| Net weight | 4.75 kg |
| Tolerance | - 15...10 % |
| Maximum cable distance between devices | 150 m conforming to IEC 61800-3 category C3, 100 m conforming to IEC 61800-3 category C2, 20 m conforming to IEC 61800-3 category C1 |
