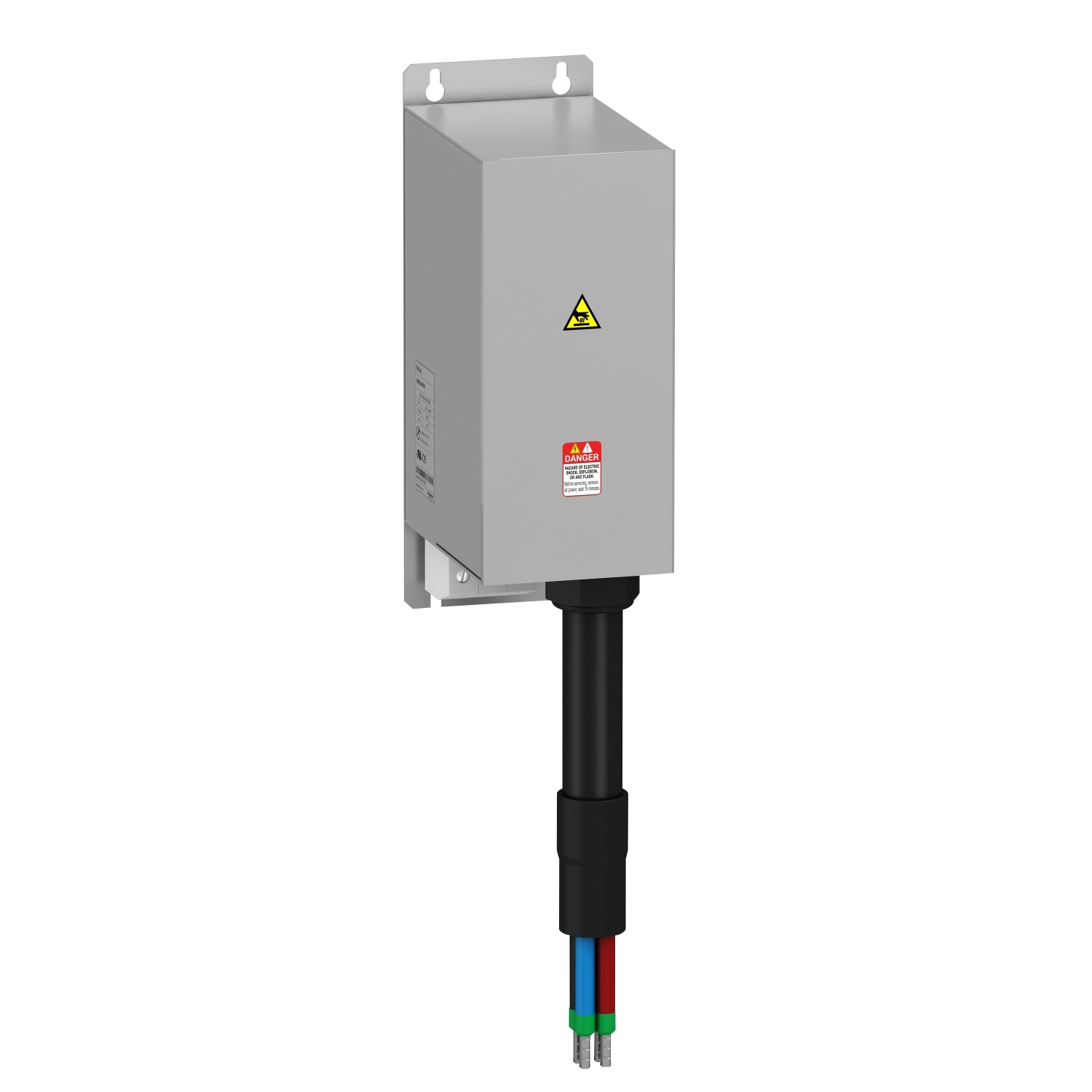

This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 100A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C1, C2 or C3. Its protection index is IP20. It weighs 6.5kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Thermal losses | 12.4 W |
| Range compatibility | Altivar Process ATV900, Altivar Process ATV600, Altivar Machine ATV340 |
| [In] rated current | 100 A |
| Product specific application | radio interference input filter |
| Mounting location | at variable speed drive side |
| Network number of phases | three phase |
| Product or component type | EMC input filter |
| Product compatibility | variable speed drive ATV340 motor: 37 kW, 380...480 V, variable speed drive ATV340 motor: 30 kW, 380...480 V, variable speed drive ATV950 wall mount, motor: 45 kW, 380...480 V, variable speed drive ATV950 wall mount, motor: 37 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 22 kW, 200...240 V, variable speed drive ATV930 wall mount, motor: 18.5 kW, 200...240 V, variable speed drive ATV930 wall mount, motor: 45 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 37 kW, 380...480 V, variable speed drive ATV650 wall mount, motor: 45 kW, 380...480 V, variable speed drive ATV650 wall mount, motor: 37 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 22 kW, 200...240 V, variable speed drive ATV630 wall mount, motor: 18.5 kW, 200...240 V, variable speed drive ATV630 wall mount, motor: 45 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 37 kW, 380...480 V |
| Range of product | Altivar |
| Complementary | |
| Depth | 180 mm |
| Width | 120 mm |
| Electrical connection | terminal 50 mm² AWG 1/0 |
| Network rated voltage | 200-240 V, 380-480 V |
| Earth leakage current | 13.9 mA at 400 V 50 Hz TT, 13.9 mA at 400 V 50 Hz TN |
| Net weight | 6.5 kg |
| Maximum motor cable length | 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 380...480 V, 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 200...240 V, 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 200...240 V, 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 200...240 V, 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 380...480 V, 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 380...480 V |
| Tolerance | 10 % |
| Height | 340 mm |
| Mechanical robustness | vibrations class 3M4 conforming to IEC 60721-3-3, shocks class 3M4 conforming to IEC 60721-3-3 |
| Environment | |
| Operating altitude | 1000...4000 m with current derating 1 % per 100 m, 0...1000 m without current derating |
| IP degree of protection | IP21with kit VW3A47906, IP20mounting side by side |
| Relative humidity | 5-95 % without condensation conforming to IEC 61800-5-1 |
| Ambient air temperature for storage | -40-70 °C |
| Ambient air temperature for operation | 50-60 °C (with current derating 1.5 % per °C), -10-50 °C (without current derating) |
| Standards | IEC 61800-3 |
