Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range compatibility | Altivar Process ATV900, Altivar Process ATV600 |
| [In] rated current | 240 A |

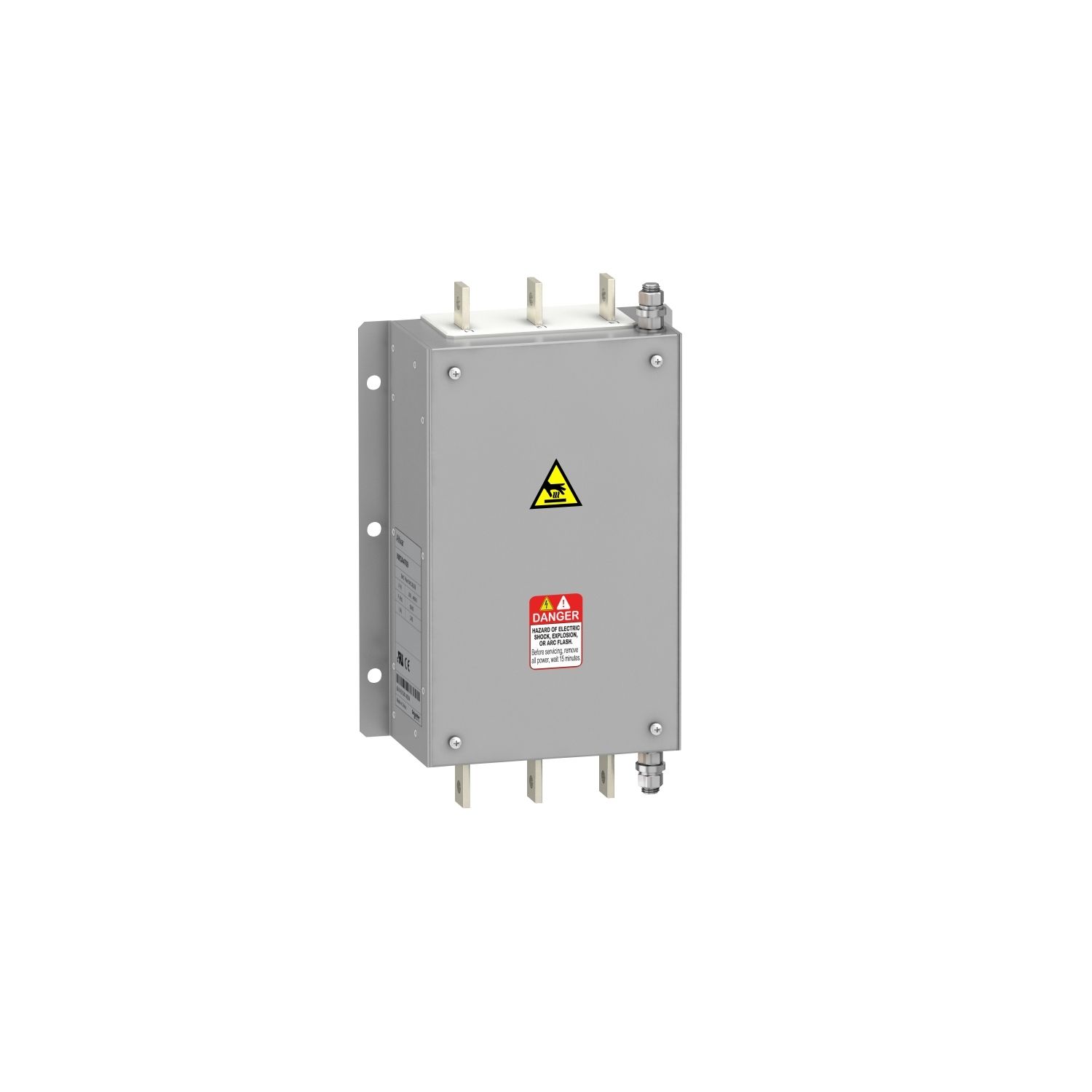

| Product specific application | radio interference input filter |
| Network number of phases | three phase |
| Product or component type | EMC input filter |
| Product compatibility | variable speed drive ATV930 wall mount, motor: 55 kW, 200...240 V, variable speed drive ATV930 wall mount, motor: 132 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 110 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 55 kW, 200...240 V, variable speed drive ATV630 wall mount, motor: 132 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 110 kW, 380...480 V |
| Range of product | Altivar |
| Complementary | |
| Depth | 117 mm |
| Width | 260 mm |
| Electrical connection | copper bar M10 |
| Network rated voltage | 200-240 V, 380-480 V |
| Earth leakage current | 27.8 mA at 400 V 50 Hz TT, 27.8 mA at 400 V 50 Hz TN |
| Net weight | 15 kg |
| Maximum motor cable length | 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 200...240 V, 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 200...240 V, 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 200...240 V, 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 380...480 V, 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 380...480 V |
| Tolerance | 10 % |
| Height | 520 mm |
| Mechanical robustness | vibrations class 3M4 conforming to IEC 60721-3-3, shocks class 3M4 conforming to IEC 60721-3-3 |
| Environment | |
| Operating altitude | 1000...4000 m with current derating 1 % per 100 m, 0...1000 m without current derating |
| IP degree of protection | IP00 |
| Relative humidity | 5-95 % without condensation conforming to IEC 61800-5-1 |
| Ambient air temperature for storage | -40-70 °C |
| Ambient air temperature for operation | 50-60 °C (with current derating 1.5 % per °C), -10-50 °C (without current derating) |
| Standards | IEC 61800-3 |
