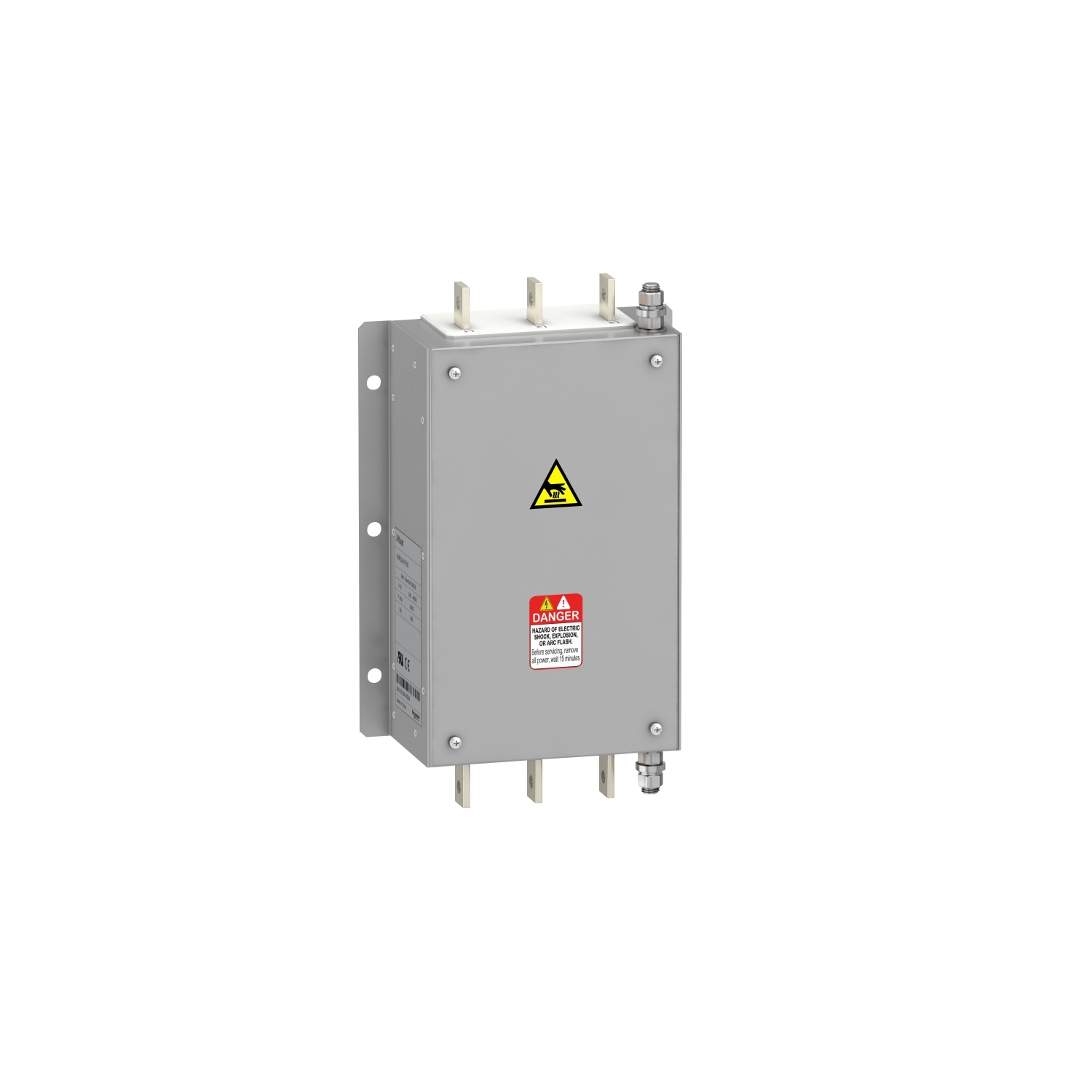

This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 300A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C1, C2 or C3. Its protection index is IP00. It weighs 17kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range compatibility | Altivar Process ATV900, Altivar Process ATV600 |
| [In] rated current | 305 A |
| Product specific application | radio interference input filter |
| Network number of phases | three phase |
| Product or component type | EMC input filter |
| Product compatibility | variable speed drive ATV930 wall mount, motor: 75 kW, 200...240 V, variable speed drive ATV930 wall mount, motor: 160 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 75 kW, 200...240 V, variable speed drive ATV630 wall mount, motor: 160 kW, 380...480 V |
| Range of product | Altivar |
| Complementary | |
| Depth | 117 mm |
| Width | 260 mm |
| Electrical connection | copper bar M12 |
| Network rated voltage | 380-480 V, 200-240 V |
| Earth leakage current | 27.8 mA at 400 V 50 Hz TT, 27.8 mA at 400 V 50 Hz TN |
| Net weight | 17 kg |
| Maximum motor cable length | 50 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C1, 200...240 V, 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 200...240 V, 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 200...240 V, 300 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C3, 380...480 V, 150 m shielded motor cable 4 kHz conforming to IEC 61800-3 category C2, 380...480 V |
| Tolerance | 10 % |
| Height | 520 mm |
| Mechanical robustness | vibrations class 3M4 conforming to IEC 60721-3-3, shocks class 3M4 conforming to IEC 60721-3-3 |
| Environment | |
| Operating altitude | 1000...4000 m with current derating 1 % per 100 m, 0...1000 m without current derating |
| IP degree of protection | IP00 |
| Relative humidity | 5-95 % without condensation conforming to IEC 61800-5-1 |
| Ambient air temperature for storage | -40-70 °C |
| Ambient air temperature for operation | 50-60 °C (with current derating 1.5 % per °C), -10-50 °C (without current derating) |
| Standards | IEC 61800-3 |
