Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range compatibility | Altivar 71Q, Altivar 61Q, Altivar 61, Altivar Process ATV600, Altivar 71, Altivar Process ATV900 |
| [In] rated current | 600 A |
| Thermal losses | 2370 W at 100 Hz |
| Product specific application | output filter |
| Product compatibility | ATV71HC28N4, ATV61QC40N4, ATV61QC31N4, ATV61HC40N4, ATV61HC31N4, ATV61HC25N4, ATV71QC25N4, ATV71HC25N4, ATV930 variable speed drive wall mount - 315 kW, 380...480 V, ATV930 variable speed drive wall mount - 250 kW, 380...480 V, ATV71QC40N4, ATV71QC31N4, ATV71HC40N4, ATV71HC31N4, ATV61QC25N4 |
| Permissible voltage | 500 V AC |

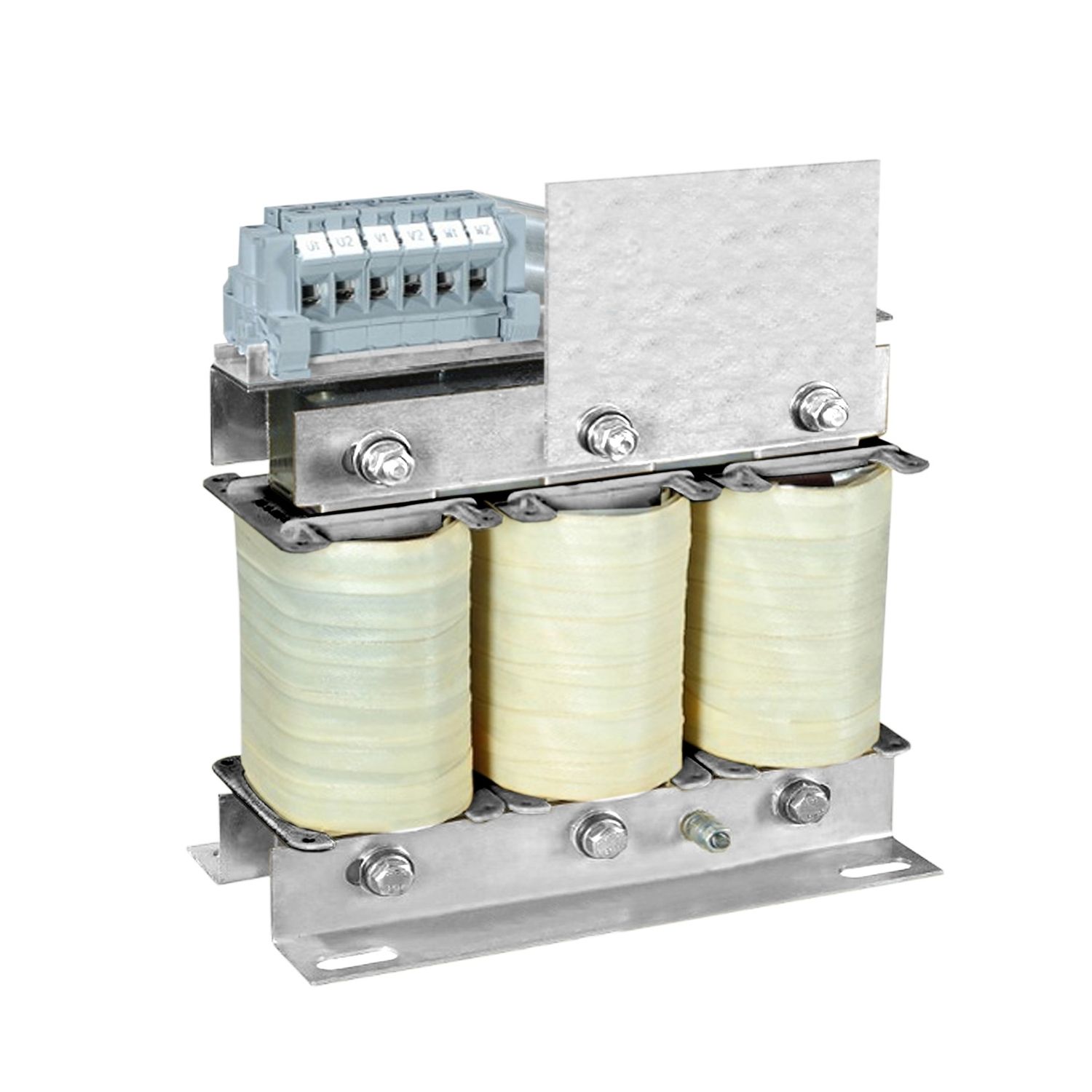

| Product or component type | sinus filter |
| Switching frequency | 4...8 kHz |
| Maximum output frequency | 100 Hz |
| Complementary | |
| Maximum voltage drop at rated load | 10 % |
| Max current | 1.5 x nominal current (duration = 60 s) |
| Electrical connection | bare wires diameter: 14 mm |
| Net weight | 260 kg |
| Environment | |
| IP degree of protection | IP00 |
| Operating altitude | 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without current derating |
| Ambient air temperature for storage | -40-65 °C |
| Pollution degree | 2 conforming to EN 50178 |
| Relative humidity | 0-95 % |
| Vibration resistance | 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2 |
| Environmental characteristic | 3S1 conforming to IEC 721-3-3, 3C2 conforming to IEC 721-3-3, 3B1 conforming to IEC 721-3-3 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -10-40 °C (without current derating), 40-50 °C (with current derating 1.5 % per °C) |
