Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range compatibility | Altivar Process ATV900, Altivar Process ATV600 |
| [In] rated current | 115 A |
| Thermal losses | 850 W, 115 °C |
| Product specific application | output filter |
| Product compatibility | ATV930 variable speed drive wall mount, 100 hp, 600 V three phase, ATV630 variable speed drive wall mount, 100 hp, 600 V three phase, ATV930 variable speed drive wall mount - 90 kW, 500...690 V three phase, ATV930 variable speed drive wall mount - 75 kW, 500...690 V three phase, ATV630 variable speed drive wall mount - 90 kW, 500...690 V three phase, ATV630 variable speed drive wall mount - 75 kW, 500...690 V three phase |
| Permissible voltage | 690 V AC |

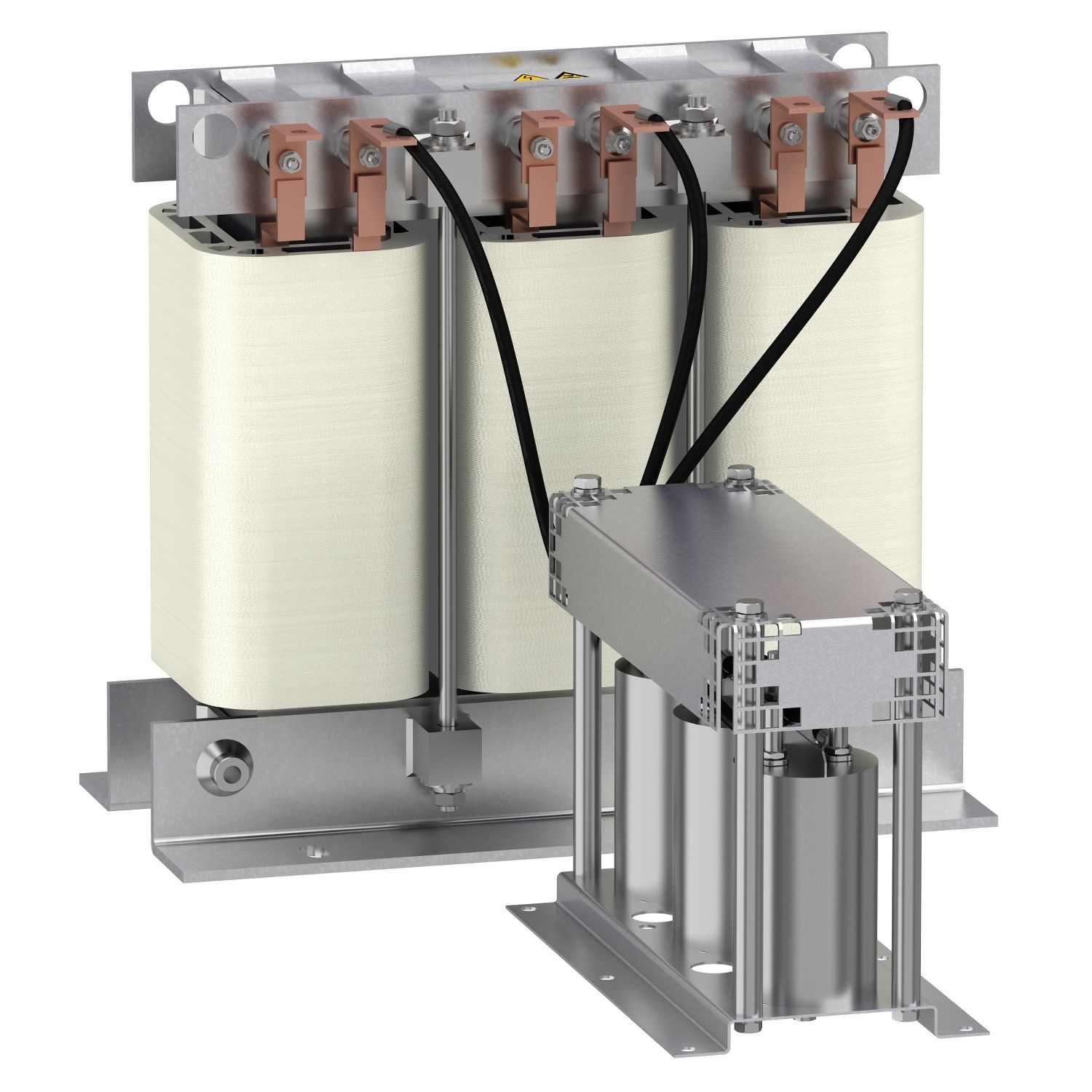

| Product or component type | sinus filter |
| Switching frequency | 2 kHz |
| Maximum output frequency | 70 Hz |
| Complementary | |
| Max current | 1.5 x nominal current (duration = 60 s) |
| Electrical connection | terminal |
| Net weight | 106 kg |
| Environment | |
| IP degree of protection | IP00 |
| Operating altitude | 1000...3000 m with current derating 1 % per 100 m, <= 1000 m without current derating |
| Ambient air temperature for storage | -40-65 °C |
| Pollution degree | 2 conforming to EN 50178 |
| Relative humidity | 0-95 % |
| Vibration resistance | 1.5 mm peak to peak (f= 3-13 Hz) conforming to IEC 60068-2, 1 gn (f= 13-200 Hz) conforming to IEC 60068-2 |
| Shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -10-45 °C |
| Standards | UL 508 |
