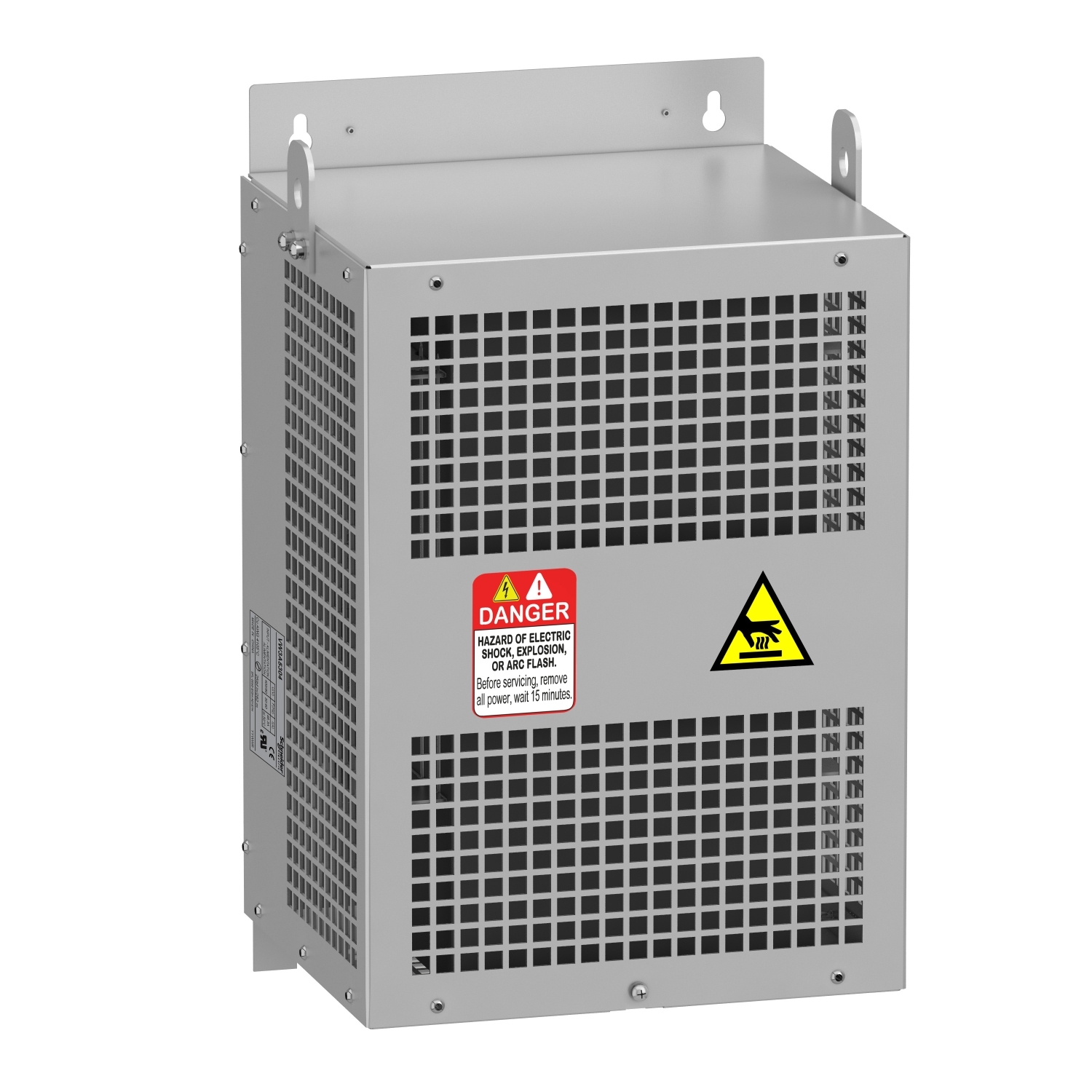

This dv/dt filter is an option for variable speed drives of Altivar Process ATV600 / ATV900 range. Its rated current is equal to 50A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP20. It weighs 18kg. It is used to limit overvoltages at the motor terminals, filter interference and reduce motor earth leakage current.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range compatibility | Altivar Machine ATV340, Easy Altivar 610, Altivar Process ATV600, Altivar Process ATV900 |
| [In] rated current | 50 A |
| Product specific application | output filter |
| Product compatibility | ATV950 variable speed drive wall mount - 22 kW, 380...480 V, ATV950 variable speed drive wall mount - 18.5 kW, 380...480 V, ATV950 variable speed drive wall mount - 15 kW, 380...480 V, ATV930 variable speed drive wall mount - 22 kW, 380...480 V, ATV930 variable speed drive wall mount - 18.5 kW, 380...480 V, ATV930 variable speed drive wall mount - 15 kW, 380...480 V, ATV930 variable speed drive wall mount - 11 kW, 200...240 V, ATV630 variable speed drive wall mount - 7.5 kW, 200...240 V, ATV630 variable speed drive wall mount - 5.5 kW, 200...240 V, ATV610 variable speed drive - 22 kW, 380...415 V, ATV610 variable speed drive - 18.5 kW, 380...415 V, ATV650 variable speed drive wall mount - 22 kW, 380...480 V, ATV650 variable speed drive wall mount - 18.5 kW, 380...480 V, ATV650 variable speed drive wall mount - 15 kW, 380...480 V, ATV630 variable speed drive wall mount - 22 kW, 380...480 V, ATV630 variable speed drive wall mount - 18.5 kW, 380...480 V, ATV630 variable speed drive wall mount - 15 kW, 380...480 V, ATV630 variable speed drive wall mount - 11 kW, 200...240 V |
| Sale per indivisible quantity | 1 |
| Product or component type | dv/dt filter |
| Electrical connection | terminal block, connection capacity: 16 mm² / AWG 6 |
| Complementary | |
| Depth | 245 mm |
| Width | 300 mm |
| Thermal losses | 65 W at 4 kHz |
| Operating altitude | 1000...4000 m with current derating 1 % per 100 m, 0...1000 m without current derating |
| DV/dt | 3000 V/µs max at 380...480 V, 3000 V/µs max at 200...240 V |
| Net weight | 18 kg |
| Ambient air temperature for operation | 50-60 °C (with current derating 1.5 % per °C), -10-50 °C (without current derating) |
| Maximum motor cable length | 300 m shielded cable, 500 m unshielded cable |
| Height | 560 mm |
| Maximum output frequency | 100 Hz |
| Environment | |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP21 (with kit VW3A53903), IP20 |
