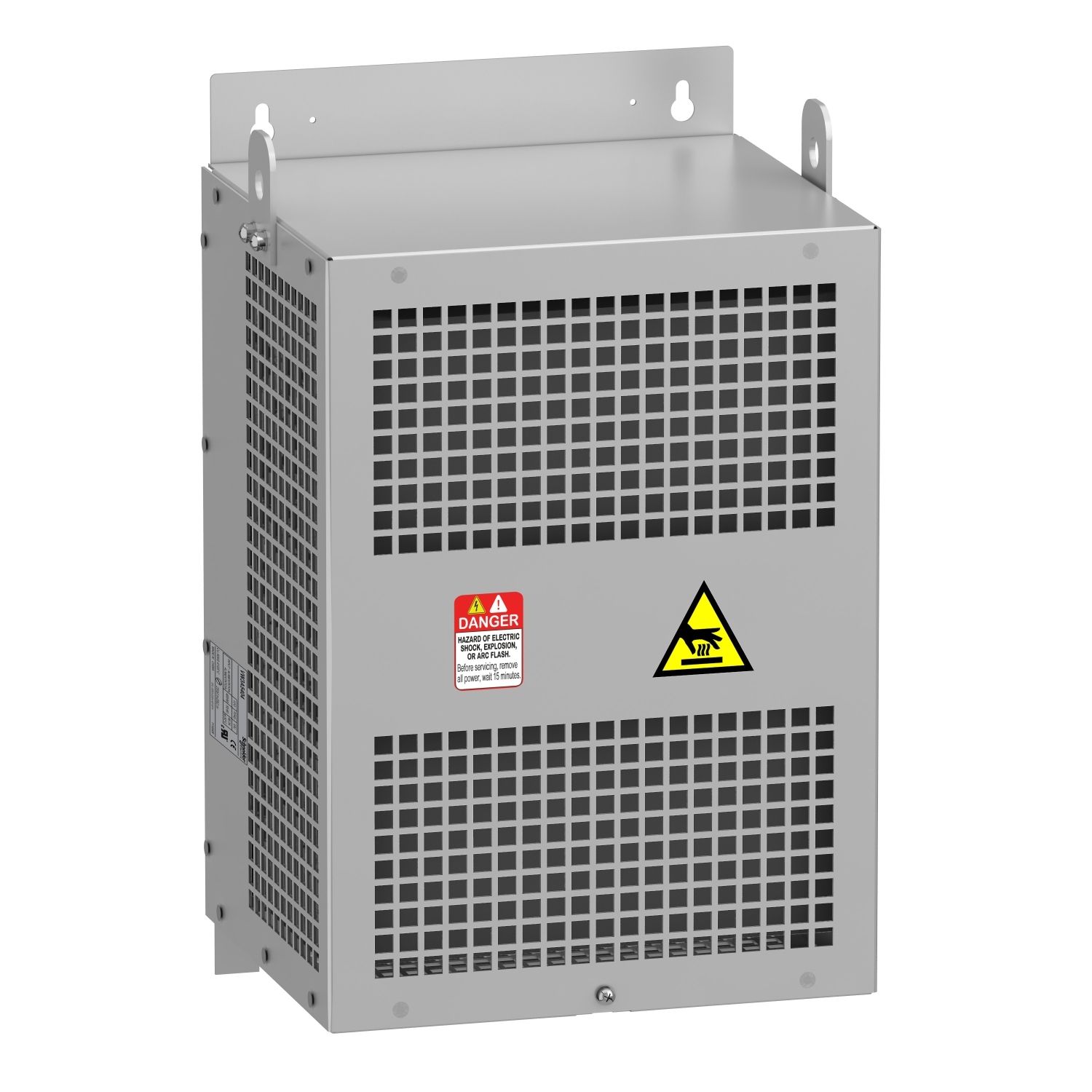

output sinus filter, Altivar, 50A, for variable speed drive

Manufacturer: Schneider Electric

SKU: VW3A5404

GTIN: 3606480736834

Catalog

Old price: $3,144.31 inc GST

Price: $2,434.95 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

This sinus filter is an option for variable speed drives of Altivar Process ATV600 / ATV900 / ATV310 ranges. Its rated current is equal to 50A. It is used as an output filter (between drive output and motor) and enables your variable speed drive to run with motor cables longer than the maximum permitted lengths. Its protection index is IP20. It weighs 35kg. It is used for applications requiring long cable runs, motors connected in parallel, submersible pumps sensitive to dv/dt, an intermediate transformer between the drive and the motor.

Products specifications

Attribute name	Attribute value
Main
Range compatibility	Easy Altivar 310, Altivar Process ATV900, Altivar Process ATV600
Product specific application	output filter
Product or component type	sinus filter
Complementary
Maximum voltage drop at rated load	8 %
Depth	245 mm
Width	300 mm
Thermal losses	196 W at 4 kHz
[In] rated current	50 A
Max current	1.20 x nominal current (duration = 60 s)
Operating altitude	1000...4000 m with current derating 1 % per 100 m, <= 1000 m without current derating
Electrical connection	terminal block, connection capacity: 16 mm² / AWG 6
Permissible voltage	480 V AC
Net weight	35 kg
Maximum motor cable length	500 m shielded cable, 1000 m unshielded cable
Product compatibility	variable speed drive ATV930 wall mount, motor: 7.5 kW, 200...240 V, variable speed drive ATV930 wall mount, motor: 5.5 kW, 200...240 V, variable speed drive ATV950 wall mount, motor: 22 kW, 380...480 V, variable speed drive ATV950 wall mount, motor: 18.5 kW, 380...480 V, variable speed drive ATV950 wall mount, motor: 15 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 22 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 18.5 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 15 kW, 380...480 V, variable speed drive ATV930 wall mount, motor: 11 kW, 200...240 V, variable speed drive ATV630 wall mount, motor: 7.5 kW, 200...240 V, variable speed drive ATV630 wall mount, motor: 5.5 kW, 200...240 V, variable speed drive ATV650 wall mount, motor: 22 kW, 380...480 V, variable speed drive ATV650 wall mount, motor: 18.5 kW, 380...480 V, variable speed drive ATV650 wall mount, motor: 15 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 22 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 18.5 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 15 kW, 380...480 V, variable speed drive ATV630 wall mount, motor: 11 kW, 200...240 V
Switching frequency	4...8 kHz
Height	560 mm
Maximum output frequency	100 Hz
Environment
Relative humidity	5-95 % without condensation
Ambient air temperature for storage	-40-70 °C
Pollution degree	3 conforming to IEC 61800-5-1

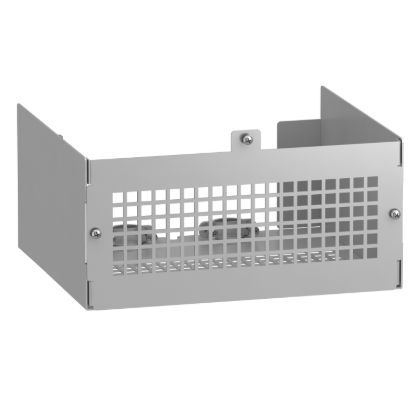

IP degree of protection	IP21 (with kit VW3A53903), IP20
Environmental characteristic	dust pollution resistance class 3S3 conforming to IEC 60721-3-3, chemical pollution resistance class 3C3 conforming to IEC 60721-3-3, biological pollution resistance class 3B1 conforming to IEC 60721-3-3
Ambient air temperature for operation	-15-50 °C (without current derating), 50-60 °C (with current derating 1.5 % per °C)
Mechanical robustness	vibrations class 3M4 conforming to IEC 60721-3-3, shocks class 3M4 conforming to IEC 60721-3-3
