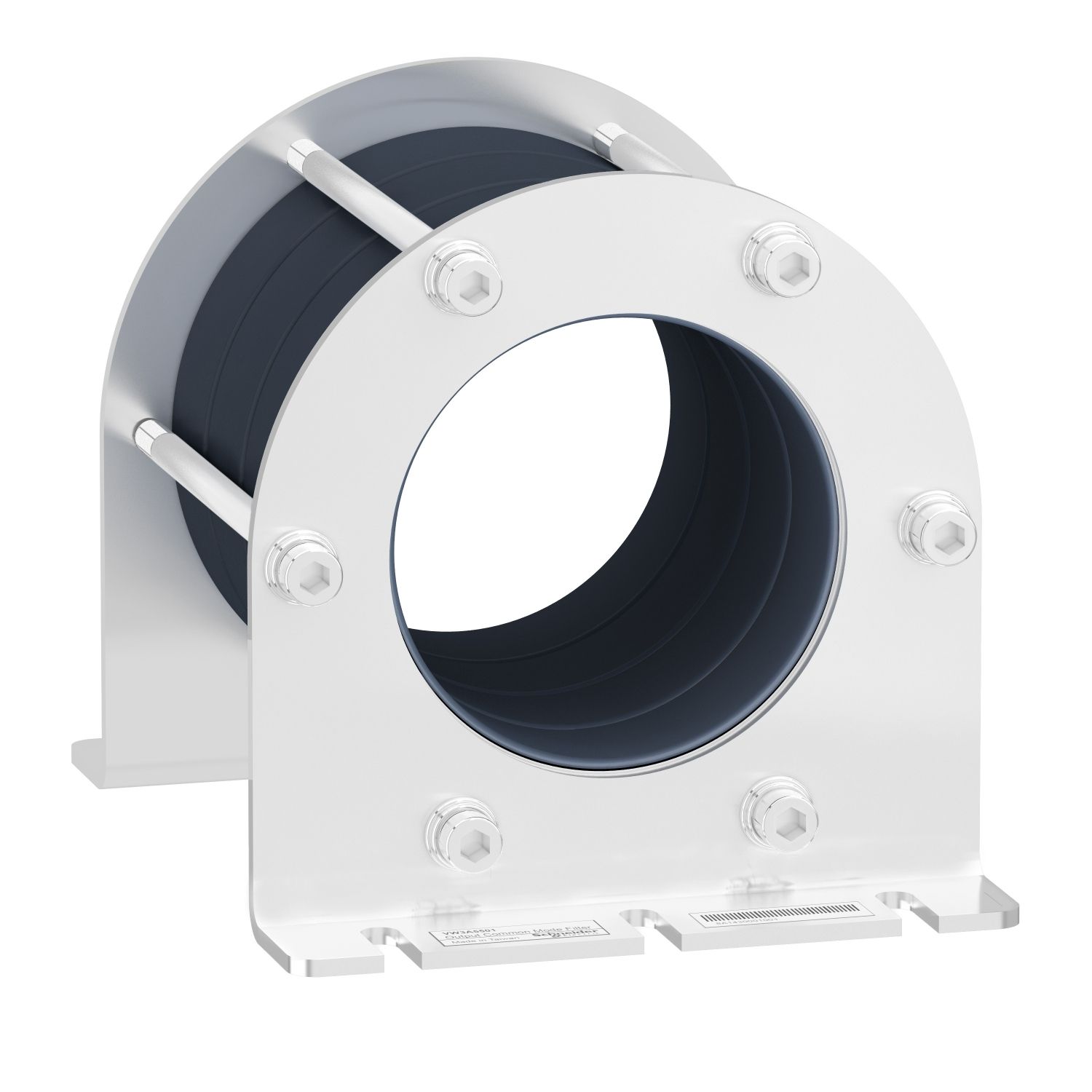

This common mode filter is an option for variable speed drives of the Altivar range. It is possible to use the common mode filter at the output terminals of the drive, the dv/dt filter, or the sinus filter. Its inductance value is equal to 120µH. It is used as an output filter to obtain bearing current reduction. This filter reduces the RFI (radio frequency interference) of the motor cable and improvement of the effectiveness of the EMC filter for conducted emissions. It reduces the high frequency currents circulating in the motor bearings to help to prevent them from being damaged. It weighs 2.19kg, and its dimensions are 127.5mm wide, 161mm high, and 127.5mm deep. It is designed to improve drive installations. It conforms to IEC 60721-3-3 shocks and vibration class 3M4.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Range compatibility | Altivar Process ATV600, Altivar Process ATV900 |
| Product compatibility | variable speed drive ATV930 wall mount, 7.5-45 kW, 200...240 V, variable speed drive ATV630 wall mount, 7.5-45 kW, 200...240 V, variable speed drive ATV950 wall mount, 15-90 kW, 380...480 V, variable speed drive ATV930 wall mount, 15-90 kW, 380...480 V, variable speed drive ATV650 wall mount, 15-90 kW, 380...480 V, variable speed drive ATV630 wall mount, 15-90 kW, 380...480 V |
| Value of inductance | 120 µH |
| Product or component type | common mode output filter |
| Complementary | |
| Diameter | 76 mm for PE cable outside, 76 mm for 3-phase cable inside |
| Depth | 127.5 mm |
| Width | 127.5 mm |
| Saturation current | 2.2 A |
| Electrical insulation class | class I |
| Net weight | 2.19 kg |
| Maximum motor cable length | 150 m(unshielded cable) motor: 7.5-45 kW 200...240 V, with 1 filter, 1000 m(unshielded cable) motor: 15-22 kW 380...480 V, with 1 filter + VW3A5504, 500 m(shielded cable) motor: 15-22 kW 380...480 V, with 1 filter + VW3A5504, 500 m(unshielded cable) motor: 30-90 kW 380...480 V, with 1 filter + VW3A5504, 500 m(unshielded cable) motor: 15-22 kW 380...480 V, with 2 filter, 300 m(shielded cable) motor: 30-90 kW 380...480 V, with 1 filter + VW3A5504, 300 m(shielded cable) motor: 15-22 kW 380...480 V, with 2 filter, 150 m(shielded cable) motor: 15-22 kW 380...480 V, with 1 filter, 1000 m(unshielded cable) motor: 7.5-11 kW 200...240 V, with 1 filter + VW3A5504, 500 m(shielded cable) motor: 7.5-11 kW 200...240 V, with 1 filter + VW3A5504, 500 m(unshielded cable) motor: 15-45 kW 200...240 V, with 1 filter + VW3A5504, 500 m(unshielded cable) motor: 7.5-11 kW 200...240 V, with 2 filter, 300 m(shielded cable) motor: 15-45 kW 200...240 V, with 1 filter + VW3A5504, 300 m(shielded cable) motor: 7.5-11 kW 200...240 V, with 2 filter, 150 m(shielded cable) motor: 7.5-11 kW 200...240 V, with 1 filter, 150 m(unshielded cable) motor: 15-90 kW 380...480 V, with 1 filter |
| Switching frequency | <= 10 kHz |
| Height | 161 mm |
| Maximum output frequency | 100 Hz |
| Mechanical robustness | vibrations class 3M4 conforming to IEC 60721-3-3, shocks class 3M4 conforming to IEC 60721-3-3 |
| Environment | |
| Relative humidity | 5-95 % without condensation |
| Ambient air temperature for storage | -40-70 °C |
| Ambient air temperature for operation | -15-60 °C |
