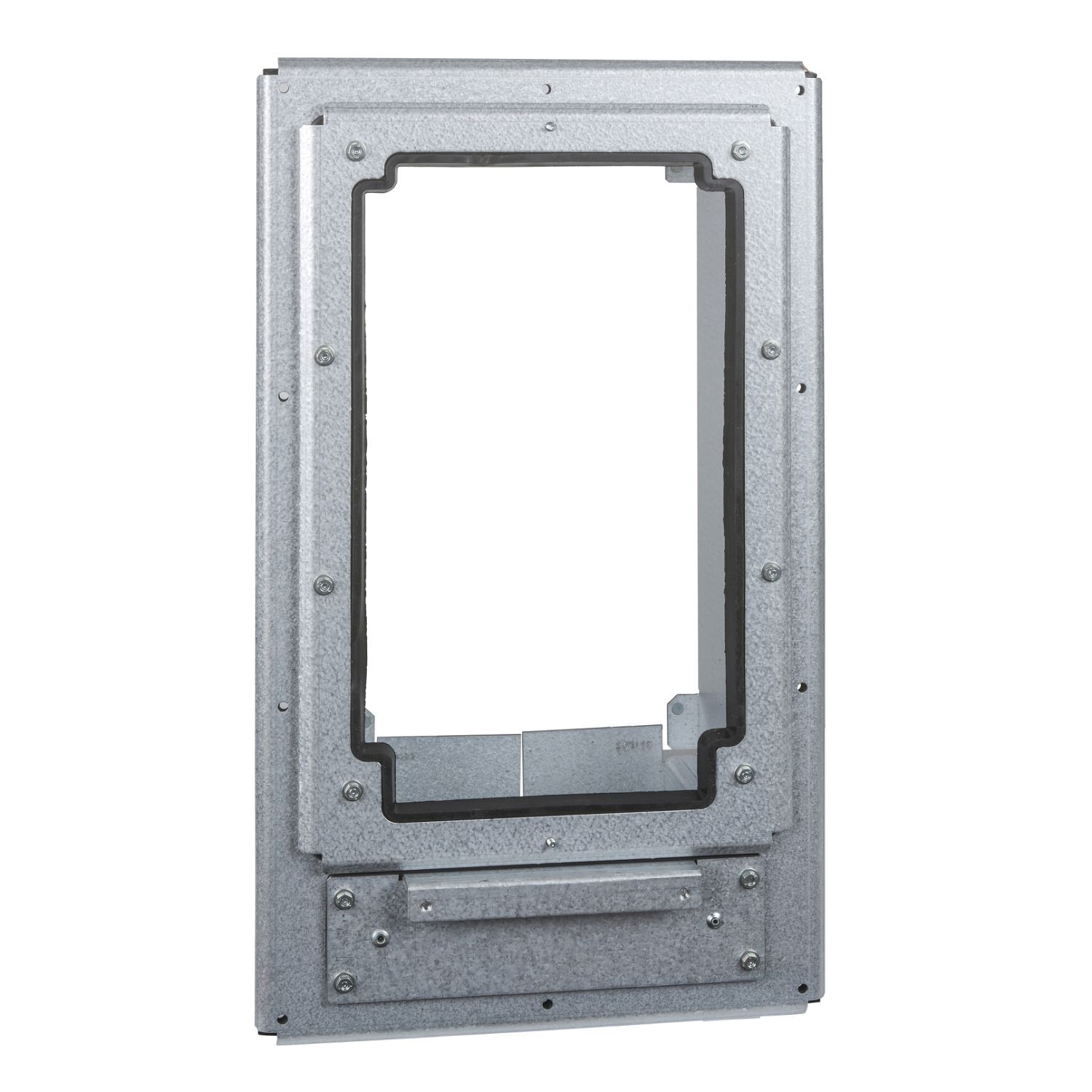

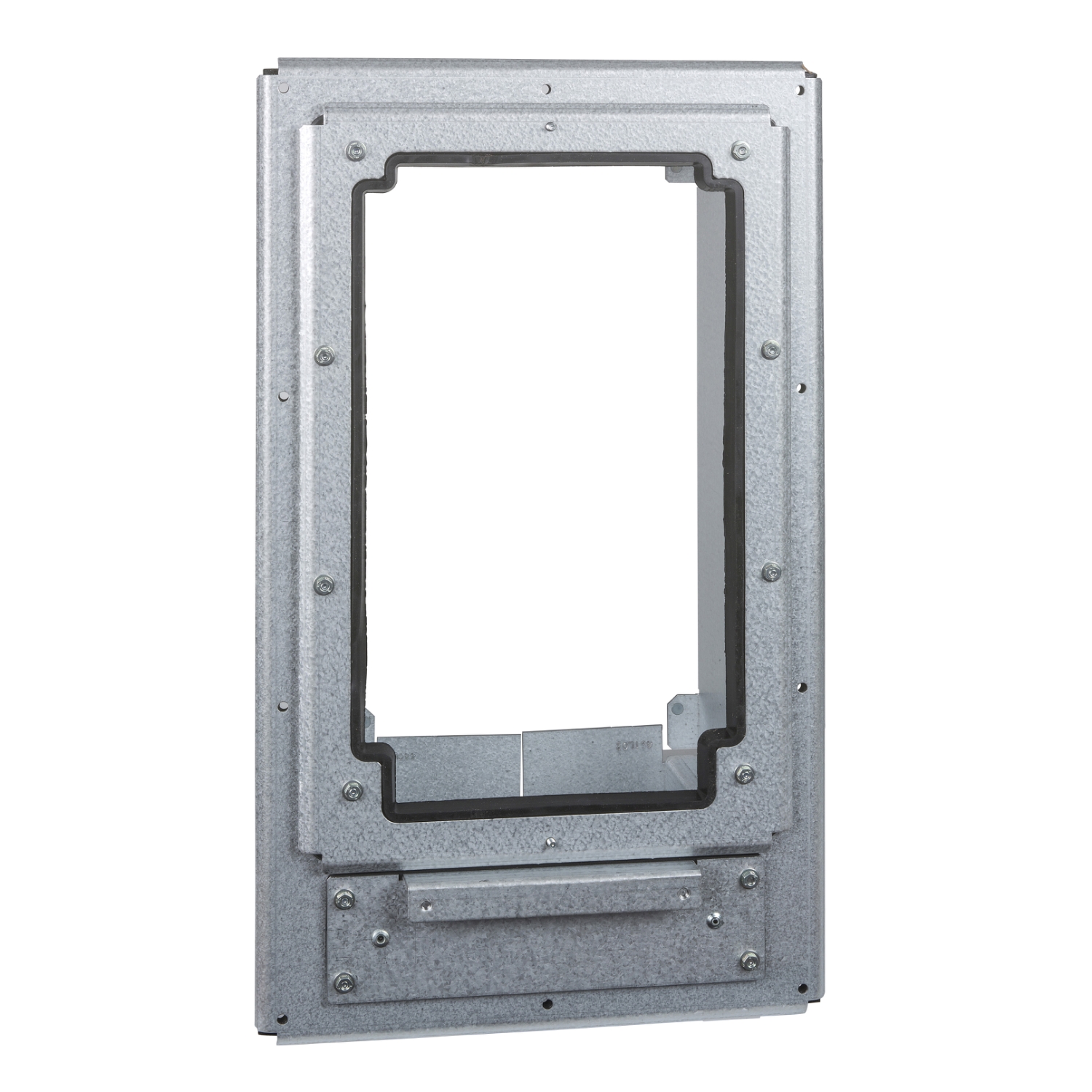

This kit can be used to mount the power section of your variable speed drive outside the enclosure. This solution considerably reduces dissipated losses in the enclosure. With this type of mounting, the maximum internal temperature in the enclosure can then reach 60°C without derating. The back of the enclosure must be drilled and cut out for this type of mounting.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Accessory / separate part destination | variable speed drive without braking unit |
| Accessory / separate part type | mounting kit |
| Range compatibility | Altivar Process ATV900, Altivar 71, Altivar Process ATV600, Altivar 61 |
| Product specific application | for mounting the drive power section outside the enclosure |
| Product compatibility | variable speed drive ATV900 motor at 315 kW, 380...480 V, variable speed drive ATV900 motor at 250 kW, 380...480 V, variable speed drive ATV600 motor at 315 kW, 380...480 V, variable speed drive ATV600 motor at 250 kW, 380...480 V, ATV61HC25N4, ATV71HC31Y without braking unit, ATV71HC28N4D without braking unit, ATV71HC28N4 without braking unit, ATV71HC25Y without braking unit, ATV71HC25N4D without braking unit, ATV71HC25N4 without braking unit, ATV71HC20Y without braking unit, ATV71HC20N4D without braking unit, ATV71HC20N4 without braking unit, ATV61HC40Y without braking unit, ATV61HC31Y without braking unit, ATV61HC31N4D without braking unit, ATV61HC31N4 without braking unit, ATV61HC25Y without braking unit, ATV61HC25N4D without braking unit |
| Accessory / separate part category | mounting and fixing accessory |
| Range of product | Altivar |
| Complementary | |
| Kit composition | seals, fixing accessories, corner pieces, 1 metal frame of the right size for drive rating, 1 user manual, 1 fan support, 1 cutting and drilling template |
| Net weight | 4.7 kg |
| Environment | |
| Environmental characteristic | dust and damp proof |
