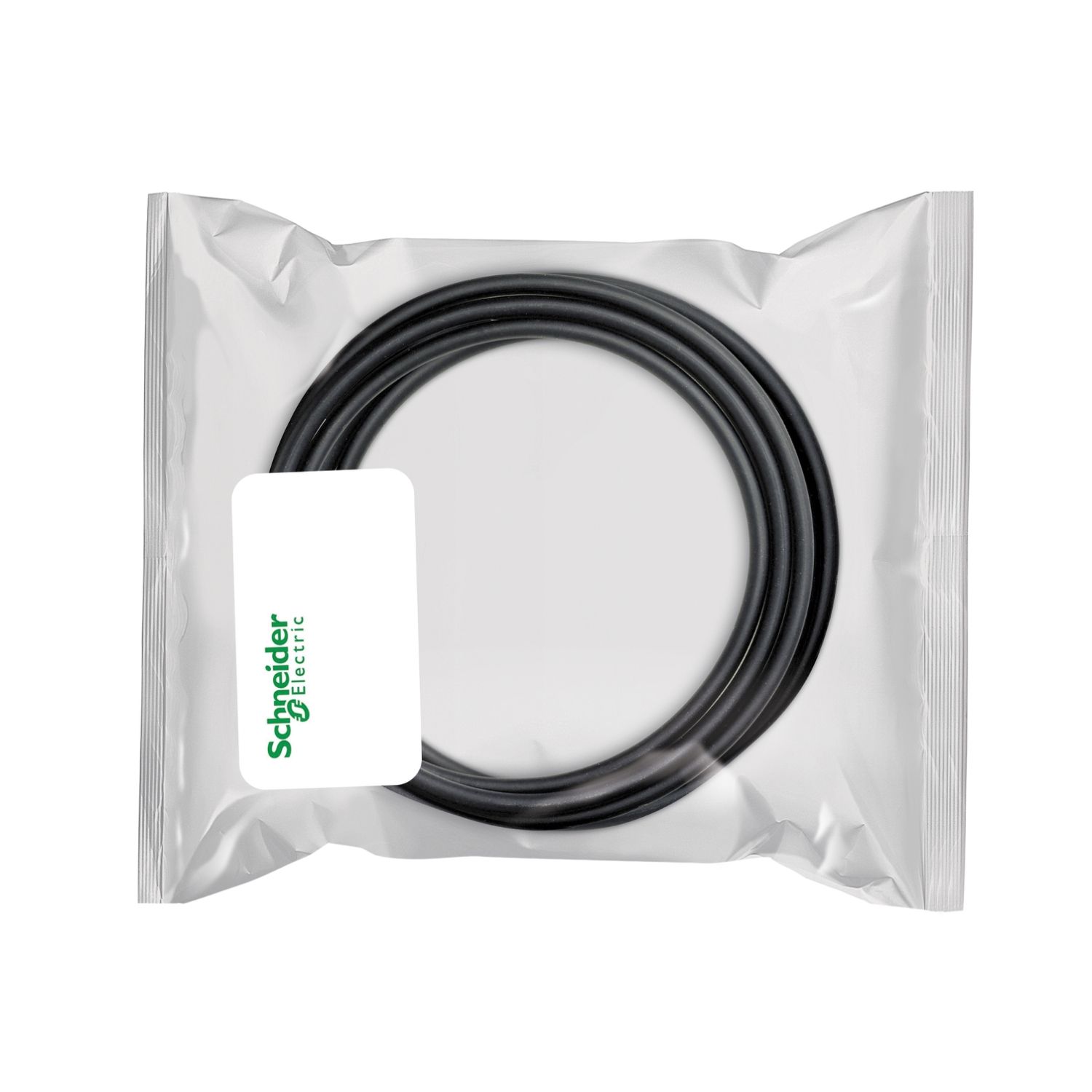

This product is part of the Lexium 32 range, an offer of connection accessories for Lexium 32 and motors. This control cable is an accessory of servo motors to connect the servo drive. The length of this cable is 50m. It is furnished with M23 and RJ45 connectors for electrical connection. The cable composition is 3 x (2 x 0.14mm²) + (2 x 0.34mm²). It weighs 3.1kg. This range is compatible with Lexium 32. Lexium 32 is a servo drive range provides drive and motor combination that has exactly the right power, performance and functionality. The Lexium 32 range of servo drives includes four servo drive models with power ratings from 0.15kW to 11kW and the servo motor ranges BMH and BSH series.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Accessory / separate part destination | from servo motor to servo drive |
| Accessory / separate part type | control cable |
| Cable composition | 3 x (2 x 0.14 mm²) + (2 x 0.34 mm²) |
| Product or component type | SinCos Hiperface encoder cable |
| Accessory / separate part category | connection accessory |
| Range of product | Lexium |
| Complementary | |
| Range compatibility | Lexium 32 |
| Electrical connection | 1 connector RJ45, 1 connector M23 |
| Net weight | 3.1 kg |
| Cable length | 50 m |
