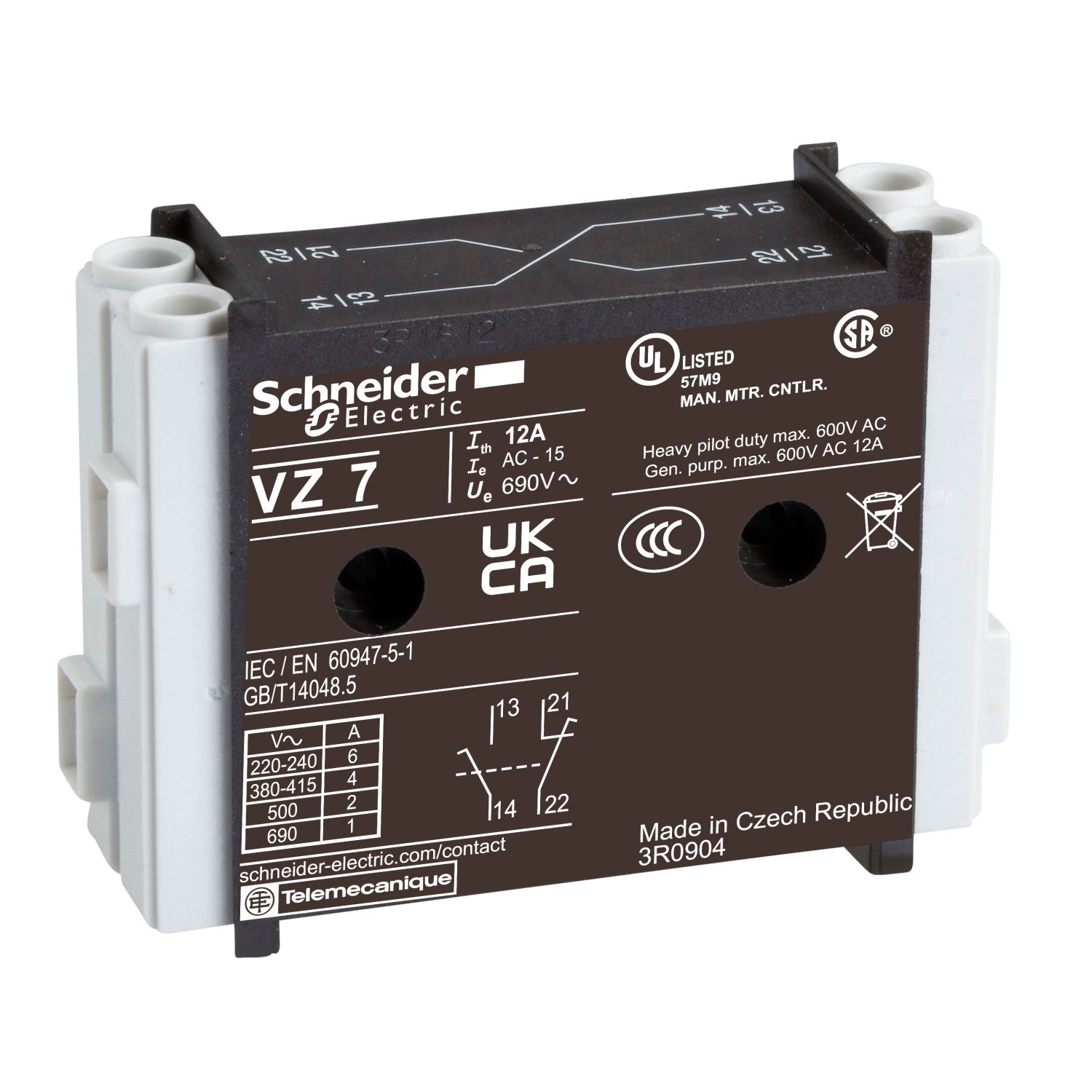

Auxiliary contact block, TeSys Mini-Vario, 1 NC early-break+1 NO late-make

Manufacturer: Schneider Electric

SKU: VZ7

GTIN: 3389110551969

Catalog

Instruction sheet

Environmental Disclosure

Old price: $95.37 inc GST

Price: $37.85 inc GST

Qty:

Supported cards

Full Description
Specifications
Reviews

TeSys Vario add-on module, auxiliary contact block, for TeSys Vario V02 to V6 switch bodies. It provides 1NO+1NC contacts (late make NO, early break NC) rated for AC operation until 12A/690V and DC operation until 8A/250V. To be mounted on one side of the switch body. A maximum of 2 additional auxiliary contact block modules VZ7 or VZ20 can be attached to the switch body, one in each side. Multi standards certified (IEC, UL, CSA, CCC, EAC), Environmental compliant (RoHS/REACh).

Products specifications

Attribute name	Attribute value
Main
Device short name	VZ
Product compatibility	V3, V0, V01, V4, V1, V6, V02, V5, V2
Contacts type and composition	1 NO + 1 NC
Contact operation	early-break 1 NC, late-make 1 NO
Range	TeSys
Performance level	high performance
Product or component type	auxiliary contact block
Network type	DC, AC
Network frequency	50/60 Hz
Complementary
Depth	48.5 mm
Tightening torque	0.7-0.7 N.m - on screw clamp terminals
Width	20 mm
Compatibility code	auxiliary contact
Mechanical durability	100000 cycles
Electrical durability	100000 cycles AC-15, 30000 cycles DC-11
Connections - terminals	screw clamp terminals 2 cable(s) 1-2.5 mm² - solid, screw clamp terminals 2 cable(s) 0.75-1.5 mm² - flexible - with cable end
Mounting location	right, left
[Uimp] rated impulse withstand voltage	8 kV
Net weight	0.05 kg
[Ithe] conventional enclosed thermal current	10 A
[Ith] conventional free air thermal current	12 A
Height	65 mm
[Ue] rated operational voltage	690 V AC 50/60 Hz
Environment
Fire resistance	960 °C conforming to IEC 60695-2-1
Protective treatment	TC
IP degree of protection	IP20 conforming to IEC 60529
Standards	IEC 60947-5
Ambient air temperature for operation	-20-50 °C
Product certifications	UKCA, UL, CSA, GL
