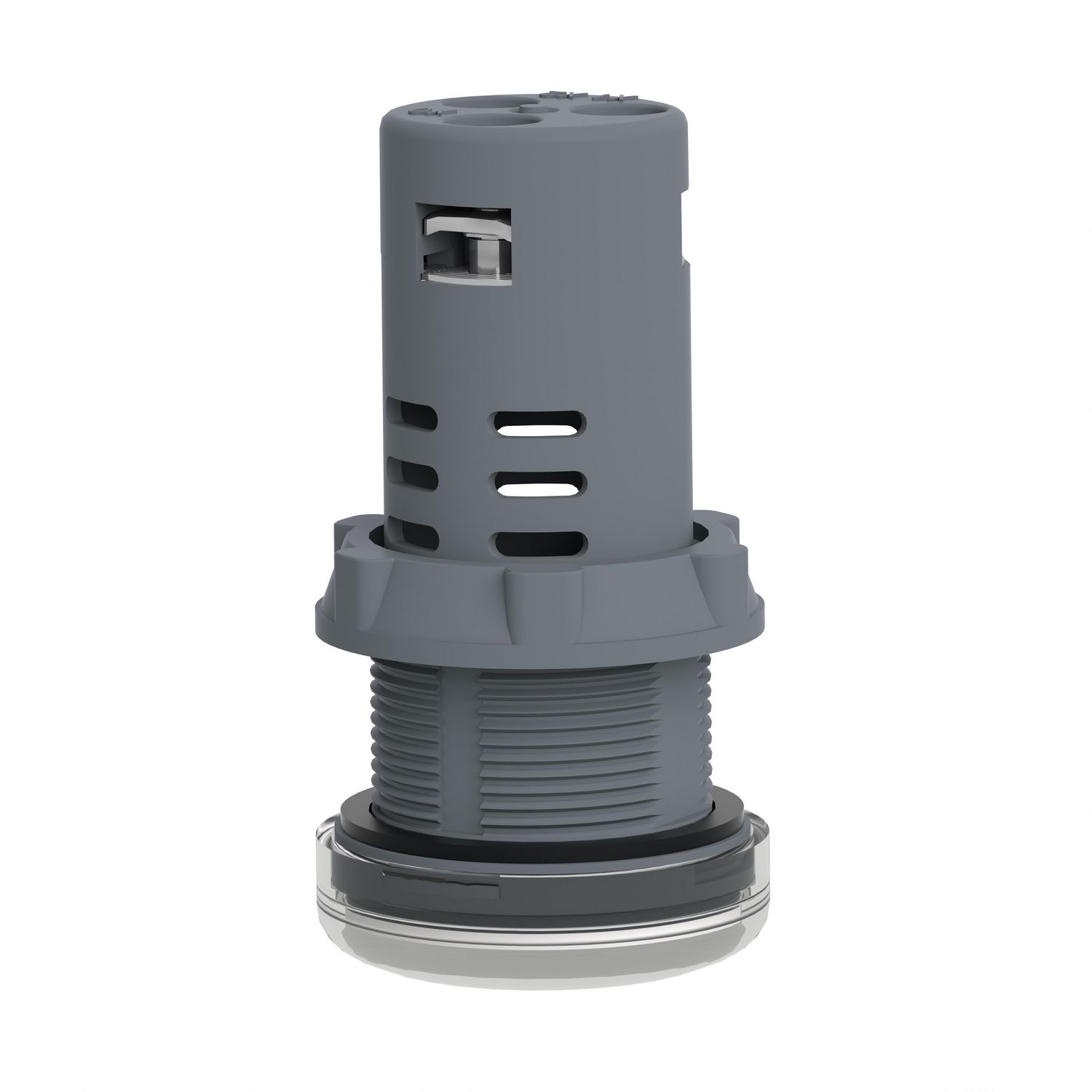

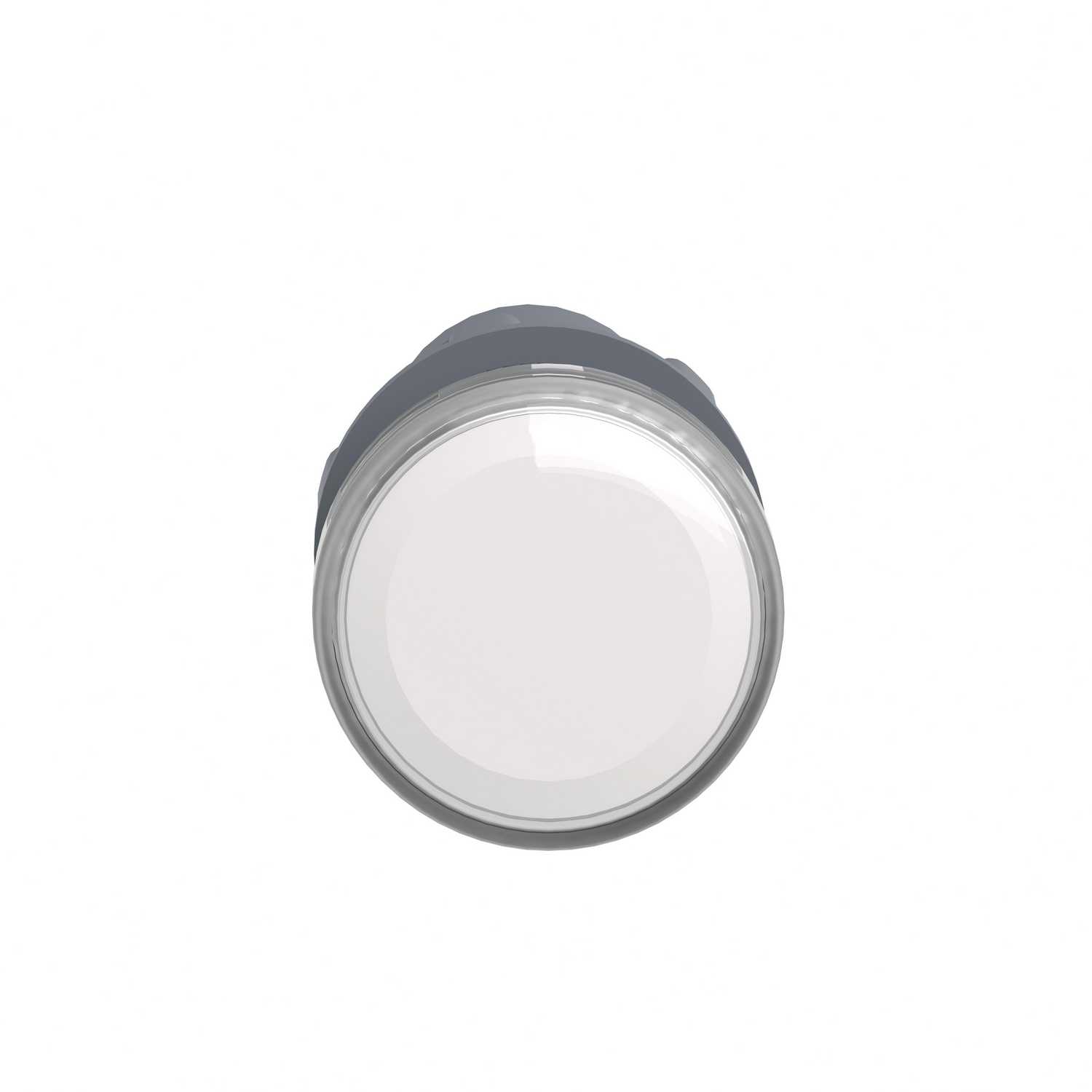

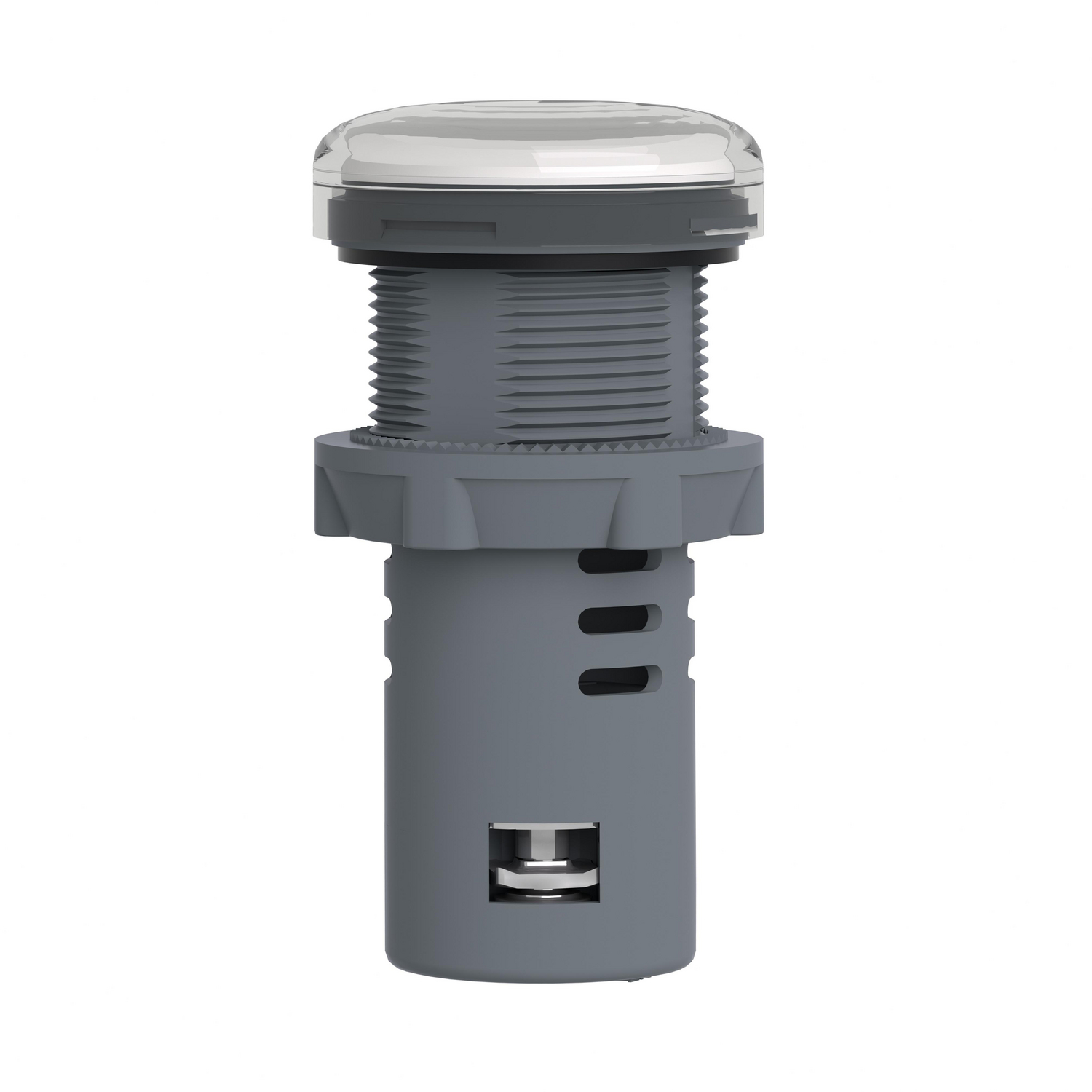

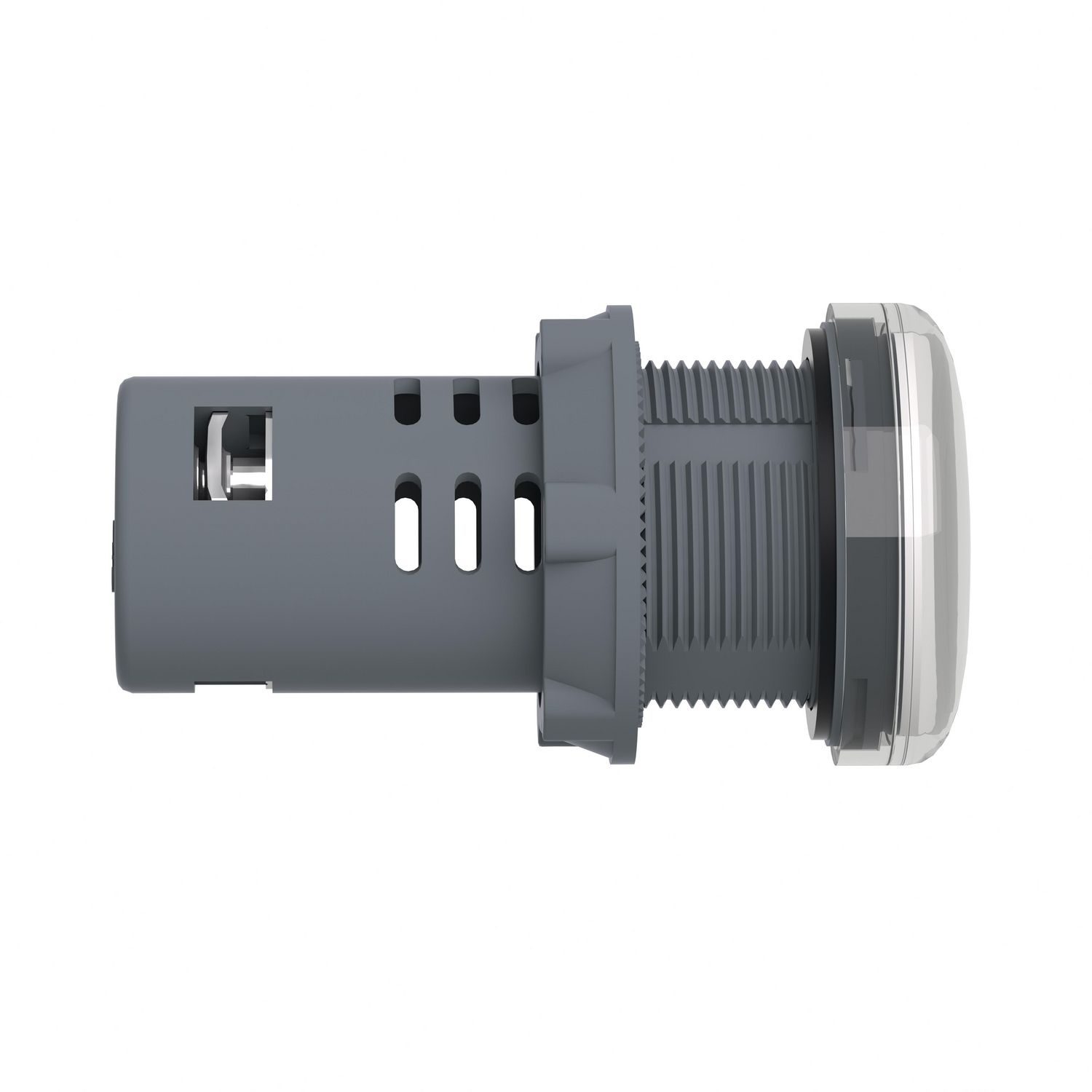

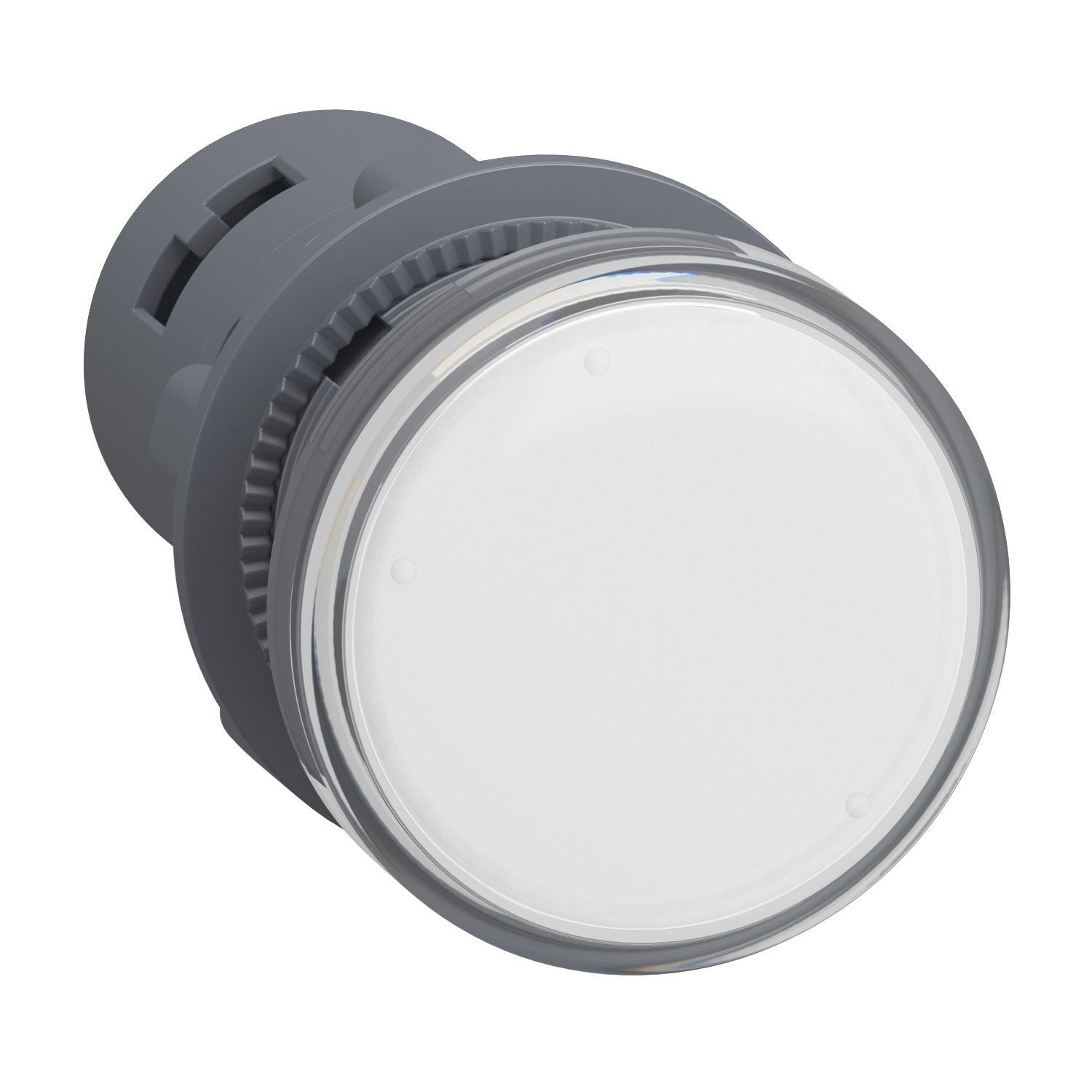

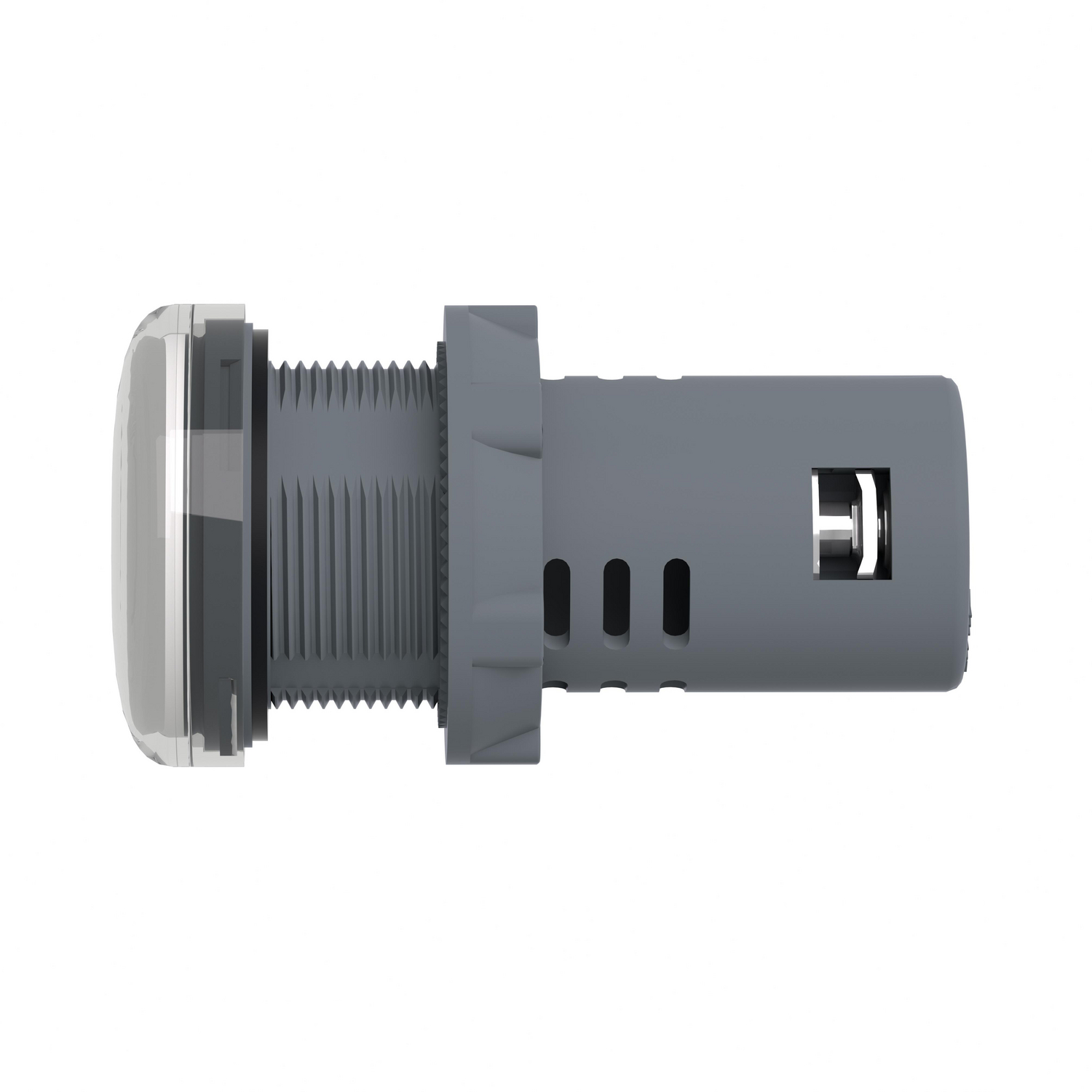

This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. This bi-color green and red pilot light comes with integral LED. This single component pilot light provides clear visual feedback on the status of machines. This pilot light has a 220V to 230V AC rating. This is a plastic component and weighs 0.02kg. It is an IP65 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards . It is sold in lots of 5. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant making it suitable for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Bulb base | integral LED |
| Device short name | XA2 |
| Device presentation | complete product |
| Cap/operator or lens colour | green + red |
| Shape of signaling unit head | round |
| Product or component type | monolithic pilot light |
| Mounting diameter | 22.5 mm |
| Light source | LED |
| Range of product | Easy Harmony XA2 |
| [Us] rated supply voltage | 220...230 V AC 50/60 Hz |
| Complementary | |
| Device mounting | fixing hole 22.3 +0.4/0 conforming to IEC 60947-5-1 |
| Shape of screw head | slotted compatible with flat Ø 5.5 mm screwdriver, slotted compatible with flat Ø 4 mm screwdriver, cross compatible with Philips No 2 screwdriver |
| Tightening torque | 0.8-1 N.m conforming to IEC 60947-1 |
| Depth | 56 mm |
| Width | 29 mm |
| Supply voltage limits | 0.8-1.2 V AC |
| Signalling type | steady |
| [Ui] rated insulation voltage | 400 V (pollution degree 3) conforming to IEC 60947-1 |
| Service life | 40000 h at rated voltage and 25 °C |
| Connections - terminals | screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 |
| Current consumption | <= 20 mA |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Net weight | 0.02 kg |
| Marking | CE, CCC |
| Fixing center | >= 30 x 40 mm (support panel) plastic - thickness: 2-6 mm, >= 30 x 40 mm (support panel) metal - thickness: 1-6 mm |
| Fixing mode | fixing nut beneath head recommended torque: 2.2 N.m (+/- 0.2 N.m) |

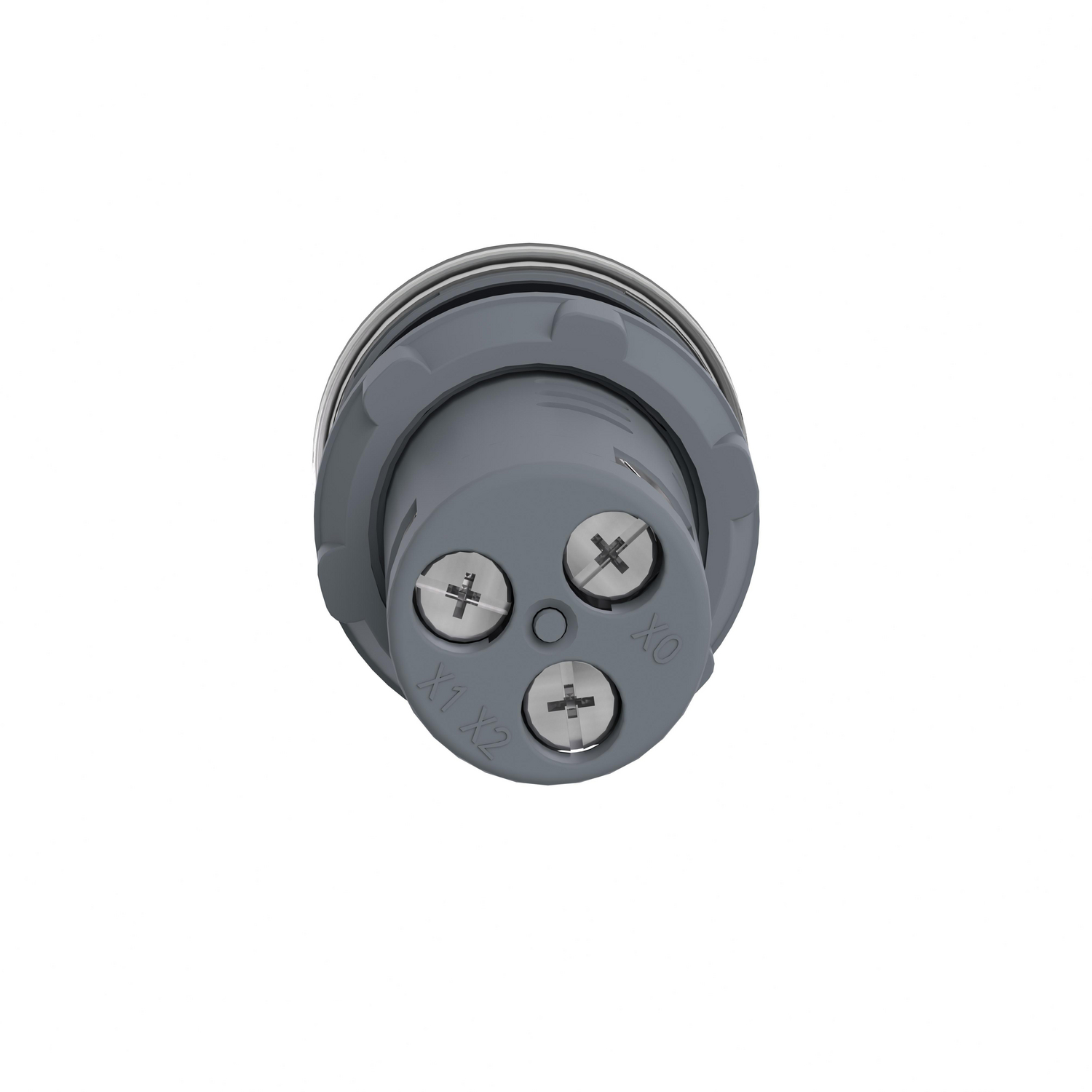

| Terminals description ISO n°1 | (X0-X1-X2)PL |
| Height | 29 mm |
| [Us] rated supply voltage | 220...230 V |
| Environment | |
| Overvoltage category | class I conforming to IEC 536 |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Vibration resistance | 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | IEC 50102, IEC 60529, IEC 60947-5-1, IEC 60947-1, GB 14048.5, GB 14048.1 |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK05 |
| Product certifications | CCC, CE |
