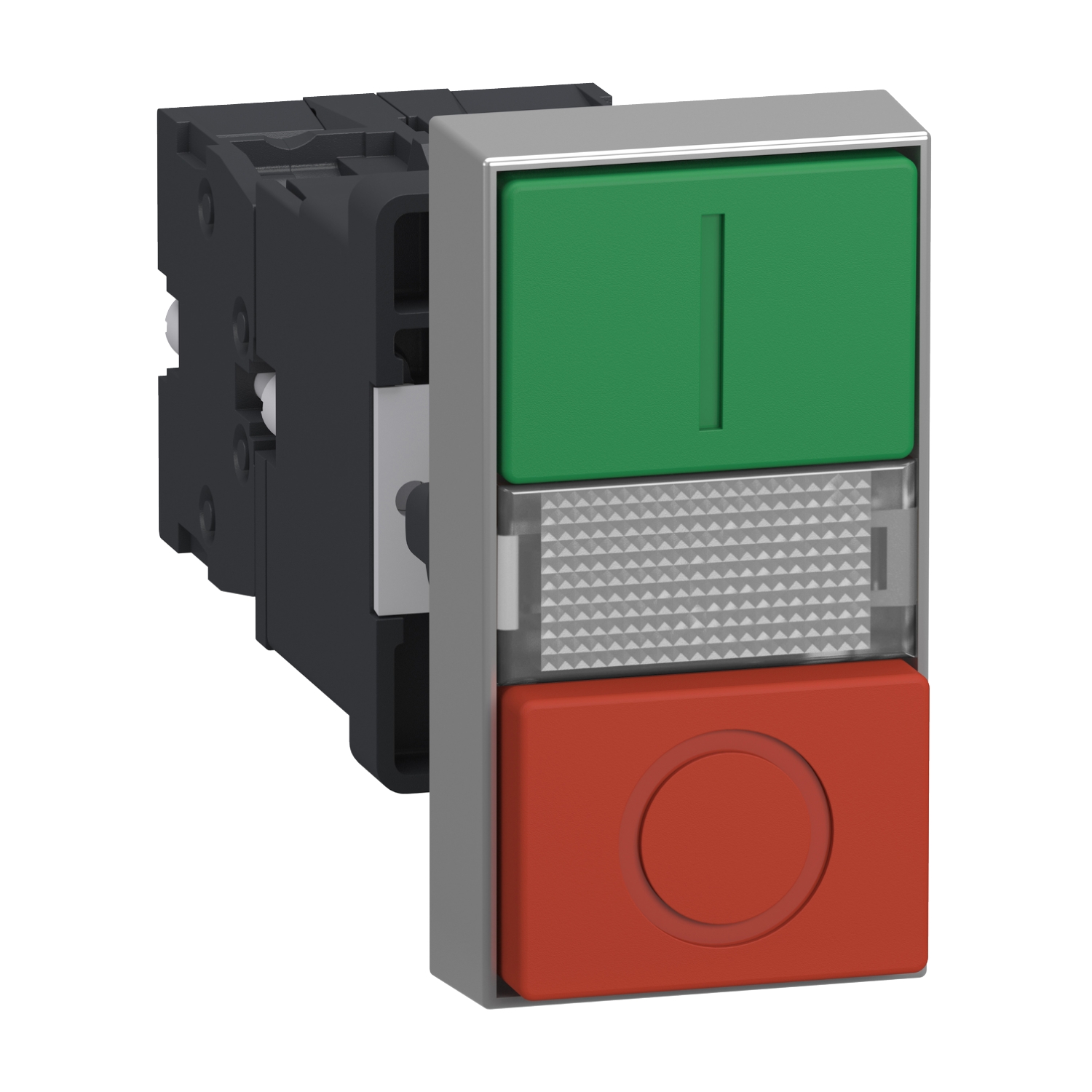

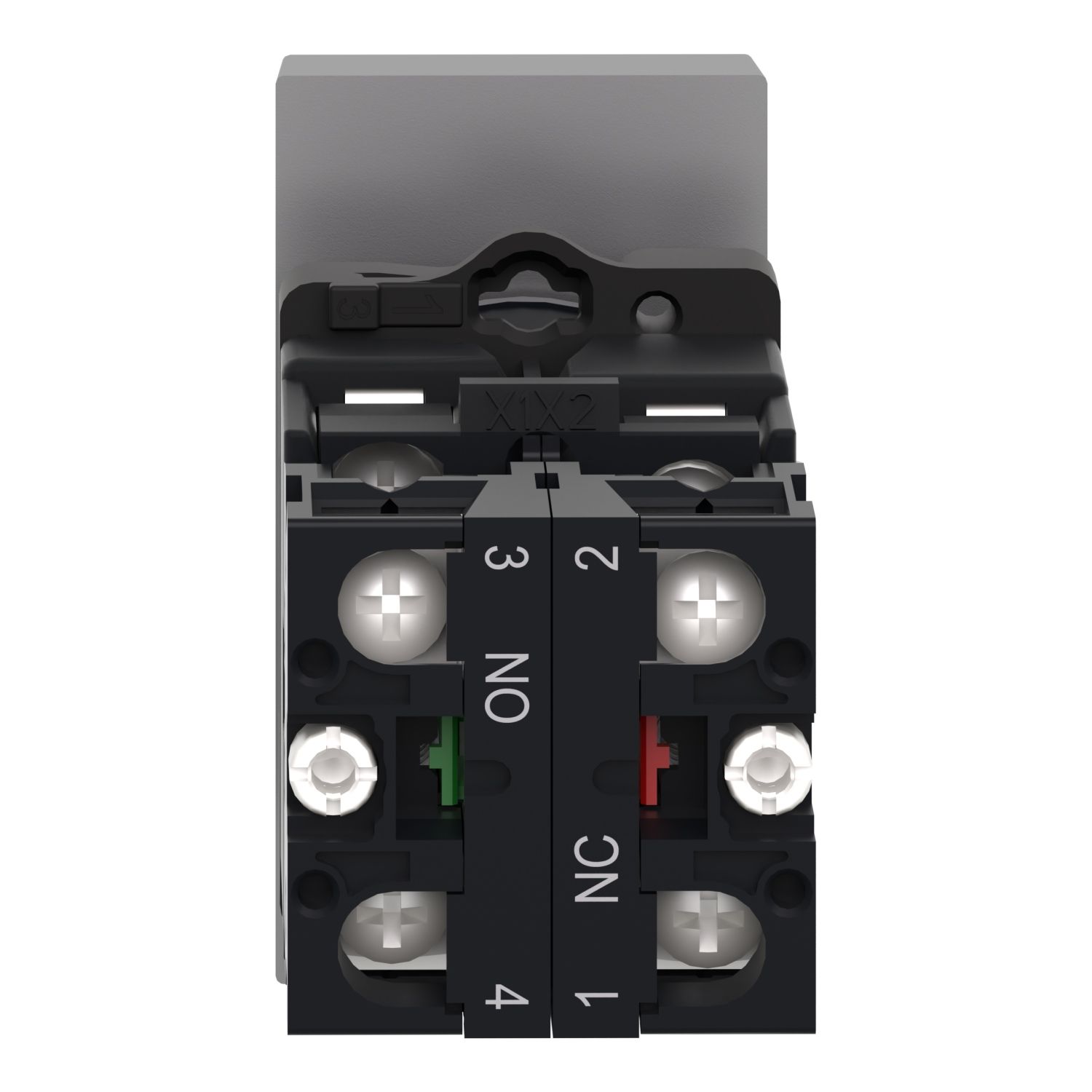

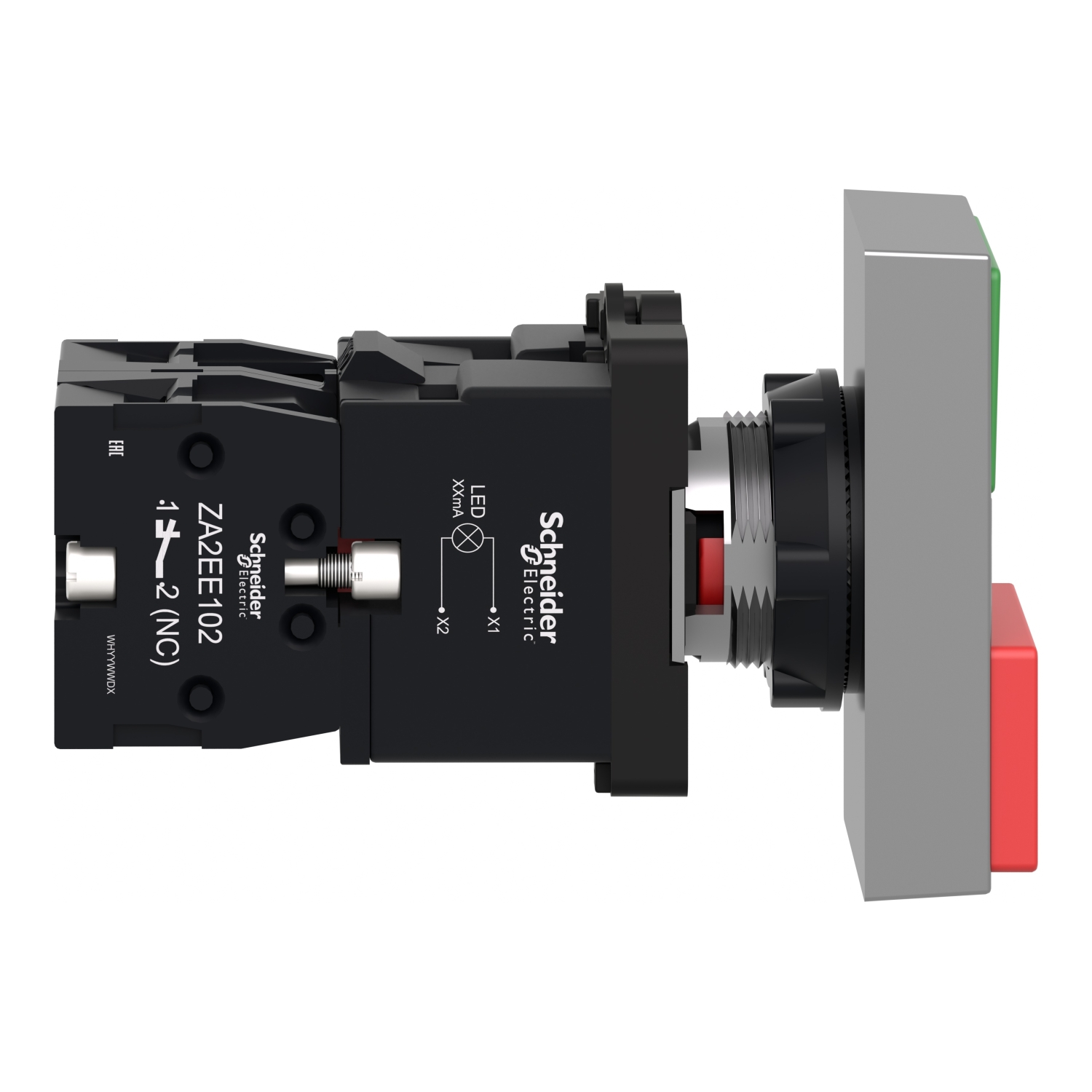

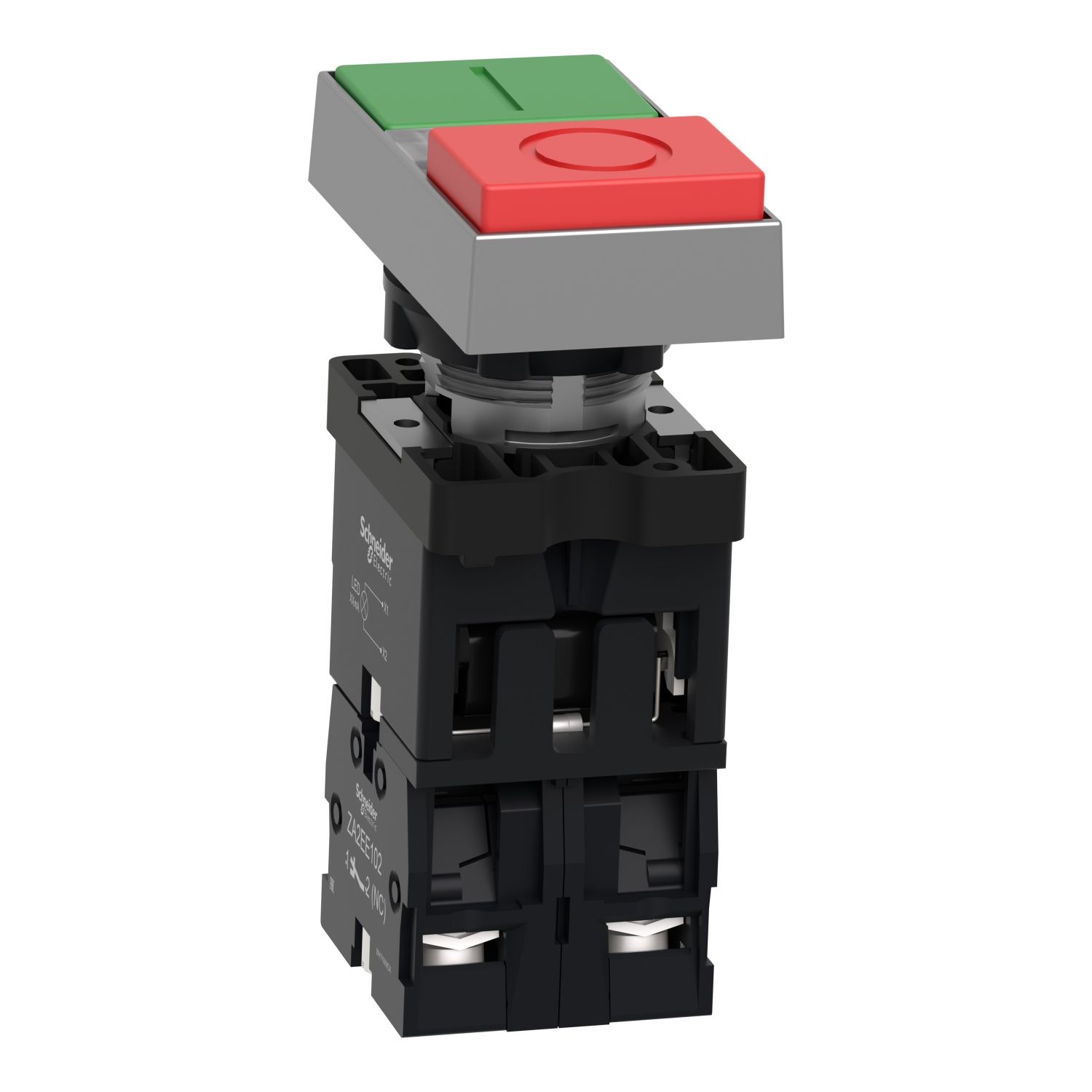

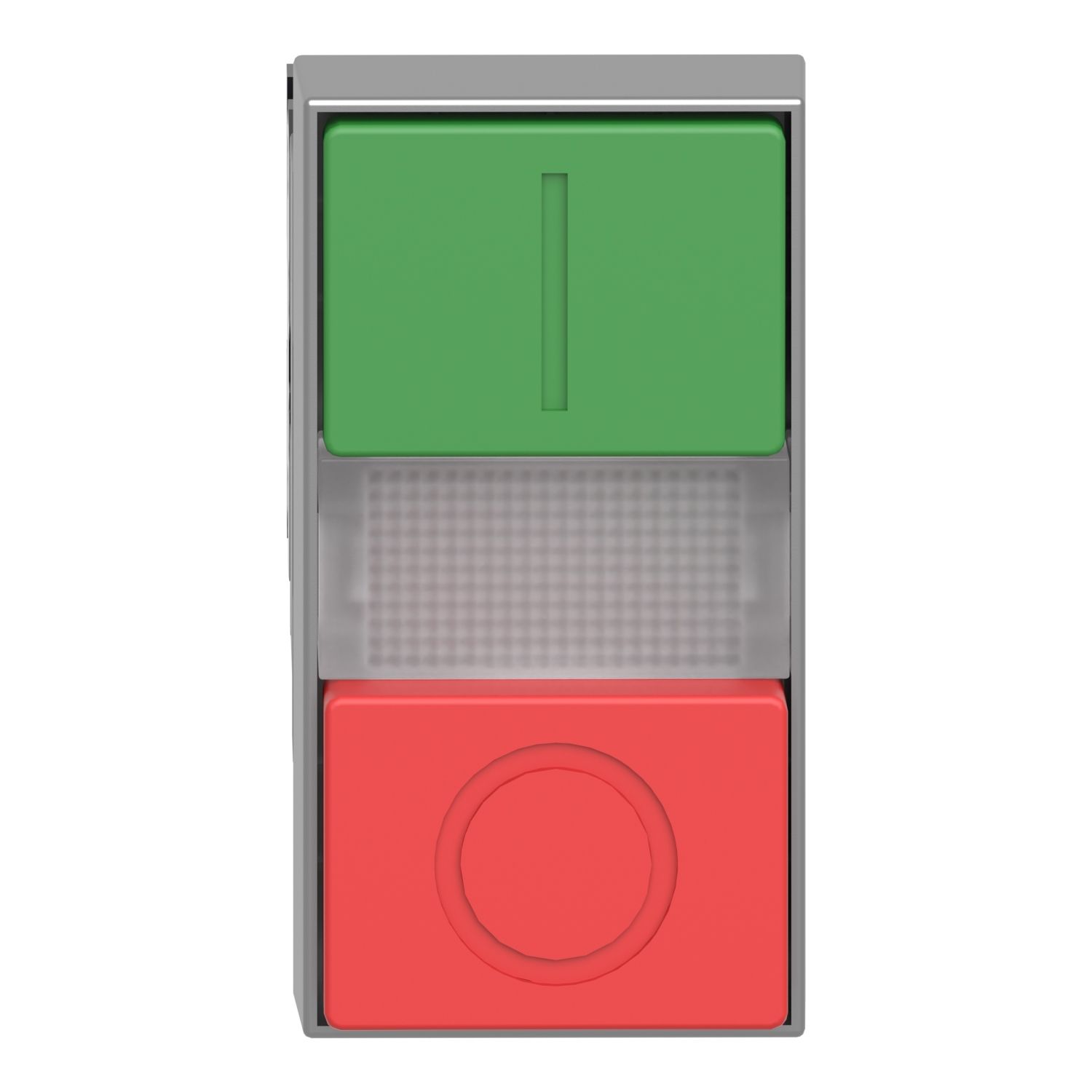

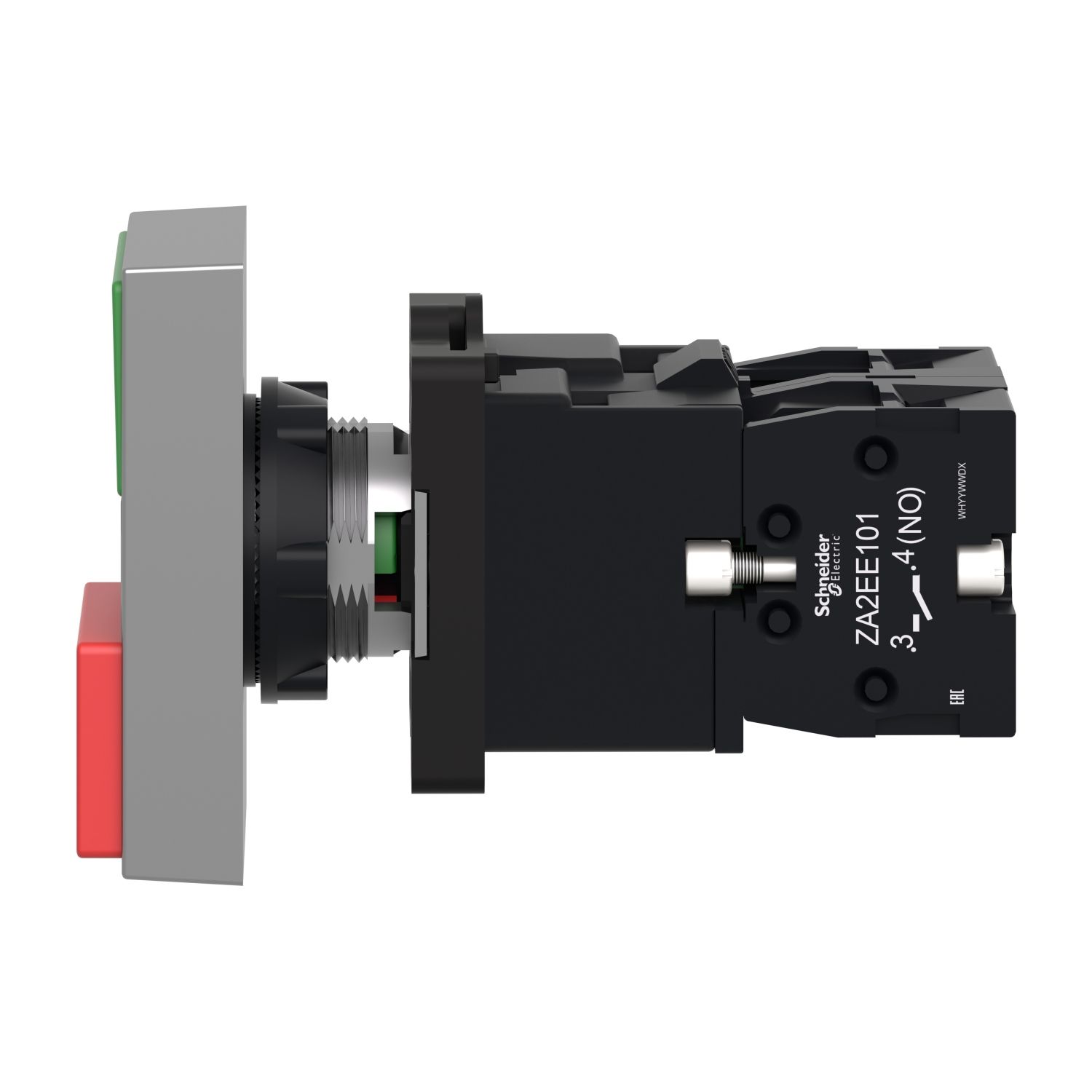

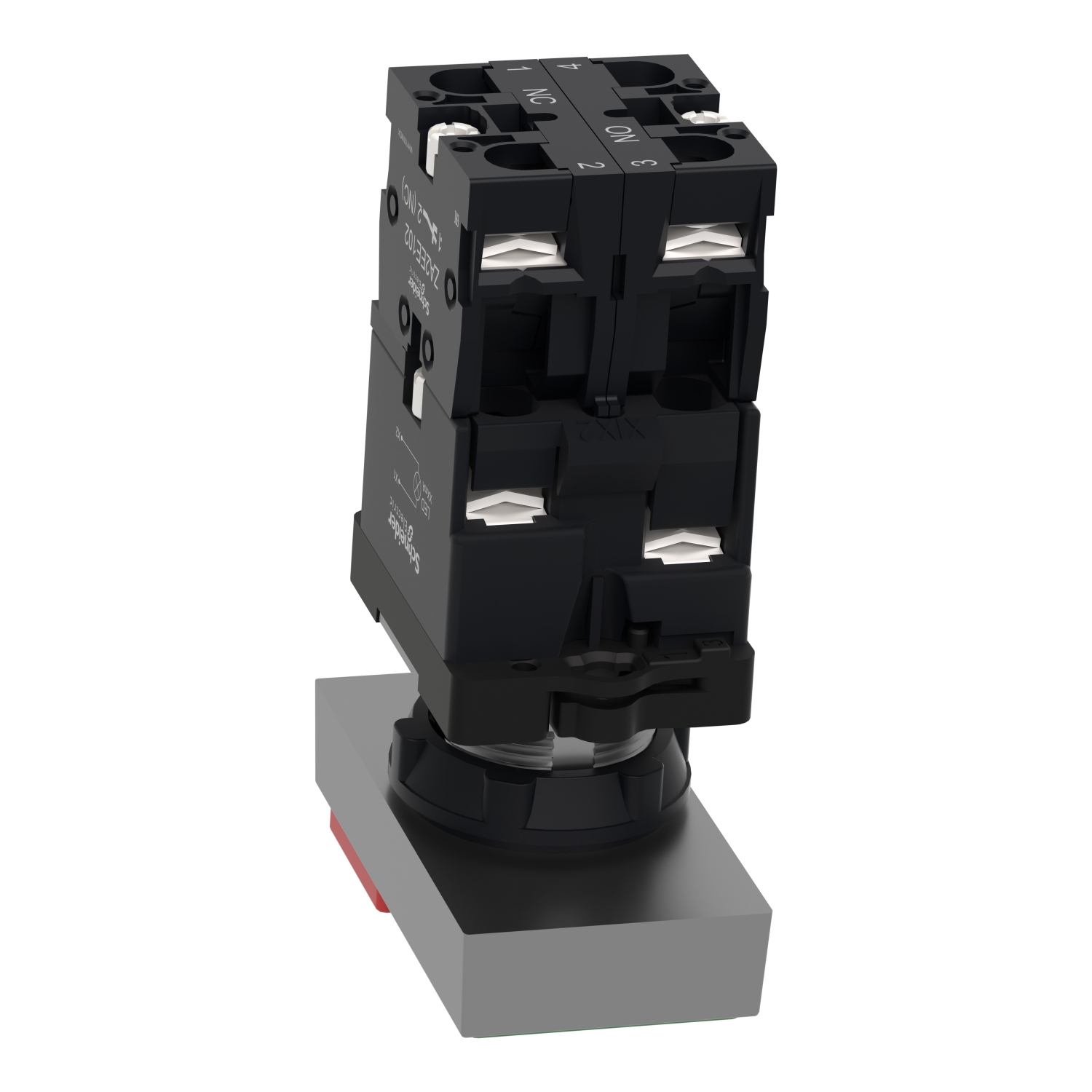

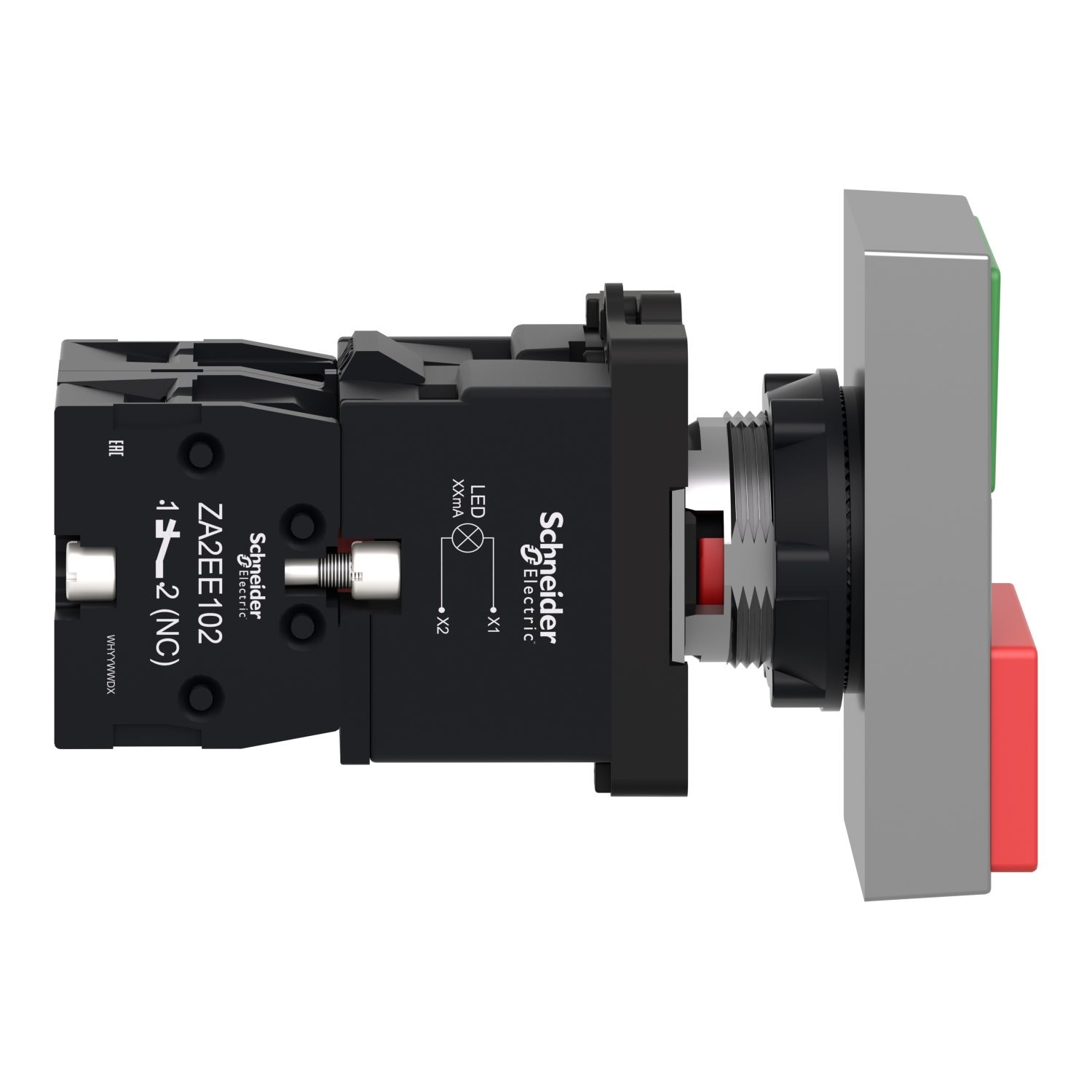

This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. It is a modular double-headed pushbutton with 1 pilot light. This pushbutton operates with a spring return / impulse mechanism. This pushbutton provides an ergonomic interface for controlling machines. It has 1 NO and 1 NC contact with slow-break operation. This pushbutton has a pilot light with a 220V AC rating. This is a plastic pushbutton with a metallic-look ring design bezel and rectangular head. It is an IP40 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, GB 14048.5 and IEC 60947-5-1 standards . It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is clearly distinguishable visually at a distance due to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant making it suitable for operation in harsh environments.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XA2 |
| Light source colour | white |
| Bezel material | plastic |
| Device presentation | complete product |
| Fixing collar material | plastic |
| Product or component type | complete illuminated double-headed push-button |
| Range of product | Easy Harmony XA2 |
| Complementary | |
| Bulb base | integral LED |
| [Us] rated supply voltage | 220 V AC at 50/60 Hz, 220...230 V |
| Shape of screw head | cross |
| Tightening torque | 0.8-1.2 N.m conforming to IEC 60947-1 |
| Depth | 55.4 mm |
| Width | 29.8 mm |
| Type of operator | spring return |
| Compatibility code | XA2E |
| Mechanical durability | 500000 cycles |
| Supply voltage limits | 0.8-1.2 V AC |
| Operator profile | red flush, O (red), green flush, I (green), 2 flush push-buttons - 1 central pilot light |
| Contact operation | slow-break |
| [Ie] rated operational current | 0.27 A at 250 V, DC-13, Q600 conforming to IEC 60947-5-1, 3 A at 240 V, AC-15, A600 conforming to IEC 60947-5-1 |
| Signalling type | steady |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| Surge withstand | 1 kV conforming to IEC 61000-4-5 |
| Service life | 10000 h |
| Contacts type and composition | 1 NO + 1 NC |
| Connections - terminals | screw clamp terminals, >= 1 x 0.5 mm² without cable end conforming to IEC 60947-1, screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1, screw clamp terminals, <= 1 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Electrical durability | 500000 cycles, AC-15, 3 A at 240 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| Current consumption | 20 mA |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Net weight | 0.072 kg |
| Cap/operator or lens colour | green + red |
| Shape of signaling unit head | rectangular |
| [Ith] conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| Operators description | green ''I'' - red ''O'' |
| Mounting diameter | 22.5 mm |
| Positive opening | with conforming to IEC 60947-5-1 appendix K |
| Light source | protected LED |
| Contacts material | silver alloy (Ag/Ni) |
| Operating travel | 4.8 mm (total travel), 2.65 mm (NO changing electrical state), 1.75 mm (NC changing electrical state) |
| Short-circuit protection | 10 A gL fuse conforming to IEC 60269-1 |
| Terminals description ISO n°1 | (11-12)NC, (13-14)NO |
| Height | 81.3 mm |
| Contacts usage | standard contacts |
| Environment | |
| Overvoltage category | class I conforming to IEC 536 |
| Ambient air temperature for storage | -40-85 °C |
| IP degree of protection | IP40 conforming to IEC 60529 |
| Vibration resistance | 15 gn (f= 12-500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Standards | GB 14048.5, GB 14048.1, IEC 60947-5-1 |
| Ambient air temperature for operation | -25-55 °C |
| IK degree of protection | IK05 conforming to IEC 50102 |
| Product certifications | CE, EAC, CCC |
