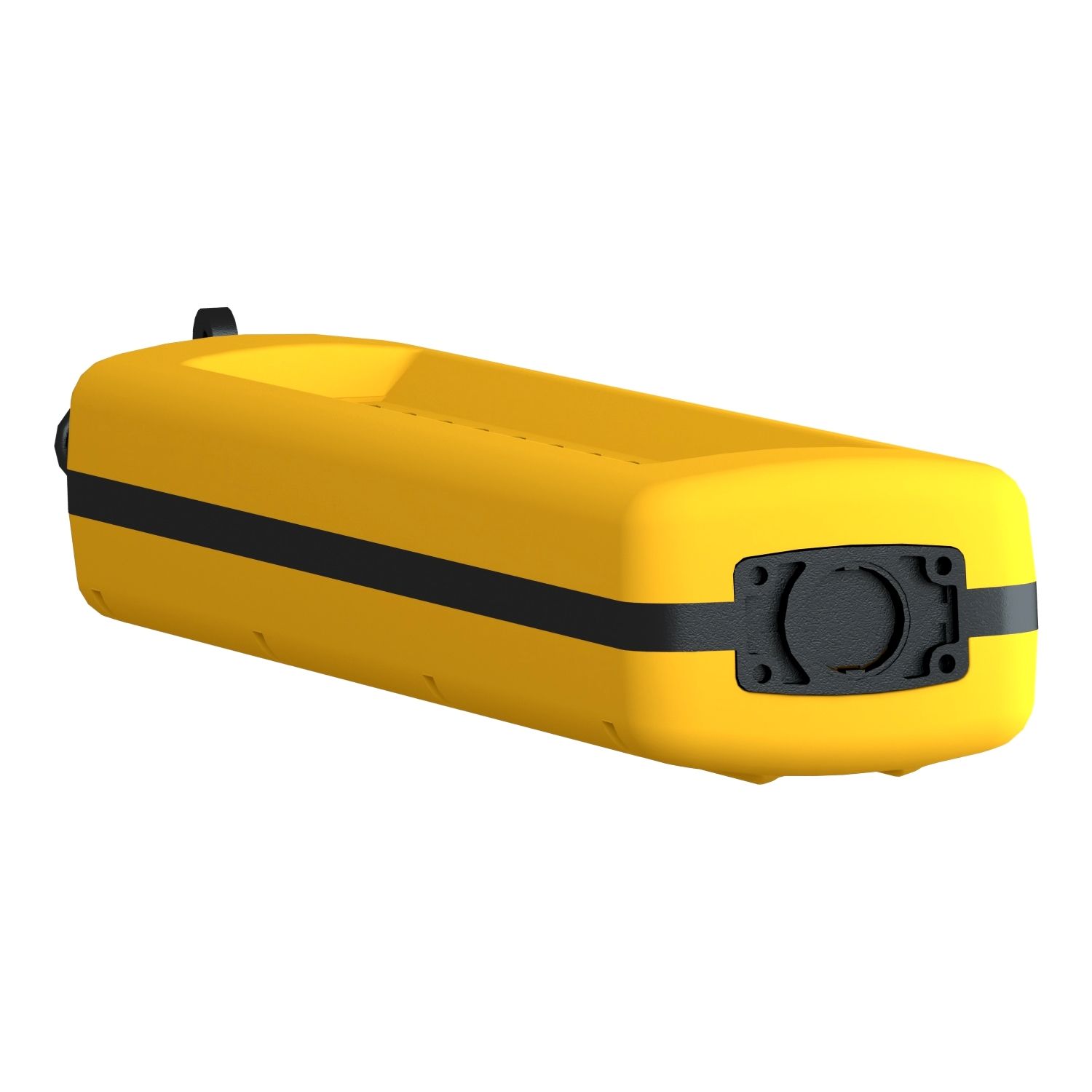

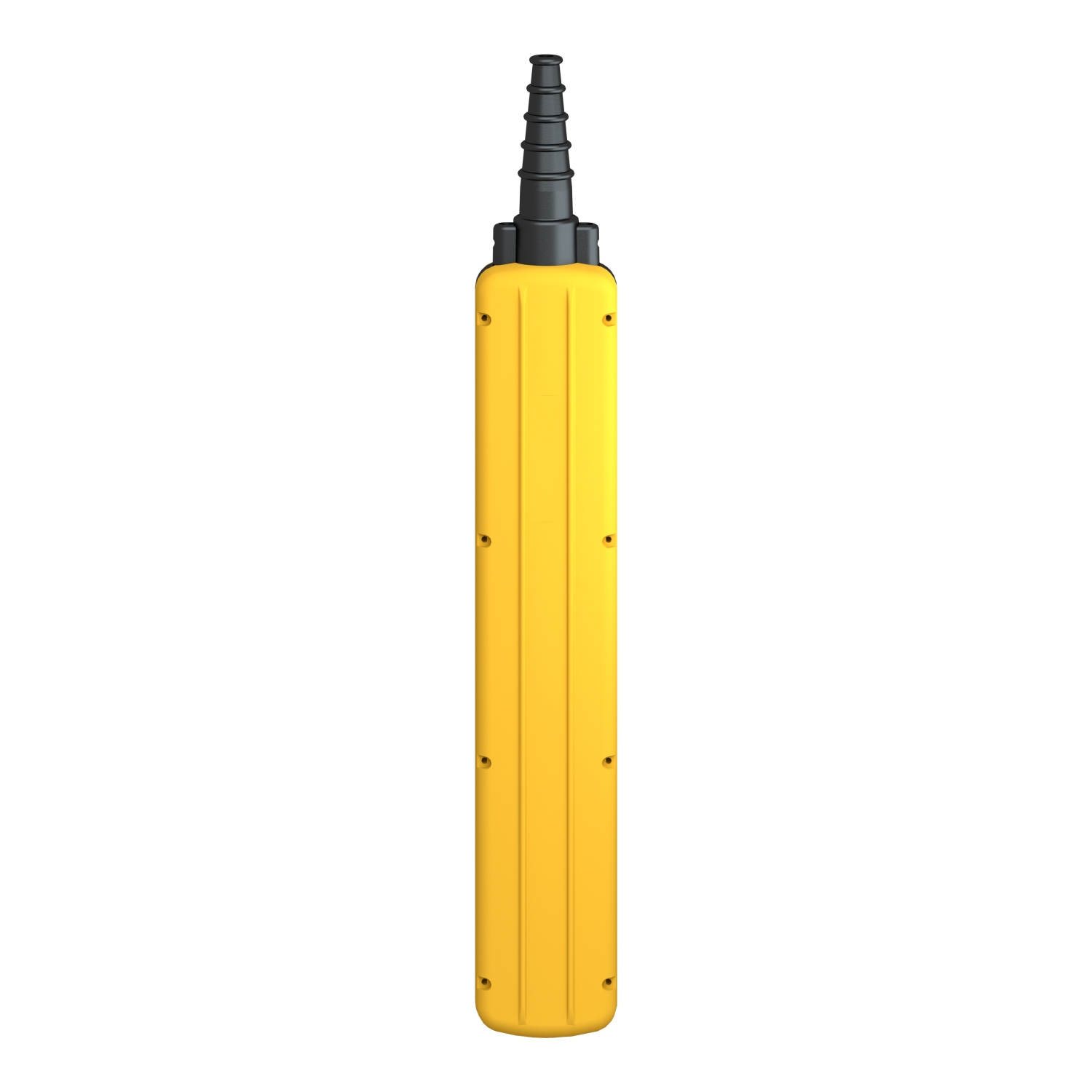

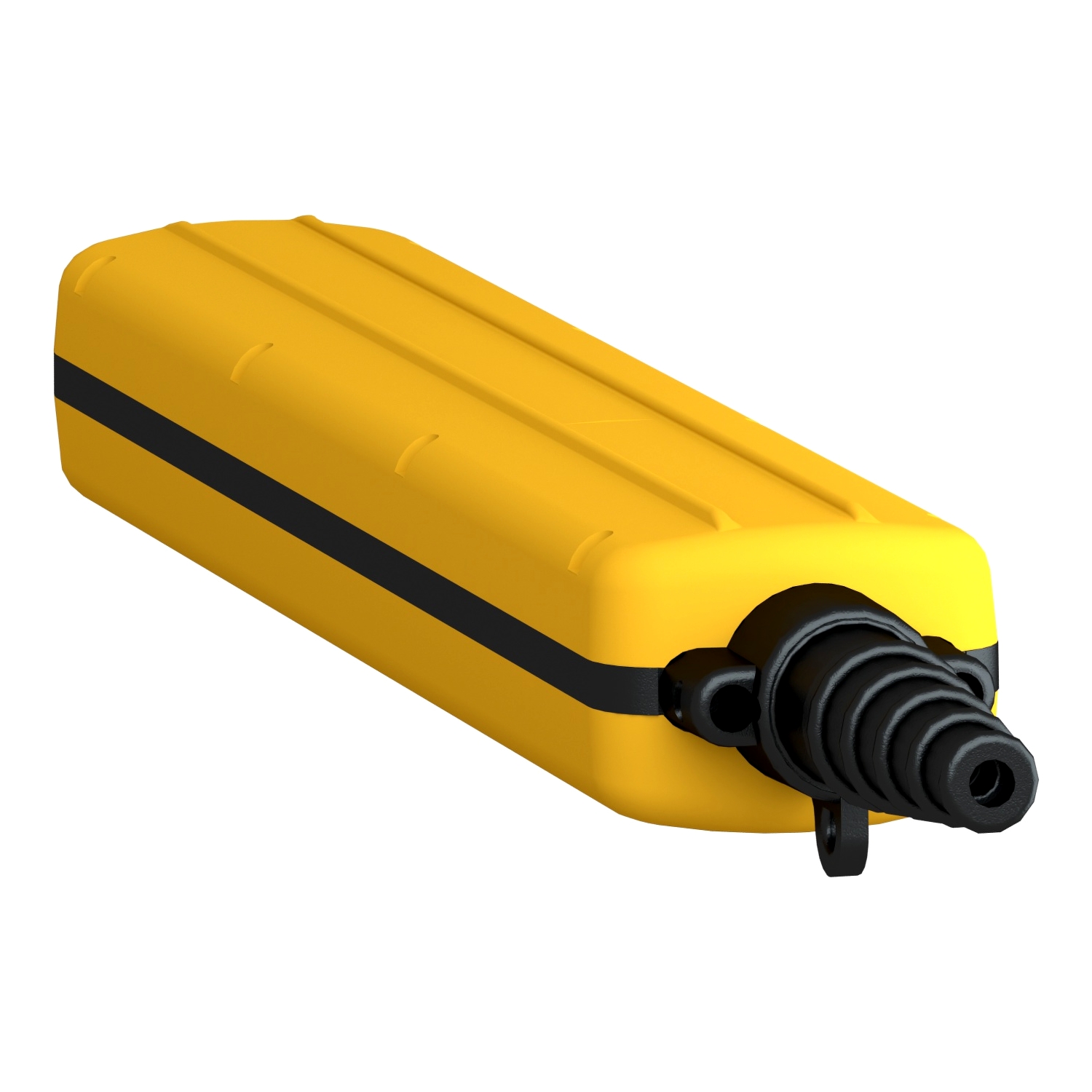

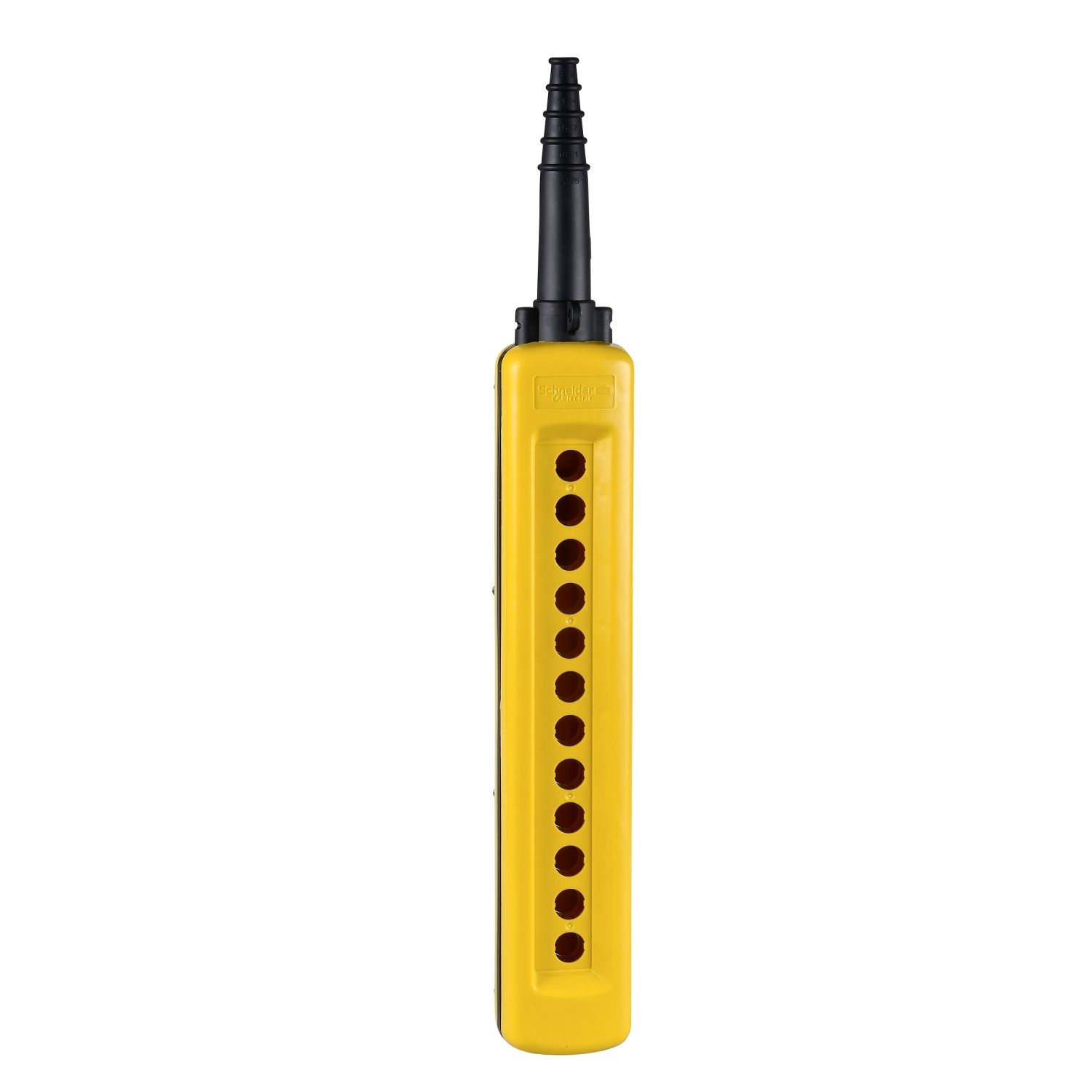

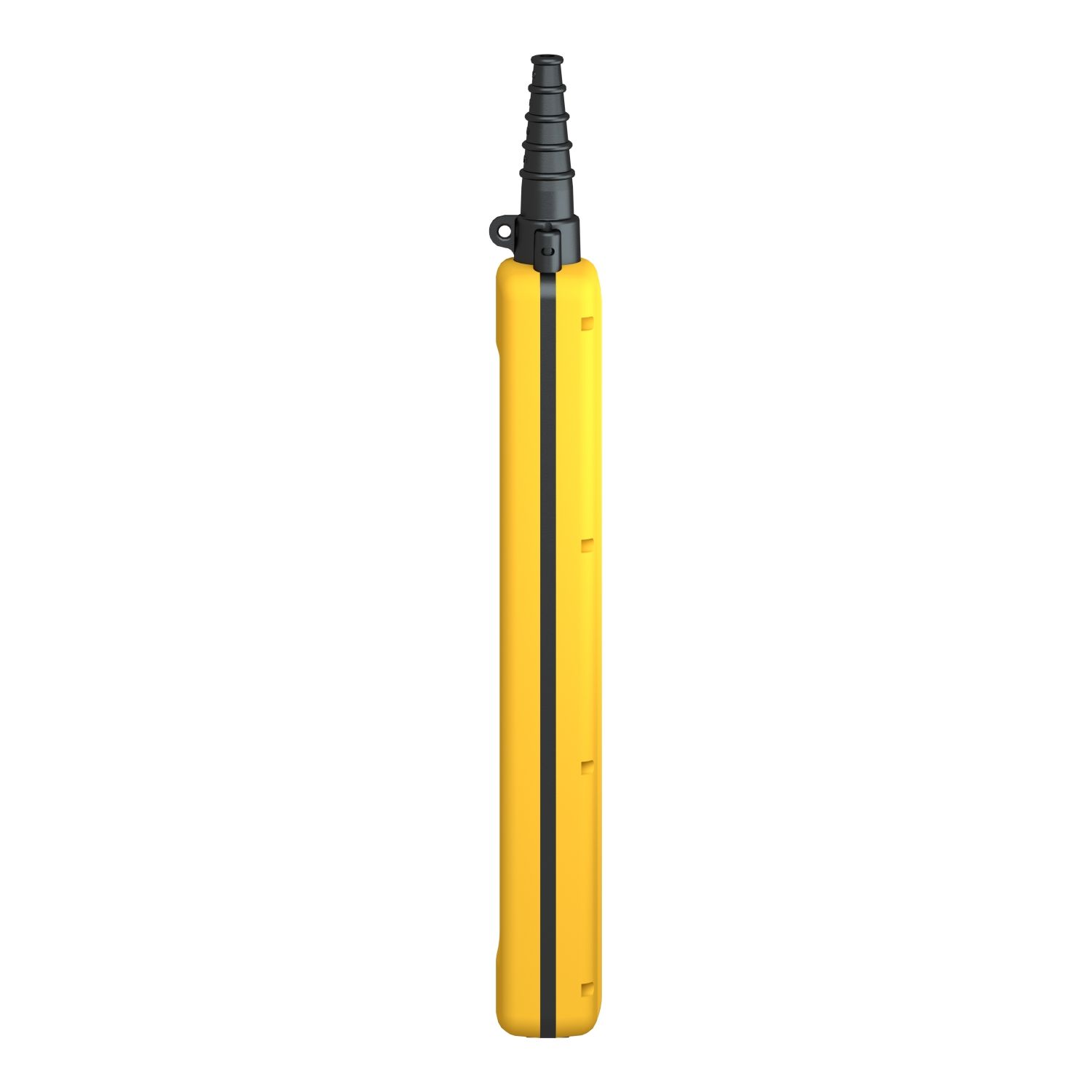

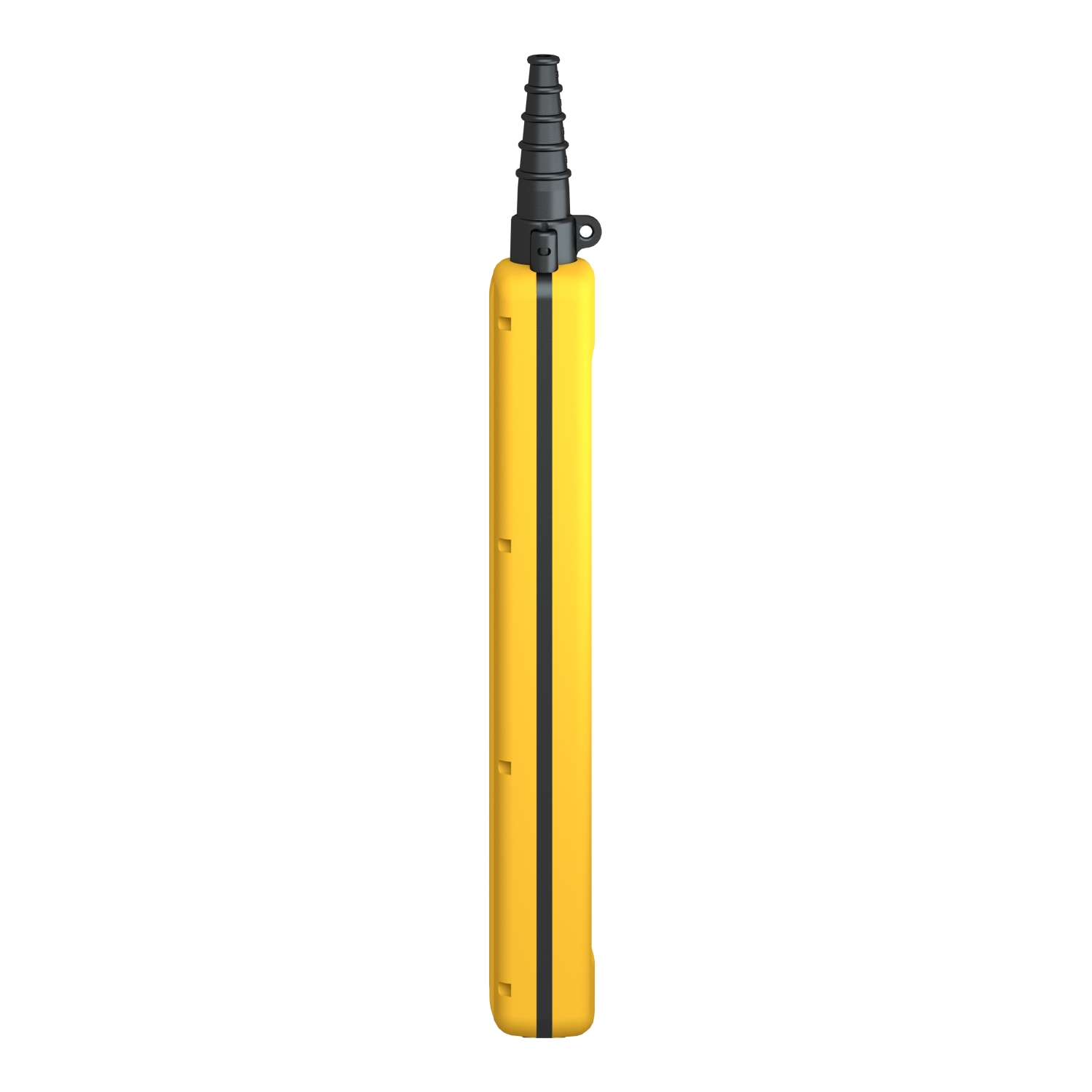

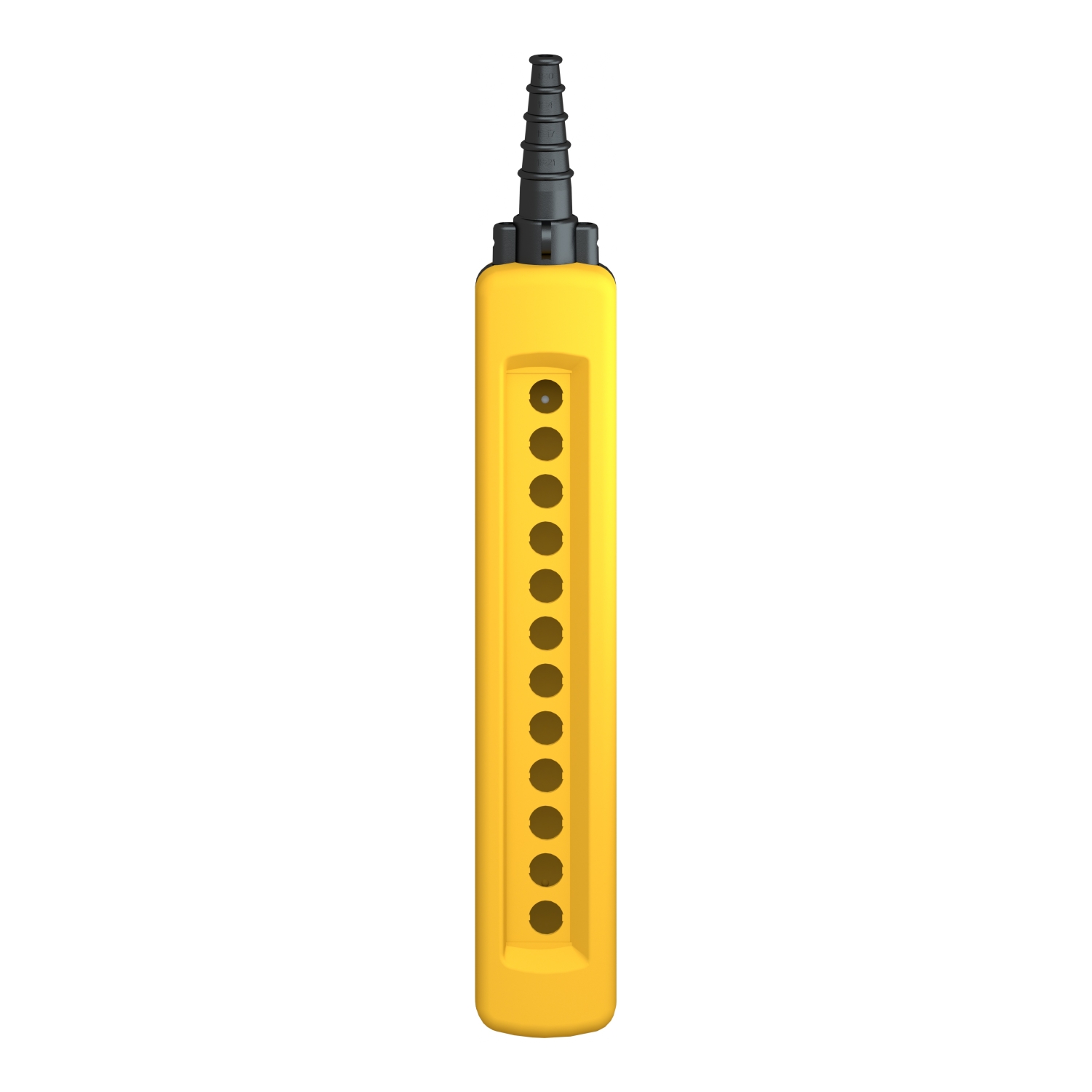

Empty pendant control station, Harmony XAC, plastic, yellow, 12 cut outs
Manufacturer: Schneider Electric
SKU: XACA12
GTIN: 3389110645088
Old price: $368.50 inc GST
$224.20 inc GST
Supported cards
Supported cards

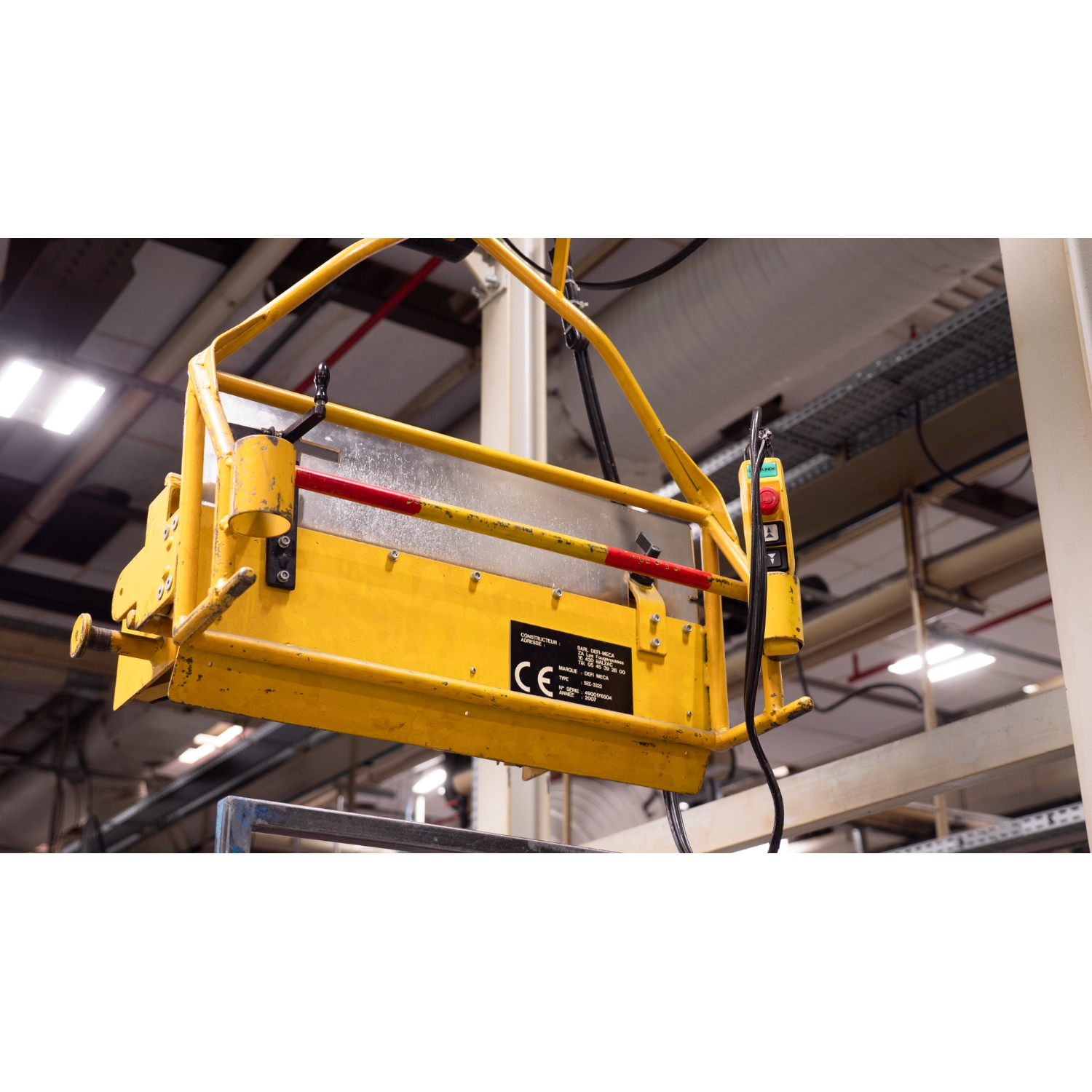

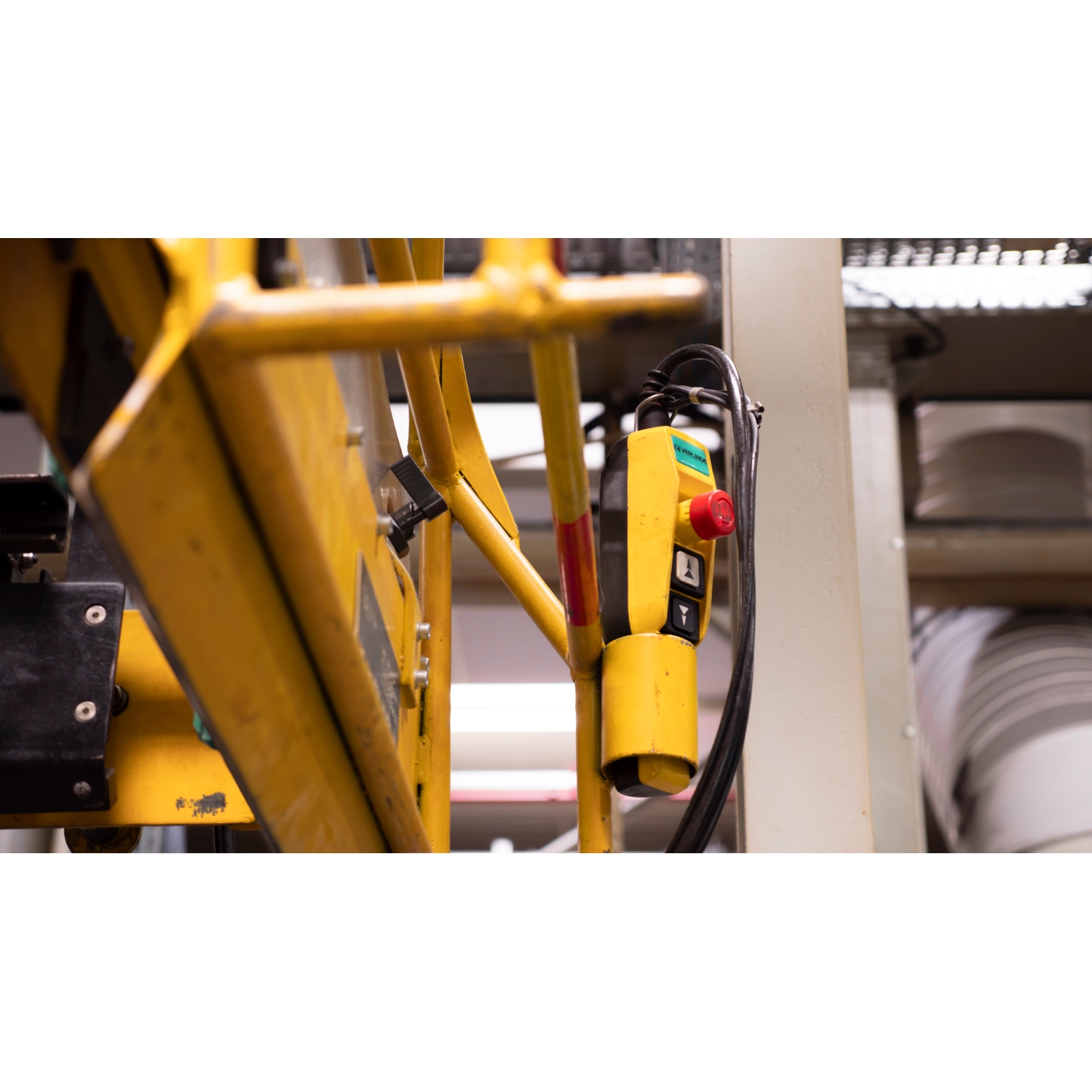

This Harmony XAC, empty pendant control station has 12 cut-out for 12 push buttons / 12 functions for controlling of operation in machines. This 12 cut-out yellow empty pendant control station is ideal for general purposes use as it enables machine builder to add any required control units for custom factory-assembled stations. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It can be retrofitted with all 22mm push buttons, pilot lights, selector switches and joysticks. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Products specifications

Attribute name Attribute value
Main
Device short name XACA
Product or component type pendant control station
Range of product Harmony XAC
Complementary
Protective treatment TH
Enclosure material polypropylene
Electrical circuit type control circuit
Mechanical durability 1000000 cycles
Control station colour yellow
Overvoltage category class II conforming to IEC 61140
Ambient air temperature for storage -40-70 °C
Number of cut-out 12 cut-outs
Vertical operator cut-out centre 30 mm
Control station type double insulated
IP degree of protection IP65 conforming to IEC 60529
Net weight 1 kg
Vibration resistance 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Enclosure type empty enclosure
Shock resistance 100 gn conforming to IEC 60068-2-27
Cable entry rubber sleeve with stepped entry 8-26 mm
Standards UL 508, IEC 60947-5-1, CSA C22.2 No 14, IEC 60204-32
Ambient air temperature for operation -25-70 °C
Guard rail without
IK degree of protection IK08 conforming to IEC 62262
Product certifications GOST, CCC
