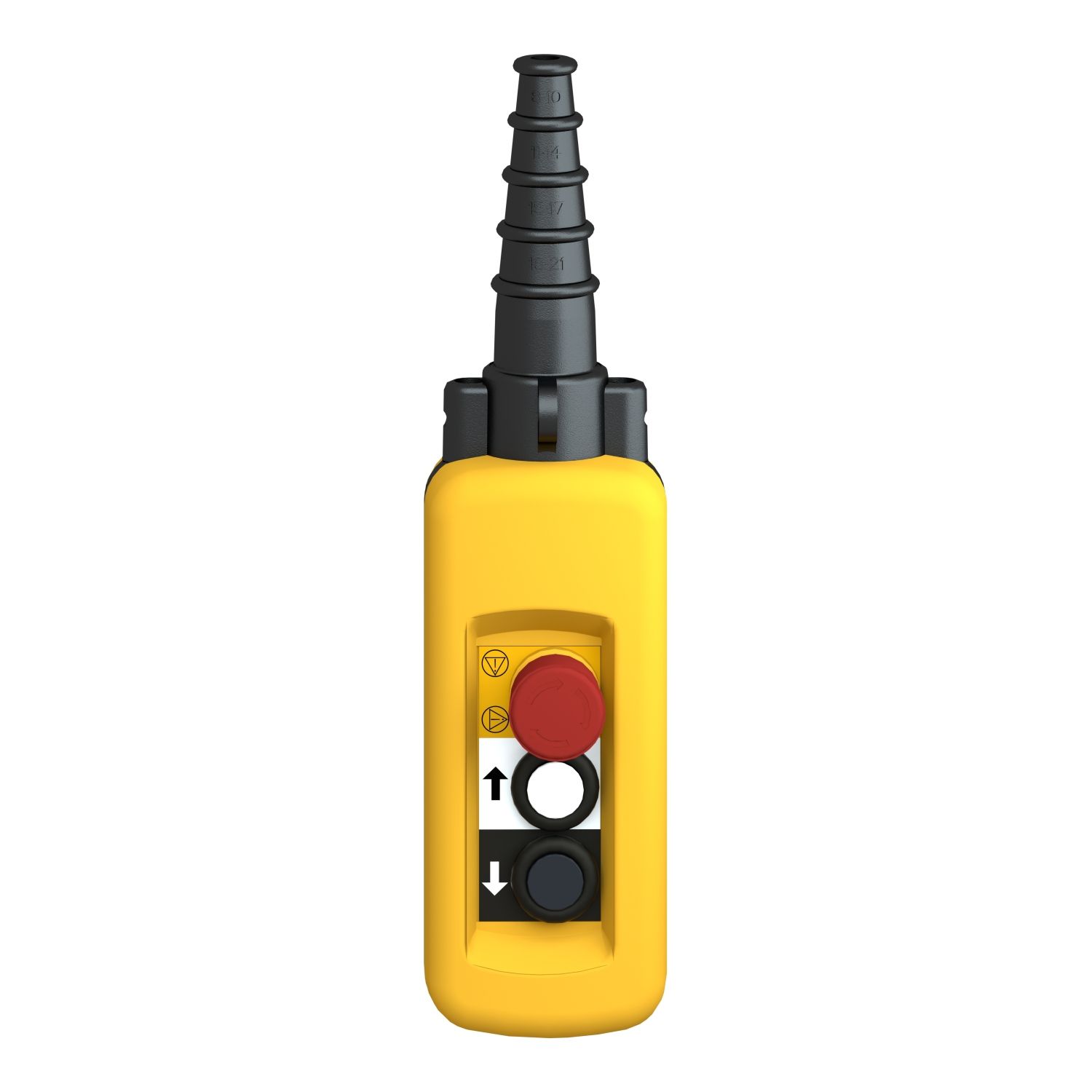

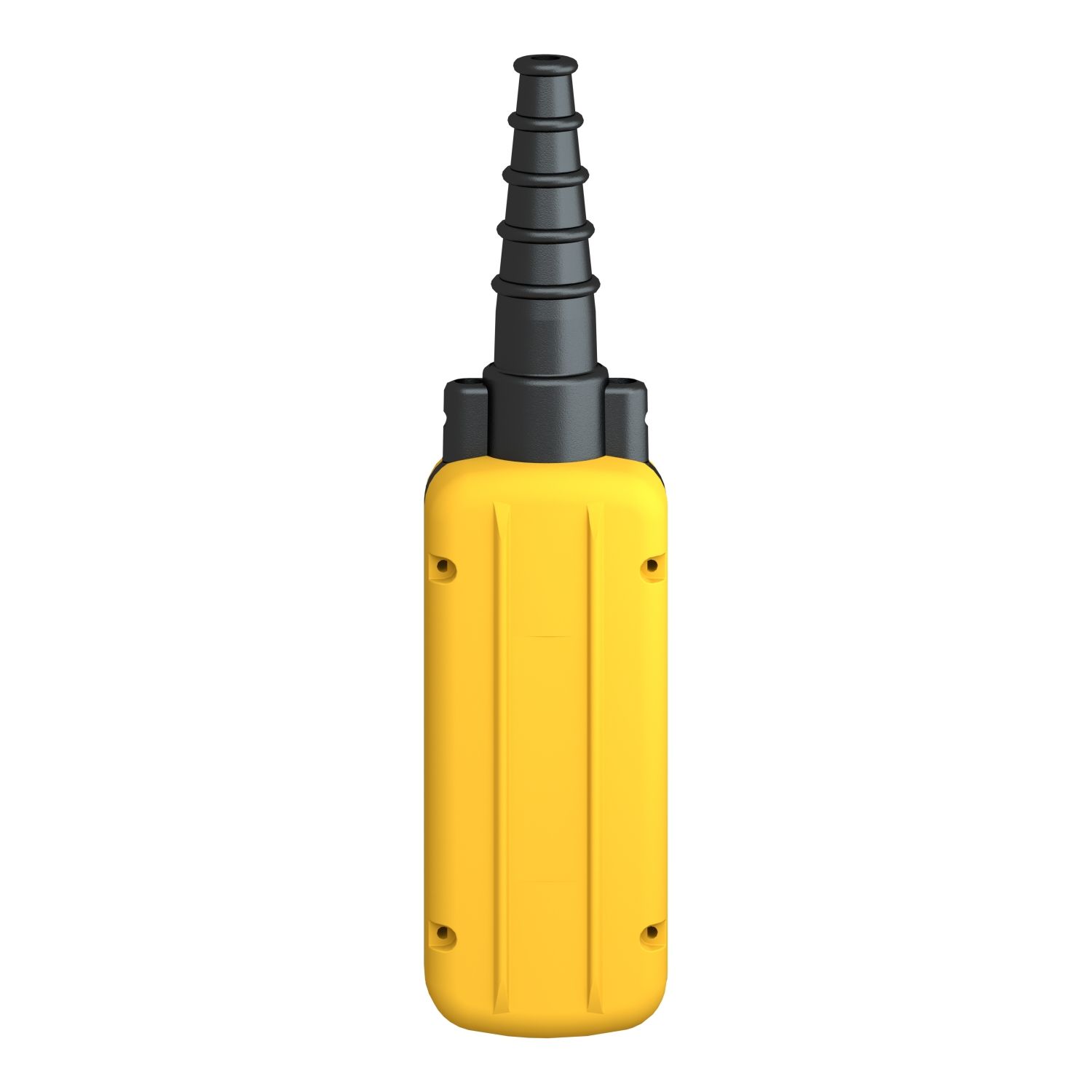

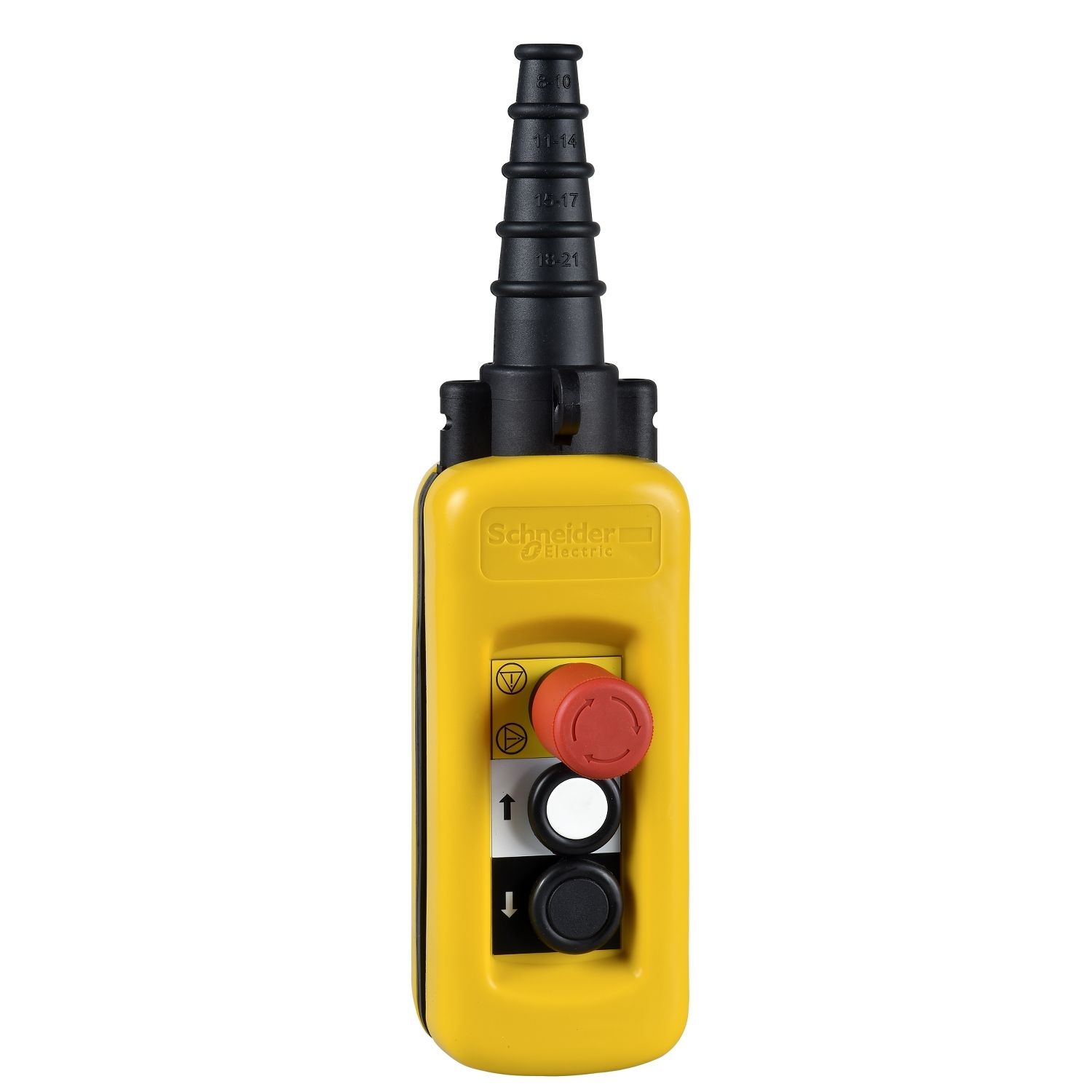

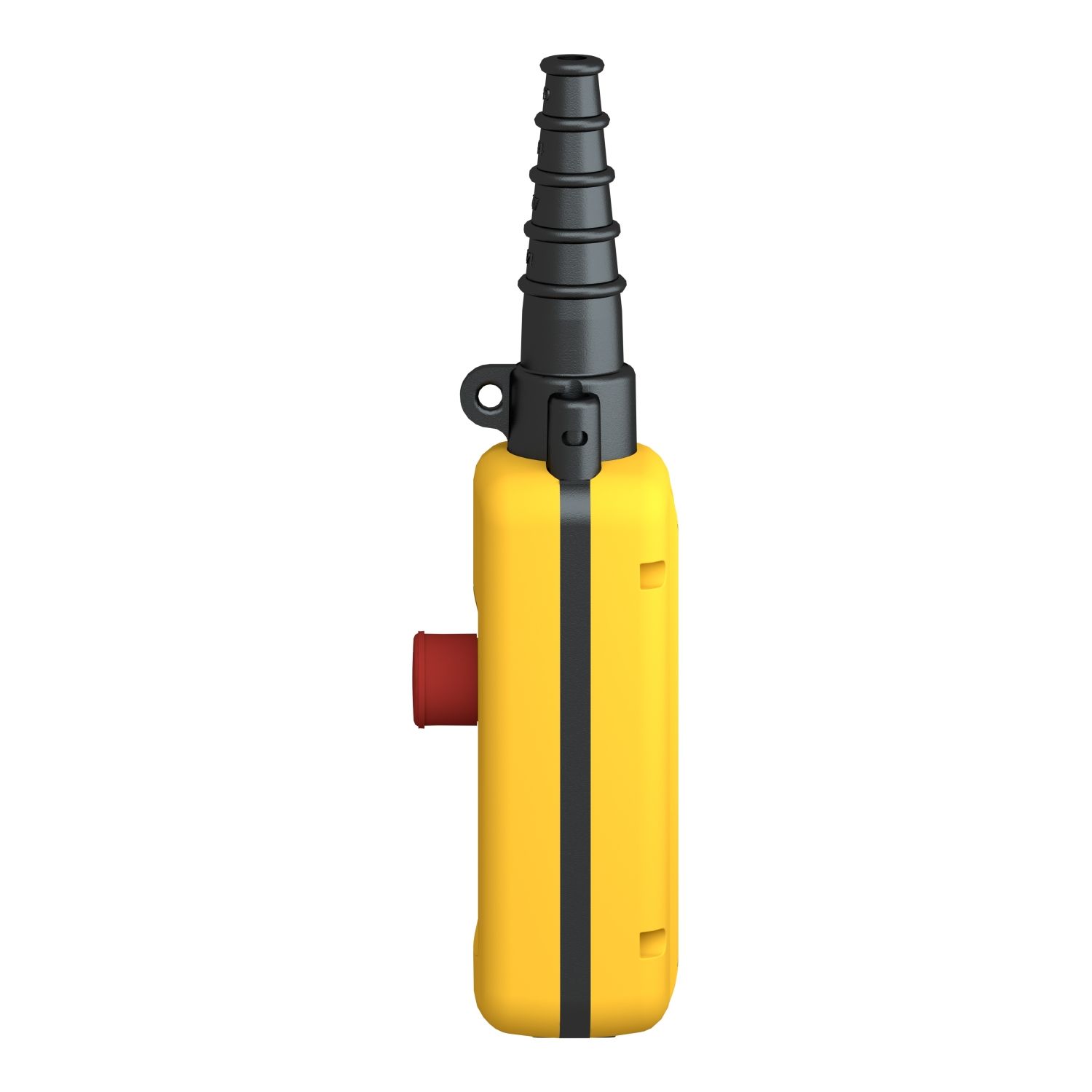

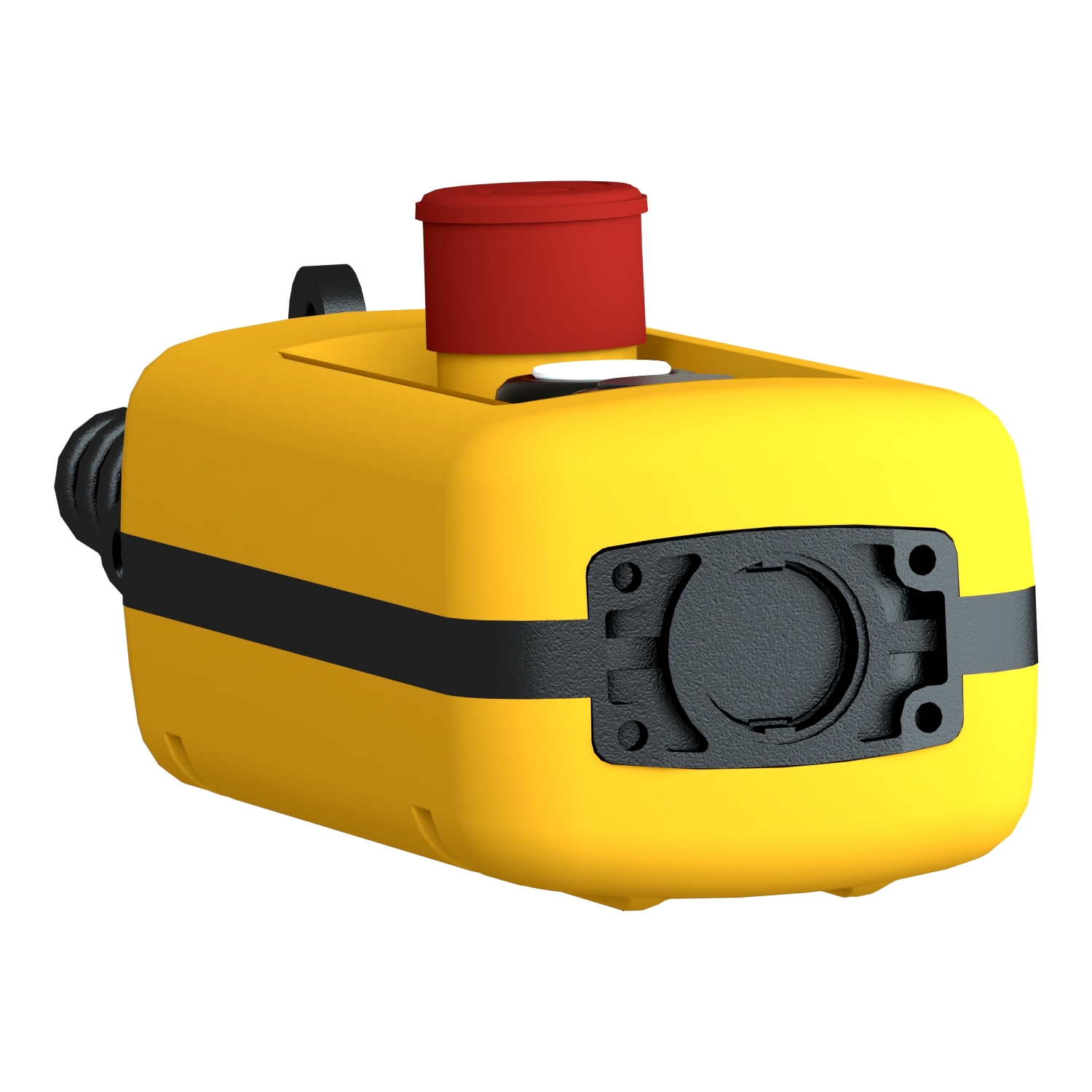

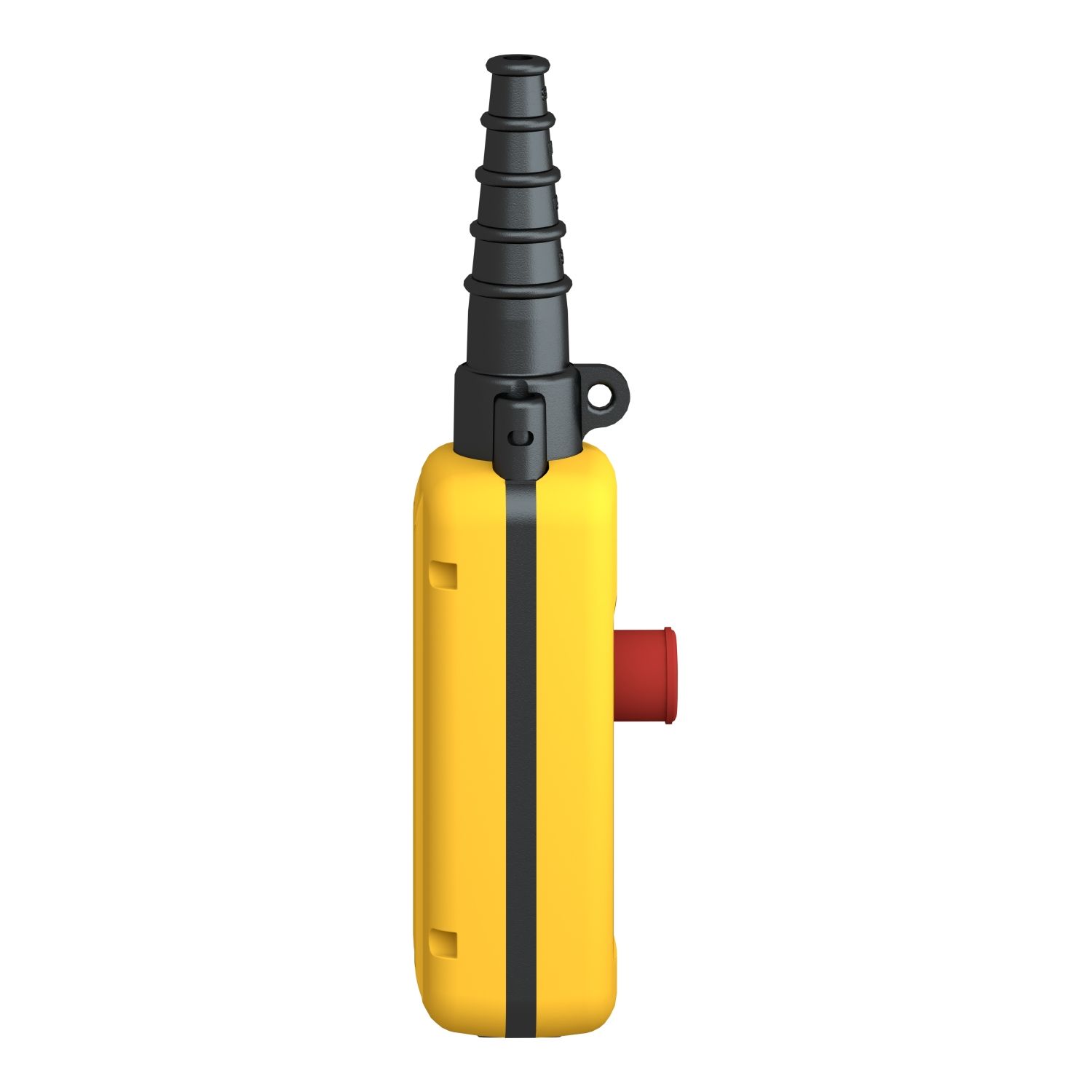

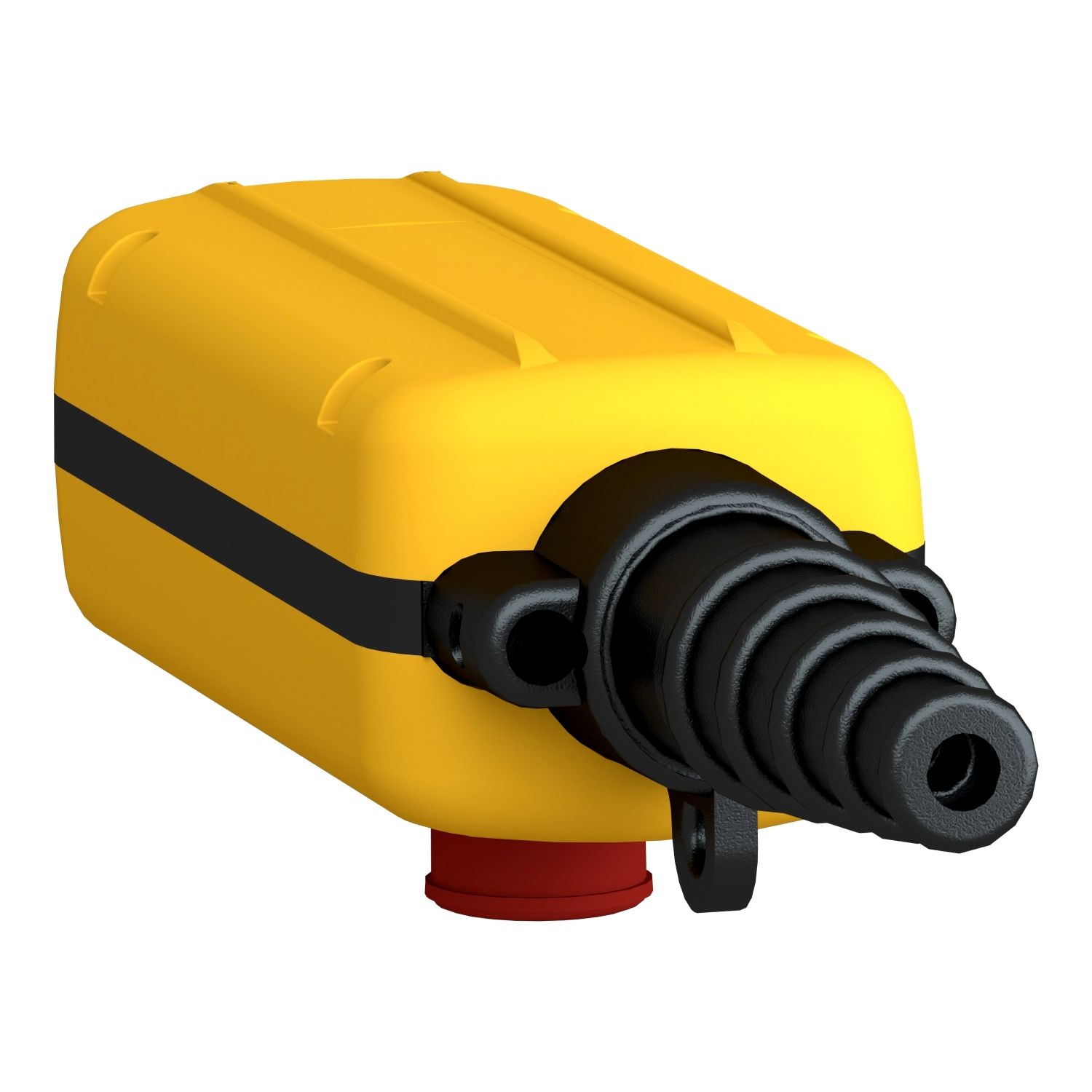

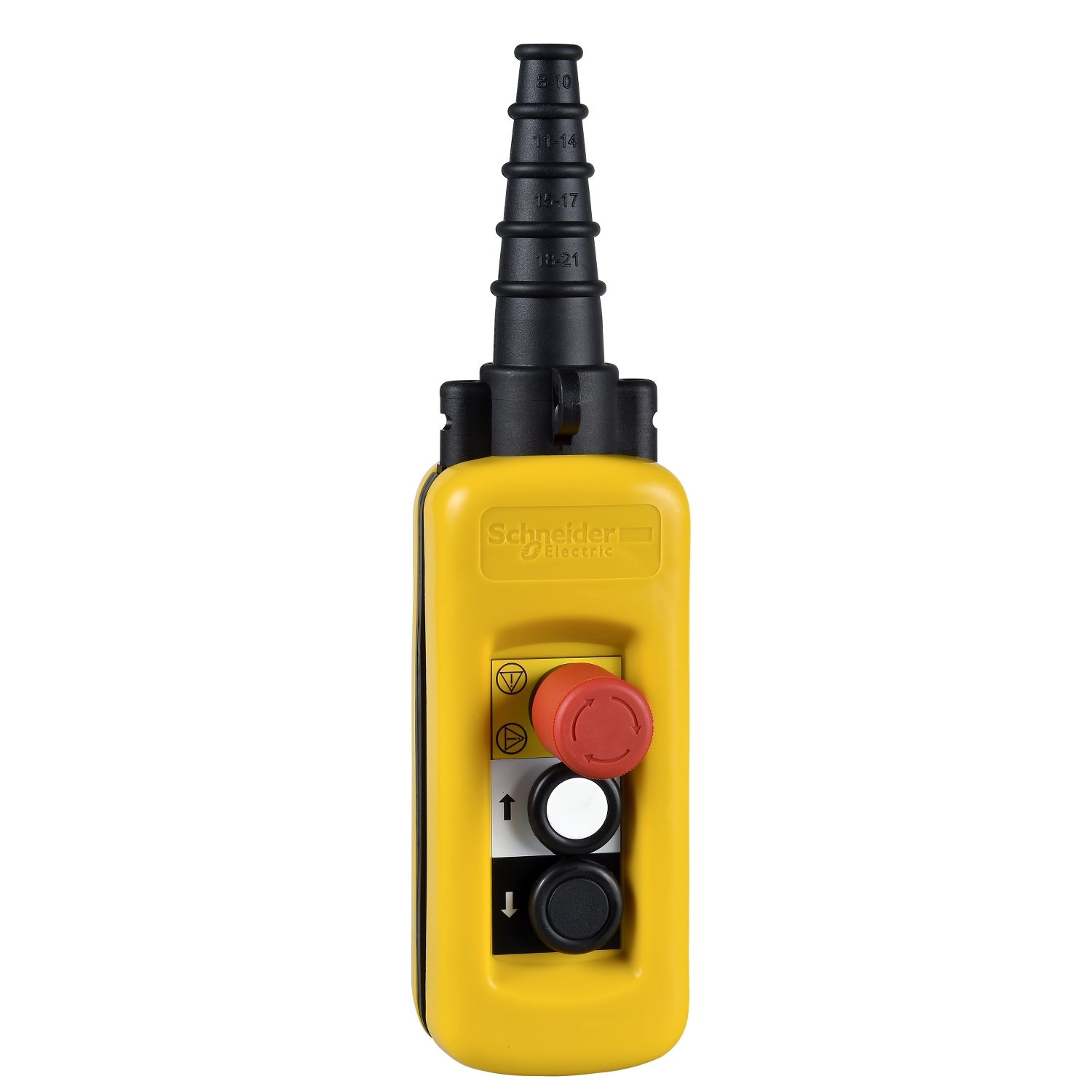

This Harmony XAC, yellow pendant station for hoist motor has single speed. This pendant station for hoist motor is designed for standard or medium-duty control circuit applications in your machines. It has 2 push buttons and 1 emergency stop with "raise" and "lower" markings, with normally open and normally close contact. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XACA |
| Range of product | Harmony XAC |
| Product or component type | pendant control station |
| Complementary | |
| Protective treatment | TH |
| Contact code designation | Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A, Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A, A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A |
| Electrical circuit type | control circuit |
| Operating force | 8-8 N emergency stop, 10-10 N push-button |
| Mechanical durability | 1000000 cycles |
| Control station colour | yellow |
| Contact operation | slow-break |
| Ambient air temperature for storage | -40-70 °C |
| Control station type | double insulated |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Product compatibility | ZB2BE102 for emergency stop, ZB2BE101 for each direction |
| Enclosure type | complete ready for use |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Short-circuit protection | 10 A fuse protection by cartridge fuse type gG |
| Maximum resistance across terminals | 25 MOhm |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK08 conforming to EN 50102 |

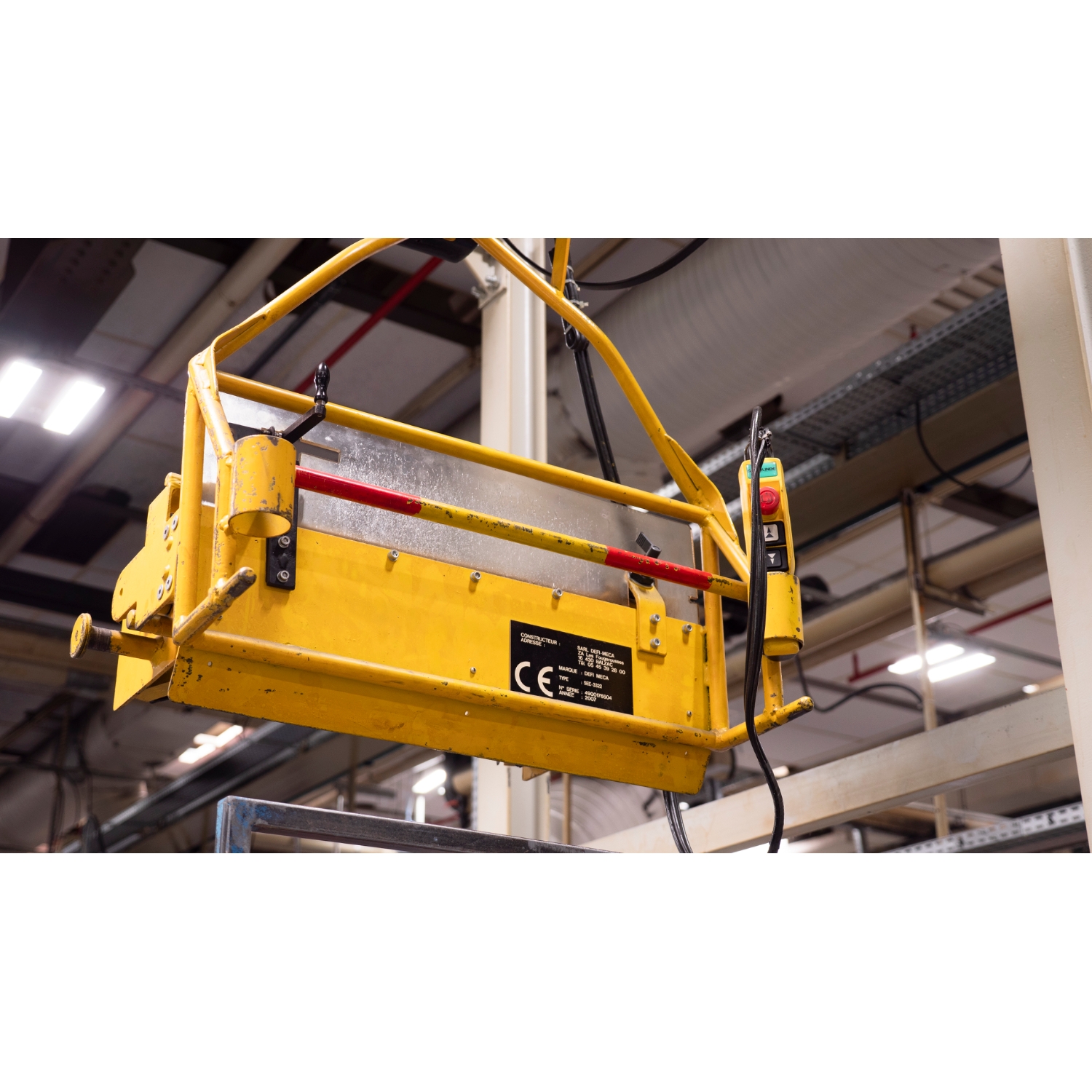

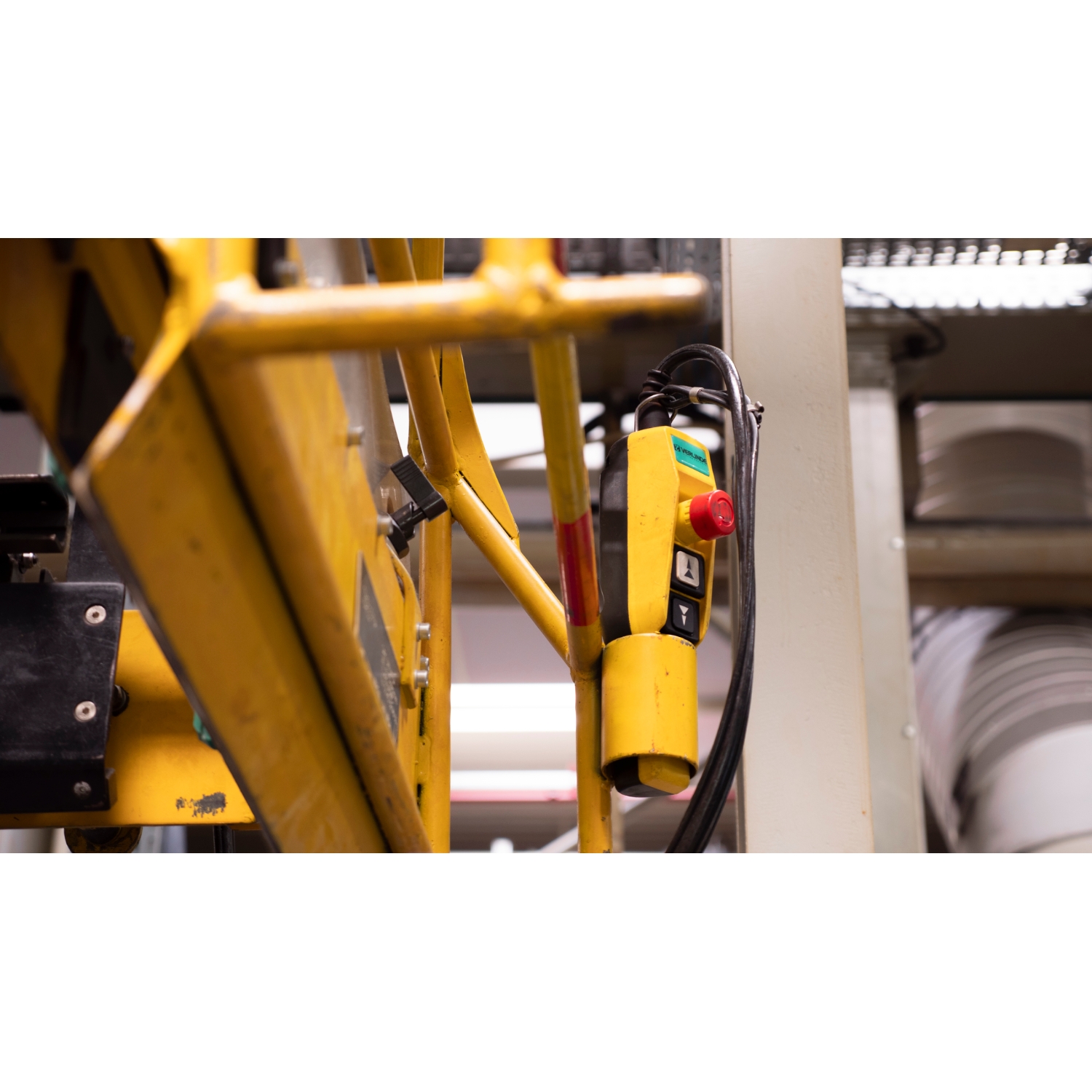

| Control station application | control of single speed hoist motor |
| Rated operational power in W | 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C, 40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C |
| Enclosure material | polypropylene |
| [Ithe] conventional enclosed thermal current | 10 A |
| Control button type | stop push-button Ø 30 mm 1 NC latching, second push-button 1 NO lower, slow, first push-button 1 NO raise, slow |
| Mechanical interlocking | with mechanical interlocking |
| Overvoltage category | class II conforming to IEC 61140 |
| Control station composition | 2 push-buttons + 1 emergency stop |
| [Ui] rated insulation voltage | 600 V (pollution degree 3) |
| Connections - terminals | screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end, screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Net weight | 0.575 kg |
| Vibration resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Cable entry | rubber sleeve with stepped entry 8-26 mm |
| Standards | UL 508, CSA C22.2 No 14, EN/IEC 60204-32, EN/IEC 60947-5-1 |
| Terminals description ISO n°1 | (13-14)NO |
| Terminals description ISO n°2 | (11-12)NC |
| Terminal identifier | (11-12)NC, (13-14)NO |
| Product certifications | GOST, CCC |
