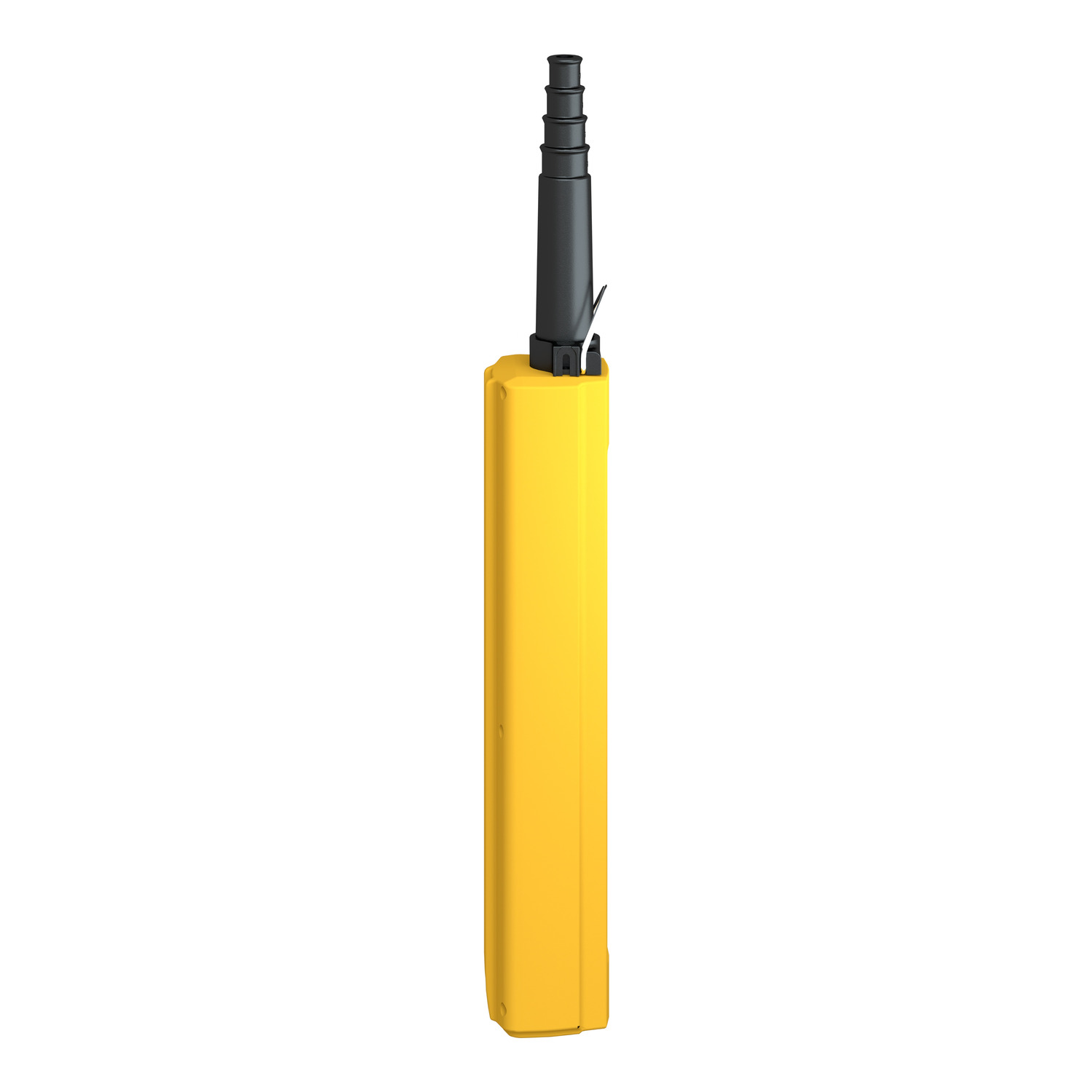

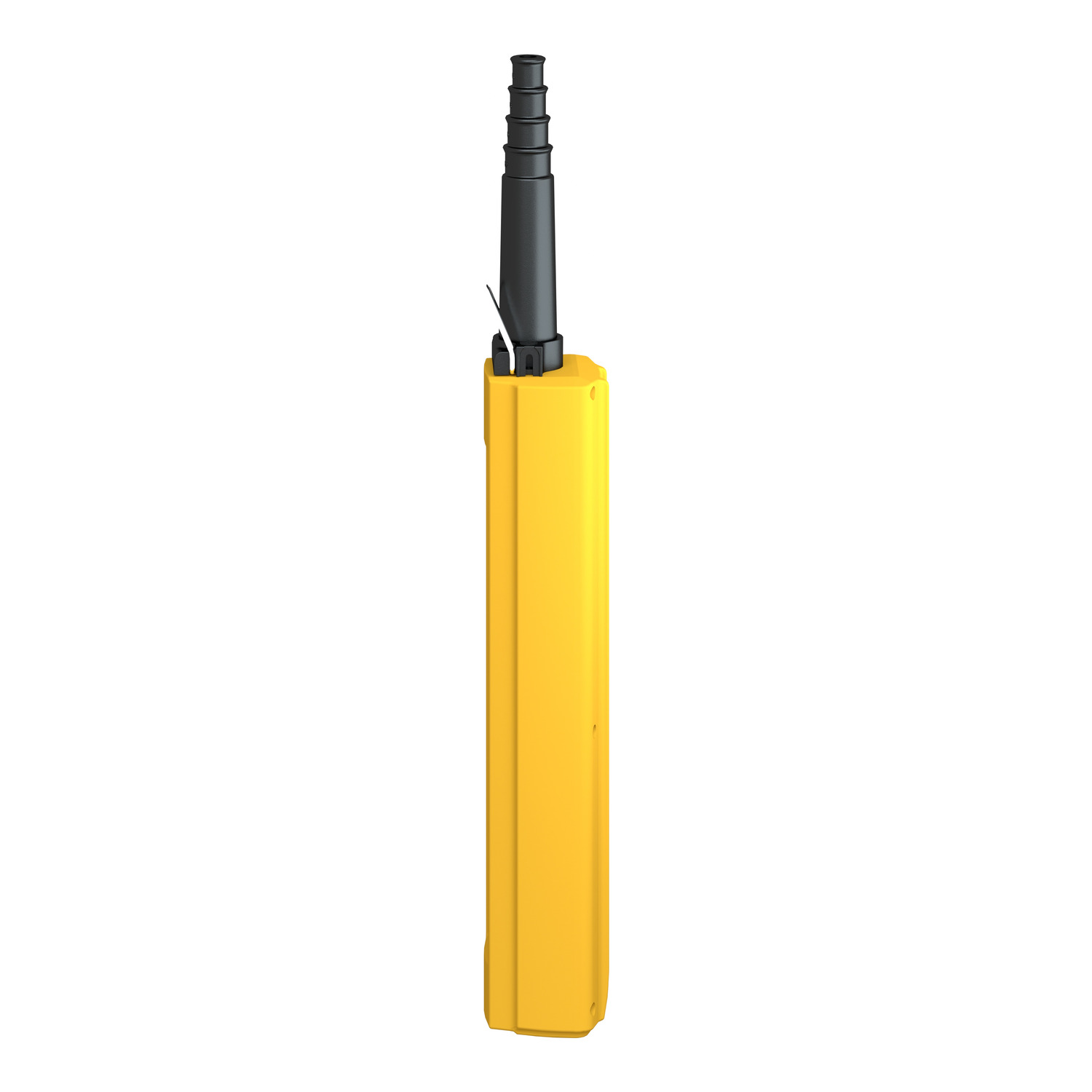

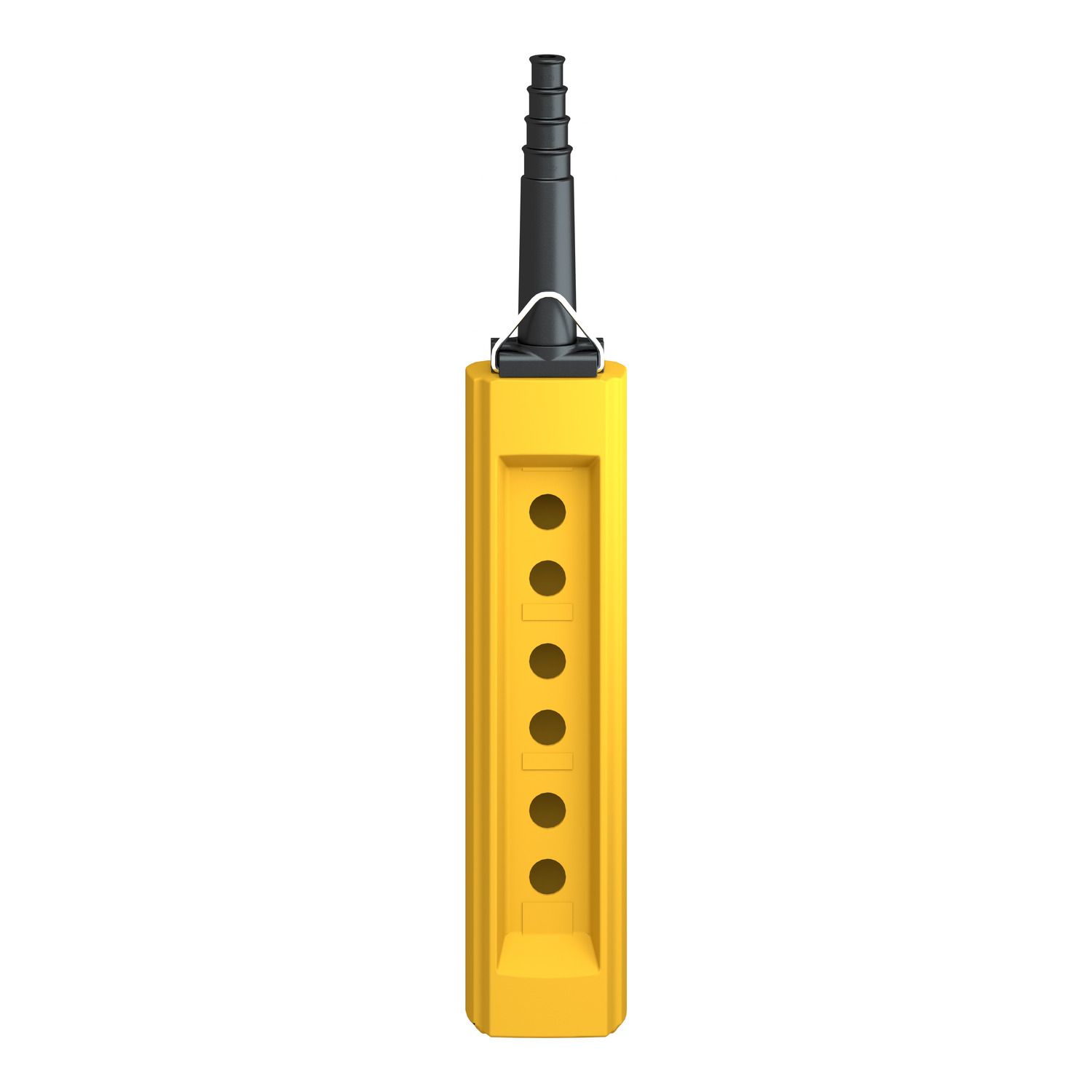

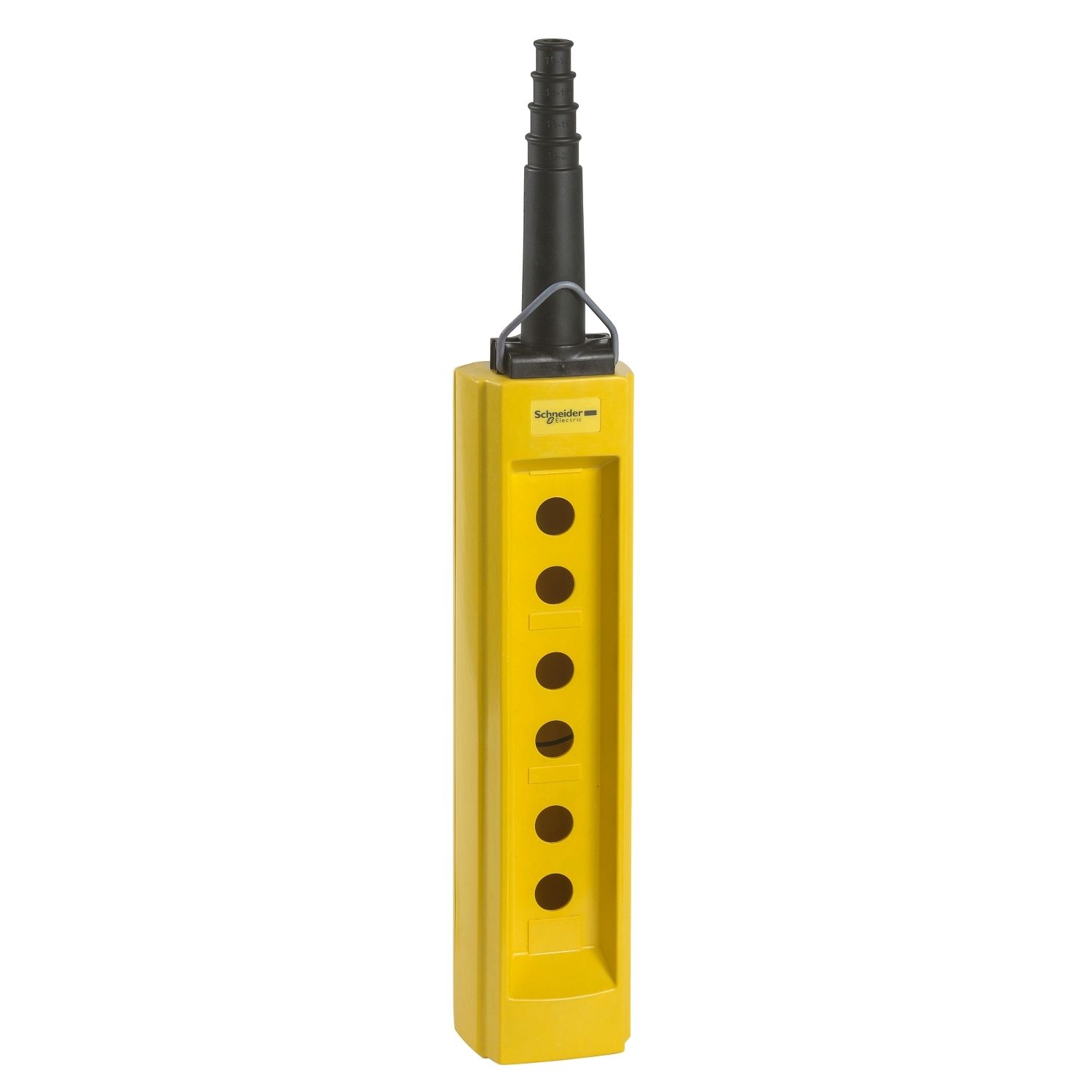

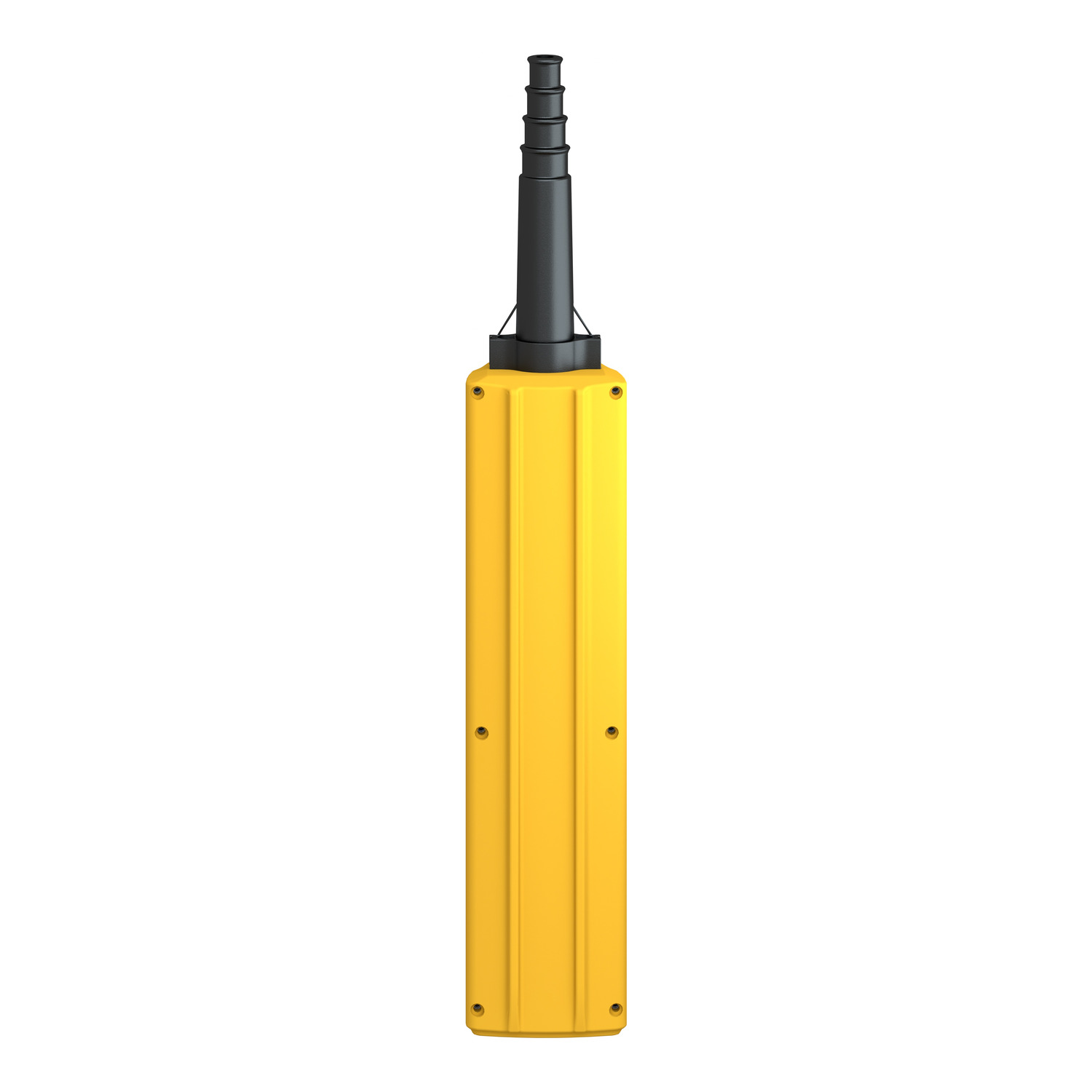

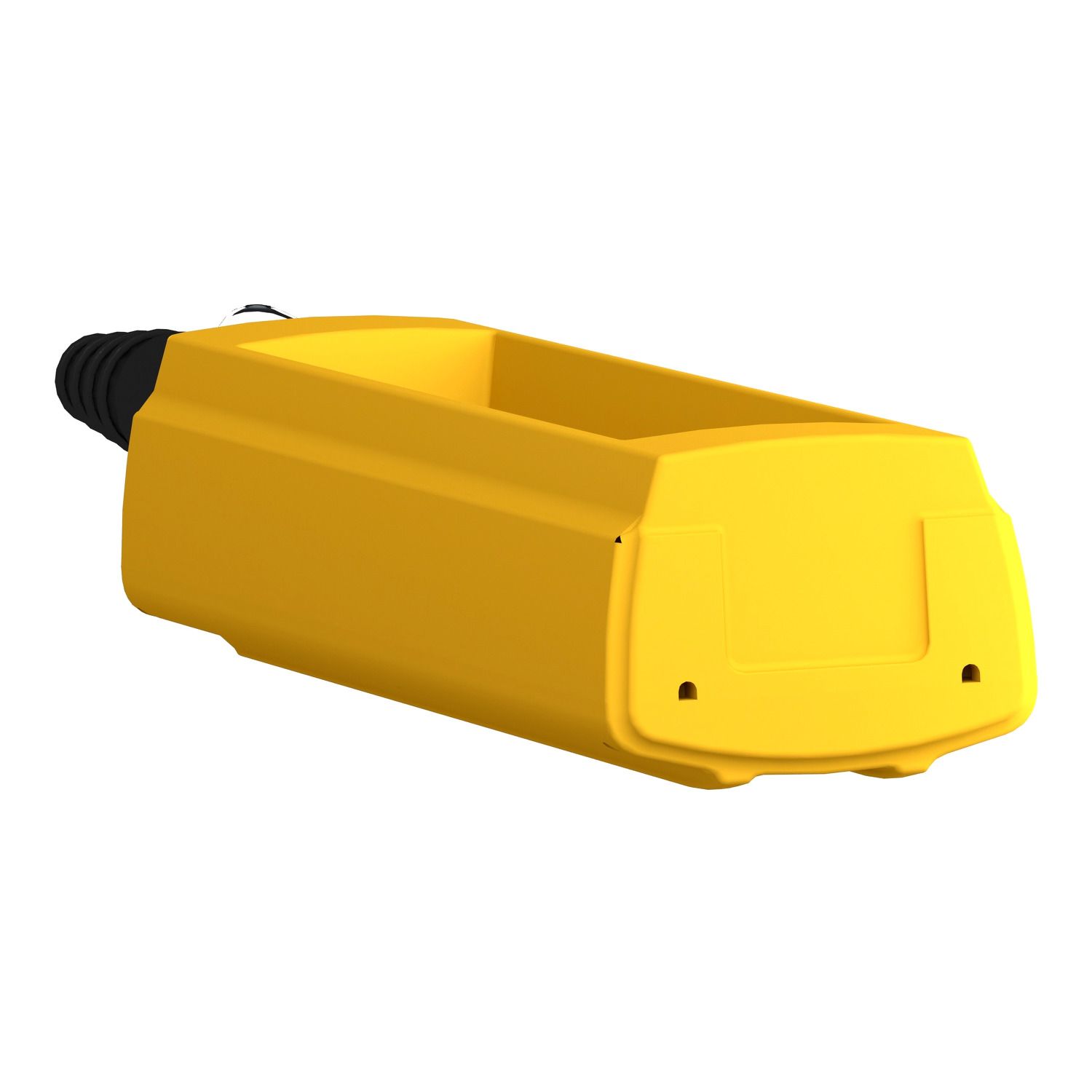

This yellow empty pendant station for control or power circuits is designed for general purpose applications. Its design makes it simple and intuitive, but also very comfortable for the operator to use. It comprises a glass reinforced polyester enclosure with 6 vertical openings diameter 22mm and operator cut-out centres 40 mm. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. This robust pendant control station complies with the safety requirements of IEC standards.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XACB |
| Product or component type | pendant control station |
| Range of product | Harmony XAC |
| Complementary | |
| Protective treatment | TH |
| Enclosure material | glass reinforced polyester |
| Electrical circuit type | power circuit, control circuit |
| Mechanical durability | 1000000 cycles |
| Control station colour | yellow |
| Overvoltage category | class II conforming to IEC 61140 |
| Ambient air temperature for storage | -40-70 °C |
| Number of cut-out | 6 cut-outs |
| Vertical operator cut-out centre | 40 mm |
| Control station type | double insulated |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Net weight | 1.16 kg |
| Vibration resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Enclosure type | empty enclosure |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |

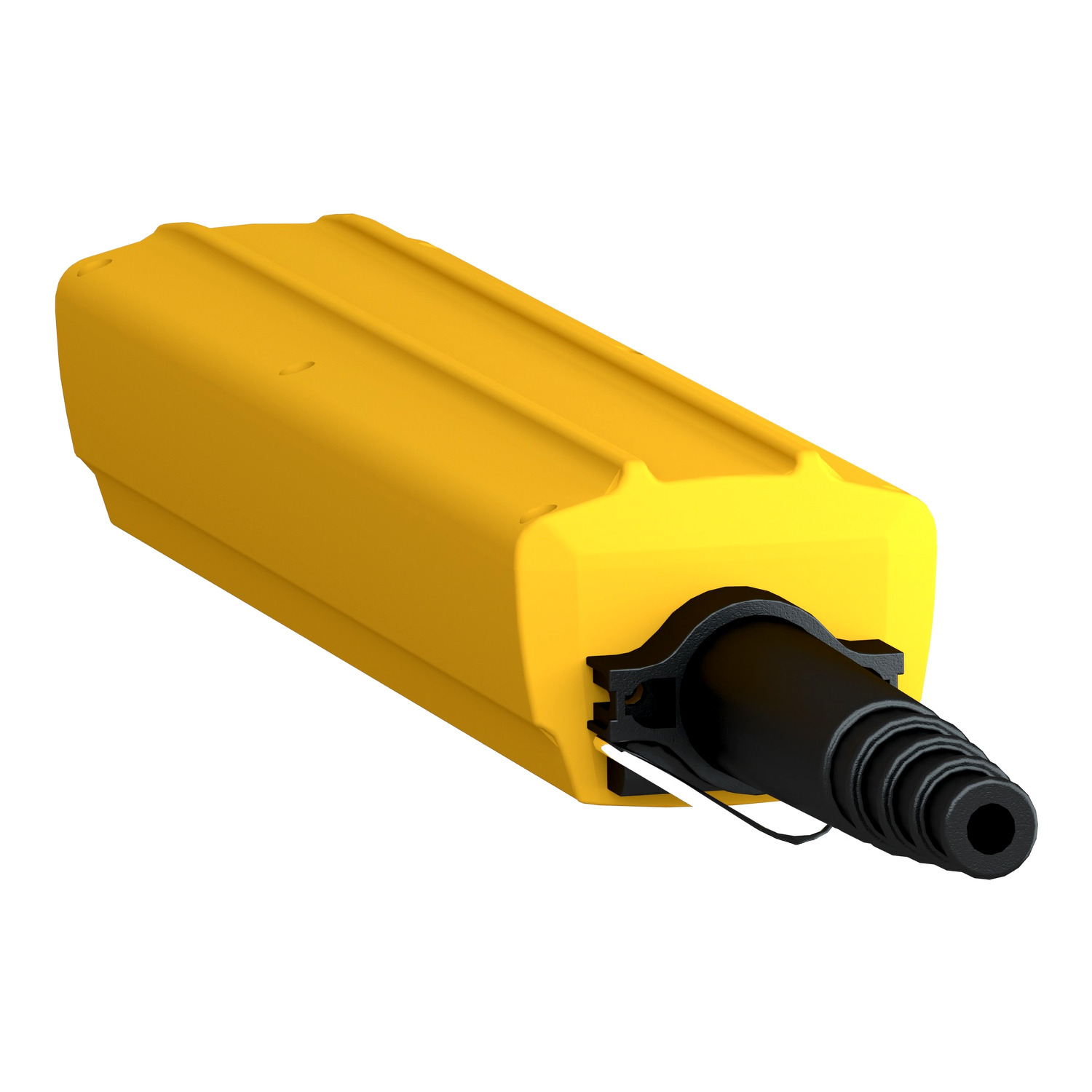

| Cable entry | rubber sleeve with stepped entry 10-22 mm |
| Standards | IEC 60947-5-1, CSA C22.2 No 14 |
| Ambient air temperature for operation | -25-70 °C |
| Guard rail | without |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Product certifications | CSA type 4 |
