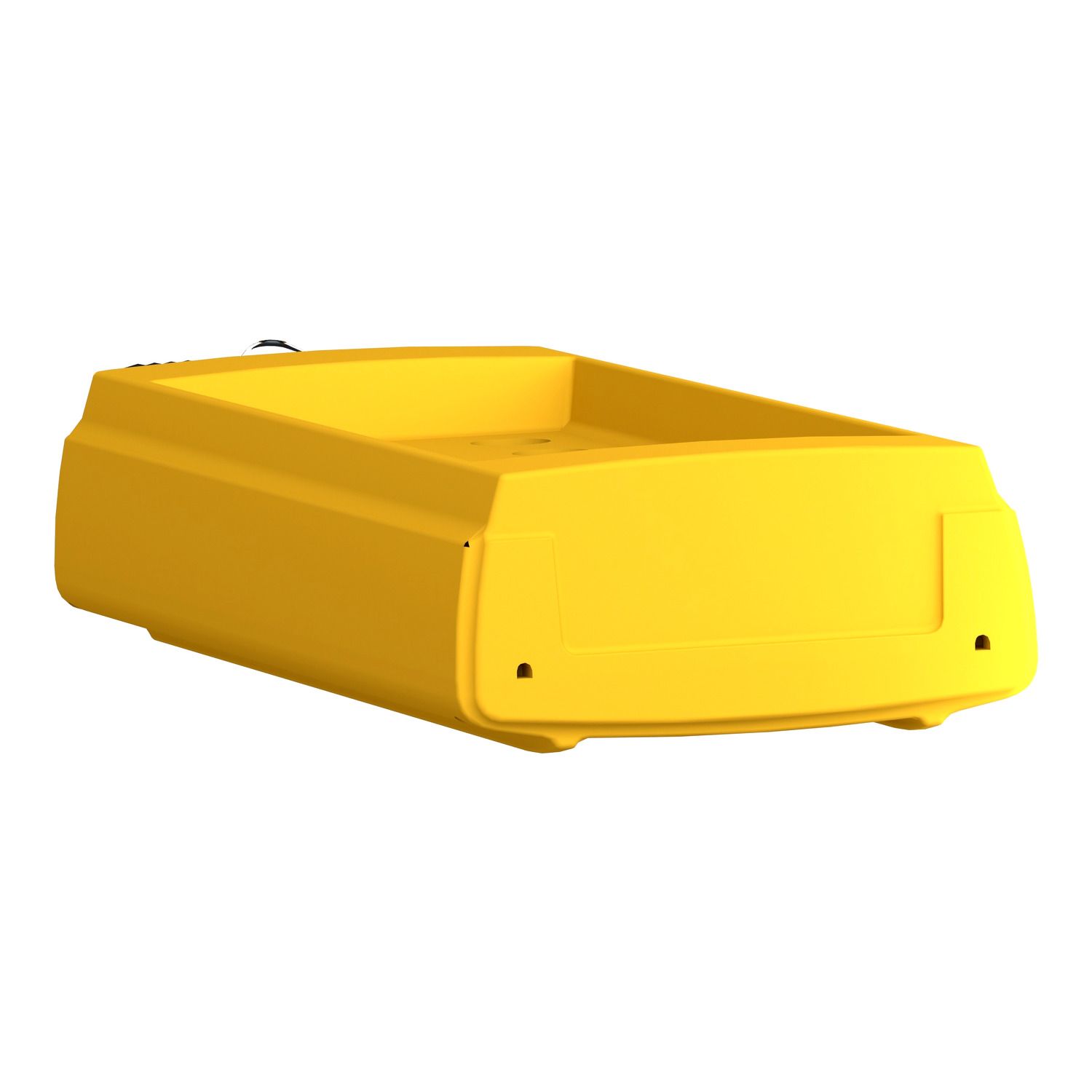

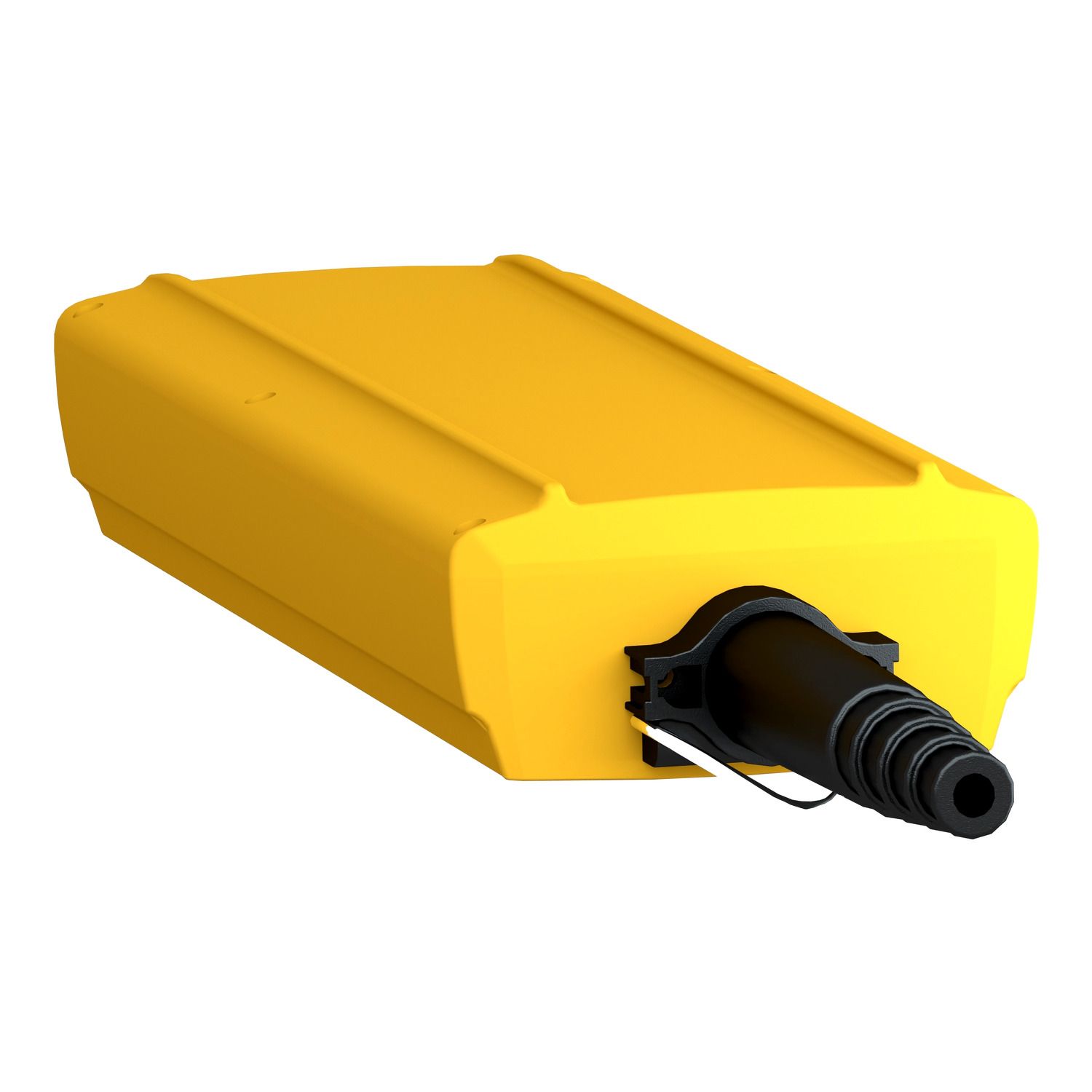

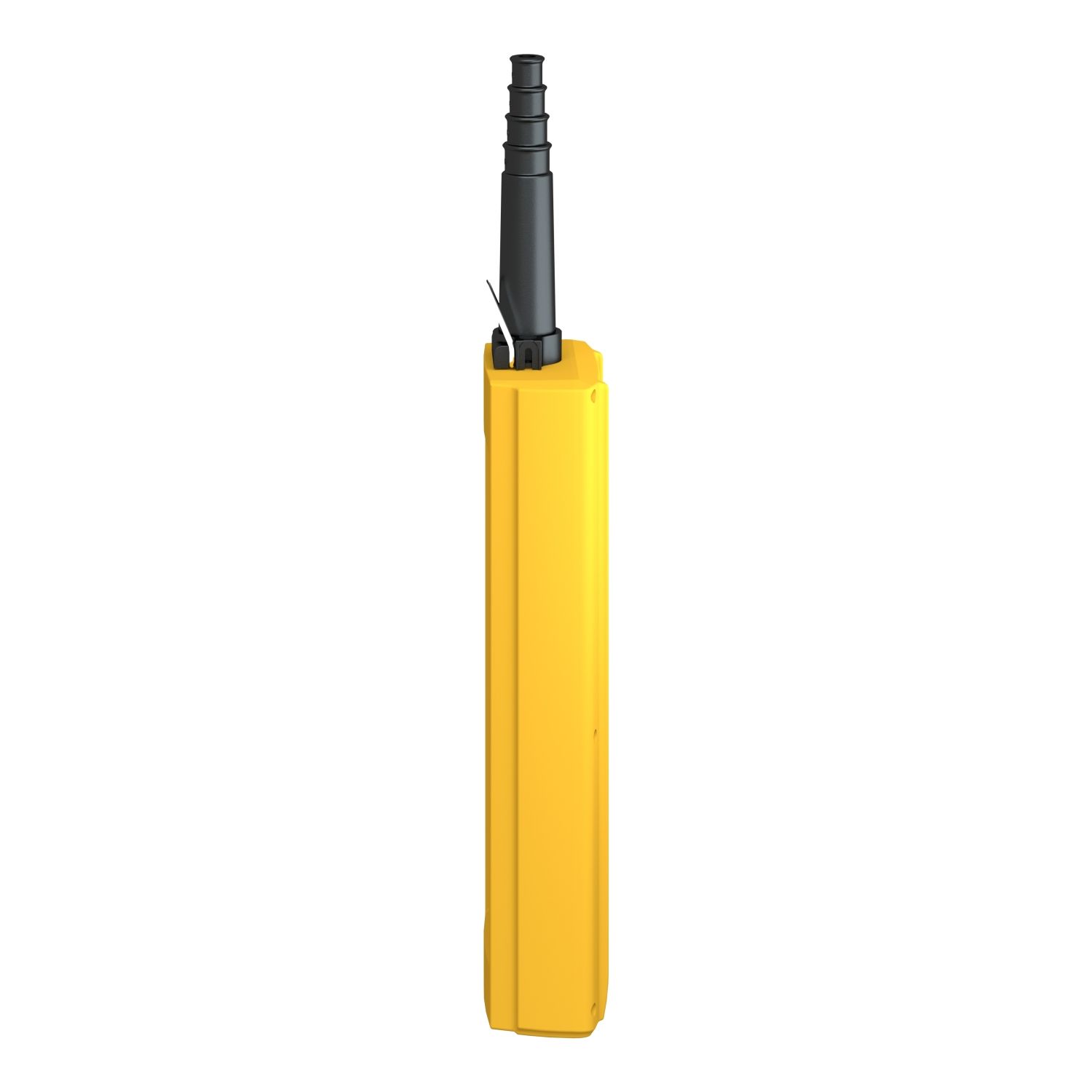

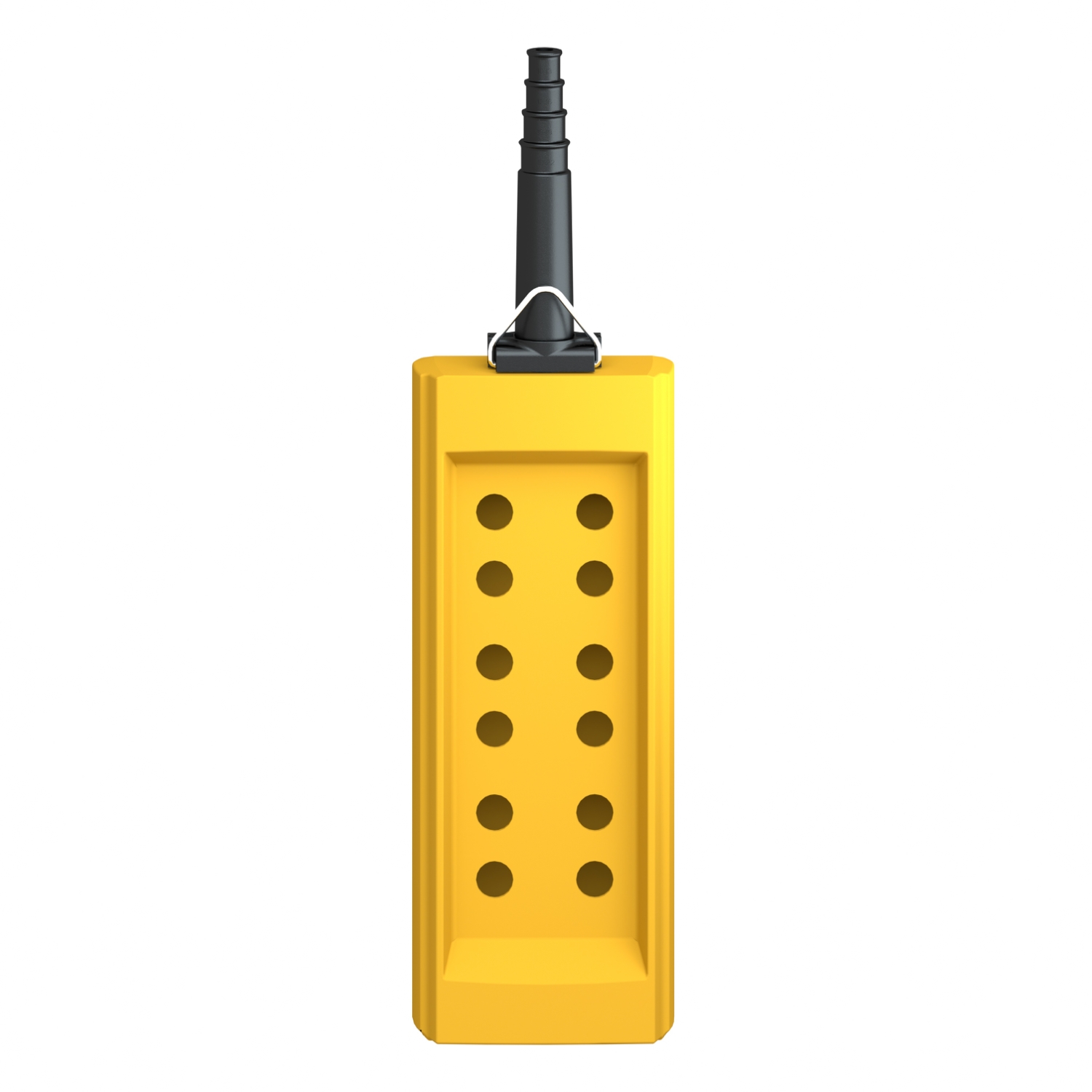

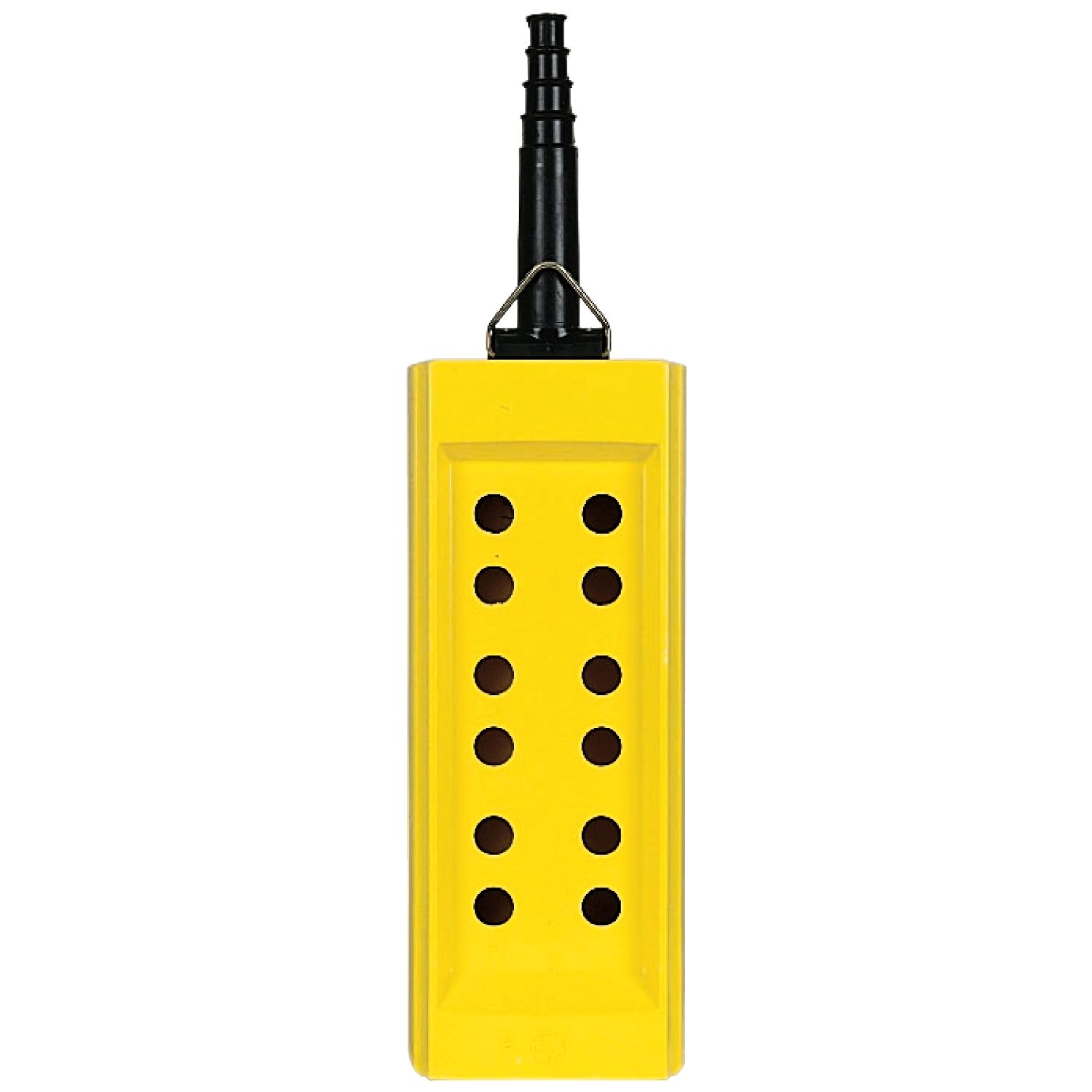

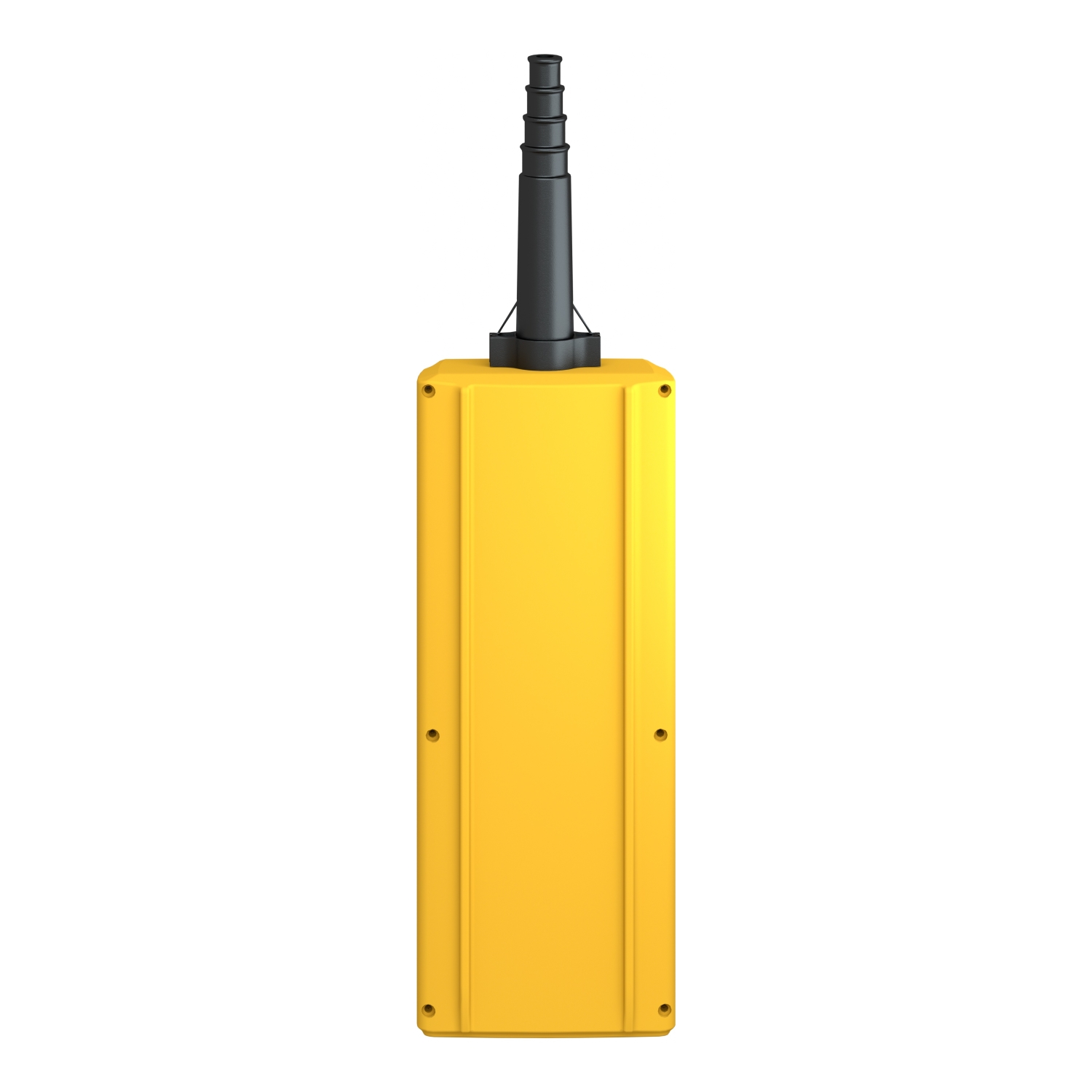

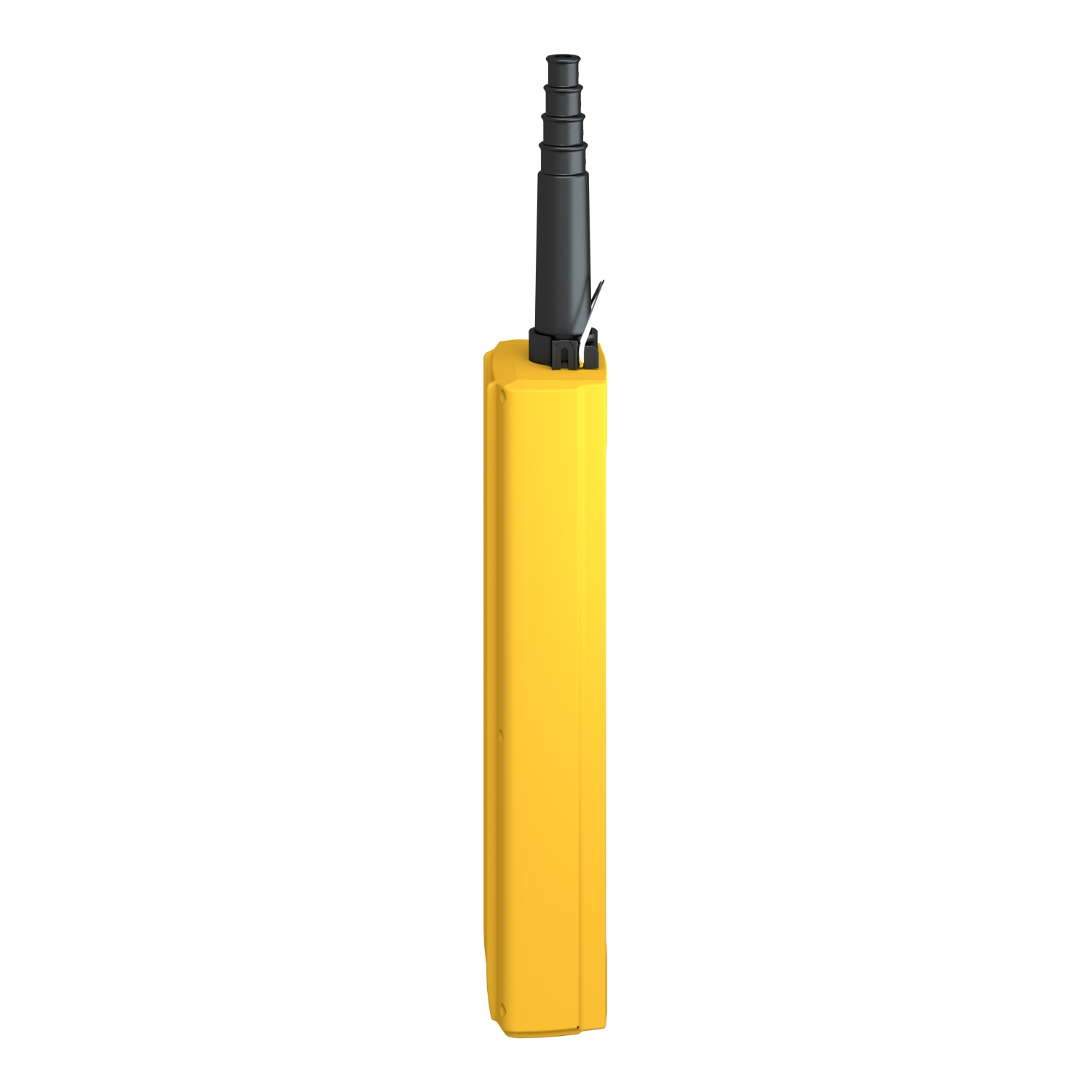

This Harmony XACB12 is an empty pendant control station with 12 openings in 2 columns. This yellow control station is double insulated. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XACB |
| Range of product | Harmony XAC |
| Product or component type | pendant control station |
| Complementary | |
| Protective treatment | TH |
| Electrical circuit type | control circuit, power circuit |
| Mechanical durability | 1000000 cycles |
| Control station colour | yellow |
| Ambient air temperature for storage | -40-70 °C |
| Number of cut-out | 12 cut-outs in 2 rows |
| Control station type | double insulated |
| Vertical operator cut-out centre | 40 mm |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Enclosure type | empty enclosure |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -25-70 °C |
| Guard rail | without |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Enclosure material | glass reinforced polyester |
| Overvoltage category | class II conforming to IEC 61140 |
| Net weight | 1.46 kg |
| Vibration resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Cable entry | rubber sleeve with stepped entry 10-22 mm |
| Standards | IEC 60947-5-1, CSA C22.2 No 14 |
| Product certifications | CSA type 4 |
