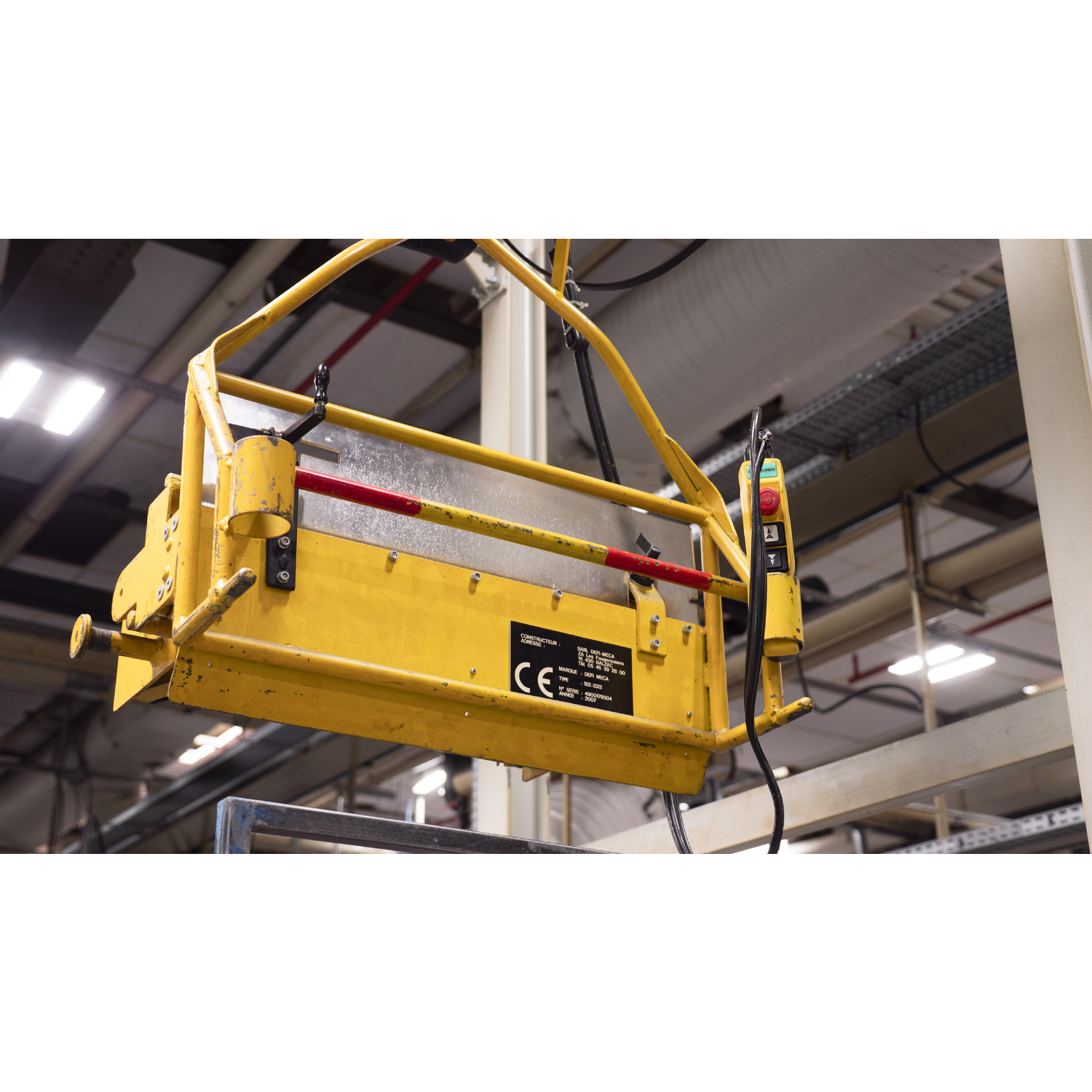

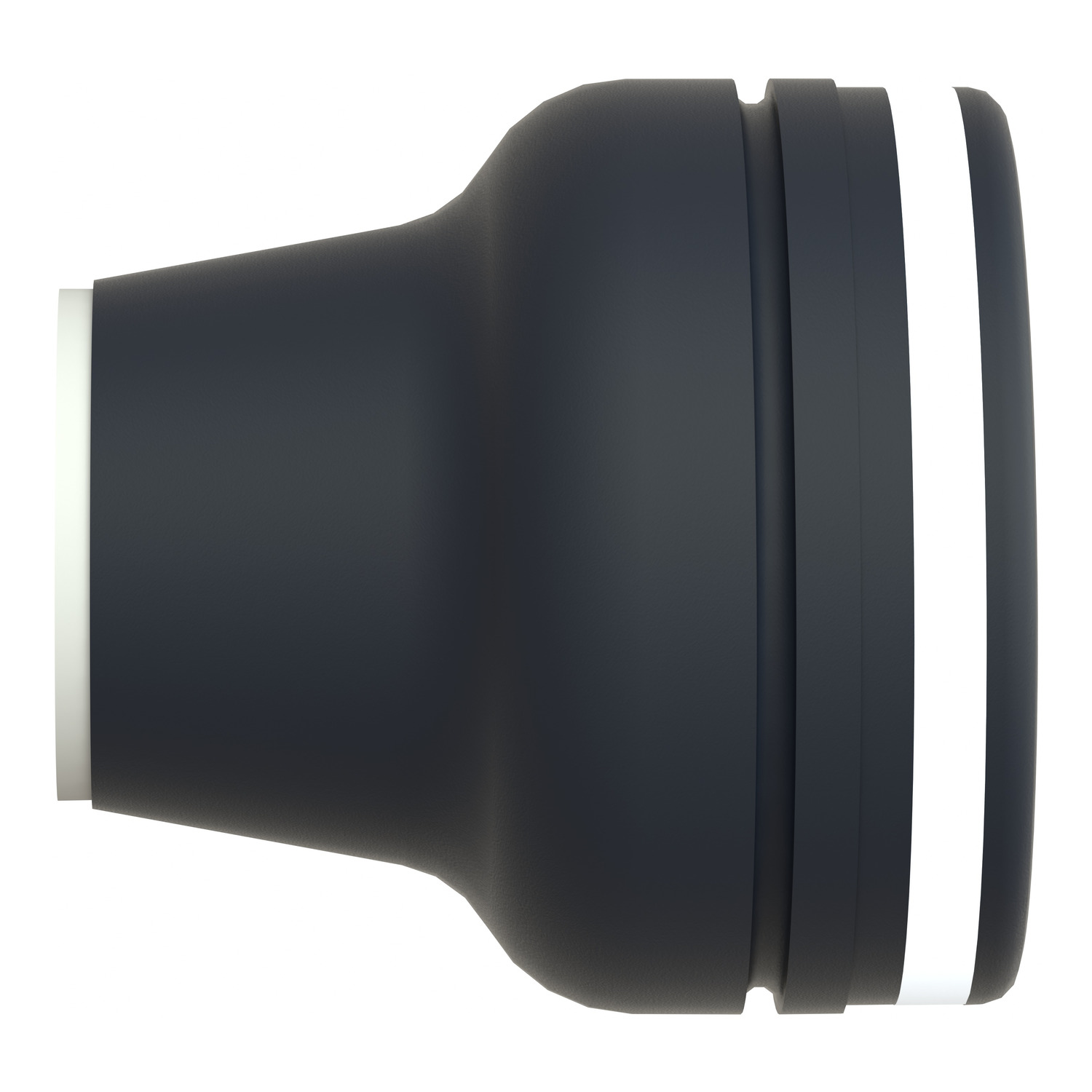

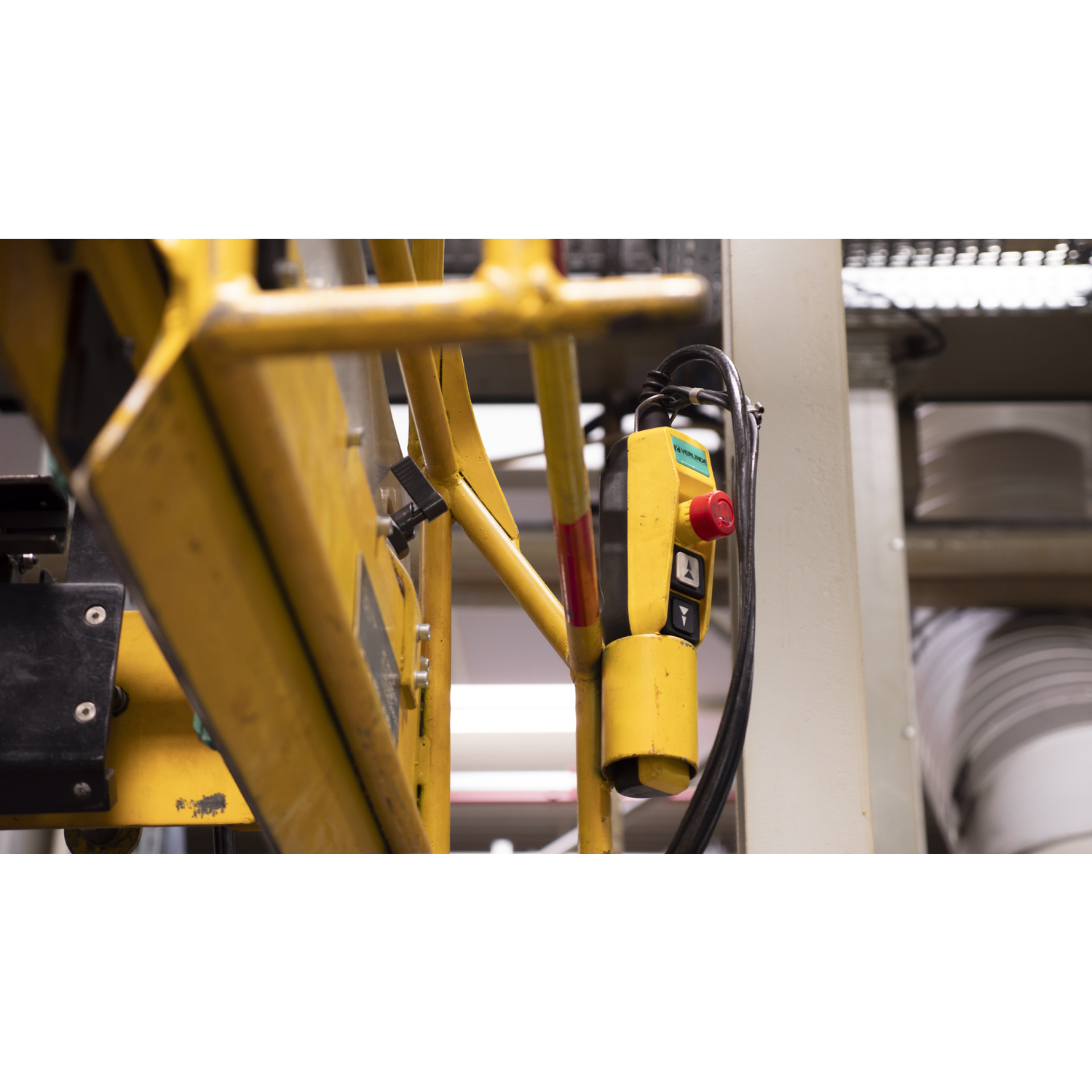

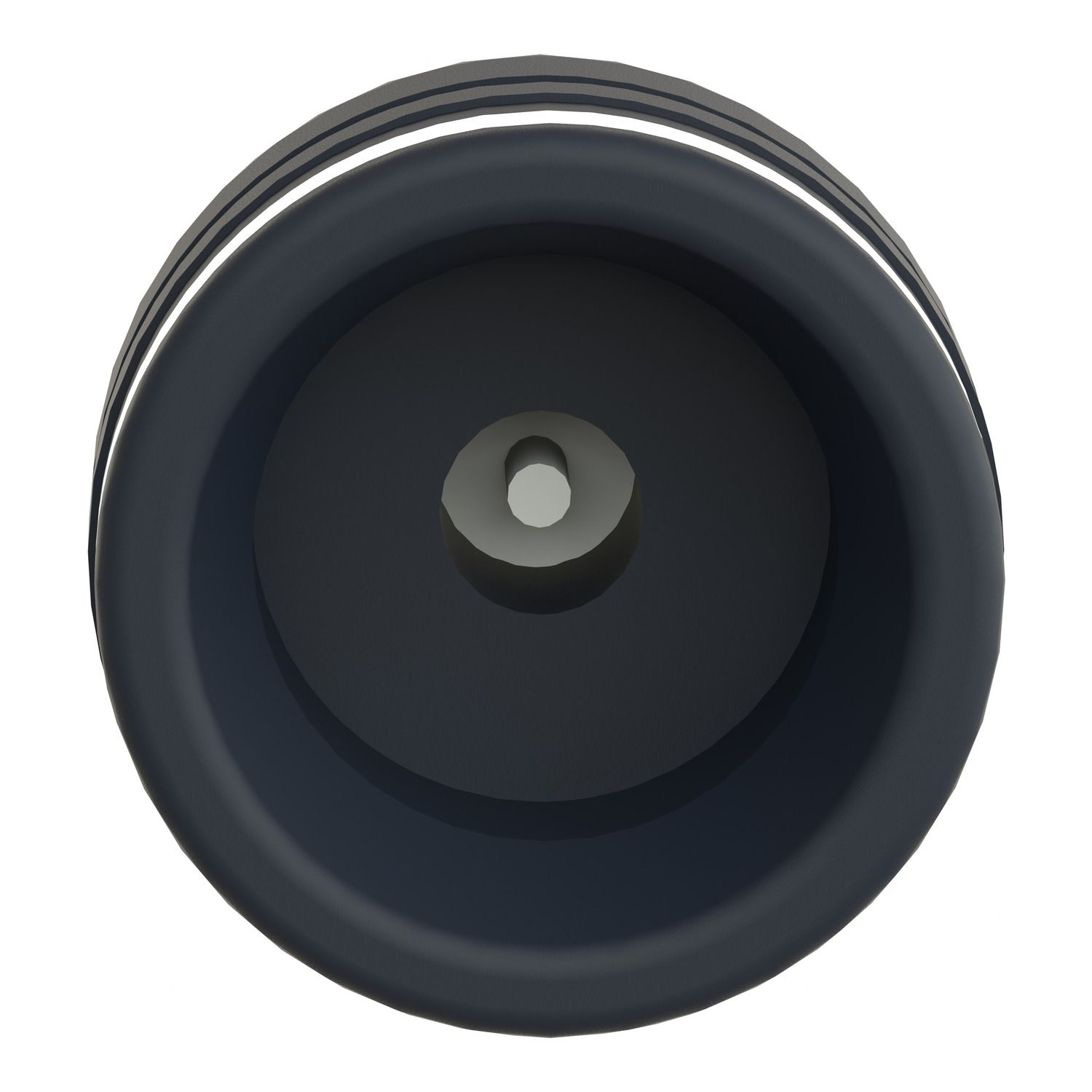

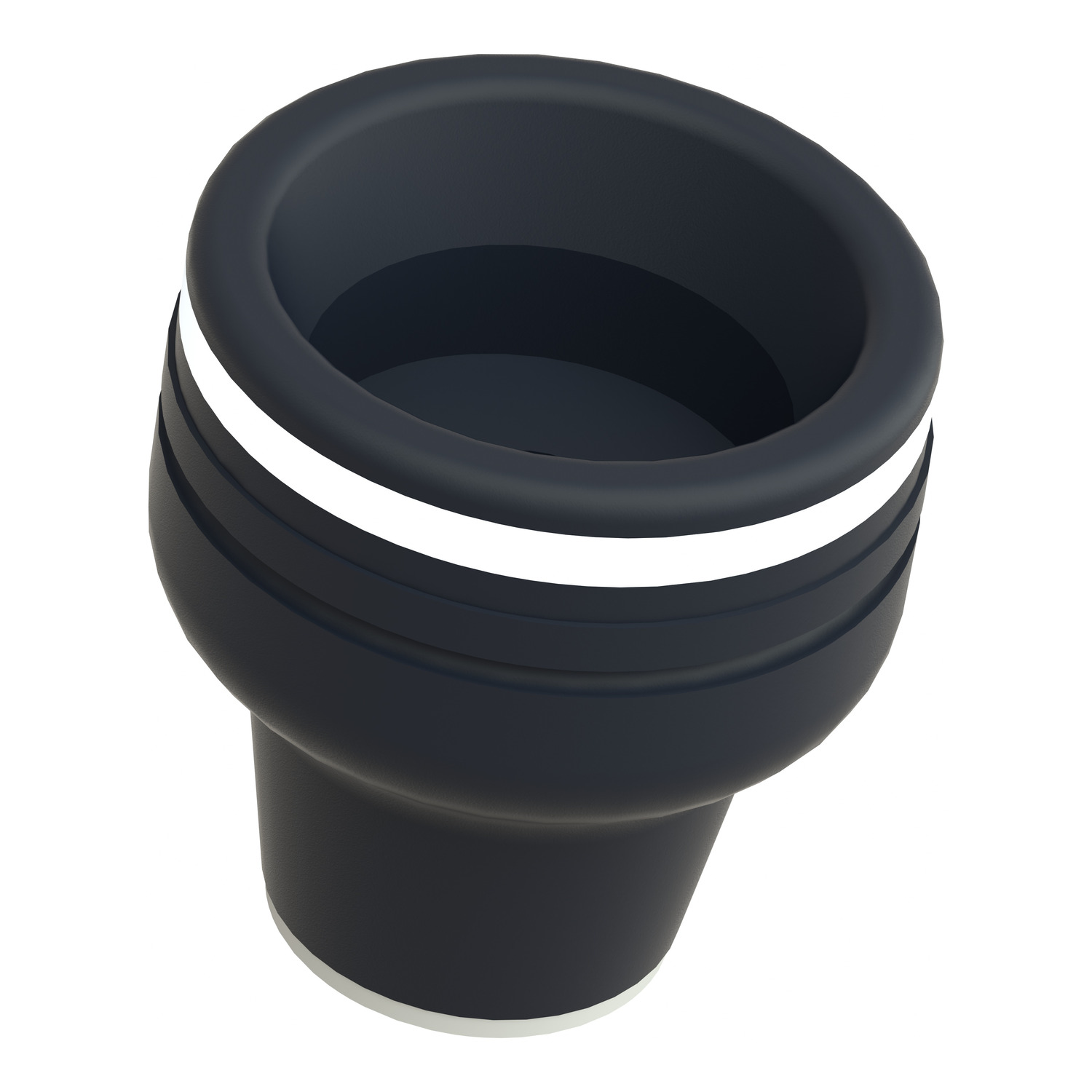

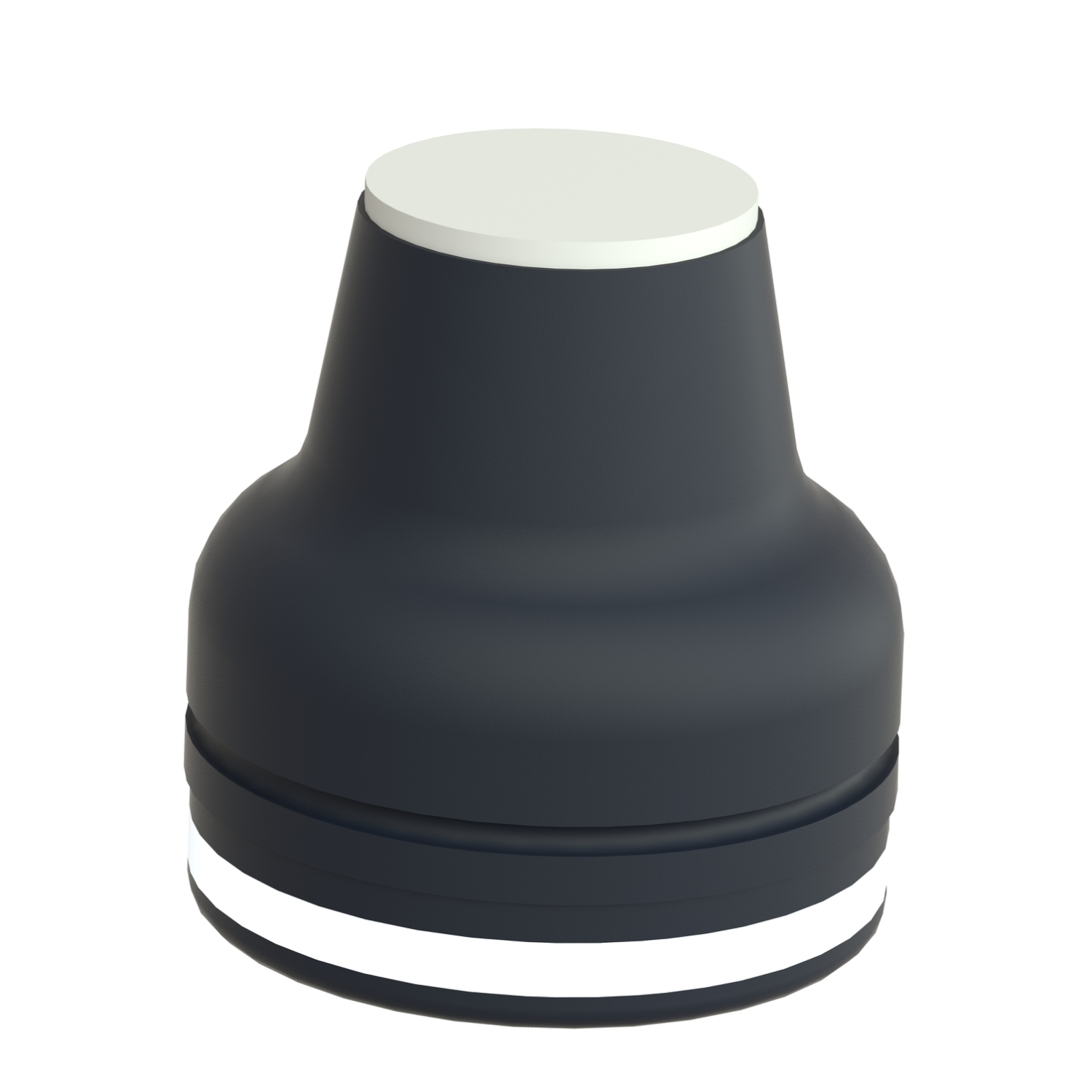

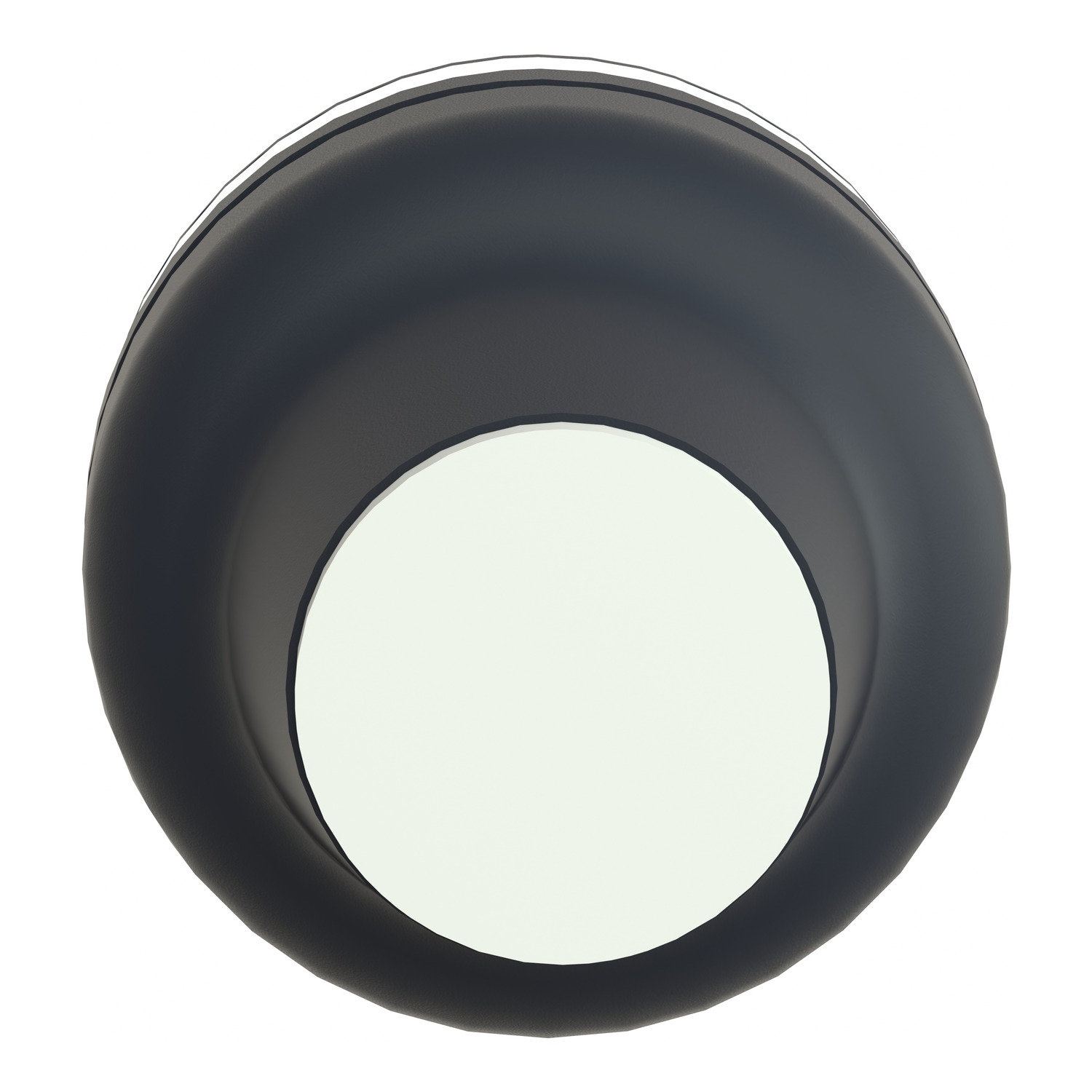

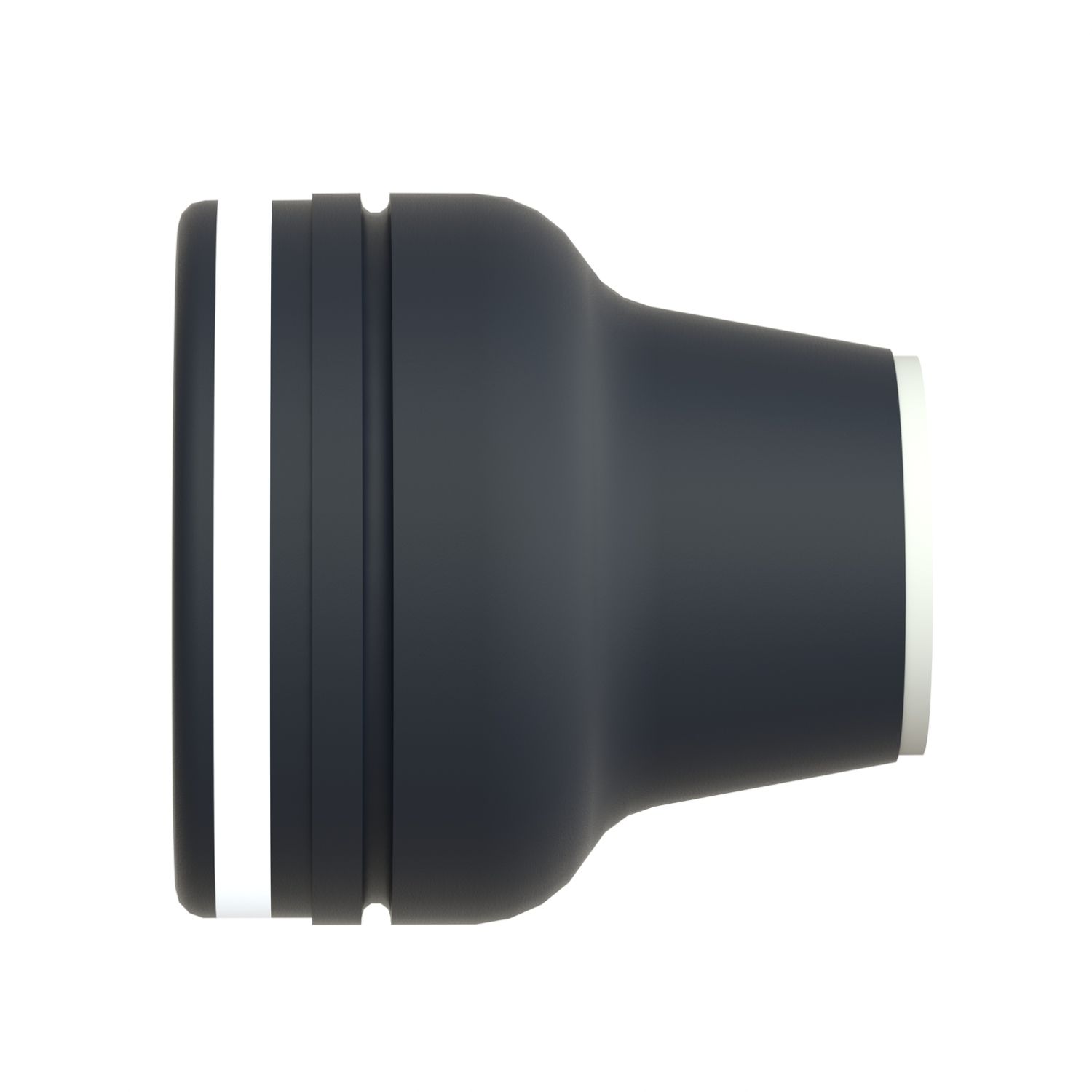

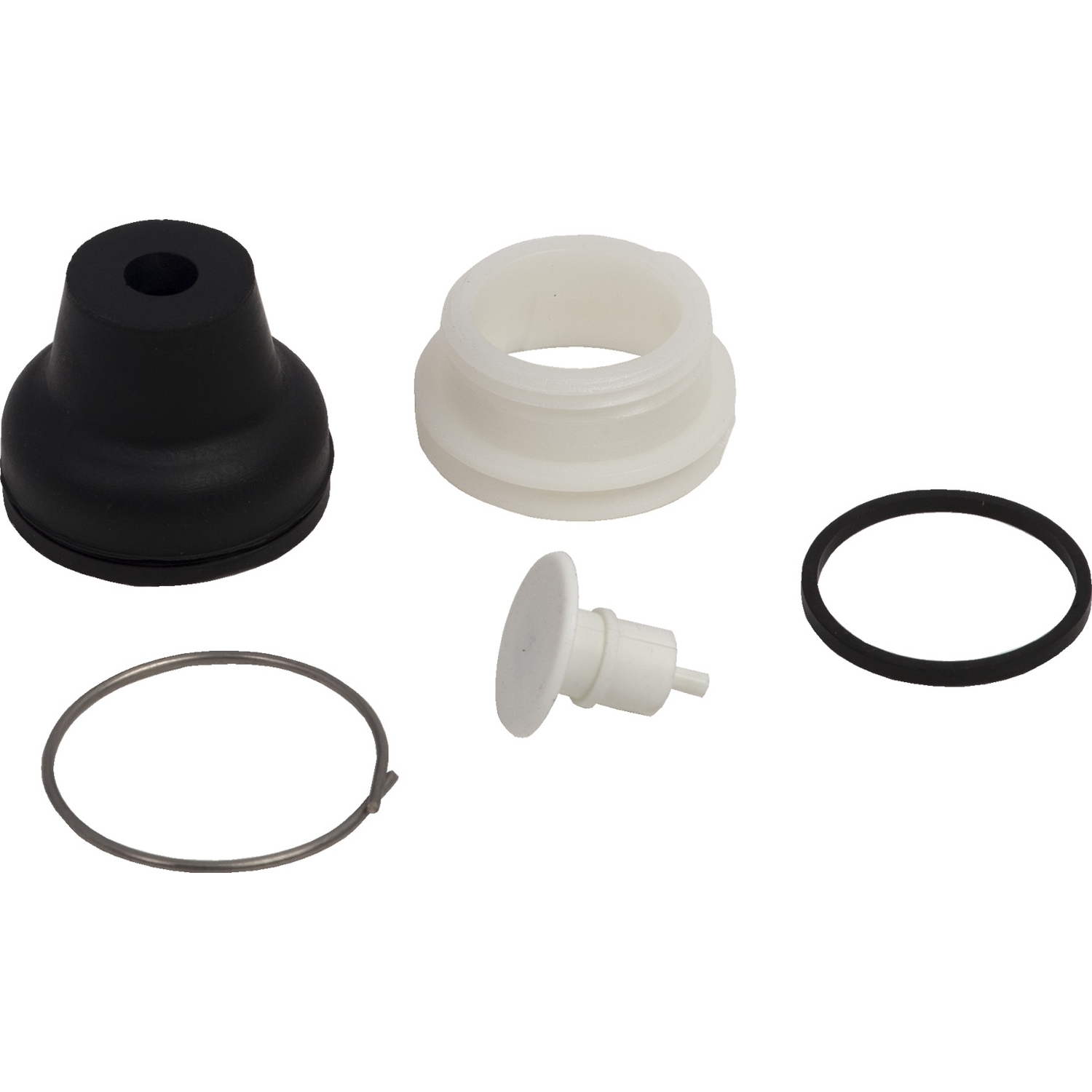

This white booted operator is a separate component for double insulated, XACB pendant control station. Its maximum operating travel is equal to 16mm. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Product compatibility | XESD1281, XESD1181, XESD1291, XESD1191 |
| Sale per indivisible quantity | 10 |
| Cap/operator or lens colour | white |
| Marking | unmarked |
| Range of product | Harmony XAC |
| Operating travel | 16 mm |
| Component name | XACB |
| Product or component type | head for push-button |
| Operator additional information | booted |
| Complementary | |
| Net weight | 0.005 kg |
| Environment | |
| Ambient air temperature for storage | -40-70 °C |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Shock resistance | 100 gn conforming to IEC 60068-2-27 |
| Ambient air temperature for operation | -25-70 °C |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Electrical shock protection class | class II conforming to IEC 61140 |
| Vibration resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Standards | CSA C22.2 No 14, IEC 60947-5-1 |
