| Attribute name | Attribute value |
|---|---|
| Main | |

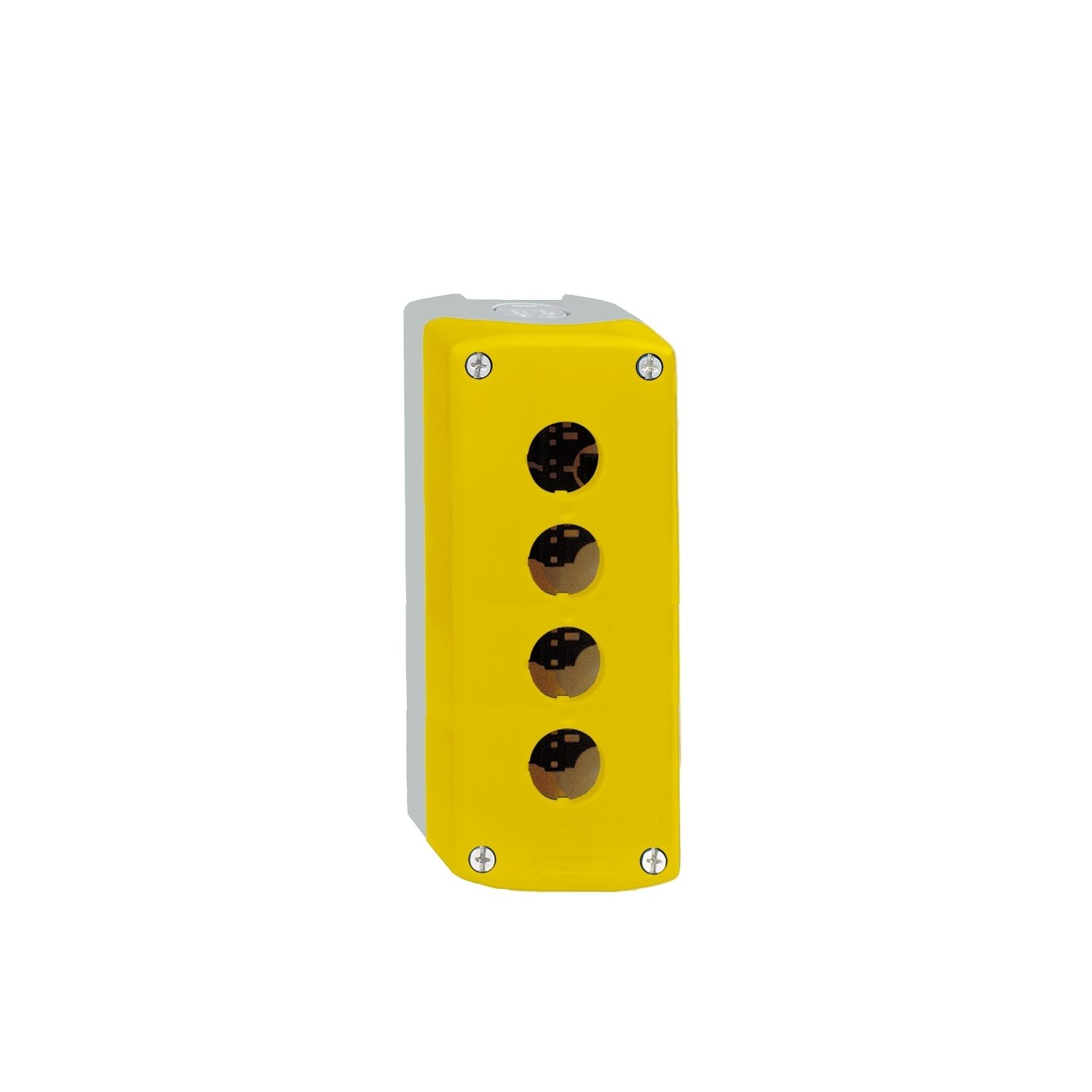

| Device short name | XALK |
| Number of cut-out | 4 cut-outs |
| Colour of cover | yellow (RAL 1021) |
| IP degree of protection | IP69K, IP69, IP67, IP66 conforming to IEC 60529 |
| Colour of base of enclosure | light grey (RAL 7035) |
| Range of product | Harmony XALK |
| Control station application | emergency switching off function, emergency stop function |
| Material | polycarbonate |
| Product or component type | empty control station |
| Cable entry | 2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12-12 mm, 2 knock-outs for cable entry, clamping capacity: 14-14 mm |
| Product destination | for XB5 Ø 22 mm control and signalling units |
| Complementary | |
| Group of product | standard yellow |
| Compatibility code | XALK |
| Assembly style | for customer assembly |
| Customizable | 0, no |
| Number of vertical rows | 4 |
| Main group | 4 cut-outs |
| Resistance to high pressure washer | 7000000 Pa at 55 °C, distance : 0.1 m |
| Net weight | 0.278 kg |
| Number of horizontal rows | 1 |
| Mounting of block | front mounting, rear mounting |
| Environment | |
| Protective treatment | TH |
| Ambient air temperature for storage | -40-70 °C |
| Ambient air temperature for operation | -40-70 °C |
| IK degree of protection | IK03 conforming to EN 50102 |
| NEMA degree of protection | NEMA 4X, NEMA 13 |
| Overvoltage category | class II conforming to IEC 60536 |
| Standards | JIS C8201-1, EN/IEC 60947-1, CSA C22.2 No 14, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/IEC 60947-5-1, JIS C8201-5-1, UL 508 |
