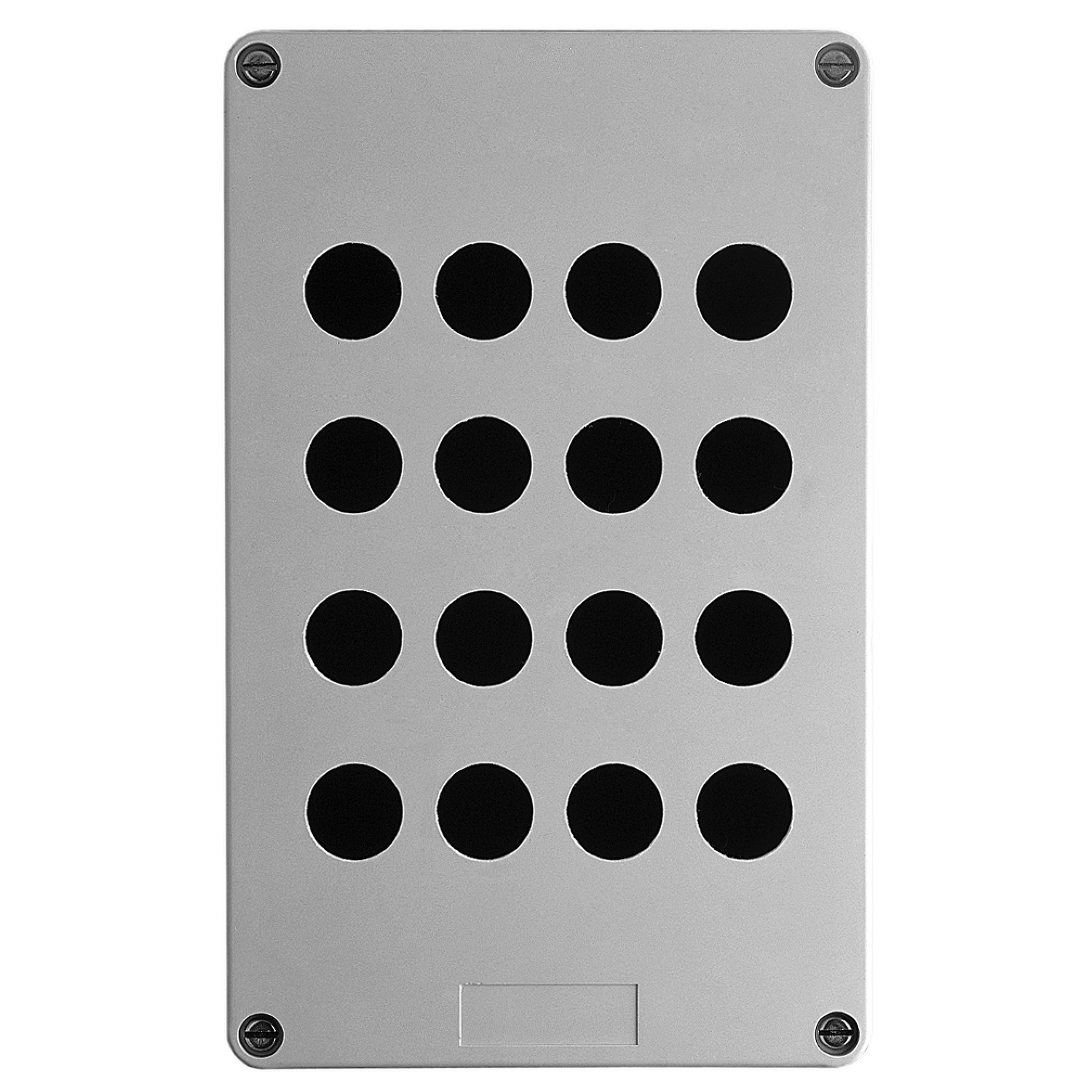

This Harmony XAPA3116 is an empty control station plastic 16 openings in 4 columns. It is part of the range Harmony XAP, XB2 SL metal enclosures, for Harmony XB4.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XAPA |
| Resistance to chemical agents | high resistant to sea water, high resistant to petrol, high resistant to oils and greases, high resistant to mineral salts, high resistant to diesel, high resistant to bases, high resistant to all solvents, high resistant to acids |
| Usable depth | 83 mm |
| Number of cut-out | 16 cut-outs |
| Colour of cover | grey |
| IP degree of protection | IP69K, IP69 conforming to NF C 20-010, IP65 conforming to IEC 60529 |
| Colour of base of enclosure | grey |
| Range of product | Harmony XAP |
| Material | glass reinforced polyester |
| Product front plate size | 151 x 241 mm |
| Product or component type | empty control station without hinges |
| Cable entry | undrilled |
| Device mounting | flush |
| Product destination | for Ø 22 mm control and signalling units |
| Complementary | |
| Compatibility code | XAPA |
| Number of vertical rows | 4 |
| Flame retardance | VO conforming to UL 94, M3 conforming to CSTB |
| Net weight | 0.82 kg |
| Environment | |
| Protective treatment | TC, TH |
| Fire resistance | 960 °C conforming to IEC 92, 850 °C conforming to NF C 20-455 |
| Ambient air temperature for storage | -40-70 °C |
| Ambient air temperature for operation | -40-70 °C |
| Overvoltage category | class II conforming to NF C 20-030, class II conforming to IEC 60536 |
