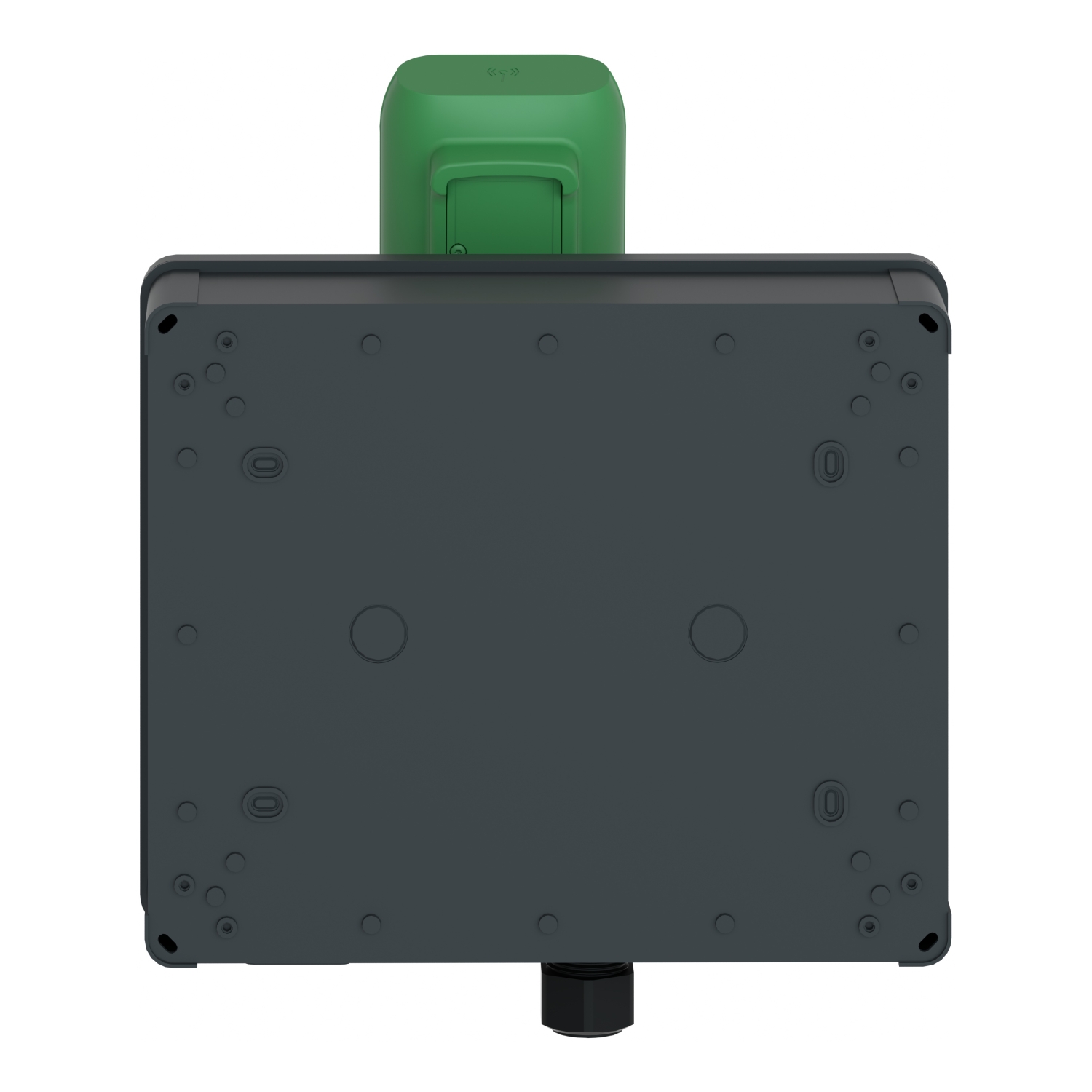

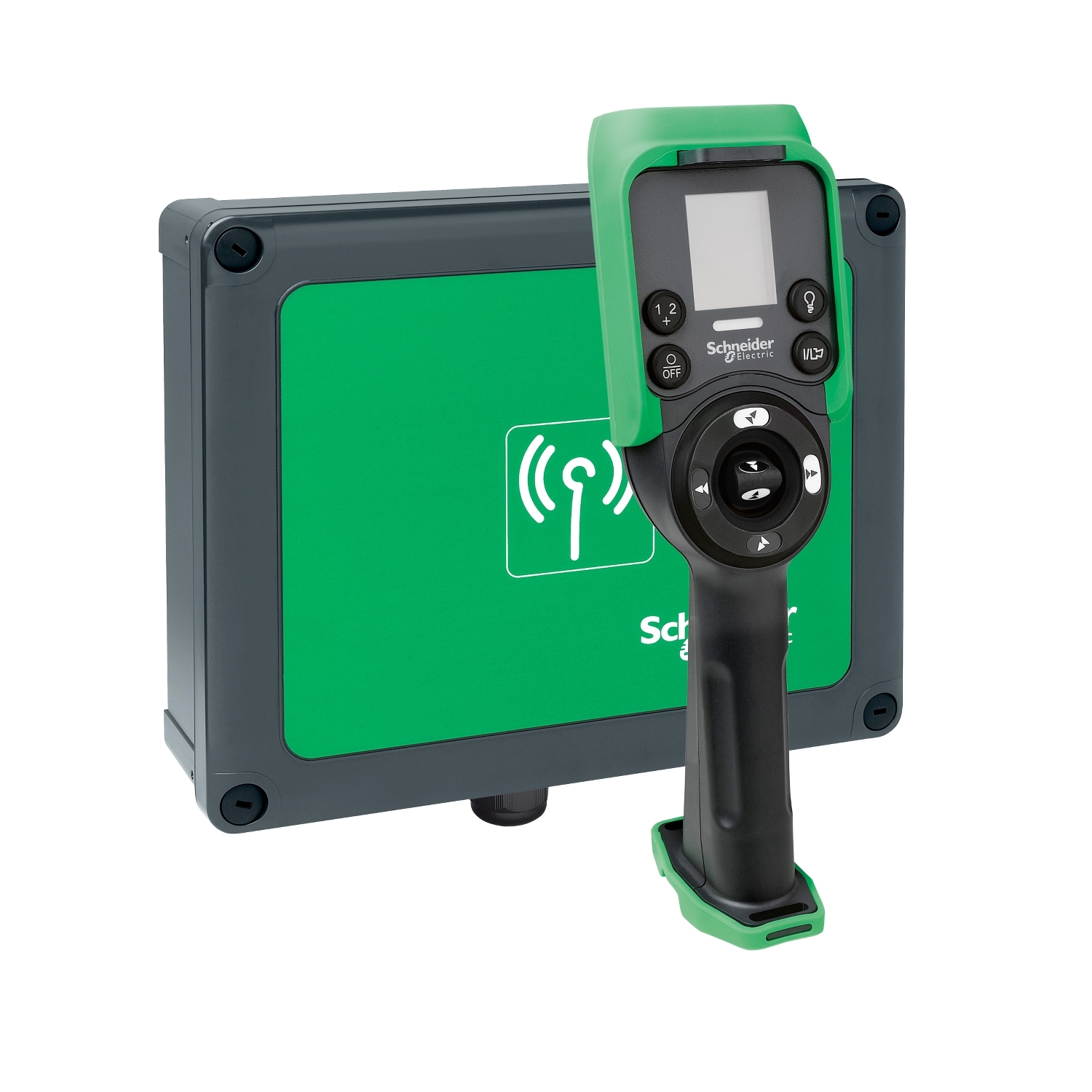

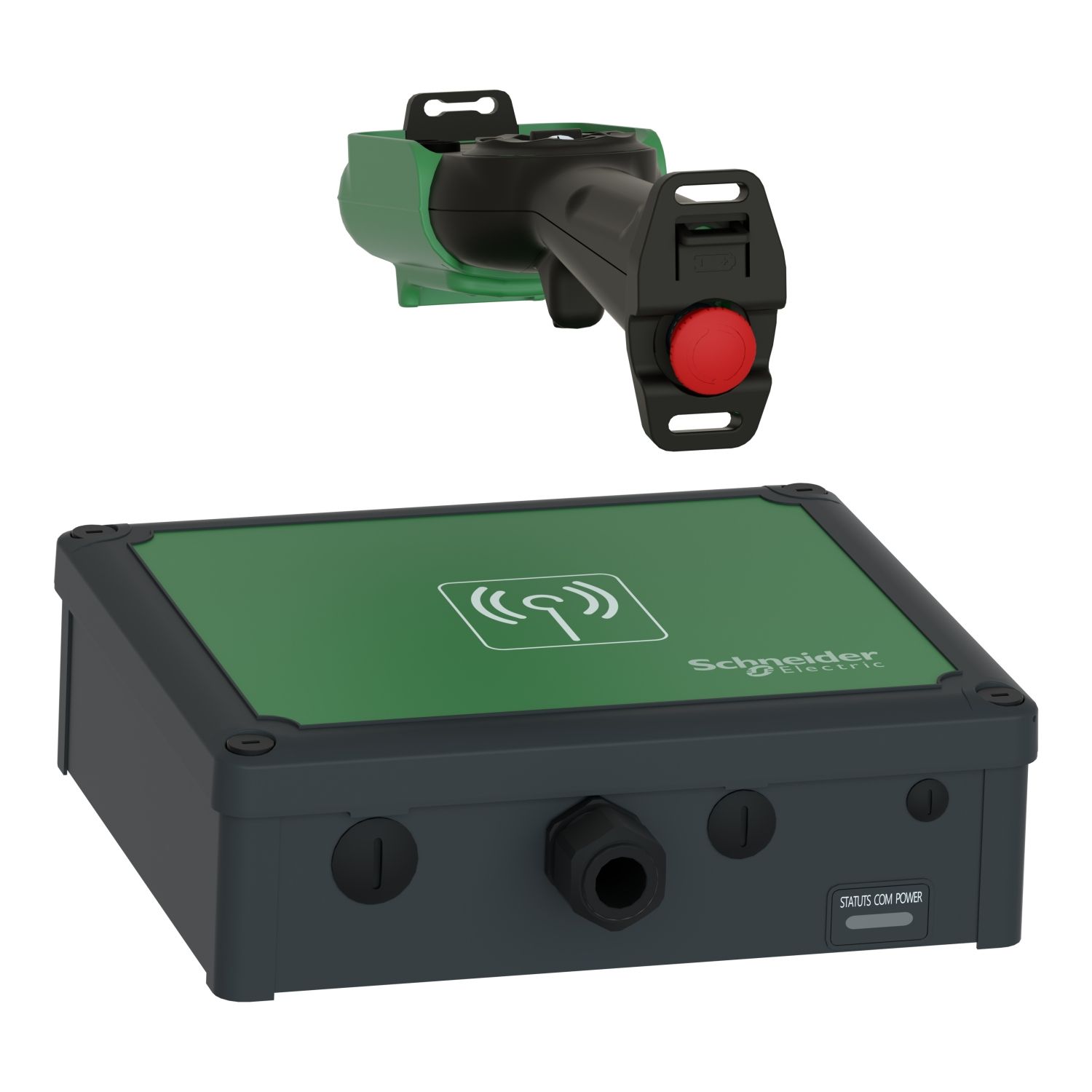

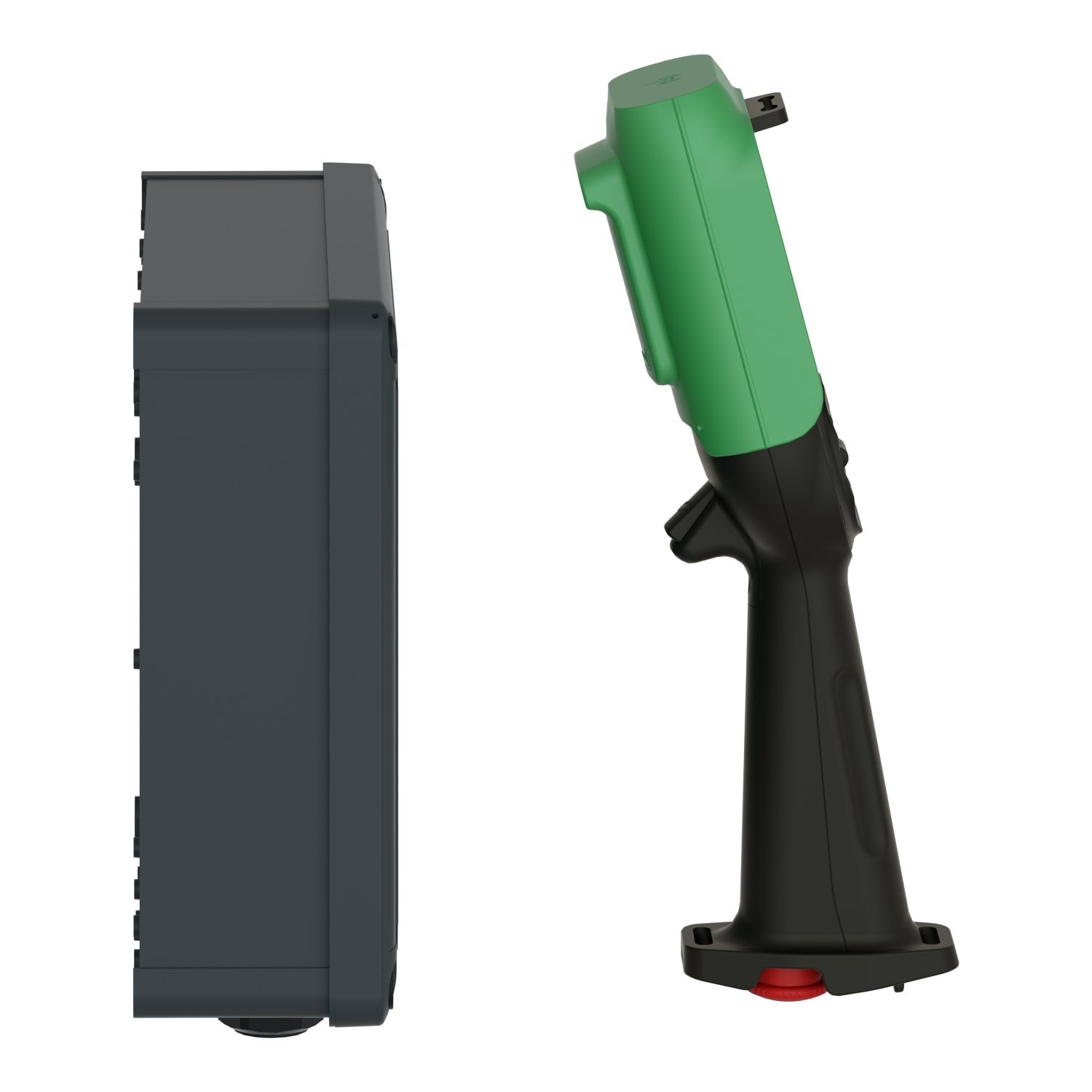

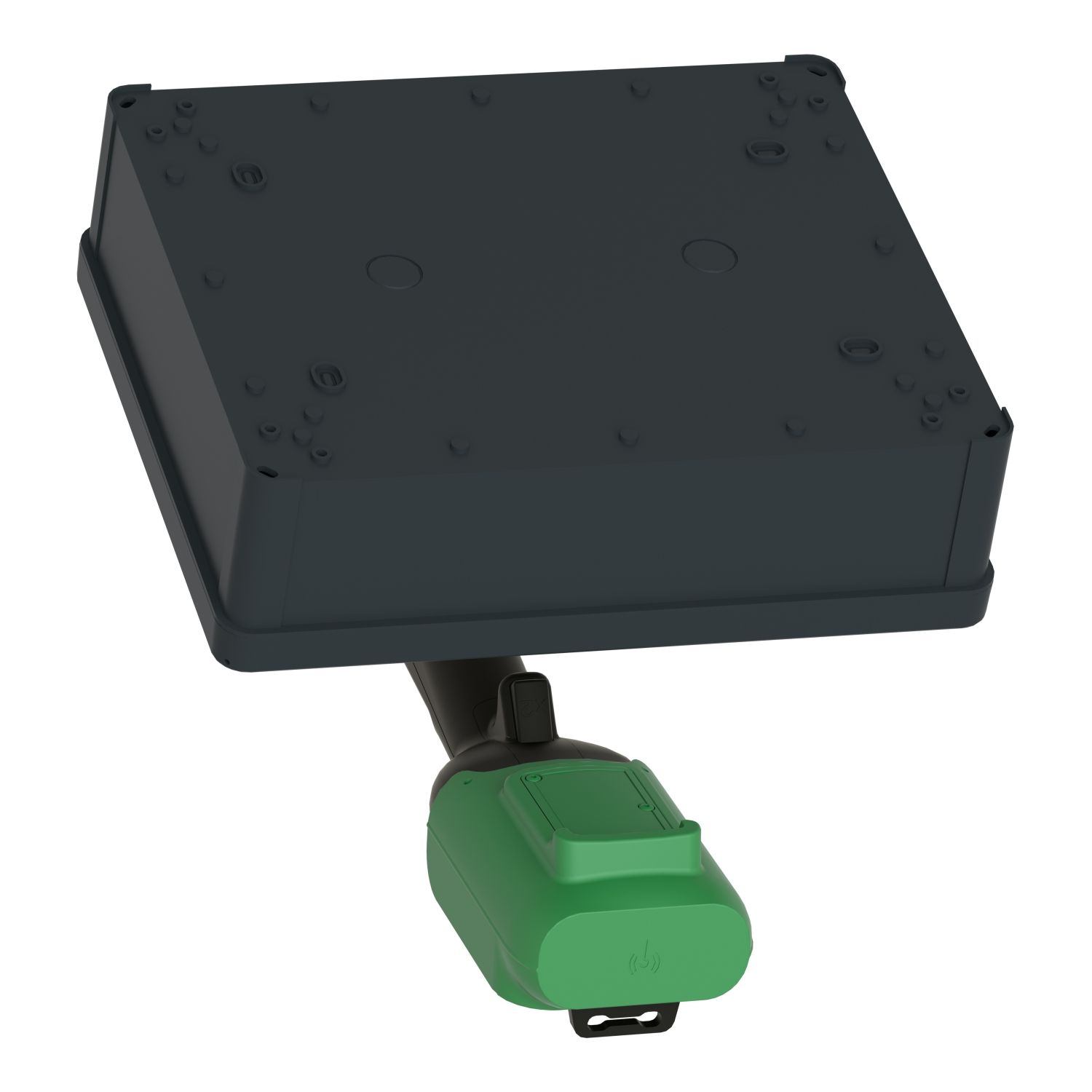

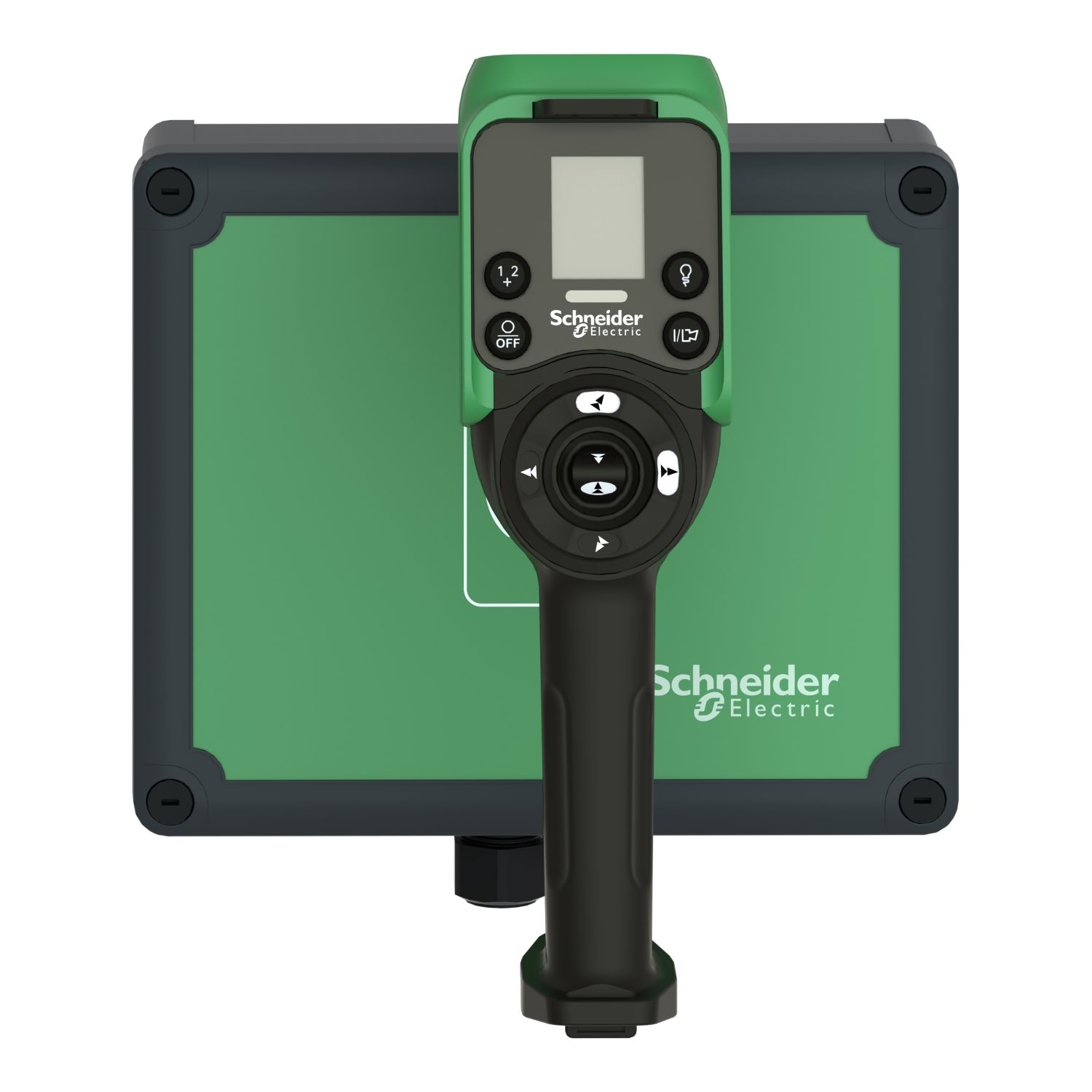

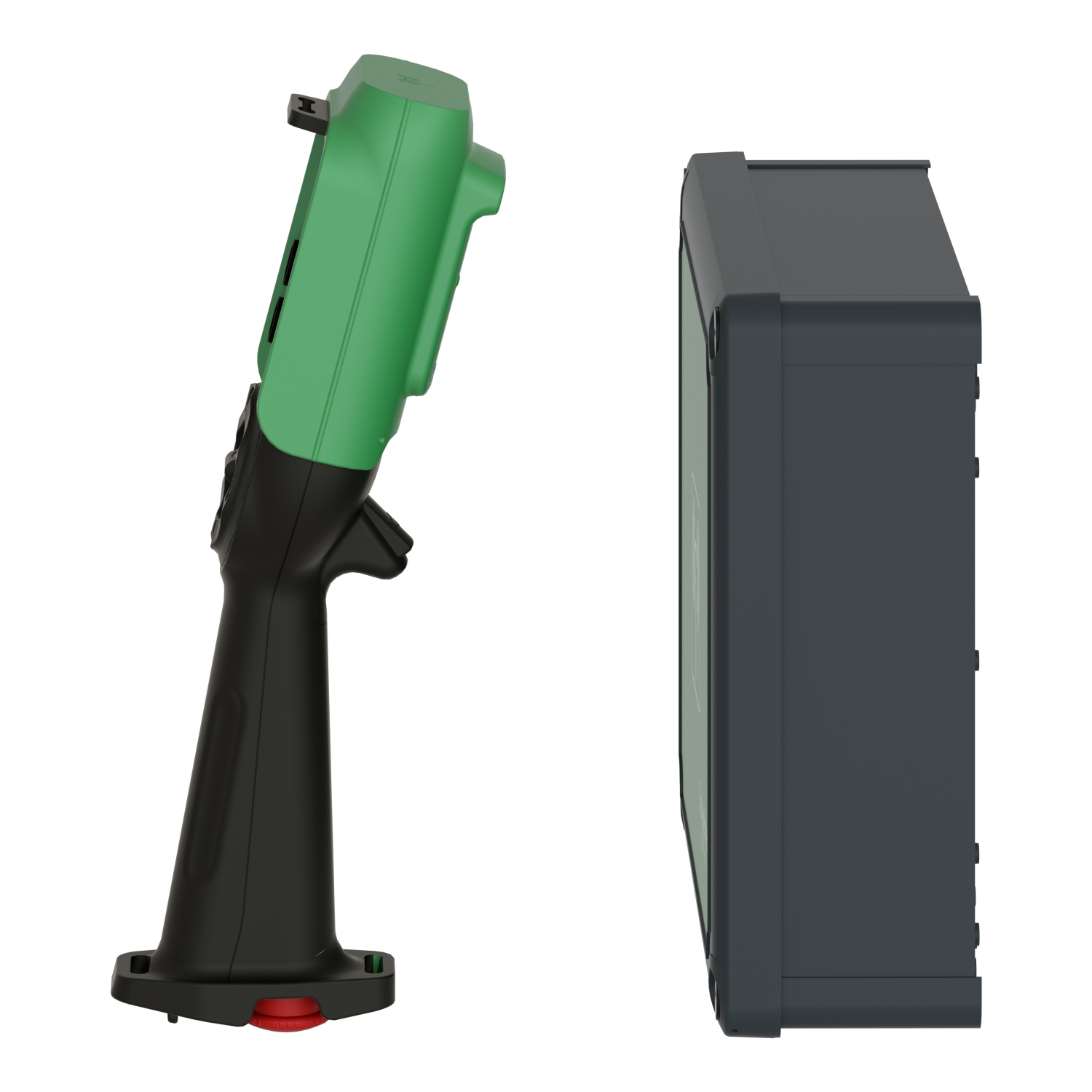

This wireless control station emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It has motion function and limiter protection function. Its schematic is clearly distinguishable thanks to clear colors It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant, making it ideal for operation in harsh environments The product is composed of a remote ZART8D and a base ZARB18W High performance International standards & certifications ( Marine certification, IP66 IP67 IP69 IP69K, Type 4X)
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XARS |
| Control station application | limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1, limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061, motion function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1, motion function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061, emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to ISO 13849-1, emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to IEC 62061, stop function: SIL 2 maximum (can reach PL d/category 3) conforming to ISO 13849-1, stop function: SIL 2 maximum (can reach PL d/category 3) conforming to IEC 62061 |
| Product specific application | material handling, hoisting applications |
| Number of channels | 50 |
| Control station type | wireless |
| Product or component type | control station |
| Range of product | Harmony eXLhoist |
| Complementary | |
| Kit composition | remote control, base station |
| Cable entry | cable gland |
| Operating distance | 100 m in free air |
| Communication network type | wireless: bluetooth low energy |
| Transmission frequency | 2.4 GHz |
| Environment | |
| Relative humidity | 0-95 % at -20-45 °C storage |
| Standards | ARIB STD-T81 radio, RSS 210 issue 8 radio, RSS GEN issue 3 radio, FCC part 15 radio, ETSI EN 300 328 radio, ETSI EN 300 440-2 radio, ETSI EN 301 489-17 radio, ETSI EN 301 489-3 radio, ETSI EN 301 489-1 radio, IEC 60204-32 hoisting applications, ISO 13850 safety, IEC 61508 safety, IEC 62061 safety, ISO 13849-1 safety, IEC 60204-1 safety |
| Radio agreement | ICASA, FCC, ARIB, ANATEL, SRRC, RSS |
| Electromagnetic compatibility | resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3, resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2, resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2 |
| Product certifications | EAC, KC, JIS, C-Tick, CSA, UL, CE |
Only registered users can write reviews
Related products

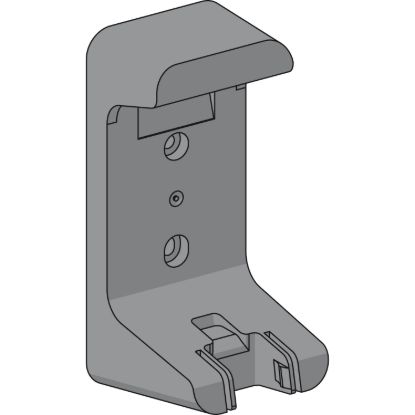

Holder for remote device, Harmony eXLhoist, standard
