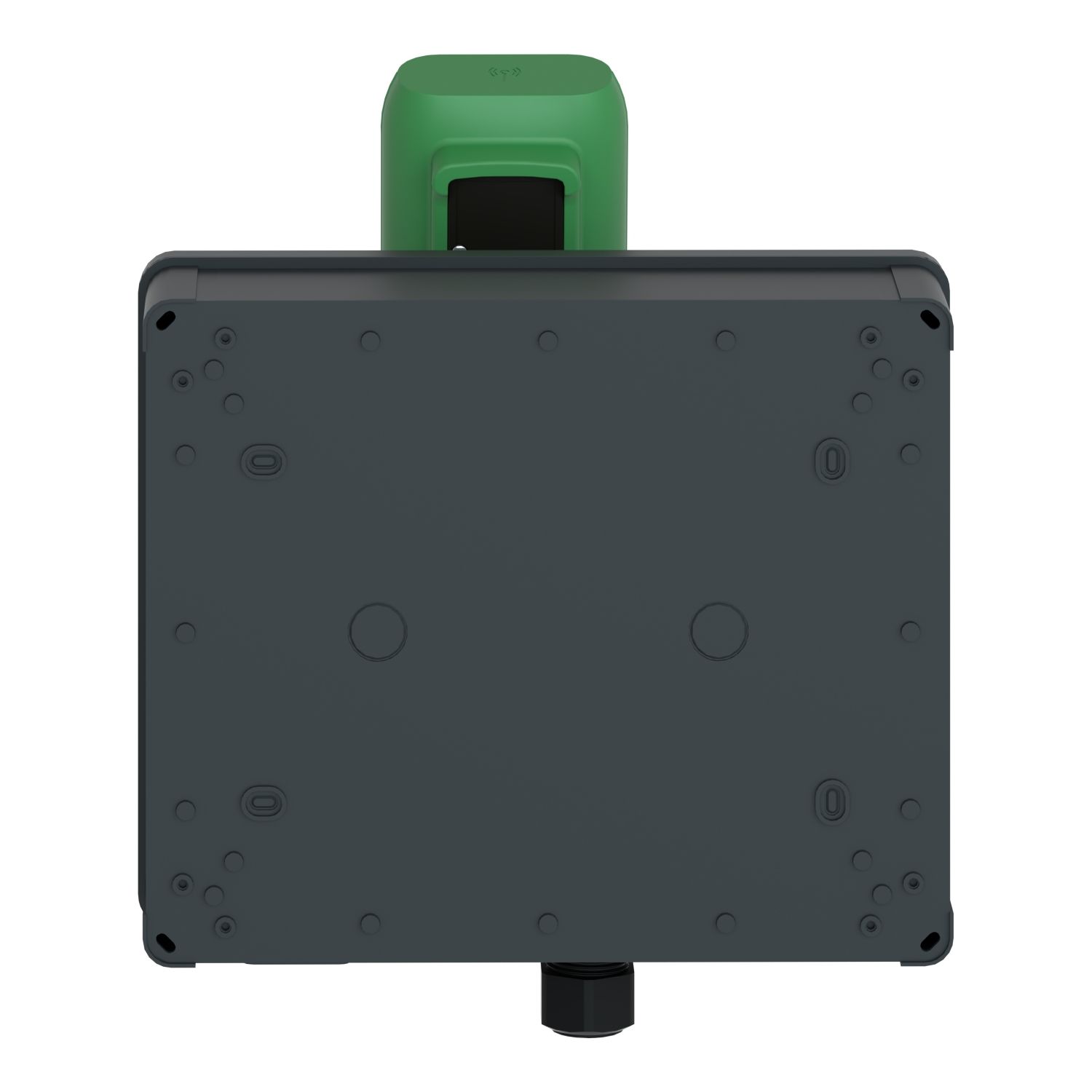

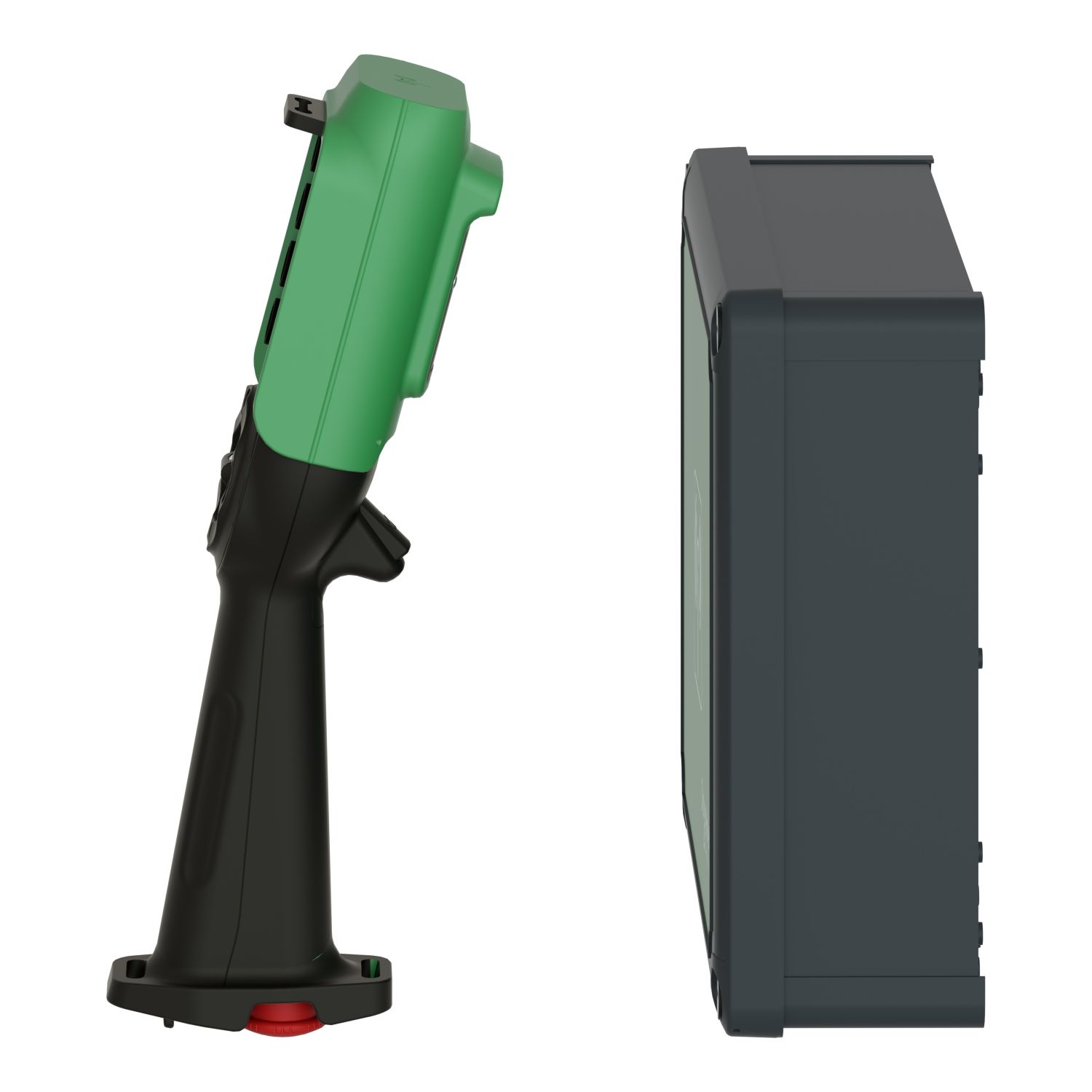

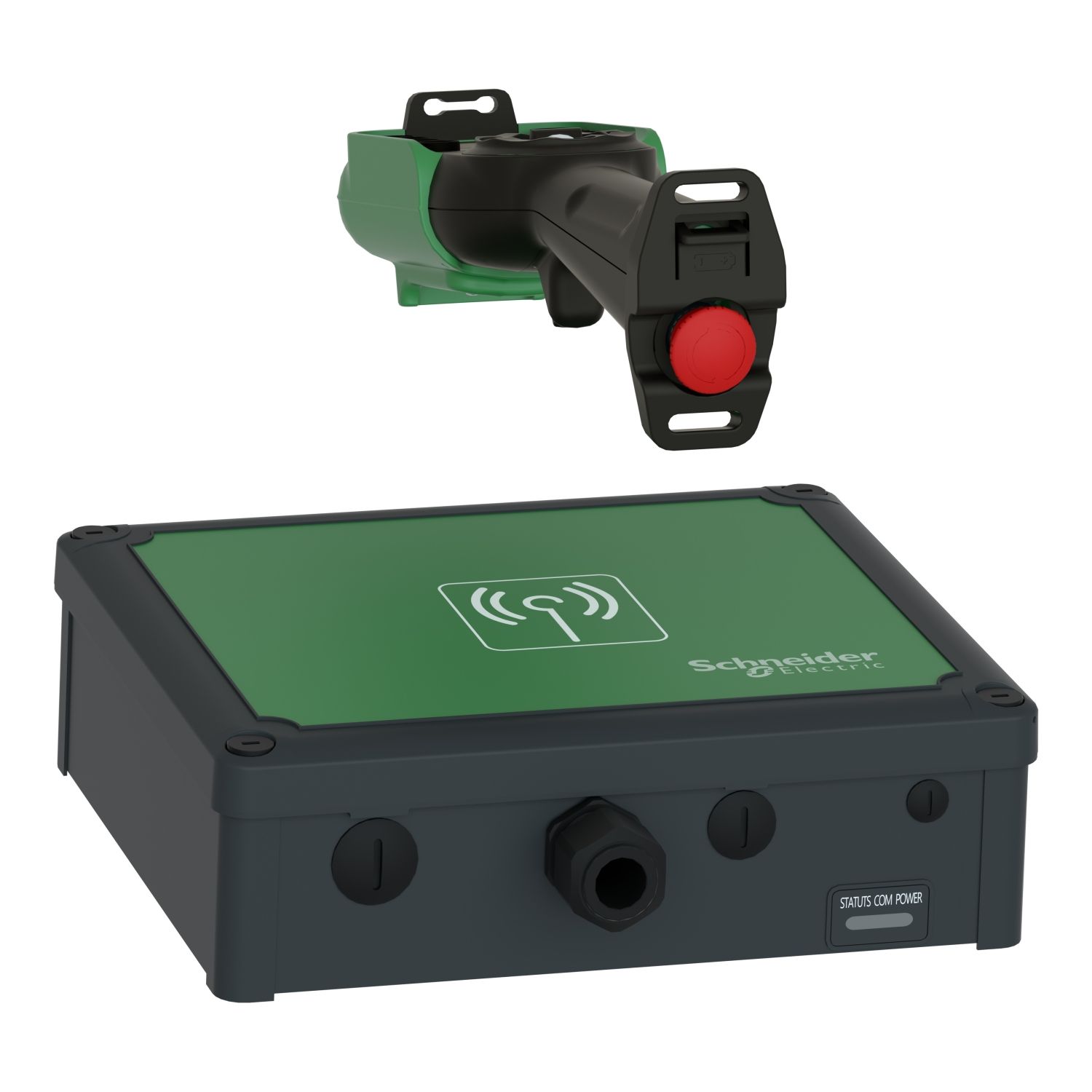

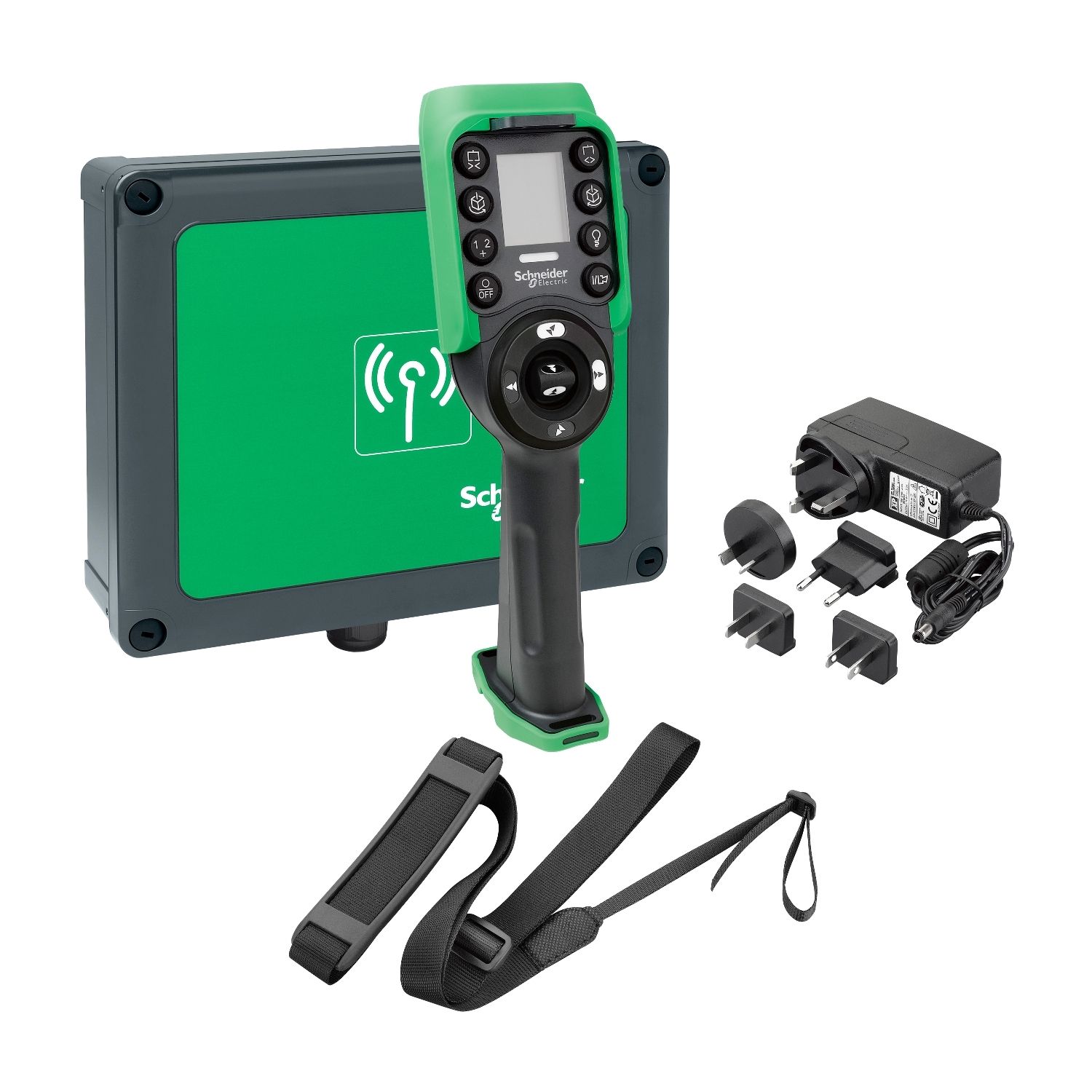

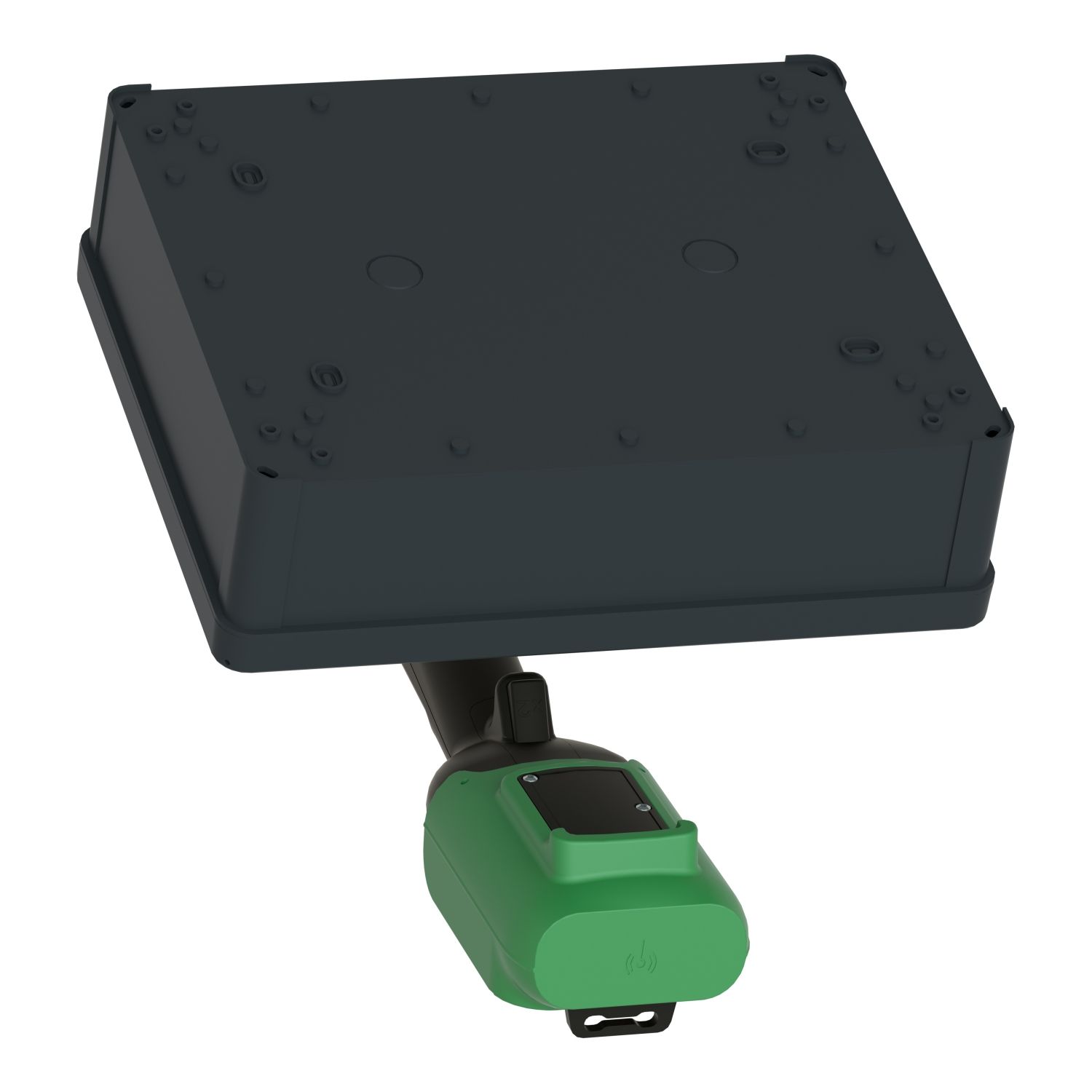

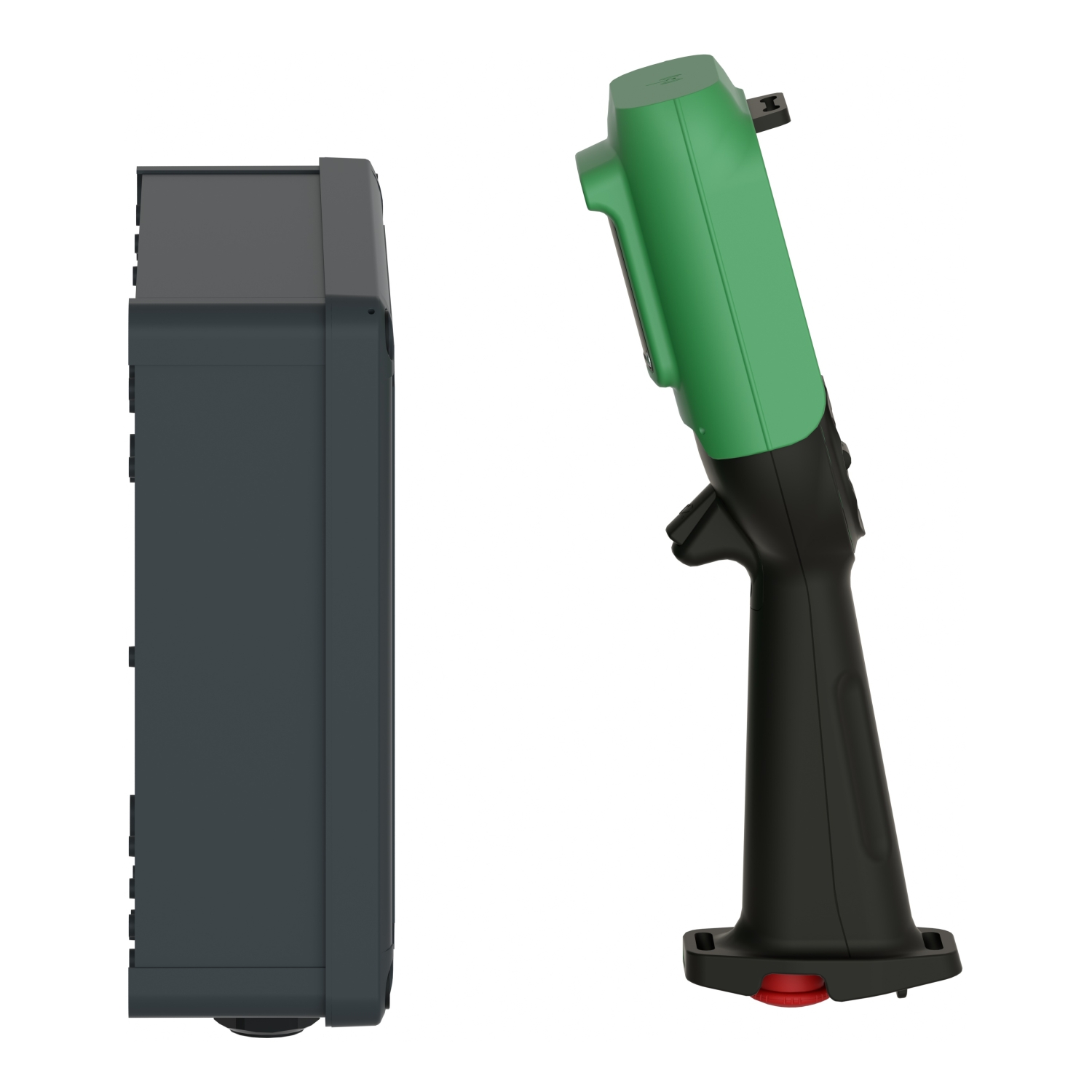

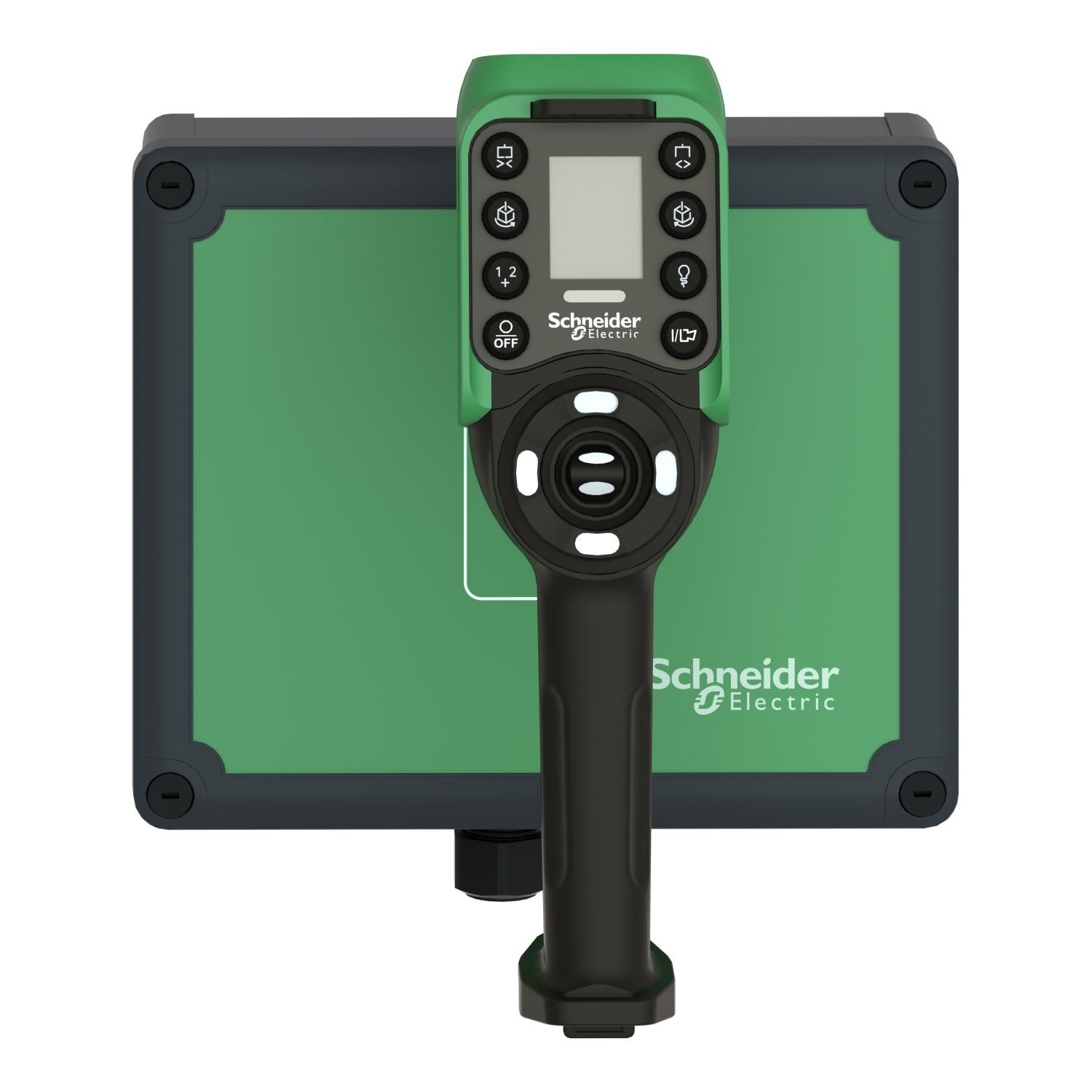

This starting kit is part of the range wireless remote control system Harmony eXLhoist. It comprises remote control system (ZART12D + ZARB18W), accessories (ZARC01 + ZARC02), USB/RJ45 (TCSMCNAM3M002P) cable and configuration software. Its innovative design and the button positions on the remote device allow intuitive and easy one-hand operation. It weighs 2.8kg. It is designed for material handling and hoisting applications. The base station and the wireless control device are UL/CSA, CE, EAC certified.
Products specifications
| Attribute name | Attribute value |
|---|---|
| Main | |
| Device short name | XARS |
| Number of channels | 50 |
| Control station type | wireless |
| Range of product | Harmony eXLhoist |
| Control station application | limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1, limiter protection function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061, motion function: SIL 1 maximum (can reach PL c/category 1) conforming to ISO 13849-1, motion function: SIL 1 maximum (can reach PL c/category 1) conforming to IEC 62061, emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to ISO 13849-1, emergency stop function: SIL 3 maximum (can reach PL e/category 4) conforming to IEC 62061, stop function: SIL 2 maximum (can reach PL d/category 3) conforming to ISO 13849-1, stop function: SIL 2 maximum (can reach PL d/category 3) conforming to IEC 62061 |
| Product specific application | material handling, hoisting applications |
| Product or component type | control station |
| Complementary | |
| Operating distance | 100 m in free air |
| Communication network type | wireless: bluetooth low energy |
| Transmission frequency | 2.4 GHz |
| Kit composition | shoulder belt, remote control, cable, configuration software, base station |
| Cable entry | cable gland |
| Environment | |
| Relative humidity | 0-95 % at -20-45 °C storage |
| Radio agreement | ICASA, FCC, ANATEL, RSS, SRRC, ARIB |
| Electromagnetic compatibility | resistance to radiated electromagnetic fields - test level: 10 V/m class B conforming to IEC 61000-4-3, resistance to electrostatic discharge - test level: 8 kV class B (in air) conforming to IEC 61000-4-2, resistance to electrostatic discharge - test level: 4 kV class B (on contact) conforming to IEC 61000-4-2 |
| Product certifications | EAC, KC, JIS, C-Tick, CSA, UL, CE |
| Standards | ARIB STD-T81 radio, RSS 210 issue 8 radio, RSS GEN issue 3 radio, FCC part 15 radio, ETSI EN 300 328 radio, ETSI EN 300 440-2 radio, ETSI EN 301 489-17 radio, ETSI EN 301 489-3 radio, ETSI EN 301 489-1 radio, IEC 60204-32 hoisting applications, ISO 13850 safety, IEC 61508 safety, IEC 62061 safety, ISO 13849-1 safety, IEC 60204-1 safety |
